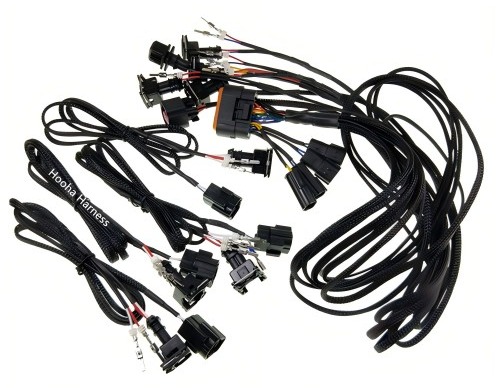

TE AMP Junior Power Timer Connector, Custom Wire Harness

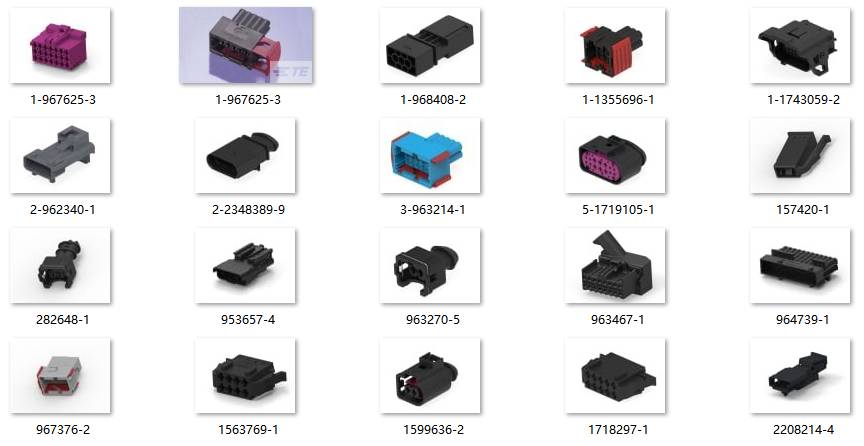

AMP Junior Power Timer Connector
The AMP Junior Power Timer Connector is a compact, modular electrical connector designed for precise power timing in residential, commercial, and industrial systems. Engineered for quick, tool-free installation, its snap-fit terminals and polarization ensure secure, error-proof connections. Built to withstand vibrations, moisture, and corrosion, it meets safety standards like UL certification. Ideal for automating lighting, HVAC, irrigation, or machinery, it simplifies scheduling while enhancing energy efficiency. Its durable, space-saving design suits high-demand environments, offering reliability and versatility for streamlined control solutions.
Features
- Compact Design: As part of the "Junior" series, it offers a space-saving profile while maintaining robust performance, suitable for environments with limited space.
- Modular Construction: Features snap-fit terminals and a durable housing, ensuring quick assembly and secure connections resistant to vibration, moisture, and corrosion.
- Safety & Reliability: Includes polarization to prevent incorrect installation and meets industry standards (e.g., UL-rated) for electrical safety and arc suppression.
- Versatility: Compatible with various low-voltage and line-voltage applications, supporting both indoor and outdoor use.
Connector Specifications Chart
Sort by the number of position.
| P/N | Number of Positions | Product Description | Color | Type | Pitch | Sealable | Contact Current Rating (Max) | Operating Temp Range | Connection |
| 1-1355668-2 | 2 | JPT EDS BUGH, ASSY2P | Black | Housing for Female Terminals | 6.1 mm | Yes | 30 A | -40 – 130 °C | Wire-to-Board, Wire-to-Wire |
| 1-2005388-2 | 2 | JPT SLD 2P PLUG ASSY-2 | Black | Housing for Female Terminals | 5 mm | Yes | -40 – 130 °C | Wire-to-Board, Wire-to-Device | |
| 1-85202-3 | 2 | JPT 2P ASSY D/GRAY CODE B | Gray | Housing for Female Terminals | 5 mm | Yes | -40 – 130 °C | Wire-to-Wire | |
| 1-963210-1 | 2 | 2P JUN-POW-TIM HOUSING ASSY | Black | Housing for Female Terminals | 5 mm | No | 30 A | -40 – 130 °C | Wire-to-Wire |
| 1-967239-1 | 2 | JPT GEH KPL GEH 2P | Black | Housing for Female Terminals | 5 mm | No | 30 A | -40 – 85 °C | Wire-to-Wire |
| 1-967412-2 | 2 | JPT GEH ASSY 2P | Black | Housing for Female Terminals | 5 mm | Yes | 30 A | -40 – 130 °C | Wire-to-Wire |
| 1355390-1 | 2 | JUN-POW-TIM GEH 2P | Black | Housing for Female Terminals | 5 mm | No | 30 A | -40 – 110 °C | Wire-to-Wire |
| 1355390-6 | 2 | 2 POS.JPT HSG | White | Housing for Female Terminals | 5 mm | No | 30 A | -40 – 110 °C | Wire-to-Wire |
| 1418893-1 | 2 | 2POS.JPT HSG. ASSY | Black | Housing for Female Terminals | 6 mm | Yes | 30 A | -40 – 130 °C | Wire-to-Board, Wire-to-Wire |
| 144473-5 | 2 | CET 2 POS ASSY JPT | Green | Housing for Female Terminals | 5 mm | Yes | 3 A | -40 – 100 °C | Wire-to-Wire |
| 144478-1 | 2 | CET 2 POS ASSY FOR JPT | Black | Housing for Female Terminals | 5 mm | Yes | 3 A | -40 – 100 °C | Wire-to-Wire |
| 1703727-1 | 2 | 2POS,JPT,HOUSING,ASSY,BK | Black | Housing for Female Terminals | 5 mm | Yes | 30 A | -40 – 130 °C | Wire-to-Wire |
| 1813029-1 | 2 | 2POS. JPT HOUSING ASS'Y,BLACK | Black | Housing for Female Terminals | 4 mm | Yes | 14 A | Wire-to-Board, Wire-to-Device, Wire-to-Wire | |
| 1897702-2 | 2 | JPT 2P PLUG ASS'Y | Black | Housing for Female Terminals | 5 mm | Yes | |||
| 2-1355668-2 | 2 | JPT EDS BUGH,ASSY2P | Gray | Housing for Female Terminals | 6.1 mm | Yes | 30 A | -40 – 130 °C | Wire-to-Board, Wire-to-Wire |
| 2-963210-1 | 2 | 2P J-P-T GEH KOMPL | Gray | Housing for Female Terminals | 5 mm | No | 30 A | -40 – 130 °C | Wire-to-Wire |
| 2-963289-1 | 2 | 2P J-P-T GEH KOMPL | Gray | Housing for Female Terminals | 5 mm | Yes | Wire-to-Wire | ||
| 2-967239-1 | 2 | JPT GEH KPL 2P | Gray | Housing for Female Terminals | 5 mm | No | 30 A | -40 – 85 °C | Wire-to-Wire |
| 2005388-2 | 2 | JPT SLD 2P PLUG ASSY-1 | Black | Housing for Female Terminals | 5 mm | Yes | -40 – 120 °C | Wire-to-Board, Wire-to-Device | |
| 2005388-3 | 2 | JPT SLD 2P PLUG ASSY-1 GRY | Gray | Housing for Female Terminals | 5 mm | Yes | -40 – 120 °C | Wire-to-Board, Wire-to-Device | |
| 2005388-6 | 2 | JPT SLD 2P PLUG ASSY-1S BLK | Black | Housing for Female Terminals | 5 mm | Yes | -40 – 130 °C | Wire-to-Board, Wire-to-Device | |
| 2209441-1 | 2 | 2W SPLASH PROOF CONN. W.S.L. JPT | Black | Housing for Female Terminals | 5 mm | Yes | 20 A | -30 – 125 °C | Wire-to-Wire |
| 282762-1 | 2 | JPT SPLASH-PROOF FEM.CONN2 POS | Black | Housing for Female Terminals | 5 mm | Yes | 20 A | -30 – 125 °C | Wire-to-Board, Wire-to-Device |
| 282762-2 | 2 | JPT SPLASH-PROOF FEM.CONN2 POS | Gray | Housing for Female Terminals | 5 mm | Yes | 20 A | -30 – 125 °C | Wire-to-Board, Wire-to-Device |
| 282762-5 | 2 | JPT SPLASH-PROOF FEM.CONN2 POS | Blue | Housing for Female Terminals | 5 mm | Yes | 20 A | -30 – 125 °C | Wire-to-Board, Wire-to-Device |
| 282762-8 | 2 | JPT SPLASH-PROOF FEM.CONN2 POS | Red | Housing for Female Terminals | 5 mm | Yes | -30 – 125 °C | Wire-to-Wire | |
| 3-963228-1 | 2 | 2P S-P-T GEH KOMPL | Blue | Housing for Female Terminals | 7.6 mm | Yes | Wire-to-Wire | ||
| 3-963289-1 | 2 | 2P J-P-T GEH KOMPL | Blue | Housing for Female Terminals | 5 mm | Yes | Wire-to-Wire | ||
| 347883-5 | 2 | 2 WAY JPT CONN ASSY BLACK | Black | Housing for Female Terminals | 5 mm | Yes | 7.5 A | -40 – 105 °C | Wire-to-Wire |
| 368354-1 | 2 | JPT 2P ASSY FOR CLIP | Black | Housing for Female Terminals | 5 mm | Yes | 30 A | -40 – 130 °C | Wire-to-Wire |
| 368354-5 | 2 | JPT 2P ASSY FOR CLIP GRAY | Dark Gray | Housing for Female Terminals | 5 mm | Yes | 30 A | -40 – 130 °C | Wire-to-Wire |
| 4-963210-1 | 2 | 2P J-P-T GEH KOMPL | Brown | Housing for Female Terminals | 5 mm | No | 30 A | -40 – 130 °C | Wire-to-Wire |
| 4-963228-1 | 2 | 2P S-P-T GEH KOMPL | Brown | Housing for Female Terminals | 7.6 mm | Yes | Wire-to-Wire | ||
| 4-963289-1 | 2 | 2P J-P-T GEH KOMPL | Brown | Housing for Female Terminals | 5 mm | Yes | Wire-to-Wire | ||
| 444071-1 | 2 | ASSY 2P JP TIMER | Black | Housing for Female Terminals | 5.6 mm | Yes | -40 – 130 °C | Wire-to-Board, Wire-to-Device | |
| 444079-1 | 2 | HSG ASSY JR POWER TIMER 2P | Black | Housing for Female Terminals | 5 mm | Yes | -40 – 130 °C | Wire-to-Board, Wire-to-Device | |
| 444241-1 | 2 | ASS'Y 2 POSN JPT RE | Black | Housing for Female Terminals | 7.7 mm | Yes | -40 – 80 °C | Wire-to-Wire | |
| 444245-1 | 2 | ASS'Y 2 POSN JPT TA | Black | Housing for Male Terminals | 7.7 mm | Yes | -40 – 80 °C | Wire-to-Wire | |
| 444496-1 | 2 | HSG ASS'Y 2 POSN JR POWER | Black | Housing for Female Terminals | 5 mm | Yes | -40 – 130 °C | ||
| 444496-7 | 2 | HOUSING ASSY 2P JPT | Yellow | Housing for Female Terminals | 5 mm | Yes | -40 – 130 °C | ||
| 493989-1 | 2 | HSG, 2 POSN. JPT ASSY | Black | Housing for Female Terminals | 6 mm | Yes | -40 – 130 °C | Wire-to-Board, Wire-to-Device | |
| 5-963210-1 | 2 | 2P J-P-T GEH KOMPL | White | Housing for Female Terminals | 5 mm | No | 30 A | -40 – 130 °C | Wire-to-Wire |
| 85202-1 | 2 | JR POWER TIMER 2P ASSY | Black | Housing for Female Terminals | 5 mm | Yes | -40 – 130 °C | Wire-to-Wire | |
| 85202-5 | 2 | JR POWER TIMER 2P ASSY(D-GRAY) | Gray | Housing for Female Terminals | 5 mm | Yes | -40 – 130 °C | Wire-to-Wire | |
| 881739-1 | 2 | ASS'Y JR P.TIMER 2W | Black | Housing for Female Terminals | 5.6 mm | Yes | -40 – 130 °C | Wire-to-Board, Wire-to-Device | |
| 936139-1 | 2 | JPT INJECTOR PLUG 2P ASSY | Gray | Housing for Female Terminals | 5 mm | Yes | Wire-to-Wire | ||
| 936567-2 | 2 | JPT 2P ASSY FOR LPI INJECTOR | Black | Housing for Female Terminals | 5 mm | Yes | -40 – 130 °C | Wire-to-Wire | |
| 963343-1 | 2 | J-P-T GEH KOMPL 2P | Natural | Housing for Female Terminals | 5 mm | Yes | 10 A | -40 – 100 °C | Wire-to-Board, Wire-to-Device |
| 963344-1 | 2 | J-P-T GEH KOMPL 2P | Brown | Housing for Female Terminals | 5 mm | Yes | 10 A | -40 – 105 °C | Wire-to-Board, Wire-to-Device |
| 964587-1 | 2 | JUN-POW TIM GEH 2P | Black | Housing for Female Terminals | 5 mm | No | -40 – 130 °C | Wire-to-Board, Wire-to-Device | |
| 1-2005390-2 | 3 | JPT SLD 3P PLUG ASSY-2 BLK | Black | Housing for Female Terminals | 5 mm | Yes | Wire-to-Wire | ||
| 1-368161-3 | 3 | JPT 3P ASSY FOR FUEL TPS GRY | Dark Gray | Housing for Female Terminals | 5 mm | Yes | Wire-to-Wire | ||
| 2005390-2 | 3 | JPT SLD 3P PLUG ASSY-1 BLK | Black | Housing for Female Terminals | 5 mm | Yes | -40 – 120 °C | Wire-to-Wire | |
| 2050994-1 | 3 | JPT 3POS SEALED PLUG ASSY | Black | Housing for Female Terminals | 6 mm | Yes | -40 – 130 °C | ||
| 282729-6 | 3 | 3P.JPT SPLASH PROOF FEMALE CON | Brown | Housing for Female Terminals | 5 mm | Yes | -30 – 125 °C | Wire-to-Wire | |
| 368000-1 | 3 | J-P-T 3P ASS'Y FOR INJECTOR | Black | Housing for Female Terminals | Yes | Wire-to-Wire | |||
| 368161-1 | 3 | JPT 3P FOR FUEL TPS ASS'Y | Black | Housing for Female Terminals | 5 mm | Yes | Wire-to-Wire | ||
| 368215-1 | 3 | J-P-T 3P ASSY FOR KNOCK SENSOR | Gray | Housing for Female Terminals | Yes | Wire-to-Wire | |||
| 368356-1 | 3 | JPT 3P ASSY FOR CLIP | Black | Housing for Female Terminals | 5 mm | Yes | Wire-to-Wire | ||
| 828748-2 | 3 | 3P JUN-POW-TIMERGH | Gray | Housing for Female Terminals | 5 mm | Yes | Wire-to-Wire | ||
| 85196-2 | 3 | J-P-T 3P ASSY "R" TYPE(GRAY) | Dark Gray | Housing for Female Terminals | 5 mm | Yes | 30 A | -40 – 130 °C | Wire-to-Wire |
| 85205-1 | 3 | JPT POWER TIMER 3P ASS'Y | Black | Housing for Female Terminals | 5 mm | Yes | -40 – 130 °C | Wire-to-Wire | |
| 881742-1 | 3 | ASS'Y JR P.TIMER 3W | Black | Housing for Female Terminals | 5 mm | Yes | -40 – 130 °C | Wire-to-Board, Wire-to-Device | |
| 1-929504-1 | 4 | 2X 2P JUN-POW-TIMGH | Natural | Housing for Female Terminals | 5 mm | No | -40 – 100 °C | Wire-to-Wire | |
| 1-963207-1 | 4 | 4P J-P-TIM GEH KPL | Black | Housing for Female Terminals | 5 mm | No | 10 A | -40 – 100 °C | Wire-to-Wire |
| 1-967059-1 | 4 | J-P-T GEH KOMPL 4P | Black | Housing for Female Terminals | 5 mm | No | 30 A | -40 – 120 °C | Wire-to-Wire |
| 1326490-3 | 4 | 4P JPT/MT3 PLUG W/LATCH,GRAY | Gray | Housing for Female Terminals | 5.5 mm, 8 mm | No | |||
| 1326490-5 | 4 | 4P JPT/MT3 PLUG W/LATCH,NATURAL | Natural | Housing for Female Terminals | 5.5 mm, 8 mm | No | |||
| 144475-3 | 4 | CET JPT 4 VRT P NE | Green | Housing for Female Terminals | 5 mm | Yes | -40 – 100 °C | Wire-to-Wire | |
| 144998-5 | 4 | 4P JPT CONNECTOR ASSY | White | Housing for Female Terminals | 5 mm | Yes | 10 A | -40 – 100 °C | Wire-to-Wire |
| 144998-6 | 4 | 4P JPT CONNECTOR ASSY | Green | Housing for Female Terminals | 5 mm | Yes | 10 A | -40 – 100 °C | Wire-to-Wire |
| 1452327-2 | 4 | JPT HSG ASSY 4P | Black | Housing for Female Terminals | 5.5 mm | Yes | 30 A | -40 – 130 °C | Wire-to-Wire |
| 1599632-1 | 4 | HOUSING ASSY 4 POSN 2,8 Mm REC JPT | Black | Housing for Female Terminals | 4 mm | Yes | -40 – 130 °C | Wire-to-Board, Wire-to-Device | |
| 185001-6 | 4 | 4P TAB JPT HOUSING | Green | Housing for Male Terminals | 5 mm | Yes | 10 A | -40 – 100 °C | Wire-to-Wire |
| 2-963207-1 | 4 | 4P J-P-TIM GEH KPL | Gray | Housing for Female Terminals | 5 mm | No | 10 A | -40 – 100 °C | Wire-to-Wire |
| 2-967059-1 | 4 | J-P-T GEH KOMPL 4P | Gray | Housing for Female Terminals | 5 mm | No | 30 A | -40 – 120 °C | Wire-to-Wire |
| 282764-1 | 4 | JPT SPLASH-PROOF FEM.CONN4 POS | Black | Housing for Male Terminals | 5 mm | Yes | 20 A | -30 – 125 °C | Wire-to-Board, Wire-to-Device |
| 282764-2 | 4 | JPT SPLASH-PROOF FEM.CONN4 POS | Gray | Housing for Male Terminals | 5 mm | Yes | -30 – 125 °C | Wire-to-Board, Wire-to-Device | |
| 282765-1 | 4 | JPT SPLASH-PROOF FEM.CONN4 POS | Gray | Housing for Male Terminals | 5 mm | Yes | -30 – 125 °C | Wire-to-Board, Wire-to-Device | |
| 284677-1 | 4 | HOUSING 4 W FOR JPT CONTACT - | Natural | Housing for Female Terminals | 5 mm | No | 20 A | -30 – 105 °C | Wire-to-Board |
| 284677-2 | 4 | HOUSING 4 W FOR JPT CONTACT - | Black | Housing for Female Terminals | 5 mm | No | 20 A | -30 – 105 °C | Wire-to-Board, Wire-to-Wire |
| 368162-1 | 4 | JPT 4P ASSY FOR MAP SENSOR ORA | Black | Housing for Female Terminals | 5 mm | Yes | Wire-to-Wire | ||
| 368162-2 | 4 | JPT 4P ASSY FOR MAP SENSOR BLU | Black | Housing for Female Terminals | 5 mm | Yes | Wire-to-Wire | ||
| 5-967059-1 | 4 | J-P-T GEH KOMPL 4P | Brown | Housing for Female Terminals | 5 mm | Yes | -40 – 120 °C | Wire-to-Wire | |
| 5-967059-2 | 4 | JUN-POW-TIM HOUSING ASSY 4POS | Green | Housing for Female Terminals | 5 mm | Yes | -40 – 120 °C | Wire-to-Wire | |
| 638245-1 | 4 | RECEPTACLE ASSY,4P SEALED,JPT | Black | Housing for Female Terminals | 6 mm | Yes | Wire-to-Wire | ||
| 638245-2 | 4 | Receptacle Assembly, 4 Position, Sealed, | Black | Housing for Female Terminals | 6 mm | Yes | Wire-to-Wire | ||
| 929504-1 | 4 | 2X 2P JUN POW TIMGH | Black | Housing for Female Terminals | 5 mm | No | -40 – 100 °C | Wire-to-Wire | |
| 185176-3 | 5 | 5W TAB JPT OVERMOLLD SEAL | Black | Housing for Male Terminals | 5 mm | Yes | 12 A | -55 – 105 °C | Wire-to-Wire |
| 444208-1 | 5 | ASSY 5 POSN JPT TAB | Black | Housing for Male Terminals | 5 mm | Yes | -40 – 80 °C | Wire-to-Wire | |
| 953310-2 | 5 | 5W JPT/SWS CET CON | Brown | Housing for Female Terminals | 5 mm | Yes | 16 A | -40 – 100 °C | Wire-to-Wire |
| 1-929504-2 | 6 | 2X 3P JUN-POW-TIMGH | Natural | Housing for Female Terminals | 5 mm | No | -40 – 100 °C | Wire-to-Wire | |
| 1-963212-1 | 6 | 6P J-P-T GEH KOMPL | Black | Housing for Female Terminals | 5 mm | Yes | 30 A | -40 – 80 °C | Wire-to-Wire |
| 1-965640-1 | 6 | JUN-POW-TIM GEH 6P | Blue | Housing for Female Terminals | 5 mm | No | -30 – 130 °C | Wire-to-Wire | |
| 1-965640-2 | 6 | JUN-POW-TIM GEH 6P | Brown | Housing for Female Terminals | 5 mm | No | -30 – 130 °C | Wire-to-Wire | |
| 1-965640-3 | 6 | JUN-POW-TIM GEH 6P | Gray | Housing for Female Terminals | 5 mm | No | -30 – 130 °C | Wire-to-Wire | |
| 1-965640-4 | 6 | JUN-POW-TIM GEH 6P | Housing for Female Terminals | 5 mm | No | -30 – 130 °C | Wire-to-Wire | ||
| 1-965640-5 | 6 | JUN-POW-TIM GEH 6P | Green | Housing for Female Terminals | 5 mm | No | -30 – 130 °C | Wire-to-Wire | |
| 1-965640-6 | 6 | JUN-POW-TIM GEH 6P | Yellow | Housing for Female Terminals | 5 mm | No | -30 – 130 °C | Wire-to-Wire | |
| 1-965640-7 | 6 | JUNIOR POWER TIMER HSG., 6POS. | Red | Housing for Female Terminals | 5 mm | No | -30 – 130 °C | Wire-to-Wire | |
| 1-967241-1 | 6 | J-P-T HOUSING ASSY 6P | Black | Housing for Female Terminals | 5 mm | No | 30 A | Wire-to-Board, Wire-to-Wire | |
| 1-967332-2 | 6 | JPT GEH ASSY 6P | Black | Housing for Female Terminals | 5 mm | Yes | 30 A | -40 – 130 °C | Wire-to-Board, Wire-to-Device, Wire-to-Wire |
| 1452327-1 | 6 | JPT HSG ASSY 6P | Black | Housing for Female Terminals | 5.5 mm | Yes | 30 A | -40 – 130 °C | Wire-to-Wire |
| 1480957-2 | 6 | HOUSING 6 POSN JPT REC | Natural | Housing for Female Terminals | 5 mm | No | -30 – 85 °C | Wire-to-Board, Wire-to-Device | |
| 1718049-1 | 6 | 6 POS.JPT HSG | Black | Housing for Female Terminals | 5 mm | No | 30 A | -40 – 130 °C | Wire-to-Board, Wire-to-Wire |
| 1718052-1 | 6 | 6 POS.JPT HSG | Black | Housing for Female Terminals | 5 mm | No | 30 A | -40 – 130 °C | Wire-to-Wire |
| 2-963212-1 | 6 | 6P J-P-T GEH KOMPL | Gray | Housing for Female Terminals | 5 mm | Yes | 30 A | -40 – 80 °C | Wire-to-Wire |
| 5-967241-1 | 6 | 6POS. JPT HSG.,ASS'Y | White | Housing for Female Terminals | 5 mm | No | 30 A | Wire-to-Board, Wire-to-Wire | |
| 929504-2 | 6 | 2X 3P JUN POW TIMGH | Black | Housing for Female Terminals | 5 mm | No | -40 – 100 °C | Wire-to-Wire | |
| 929505-2 | 6 | FF FLA-STE-GEG2X3P | Black | Housing for Male Terminals | 5 mm | No | 30 A | -40 – 130 °C | Wire-to-Wire |
| 936142-1 | 6 | JPT SEALED PLUG 6P ASSY(UEGO) | Black | Housing for Female Terminals | 6 mm | Yes | Wire-to-Wire | ||
| 282768-2 | 7 | JPT SPLASH-PROOF FEM.CONN7 POS | Gray | Housing for Male Terminals | 5 mm | Yes | -30 – 125 °C | Wire-to-Board, Wire-to-Device | |
| 828918-2 | 7 | 7P JUN-POW-TIM GEH | Black | Housing for Female Terminals | 5 mm | Yes | Wire-to-Board, Wire-to-Device | ||
| 828919-3 | 7 | 7P JUN-POW-TIM HOUSING | Brown | Housing for Female Terminals | 5 mm | Yes | -40 – 100 °C | Wire-to-Board, Wire-to-Device | |
| 828919-4 | 7 | 7P JUN-POW-TIM GEH | Blue | Housing for Female Terminals | 5 mm | Yes | -40 – 100 °C | Wire-to-Board, Wire-to-Device | |
| 828919-5 | 7 | 7P JUN-POW-TIM GEH | Green | Housing for Female Terminals | 5 mm | Yes | -40 – 100 °C | Wire-to-Board, Wire-to-Device | |
| 144172-1 | 8 | MODULE 8 POS ASSY | Black | Housing for Female Terminals | 6 mm | No | 6 A | -40 – 85 °C | Wire-to-Wire |
| 144172-2 | 8 | MODULE 8 POS ASSY | Black | Housing for Female Terminals | 6 mm | No | 6 A | -40 – 85 °C | Wire-to-Wire |
| 144172-4 | 8 | MODULE 8 POS ASSY | Natural | Housing for Female Terminals | 6 mm | No | 6 A | -40 – 85 °C | Wire-to-Wire |
| 1897119-4 | 8 | 8P JUNIOR-TIMER HSG,PART D1, ASS'Y | Brown | Housing for Female Terminals | 6 mm | No | Wire-to-Board | ||
| 1897122-3 | 8 | 8P JUNIOR-TIMER HSG,PART D2, ASS'Y | Gray | Housing for Female Terminals | 6 mm | No | Wire-to-Board | ||
| 929504-3 | 8 | 2X 4P JUN POW TIMGH | Black | Housing for Female Terminals | 5 mm | No | -40 – 100 °C | Wire-to-Wire | |
| 929505-3 | 8 | FF FLA-STE-GEH2X4P | Black | Housing for Male Terminals | 5 mm | No | 30 A | -40 – 130 °C | Wire-to-Wire |
| 1-967621-1 | 9 | JUN-POW-TIM GEH 9P | Yellow | Housing for Female Terminals | 5 mm | No | Wire-to-Wire | ||
| 1-967621-2 | 9 | JUN-POW-TIM GEH 9P | Blue | Housing for Female Terminals | 5 mm | No | Wire-to-Wire | ||
| 1-967621-3 | 9 | JUN-POW-TIM GEH 9P | Brown | Housing for Female Terminals | 5 mm | No | Wire-to-Wire | ||
| 1-967621-4 | 9 | JUN-POW-TIM GEH 9P | Gray | Housing for Female Terminals | 5 mm | No | Wire-to-Wire | ||
| 1-967621-6 | 9 | JUN-POW-TIM GEH 9P | Green | Housing for Female Terminals | 5 mm | No | Wire-to-Wire | ||
| 1-968307-2 | 9 | JPT GEH KOMPL 9P | Black | Housing for Female Terminals | 5 mm | No | 30 A | -40 – 120 °C | Wire-to-Board |
| 2-968307-2 | 9 | JPT GEH KOMPL 9P | Natural | Housing for Female Terminals | 5 mm | No | 30 A | -40 – 120 °C | Wire-to-Board |
| 1-929504-4 | 10 | 2X 5P JUN-POW-TIMGH | Natural | Housing for Female Terminals | 5 mm | No | -40 – 130 °C | Wire-to-Wire | |
| 1-963214-1 | 10 | 10P J-P-T GEH KOMPL | Black | Housing for Female Terminals | 5 mm | Yes | 30 A | -40 – 80 °C | Wire-to-Wire |
| 1-967240-1 | 10 | JPT HOUSING ASSY 10P | Black | Housing for Female Terminals | 5 mm | No | 30 A | -40 – 85 °C | Wire-to-Board |
| 2-963214-1 | 10 | 10P J-P-T GEH KOMPL | Gray | Housing for Female Terminals | 5 mm | Yes | 30 A | -40 – 80 °C | Wire-to-Wire |
| 493571-1 | 10 | HSG. ASSY 10P JPT TAB | Black | Housing for Male Terminals | 6 mm | Yes | -40 – 130 °C | Wire-to-Board | |
| 493577-2 | 10 | ASSY 10 WAY JPT REC | Black | Housing for Female Terminals | 6 mm | Yes | 30 A | -40 – 130 °C | Wire-to-Wire |
| 929504-4 | 10 | 2X 5P JUN POW TIMGH | Black | Housing for Female Terminals | 5 mm | No | -40 – 100 °C | Wire-to-Wire | |
| 929505-4 | 10 | FF TAB HOUSING 2X5P | Black | Housing for Male Terminals | 5 mm | No | 30 A | -40 – 130 °C | Wire-to-Wire |
| 963690-1 | 10 | 10P JPT GEHAEUSE | Black | Housing for Female Terminals | 6 mm | No | 30 A | -40 – 130 °C | Wire-to-Board, Wire-to-Device, Wire-to-Wire |
| 1-967622-1 | 12 | JUN-POW-TIM-GEH 12P | Green | Housing for Female Terminals | 5 mm | No | Wire-to-Wire | ||
| 1-967622-2 | 12 | JUN-POW-TIM GEH 12P | Yellow | Housing for Female Terminals | 5 mm | No | Wire-to-Wire | ||
| 1-967622-3 | 12 | JUN-POW-TIM GEH 12P | Blue | Housing for Female Terminals | 5 mm | No | Wire-to-Wire | ||
| 1-967622-5 | 12 | JUN-POW-TIM GEH 12P | Gray | Housing for Female Terminals | 5 mm | No | Wire-to-Wire | ||
| 1-967622-6 | 12 | JUN-POW-TIM GEH 12P | Purple | Housing for Female Terminals | 5 mm | No | Wire-to-Wire | ||
| 1-929504-5 | 14 | 2X 7P JUN-POW-TIMGH | Natural | Housing for Female Terminals | 5 mm | No | -40 – 100 °C | Wire-to-Wire | |
| 1355206-1 | 14 | JUN-POW-TIM GEH 14P | Black | Housing for Female Terminals | 5 mm | No | 30 A | -30 – 100 °C | Wire-to-Wire |
| 1719105-1 | 14 | 14POS,JPT,REC.HSG,BK | Violet | Housing for Female Terminals | 4.5 mm, 6 mm | Yes | 10 A, 30 A | -40 – 130 °C | Wire-to-Wire |
| 1719105-2 | 14 | 14POS,JPT,REC. HSG | Blue | Housing for Female Terminals | 4.5 mm, 6 mm | Yes | 10 A, 30 A | -40 – 130 °C | Wire-to-Wire |
| 929504-5 | 14 | 2X 7P JUN POW TIMGH | Black | Housing for Female Terminals | 5 mm | No | -40 – 100 °C | Wire-to-Wire | |
| 929505-5 | 14 | FF TAB HOUSING 2X7P | Black | Housing for Male Terminals | 5 mm | No | 30 A | -40 – 130 °C | Wire-to-Wire |
| 1-967623-1 | 15 | JUN-POW-TIM-GEH 15P | Housing for Female Terminals | 5 mm | No | 30 A | -30 – 100 °C | Wire-to-Board, Wire-to-Wire | |
| 1-967623-2 | 15 | JUN-POW-TIM GEH 15P | Green | Housing for Female Terminals | 5 mm | No | 30 A | -30 – 100 °C | Wire-to-Board, Wire-to-Wire |
| 1-967623-3 | 15 | JUN-POW-TIM GEH 15P | Yellow | Housing for Female Terminals | 5 mm | No | 30 A | -30 – 100 °C | Wire-to-Board, Wire-to-Wire |
| 1-967623-4 | 15 | JUN-POW-TIM GEH 15P | Blue | Housing for Female Terminals | 5 mm | No | 30 A | -30 – 100 °C | Wire-to-Board, Wire-to-Wire |
| 1-967623-5 | 15 | JUN-POW-TIM GEH 15P | Brown | Housing for Female Terminals | 5 mm | No | Wire-to-Wire | ||
| 1-967623-6 | 15 | JUN-POW-TIM GEH 15P | Gray | Housing for Female Terminals | 5 mm | No | 30 A | -30 – 100 °C | Wire-to-Board, Wire-to-Wire |
| 282311-1 | 15 | JPT CONN. SEALED 15 PO | Black | Housing for Female Terminals | 5 mm | Yes | 14 A | -40 – 125 °C | Wire-to-Wire |
| 1-963217-1 | 16 | 16 J-P-T GEH KOMPL | Black | Housing for Female Terminals | 5 mm | Yes | -40 – 125 °C | Wire-to-Wire | |
| 1-967242-1 | 16 | JPT GEH KPL 16P | Black | Housing for Female Terminals | 5 mm | No | 30 A | -40 – 130 °C | Wire-to-Board |
| 1743354-2 | 16 | MT-II/JPT SLD 16P CAP HSG | Black | Housing for Male Terminals | 4 mm | Yes | Wire-to-Wire | ||
| 2-963217-1 | 16 | 16 J-P-T GEH KOMPL | Gray | Housing for Female Terminals | 5 mm | Yes | 30 A | -40 – 80 °C | Wire-to-Board |
| 3-963217-1 | 16 | 16 J-P-T GEH KOMPL | Blue | Housing for Female Terminals | 5 mm | Yes | 30 A | -40 – 80 °C | Wire-to-Wire |
| 4-963217-1 | 16 | 16 J-P-T GEH KOMPL | Brown | Housing for Female Terminals | 5 mm | Yes | Wire-to-Wire | ||
| 5-963217-1 | 16 | 16 J-P-T GEH KOMPL | White | Housing for Female Terminals | 5 mm | Yes | Wire-to-Wire | ||
| 964463-1 | 16 | JUN-POW-TIM GEH 16P | Gray | Housing for Female Terminals | 6 mm | No | |||
| 1241581-2 | 17 | JUN-POW-TIM GEH 17P | Red | Housing for Female Terminals | 5 mm | No | 30 A | -30 – 100 °C | Wire-to-Board, Wire-to-Wire |
| 1355204-2 | 17 | JUN-POW-TIM GEH 17P | Red | Housing for Female Terminals | 5 mm | No | 30 A | -30 – 100 °C | Wire-to-Board, Wire-to-Wire |
| 1-929504-6 | 18 | 2X 9P JUN-POW-TIMGH | Natural | Housing for Female Terminals | 5 mm | No | -40 – 100 °C | Wire-to-Wire | |
| 1-967624-1 | 18 | JUN-POW-TIM HOUSING 18POS | Gray | Housing for Female Terminals | 5 mm | No | 30 A | -30 – 100 °C | Wire-to-Board, Wire-to-Wire |
| 1-967624-2 | 18 | JUN-POW-TIM GEH 18P | Housing for Female Terminals | 5 mm | No | 30 A | -30 – 100 °C | Wire-to-Board, Wire-to-Wire | |
| 1-967624-3 | 18 | JUN-POW-TIM GEH 18P | Green | Housing for Female Terminals | 5 mm | No | 30 A | -30 – 100 °C | Wire-to-Board, Wire-to-Wire |
| 1-967624-4 | 18 | JUN-POW-TIM GEH 18P | Yellow | Housing for Female Terminals | 5 mm | No | 30 A | -30 – 100 °C | Wire-to-Board, Wire-to-Wire |
| 1-967624-5 | 18 | JUN-POW-TIM GEH 18P | Blue | Housing for Female Terminals | 5 mm | No | 30 A | -30 – 100 °C | Wire-to-Board, Wire-to-Wire |
| 1-967624-6 | 18 | JUN-POW-TIM HSG 18P | Brown | Housing for Female Terminals | 5 mm | No | 30 A | -30 – 100 °C | Wire-to-Board, Wire-to-Wire |
| 2-967624-1 | 18 | JUN-POW-TIM GEH 18P | White | Housing for Female Terminals | 5 mm | No | 30 A | -30 – 100 °C | Wire-to-Wire |
| 3-967624-1 | 18 | JUN-POW-TIM GEH 18P | Gray | Housing for Female Terminals | 5 mm | No | 30 A | -30 – 100 °C | Wire-to-Wire |
| 929504-6 | 18 | 2X 9P JUN POW TIMGH | Black | Housing for Female Terminals | 5 mm | No | -40 – 100 °C | Wire-to-Wire | |
| 929505-6 | 18 | FF FLA-STE-GEH2X9P | Black | Housing for Male Terminals | 5 mm | No | 30 A | -40 – 130 °C | Wire-to-Wire |
| 1-967625-1 | 21 | JR POW TIM 21P | Brown | Housing for Female Terminals | 5 mm | No | 30 A | -30 – 100 °C | Wire-to-Board, Wire-to-Wire |
| 1-967625-2 | 21 | JUN-POW-TIM GEH 21P | Gray | Housing for Female Terminals | 5 mm | No | 30 A | -30 – 100 °C | Wire-to-Board, Wire-to-Wire |
| 1-967625-4 | 21 | JUN-POW-TIM GEH 21P | Green | Housing for Female Terminals | 5 mm | No | 30 A | -30 – 100 °C | Wire-to-Board, Wire-to-Wire |
| 1-967625-5 | 21 | JUN-POW-TIM GEH 21P | Yellow | Housing for Female Terminals | 5 mm | No | 30 A | -30 – 100 °C | Wire-to-Board, Wire-to-Wire |
| 1-967625-6 | 21 | JUN-POW-TIM GEH 21P | Blue | Housing for Female Terminals | 5 mm | No | 30 A | -30 – 100 °C | Wire-to-Board, Wire-to-Wire |
| 1-929504-7 | 22 | 2X11P JUN-POW-TIMGH | Natural | Housing for Female Terminals | 5 mm | No | -40 – 130 °C | Wire-to-Wire | |
| 929504-7 | 22 | 2X11P JUN POW TIMGH | Black | Housing for Female Terminals | 5 mm | No | -40 – 100 °C | Wire-to-Wire | |
| 929505-7 | 22 | FF FA-STE-GEH2X11P | Black | Housing for Male Terminals | 5 mm | No | 30 A | -40 – 130 °C | Wire-to-Wire |
| 967558-1 | 24 | J-P-T GEH 24P,ASSY | Black | Housing for Female Terminals | 5 mm | No | 30 A | -40 – 130 °C | Wire-to-Wire |
| 281810-2 | 25 | SPLASH PROOF CONN 90 VERS | Black | Housing for Male Terminals | 5 mm | Yes | -30 – 105 °C | Wire-to-Board, Wire-to-Device | |
| 1-963223-2 | 29 | J-P-T GEH KPL 29P | Black | Housing for Female Terminals | 5 mm | Yes | 30 A | -40 – 120 °C | Wire-to-Wire |
| 1-963449-2 | 29 | JPT GEH KOMPL 29P | Black | Housing for Female Terminals | 5 mm | No | 30 A | -40 – 130 °C | Wire-to-Board |
| 2-963449-1 | 29 | JPT-GEH KOMPL 29P | Gray | Housing for Female Terminals | 5 mm | Yes | 30 A | -40 – 130 °C | Wire-to-Wire |
| 6-963449-1 | 29 | JUN-POW-TIM HOUSING ASSY 29POS | White | Housing for Female Terminals | 5 mm | No | 30 A | -40 – 130 °C | Wire-to-Board |
| 828907-1 | 55 | 55P JUN-POW-TIM GEH | Black | Housing for Female Terminals | 5 mm | Yes | 30 A | -40 – 130 °C | Wire-to-Board |
| 963598-1 | 68 | MICRO-T/JPT GH66/2P | Black | Housing for Female Terminals | 4 mm | Yes | 20 A | -40 – 110 °C | Wire-to-Wire |
Support Custom Wire Harness Assembly
- Connectors: 2P to 68P.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 50 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
