Introduction

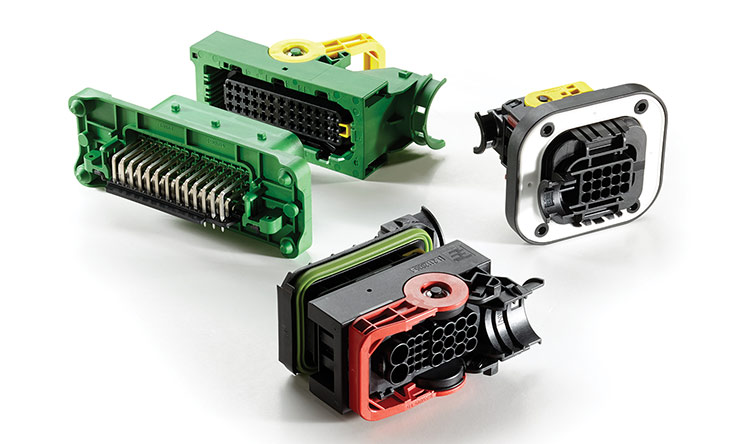

LEAVYSEAL Connector Housings are versatile and durable connectors specifically designed for demanding industrial and commercial environments. These housings offer a wide range of configurations, ranging from 15 to 92 positions, catering to various needs. They incorporate a reliable lever-lock system that ensures secure, straightforward mating. With an impressive capacity to handle up to 40 amps and boasting IP69K protection, LEAVYSEAL housings are ideal for applications requiring high-pin-count connections while providing robust sealing against moisture and dust ingress. Moreover, these housings readily accept AMP MCP 6.3/4.8K, 2.8, and 1.5K box and blade contacts.
Connector Key Benefits
- Versatile Configurations: Available in multiple sizes and arrangements from 15 to 92 positions, offering flexibility for various applications.
- Secure Connections: Features a lever-lock system for reliable, easy mating, reducing the risk of connection failures.
- High Current Capacity: Supports up to 40 amps, making it suitable for high-power applications.
- Environmental Protection: Provides robust sealing with IP67 and IP69K ratings, suitable for harsh conditions.
- Comprehensive Compatibility: Accepts a wide range of contact sizes and types, including AMP MCP 6.3/4.8K, 2.8, and 1.5K.
- Durable Construction: Made with flame-retardant materials like UL 94 V-0, offering enhanced safety and longevity.
- Ease of Installation: Integrated cable attachment and secondary lock features simplify installation and maintenance.
Connector Key Features
| Configurable Positions | Available configurations include 15, 18, 21, 22, 26, 29, 31, 39, 46, 62, 76, 92, and 124 positions. |
| Lever Lock System | The integrated lever lock mechanism provides secure and straightforward mating. |
| High Current Capacity | Supports up to 40 amps with AMP MCP 6.3/4.8K contacts, and up to 20 amps with 1.5K contacts. |
| Environmental Protection | IP67 and IP69K ratings offer robust sealing against water and dust ingress. |
| Contact Compatibility | Compatible with AMP MCP 6.3/4.8K, 2.8, and 1.5K contacts, accommodating various applications. |
| Durable Housing Material | Made from flame-retardant materials like UL 94 V0-rated PBT, it is suitable for harsh environments. |
| Secondary Locking | Integrated secondary lock confirms contact alignment and retention for reliable connections. |
| Variety of Mounting Options | Available in in-line, flange, and PCB mounting configurations for diverse installation needs. |
| Wide Temperature Range | It operates from -40°C to +140°C, making it suitable for extreme environmental conditions. |
| Color Coding and Keying | Multiple colors and keying options help avoid mismating and enable proper connector pairing. |
| Accessory Compatibility | Supports accessories such as backshells, flanges, locking slides, and sealing covers. |
| Integrated Cable Attachment | Built-in cable attachment simplifies installation and enhances connection stability. |
Connector Applications
- Heavy-Duty Trucks: Used for connecting critical components like engine control units, lighting systems, and sensors that require robust and reliable connections to withstand harsh road conditions.
- Agricultural Machinery: Suited for applications in tractors and harvesters, where connectors must handle exposure to dust, moisture, and vibration while maintaining stable power and signal transmission.
- Construction Equipment: Employed in excavators, bulldozers, and cranes, where connectors need to support high-power applications and endure extreme environmental conditions such as mud, water, and debris.
- Public Transportation Vehicles: Applied in buses and trains for connecting systems like braking, climate control, and lighting, where dependable performance under continuous use is critical.
- Mining Vehicles: Utilized in heavy machinery like haul trucks and drilling rigs, where connectors are subject to severe environmental stress, including dirt, dust, and heavy mechanical loads.
- Specialized Utility Vehicles: Used in emergency response vehicles and mobile maintenance units, where connectors support various systems such as power distribution, communication devices, and equipment controls under challenging operating conditions.
Connector Part Number Lists
Sorted by the Number of Positions
| Connector Description | Part Number | Connector System | Number of Positions | Connector & Housing Type | Color |
| MCP 9.5MM 1P CAP ASSY | 1743797-1 | Wire-to-Wire | 1 | Housing for Male Terminals | Black |
| AMP MCP 2.8 SOCKET HSG., 15POS.ASSY | 1-1534126-1 | Wire-to-Wire | 15 | Housing for Female Terminals | Black |
| 15POS, TAB 2.8X0.8, TAB HSG, ASSY | 1703799-1 | Wire-to-Wire | 15 | Housing for Male Terminals | Black |
| AMP MCP 2.8 SOCKET HSG., 15POS.ASSY | 2-1534126-1 | Wire-to-Wire | 15 | Housing for Female Terminals | Natural |
| AMP MCP 2.8 SOCKET HSG., 15POS.ASSY | 3-1534126-1 | Wire-to-Wire | 15 | Housing for Female Terminals | Blue |
| 18POS, MIXED, REC HSG, ASSY, SLD | 1-1823440-2 | Wire-to-Wire | 18 | Housing for Female Terminals | Black |
| 18POS, LEAVYSEAL, TAB HSG ASSY, SLD | 1-1823448-2 | Wire-to-Wire | 18 | Black | |
| AMP MCP 2.8 SOCKET HSG., 21POS.ASSY | 1-1534127-1 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | 21 | Housing for Female Terminals | Black |
| 21POS, TAB 2.8X0.8, TAB HSG, SEALED ASSY | 1-2112162-1 | Wire-to-Wire | 21 | Housing for Male Terminals | Black |
| 21POS, AMP MCP2.8, REC HSG, ASSY | 1-2208686-1 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | 21 | Housing for Female Terminals | Black |
| AMP MCP 2.8 SOCKET HSG., 21POS.ASSY | 2-1534127-1 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | 21 | Housing for Female Terminals | Natural |
| 21POS, TAB2.8X0.8, TABHSG, CODE B, ASSY, SLD | 2-2112162-1 | Wire-to-Wire | 21 | Housing for Male Terminals | Natural |
| AMP MCP 2.8 SOCKET HSG., 21POS.ASSY | 3-1534127-1 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | 21 | Housing for Female Terminals | Light Blue |
| 21POS, TAB2.8X0.8, TABHSG, CODE C, ASSY, SLD | 3-2112162-1 | Wire-to-Wire | 21 | Housing for Male Terminals | Blue |
| AMP MCP 2.8 SOCKET HSG., 21POS.ASSY | 4-1534127-1 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | 21 | Housing for Female Terminals | Claret Violet |
| 21POS, TAB2.8X0.8, TABHSG, CODE D, ASSY, SLD | 4-2112162-1 | Wire-to-Wire | 21 | Housing for Male Terminals | Claret Violet |
| 22POS, MIXED, REC HSG, ASSY, SEALED | 1-1823440-3 | Wire-to-Wire | 22 | Housing for Female Terminals | Black |
| 22POS, MIXED, TAB HSG, ASSY | 1-1823449-1 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | 22 | Housing for Male Terminals | Black |
| 22POS, MIXED, TAB HSG, ASSY | 1-1823449-2 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | 22 | Housing for Male Terminals | Black |
| 22POS, MIXED, REC HSG, ASSY, SEALED | 2-1823440-3 | Wire-to-Wire | 22 | Housing for Female Terminals | Gray |
| 22POS, MIXED, REC HSG, ASSY, SEALED | 3-1823440-3 | Wire-to-Wire | 22 | Housing for Female Terminals | Blue |
| 22POS, MIXED, REC HSG, ASSY, SEALED | 4-1823440-3 | Wire-to-Wire | 22 | Housing for Female Terminals | Green |
| 26POS, MIXED, REC HSG, ASSY, SEALED | 1-2112035-1 | Wire-to-Wire | 26 | Housing for Female Terminals | Black |
| 26POS, MIXED, TAB HSG, ASSY, SEALED | 1-2112041-1 | Wire-to-Wire | 26 | Housing for Male Terminals | Black |
| 26POS, MIXED, TAB HSG, ASSY, SEALED | 1-2112041-2 | Wire-to-Wire | 26 | Housing for Male Terminals | Black |
| 29POS, MIXED, REC HSG, ASSY, SEALED | 1-1823402-1 | Wire-to-Board, Wire-to-Device | 29 | Housing for Female Terminals | Black |
| 29POS, MIXED, REC HSG, ASSY, SEALED | 2-1823402-1 | Wire-to-Board, Wire-to-Device | 29 | Housing for Female Terminals | Gray |
| 29POS, MIXED, REC HSG, ASSY, SEALED | 3-1823402-1 | Wire-to-Board, Wire-to-Device | 29 | Housing for Female Terminals | Blue |
| 31POS, MIXED, REC HSG, ASSY | 1-1564297-6 | Wire-to-Board, Wire-to-Device | 31 | Housing for Female Terminals | Claret Violet |
| 31POS, MIXED, REC HSG, ASSY | 1-2208685-6 | Wire-to-Board, Wire-to-Device | 31 | Housing for Female Terminals | Claret Violet |
| 31POS, HYBRID, REC HSG ASSY, SLD, COD E | 1-2368394-6 | Wire-to-Wire | 31 | Housing for Female Terminals | Violet |
| 31POS, HYBRID, REC HSG ASSY, SLD, COD E | 1-2368394-8 | Wire-to-Wire | 31 | Housing for Female Terminals | Violet |
| AMP MCP2.8 RECEPTACLE HSG., 39POS., ASSY | 5-1718321-3 | Wire-to-Wire | 39 | Housing for Female Terminals | Green |
| 2.8MM TAB HSG., 39POS., ASSY | 5-1718323-1 | Wire-to-Wire | 39 | Housing for Male Terminals | Green |
| 39POS, AMP MCP2.8, REC HSG, ASSY | 5-2208684-3 | Wire-to-Wire | 39 | Receptacle | Green |
| 39POS, AMP MCP 2.8, REC HSG ASSY, SLD, COD E | 5-2368393-3 | Wire-to-Wire | 39 | Receptacle | Green |
| 39POS, AMP MCP 2.8, REC HSG ASSY, SLD, COD E | 5-2368393-7 | Wire-to-Wire | 39 | Receptacle | Green |
| AMP MCP2.8 RECEPTACLE HSG., 39P | 6-1718321-3 | Wire-to-Wire | 39 | Housing for Female Terminals | Brown |
| 2.8MM TAB HSG., 39POS., ASSY | 6-1718323-1 | Wire-to-Wire | 39 | Housing for Male Terminals | Brown |
| 39POS, AMP MCP2.8, REC HSG, ASSY | 6-2208684-3 | Wire-to-Wire | 39 | Receptacle | Brown |
| 39POS, AMP MCP 2.8, REC HSG ASSY, SLD, COD F | 6-2368393-3 | Wire-to-Wire | 39 | Receptacle | Brown |
| 39POS, AMP MCP 2.8, REC HSG ASSY, SLD, COD F | 6-2368393-7 | Wire-to-Wire | 39 | Receptacle | Brown |
| 46POS, AMP MCP1.5K, REC HSG, ASSY | 1-2112231-1 | Wire-to-Board, Wire-to-Device | 46 | Housing for Female Terminals | Black |
| 62.POS.MIXED REC.HSG | 1-1418883-1 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | 62 | Housing for Female Terminals | Black |
| 1.5/2.8MM TAB HSG., 62POS., ASSY | 1-1718324-1 | Wire-to-Wire | 62 | Housing for Male Terminals | Black |
| 62POS, MIXED, REC HSG, ASSY, SEALED | 1-1823498-1 | Wire-to-Board | 62 | Housing for Female Terminals | Black |
| 62POS, HYBRID, REC HSG ASSY, SLD, COD A | 1-2366619-2 | Wire-to-Wire | 62 | Receptacle | Black |
| 62POS, HYBRID, REC HSG ASSY, SLD, COD A | 1-2366619-3 | Wire-to-Wire | 62 | Receptacle | Black |
| 62.POS.MIXED REC.HSG | 2-1418883-1 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | 62 | Housing for Female Terminals | Gray |
| 1.5/2.8MM TAB HSG., 62POS., SEALED | 2-1718324-1 | Wire-to-Wire | 62 | Housing for Male Terminals | Gray |
| 62POS, MIXED, REC HSG, ASSY, SEALED | 2-1823498-1 | Wire-to-Board | 62 | Housing for Female Terminals | Gray |
| 62POS, HYBRID, REC HSG ASSY, SLD, COD B | 2-2366619-2 | Wire-to-Wire | 62 | Receptacle | Gray |
| 62POS, HYBRID, REC HSG ASSY, SLD, COD B | 2-2366619-3 | Wire-to-Wire | 62 | Receptacle | Gray |
| 62.POS.MIXED REC.HSG | 3-1418883-1 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | 62 | Housing for Female Terminals | Blue |
| 1.5/2.8MM TAB HSG., 62POS., ASSY | 3-1718324-1 | Wire-to-Wire | 62 | Housing for Male Terminals | Light Blue |
| 62POS, MIXED, REC HSG, ASSY, SEALED | 3-1823498-1 | Wire-to-Board | 62 | Housing for Female Terminals | Blue |
| 62POS, HYBRID, REC HSG ASSY, SLD, COD C | 3-2366619-2 | Wire-to-Wire | 62 | Receptacle | Blue |
| 62POS, HYBRID, REC HSG ASSY, SLD, COD C | 3-2366619-3 | Wire-to-Wire | 62 | Receptacle | Blue |
| AMP MCP 1.5 / 2.8 REC. HOUSING, 62POS | 4-1418883-1 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | 62 | Housing for Female Terminals | Beige |
| 62POS, MIXED, REC HSG, ASSY, SEALED | 4-1823498-1 | Wire-to-Board | 62 | Housing for Female Terminals | Green |
| 92POS, AMP MCP1.5K, SOCK HSG, ASSY, SEALED | 1703998-1 | Wire-to-Board, Wire-to-Device | 92 | Housing for Female Terminals | Black |
| 92POS, AMP MCP1.5K, SOCK HSG, ASSY, SEALED | 3-1703998-1 | Wire-to-Board, Wire-to-Device | 92 | Housing for Female Terminals | Black |
| 92POS, AMP MCP1.5K, SOCK HSG, ASSY, SEALED | 4-1703998-1 | Wire-to-Board, Wire-to-Device | 92 | Housing for Female Terminals | Black |
| 92POS, AMP MCP1.5K, SOCK HSG, ASSY, SEALED | 5-1703998-1 | Wire-to-Board, Wire-to-Device | 92 | Housing for Female Terminals | Black |

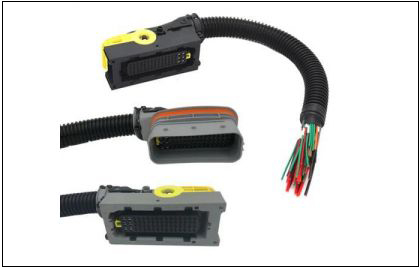

Support Custom Wire Harness Assembly
- Connectors: All LEAVYSEAL Connectors.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range, including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
