Molex Board-in Connectors

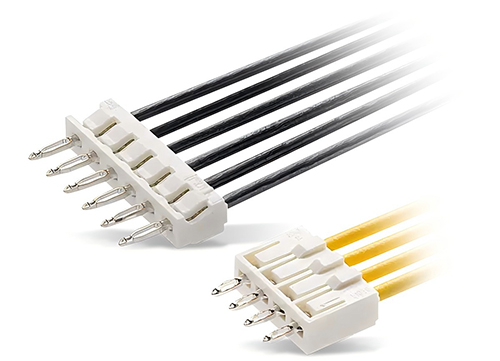

The Molex Board-in Connectors are available in vertical and right-angle variants, offering pitches of 1.25mm, 2.00mm, 2.50mm, and 4.00mm. These connectors are perfect for creating simple and permanent connections that provide a higher level of reliability compared to hand-soldering. They also offer space and cost-saving benefits when compared to two-piece connection systems while accepting standard through-hole soldering methods. Additionally, these connectors not only protect the terminal but also serve as wire alignment and retention devices. With a voltage rating ranging from 125V to 250V and a current rating between 1.0A to 4.0A, they find applications in various fields such as patient monitors, infotainment systems, refrigerators, factory machines, and downlights.

Features

• A one-piece direct solder-to-board assembly provides space and cost savings compared to two-piece types and is easy to assemble
• Terminal and housing locking features ensure a secure terminal retention force
• Right-angle and vertical housing options

  • Protects terminal and functions as wire alignment and retention device prior to and during the soldering process
  • Strain relief after soldering
• Accepts standard through-hole soldering methods for a more reliable solder fillet compared to uneven and labor-intensive hand soldering
• Design flexible with a wide variety of pitch, configuration, and circuit sizes

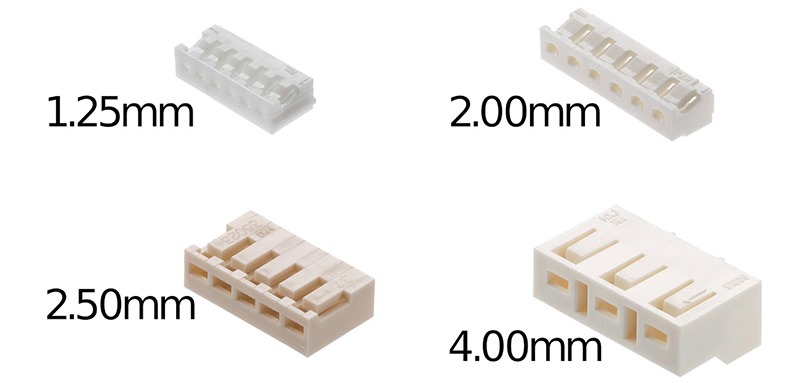

• 1.25mm, 2mm, 2.50mm, and 4mm pitch sizes
• 2A to 5A current range
• 2- to 18-circuit sizes
• 30AWG to 18AWG wire gauge size
• Chinese alternative/replacement parts are available

Board-in Connector Series

• 35022 (14)
• 35023 (14)
• 51015 (9)
• 51035 (11)
• 51036 (3)
• 212415 (5)

35022 Series Connector

35023 Series Connector

51015 Series Connector

51035 Series Connector

51036 Series Connector

212415 Series Connector

Applications

Automotive

• Infotainment systems: Used in dashboards, entertainment consoles, and communication systems.
• Automotive lighting: Powering LED headlights, taillights, and interior lighting systems.

Home Appliance

• HVAC systems: Control and power connectors for heating, ventilation, and air conditioning systems.
• Refrigerators: Providing connections for temperature sensors, control panels, and lighting.
• White goods: Includes washing machines, dishwashers, and dryers for efficient power and control wiring.

Industrial

• Factory automation: Enabling connectivity in industrial robots, conveyors, and automated machinery.
• Power tools: Used in handheld and stationary tools to maintain robust electrical connections under heavy usage.
• Security systems: Supporting reliable connections in CCTV, alarm systems, and access control.

Lighting

• Downlighting: Ideal for compact connections in recessed lighting and other LED systems.

Medical

• Patient monitors: Used in medical devices to ensure stable, accurate connections for monitoring critical patient data.

In addition to these, Molex Board-in connectors are used in other high-reliability, space-constrained applications across numerous industries.

Support Custom Wire Harness Assembly

• Connectors: 35022, 35023, 51015, 51035, 51036, and 212415 series.
• Wire Gauge:

• •    - 35022: 28AWG - 22AWG
  •    - 35023: 28AWG - 22AWG
  •    - 51015: 26AWG - 30AWG
  •    - 51035: 24AWG - 30AWG
  •    - 51036: 22AWG - 18AWG
  •    - 212415: 22AWG - 30AWG

• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Minimum Order: 100 pieces per order.

How to customize your wire harness?

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
