Molex CP-4.5 Wire-to-Wire Connectors

The Glow-wire capable and halogen-free CP-4.5 Wire-to-Wire Connectors offer a range of benefits that make them an ideal choice for various industries. With their superb locking mechanism, these connectors ensure secure connections that can withstand even the most demanding environments.

Furthermore, the fool-proof keyed design eliminates any chance of incorrect mating or misalignment during installation. This not only saves time but also reduces the risk of costly errors or damage to equipment. The color-coded feature adds another layer of convenience by allowing easy identification of different circuits or functions within a system. This simplifies troubleshooting processes and enhances overall efficiency in both manufacturing and maintenance operations.

Moreover, the polarized mating feature ensures proper alignment between male and female connectors, preventing accidental reversals that could lead to electrical hazards or malfunctions. This safety measure is particularly crucial in power applications where reliable connections are essential for smooth operation.

By incorporating glow-wire capability into these connectors, they meet stringent safety standards required in many industries such as automotive or aerospace. The ability to withstand high temperatures without compromising performance provides peace of mind knowing that these connectors will maintain their integrity even under extreme conditions.

Features

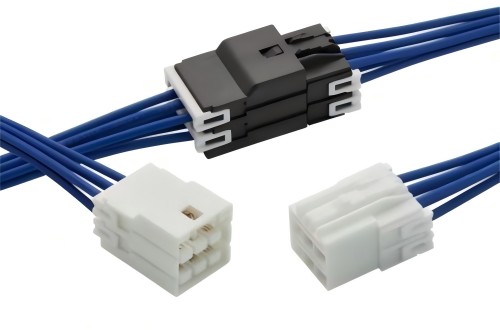

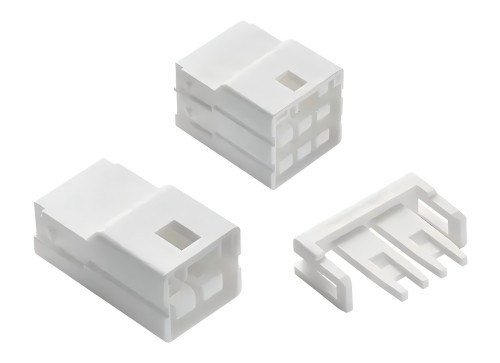

CP-4.5 4.50mm Wire-to-Wire Connectors offer various colors and fool-proof keying options to increase working efficiency and safety, and its unique genderless terminals reduce inventory and operational costs. It is also compliant with glow wire and low-halogen requirements for consumer, industrial, and power applications

• 4.50mm pitch
• The integral beam supports both ends of the connector housing to prevent wire-snagging
• Polarization keys on housing ribs prevent mismating, which can cause electrical shorting
• Glow-wire capable meets global safety standards
• Voltage (maximum) of 600V AC(RMS)/DC, current (maximum) of 2.0 to 10.0A
• Durability (maximum) of 30 cycles
• Nylon (UL94V-0, G/W) housing, nylon (UL94V-0, G/W) retainer
• Operating temperature range from -40 to +120°C
• Halogen-free conforms to environmental considerations

Connector P/N lists and Specs

Molex CP-4.5 Connector Applications

The Molex CP-4.5 connector is a versatile, high-performance connector series designed for a variety of industries, offering reliable power and signal transmission in demanding environments.

Below are some of the common applications where the CP-4.5 connector is widely utilized:

1. Consumer Electronics and Appliances

The CP-4.5 connector series is frequently used in consumer electronics and home appliances due to its compact size, durability, and reliability. Some of the most common applications in this sector include:

• Washing Machines: Ensures robust connections between control boards, motors, and sensors, contributing to the reliability of washing machine operation.
• Water Heaters: Used for connecting power and control circuits in water heaters, ensuring the effective transfer of electrical signals between components.
• Air Conditioners: Provides secure connections for fans, compressors, and control units in air conditioning systems, supporting efficient and reliable cooling performance.

2. Industrial and Automation Systems

In the industrial sector, the CP-4.5 connector is trusted for its robustness and capability to handle harsh environments. It supports automation systems where consistent performance and secure connections are essential:

• HVAC Systems: Critical for maintaining reliable electrical connections in Heating, Ventilation, and Air Conditioning (HVAC) units, ensuring proper operation and control.
• Copiers and Printers: Used for power and signal connections in copiers and large printers, where reliability is key for high-volume operations.
• Vending Machines: Ensures reliable electrical connections within vending machines for components like control boards, motors, and sensors, contributing to consistent operation in public or commercial settings.

3. Power Systems

In power supply applications, the CP-4.5 connector’s capability to handle moderate power levels makes it ideal for systems requiring efficient and reliable power distribution.

• Power Supplies and UPS (Uninterruptible Power Supplies): Ensures stable and secure connections for power supply units and UPS systems, supporting continuous power delivery and system protection during outages or electrical disruptions.

4. Wire-to-Device Applications

The CP-4.5 connector is particularly suited for wire-to-device applications, where it provides reliable, compact connections between wires and the device's internal components. It’s used across various devices where secure wire termination is critical for performance and safety.

It is important to note that the above applications are not a definitive list of uses for the Molex CP-4.5 connector. The versatility of the connector allows it to be used in many other industries and applications that require durable and efficient electrical connections. From industrial automation to consumer electronics, the CP-4.5 series provides a reliable solution for a wide range of electrical needs.

Support Custom Wire Harness Assembly

• Connectors series: 206996, and 206997.
• Connector circuits: 2 - 6 Pins
• Wire Gauge: 22AWG - 16AWG
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type:
  •  Wire both ends with the same connector, same orientation
  •  Wire both ends with the same connector, opposite orientation
  •  Wire one side connector, another side open-end
  •  Wire one side connector, another side tinned end
  •  Other types
• Minimum Order: 100 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
