Molex CP-6.5 Wire-to-Wire, Wire-to-Board Connectors, Custom Wire Harness

Molex CP-6.5 Wire-to-Wire, Wire-to-Board Connectors

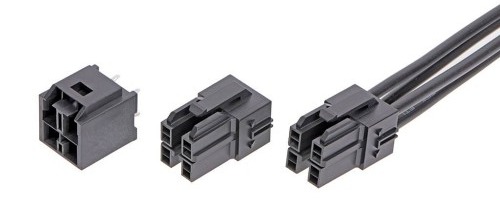

The Molex CP-6.5 Wire-to-Board Connector System is an innovative solution designed to simplify wire-to-board connections in various applications. With its foolproof interconnect system, this connector ensures quick and easy identification of mated pairs, eliminating any confusion during installation.

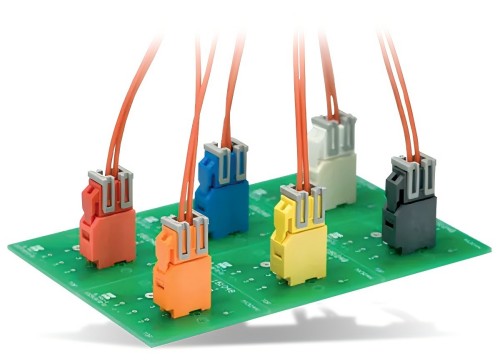

One of the standout features of this system is the color-coded housings on both the 6.50mm wire-to-board receptacles and PCB headers. These vibrant colors serve as visual indicators, allowing users to differentiate between compatible mating possibilities at a glance. By ensuring that connectors with mismatched colors do not mate, this system prevents any potential errors or damage caused by incorrect connections.

To further enhance its reliability, unique keying features are incorporated within each header and receptacle housing. This means that only properly matched connectors can be inserted into one another, preventing any accidental mismating that could lead to performance issues or safety concerns.

Additionally, the positive lock feature adds an extra layer of assurance when using this connector system. When fully mated, a distinct audible click can be heard, providing users with immediate feedback on successful connection completion. This not only saves time but also eliminates any doubts about whether the connection has been securely established.

Features

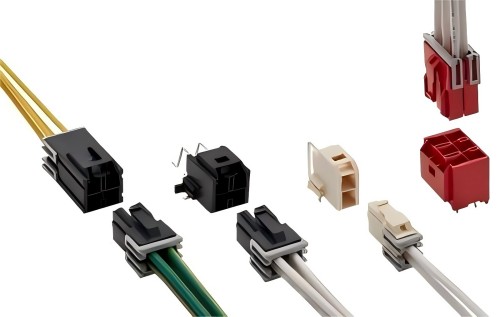

• A wide spectrum of housing colors allows quick identification of mating combinations for assembly and repair.
• Polarization keys on the housing rib eliminate mismating and consequent electrical shorting of applications.
• The positive lock feature on the housing produces an audible click when fully mated.
• Kinked solder tails provide added header-to-PCB retention during solder reflow.
• The absence of drain holes in the PCB headers ensures compatibility with a conformal coating (potting).
• Headers are +260°C wave-solder process capable and ideal for high-temperature assembly processing.

Specifications

• Electrical
  • 600VAC maximum voltage rating
  • 2A to 10A maximum current range
  • 10mΩ maximum low-level contact resistance
  • 1500VAC dielectric withstanding voltage
  • 1000MΩ minimum insulation resistance
• Mechanical
  • 49.0N maximum insertion force or lock strength
  • 14.7N to 127.4N receptacle crimp pull-out force
  • 29.2N maximum terminal retention force
  • 30-cycle maximum durability
• -40°C to +105°C operating temperature range
• Materials
  • UL 94V-0, glass-filled, polyamide (PA) housing
  • Copper alloy contacts
  • Plating
    • Tin in the contact area
    • 1.27µ" matte tin over 1.27µ" nickel underplate in the solder tail area

Connector P/N and Specs

Molex CP-6.5 Wire to Wire, Wire to Board Connector Applications

The Molex CP-6.5 Connector is a versatile, high-performance solution designed to meet the needs of a variety of industries, both in consumer and industrial applications. Its robust construction and reliable connection capabilities make it suitable for environments requiring durability, efficiency, and long-term functionality.

Below is an expanded overview of some of the more common applications of the Molex CP-6.5 Connector, though this is by no means an exhaustive list:

Consumer Applications

1. Air Conditioners: The CP-6.5 connector is used to facilitate reliable connections between different components within air conditioning systems. Its durability makes it ideal for the varying power demands and temperature fluctuations typical in these devices.

2. Washing Machines: In washing machines, this connector plays a crucial role in connecting various electrical modules that control washing cycles, temperature sensors, and spin motors. The connector’s ability to handle high currents ensures the machine operates efficiently and safely.

3. Water Heaters / Boilers: The connector’s high thermal and mechanical stability makes it suitable for water heaters and boilers, which require stable electrical connections to manage heating elements and temperature control systems in high-humidity environments.

Industrial Automation

1. HVAC Controls: Heating, Ventilation, and Air Conditioning (HVAC) systems require reliable connections for components like thermostats, dampers, and fan motors. The Molex CP-6.5 connector supports these systems, providing durability under frequent switching and harsh operational conditions.

2. Industrial Controllers: The CP-6.5 connector is often used in industrial control units that regulate machinery and automated processes. Its reliable performance ensures constant communication between controllers and actuators or sensors, contributing to increased automation reliability and reduced downtime.

Industrial Applications

1. Copiers: Copiers are complex devices that rely on numerous electronic modules for paper handling, scanning, and printing. The Molex CP-6.5 connector provides stable, high-quality electrical connections between these components, ensuring smooth operations.

2. Security Systems: In security systems, from alarm controls to video surveillance, the Molex CP-6.5 connector offers the precision and reliability needed to manage intricate networks of sensors and cameras, providing continuous operation under variable conditions.

3. Vending Machines: The CP-6.5 connector is essential in vending machines for linking control units, payment modules, and product dispensers. It ensures reliable operation over long periods, minimizing downtime and ensuring smooth customer interactions.

Additional Uses

While the applications listed above are among the more common uses, the Molex CP-6.5 Connector's robust design and adaptability allow it to be used in a wide range of other industries and devices that require secure and efficient electrical connections. Its use can extend to automotive systems, lighting, home appliances, and various forms of machinery, making it an essential component across sectors.

This wide range of potential applications demonstrates the connector's flexibility and capacity to function in both consumer and industrial settings.

Support Custom Wire Harness Assembly

• Connectors series: 151049, 151207, and 203438.
• Connector circuits: 2 - 6 Pins
• Wire Gauge: 26AWG - 16AWG
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type:
  •  Wire both ends with the same connector, same orientation
  •  Wire both ends with the same connector, opposite orientation
  •  Wire one side connector, another side open-end
  •  Wire one side connector, another side tinned end
  •  Other types
• Minimum Order: 100 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
