Molex CyClone 70066 / 5057 Series Connector

The Molex CyClone Panel-to-Panel Connector System revolutionizes connectivity by incorporating innovative SL receptacle technology, resulting in a versatile hermaphroditic design that simplifies panel mounting for a range of applications, including printers and copiers. Engineered for high durability, these connectors can withstand an impressive 10,000 mating cycles, making them a reliable choice for demanding environments. Their genderless configuration not only enhances operational efficiency by eliminating the need for separate male and female connectors but also reduces customer inventory complexity. Furthermore, the CyClone system guarantees seamless compatibility and malleability, allowing for consistent performance without requiring changes in tooling setups across different applications. The connectors are designed with a positive-lock SL housing, providing robust retention capabilities in high-vibration settings, ensuring connections remain secure even under challenging conditions. With broad applicability across consumer electronics, telecommunications, networking, and industrial sectors, Molex CyClone Connectors represent the ultimate solution for modern connectivity needs, blending durability, efficiency, and versatility in one compact system.

CyClone Connector features

• Extreme mating-cycle durability with 10,000 mating cycles
• SL Modular Connector System Receptacles
• Incorporates SL connector technology into a new connector system
• Transforms SL connector system into panel-mount, high-mating-cycle part
• Enables SL™ system users to easily incorporate CyClone into high-mating-cycle applications
• Genderless (hermaphroditic) connectors
• Increase operational efficiency and reduce customer inventories
• Ensures compatibility and mate-ability with no changeover of different application tooling setups
• Positive-lock SL™ housing ensures retention in high-vibration environments
• RoHS compliant
• Electrical
  • 30VAC(RMS)/DC maximum voltage
  • 2A maximum current
  • 30mΩ maximum contact resistance
  • 500VAC dielectric withstanding voltage
  • 10,000MΩ insulation resistance
• Mechanical
• • 4.45N minimum contact retention to housing
  • 111.12N maximum insertion force to PCB
  • 10,000 cycles minimum durability
• 2.54mm pitch
• -40 to +105°C operating temperature range
• Materials
  • Glass-filled polyester housing
  • Copper alloy contacts
  • Plating
    • 1.27µm select gold in the contact area
    • 0.38µm select gold in the solder tail area
    • Nickel underplating

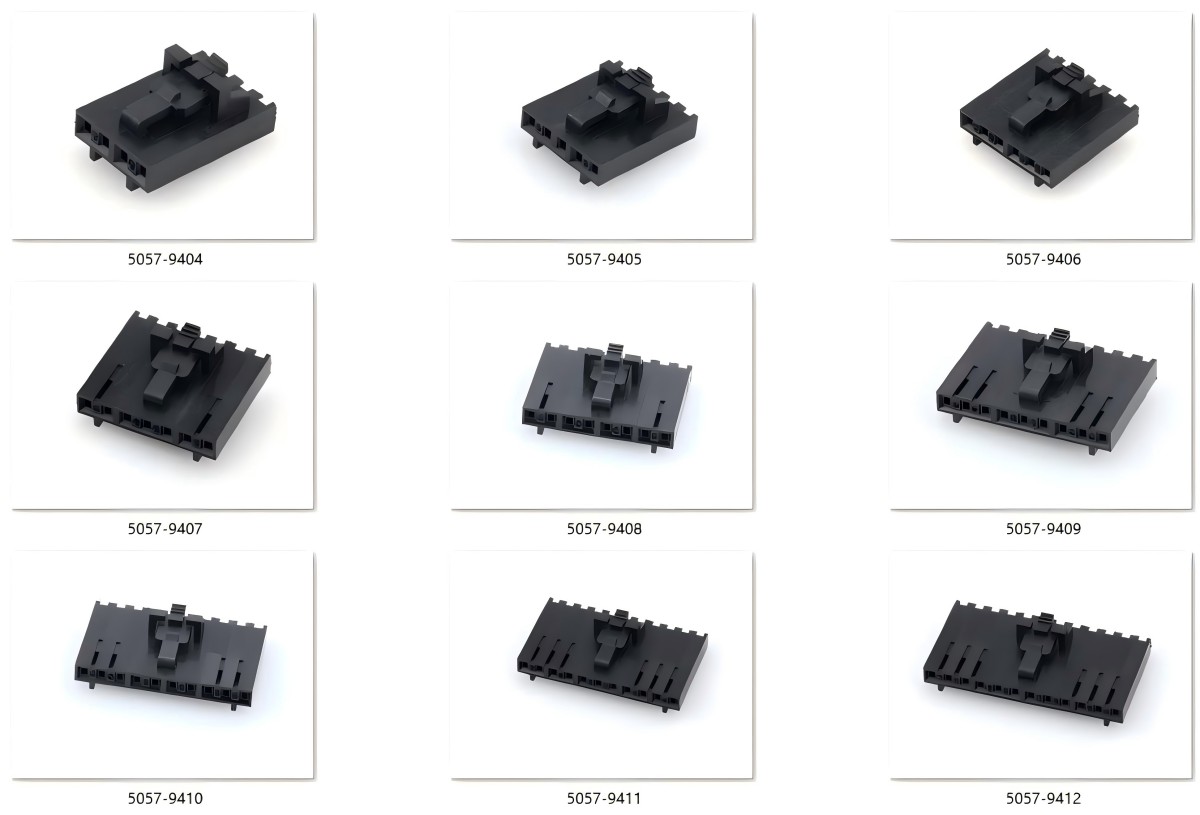

CyClone Connector Specifications Chart

Sort by the number of circuits.

Molex CyClone Connectors Applications

1. Consumer Electronics

Molex CyClone Connectors are widely used in consumer electronics, particularly in devices such as copiers and printers. These connectors ensure reliable power and signal transmission, which is crucial for the operation of these machines. Their compact design allows for easy integration into tight spaces within devices, while their robust construction provides durability against the wear and tear of frequent use. Features like quick mating and unmating help streamline assembly processes, making them ideal for high-volume manufacturing environments.

2. Telecommunications and Networking

In the telecommunications and networking sectors, CyClone Connectors are essential for hubs, servers, and various networking equipment. Their ability to support high-speed data transmission makes them suitable for applications requiring high bandwidth and low latency. These connectors contribute to reliable connectivity, helping to maintain network performance in both enterprise and service provider environments. Their modular design also facilitates easy upgrades and maintenance, which is vital in rapidly evolving tech landscapes.

3. Industrial Applications

In industrial settings, Molex CyClone Connectors are utilized in electronics production machinery and automation systems. Their rugged design is tailored to withstand harsh operating conditions, including exposure to dust, moisture, and vibration. These connectors are crucial for ensuring stable electrical connections in automated systems, where downtime can lead to significant productivity losses. By providing secure and efficient connections, CyClone Connectors enhance the reliability and efficiency of industrial operations, supporting continuous manufacturing processes.

Molex CyClone Connectors are versatile components that cater to the demanding needs of various industries, providing reliable, high-performance solutions for power and data connectivity.

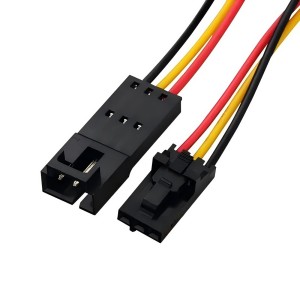

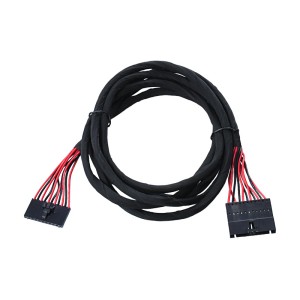

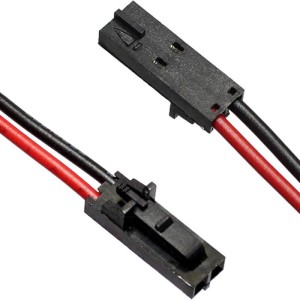

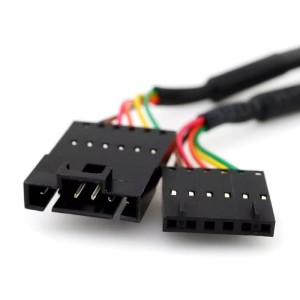

Support Custom Wire Harness Assembly

• Connectors series: 70066.
• Connector circuits: 4 - 25 Pins
• Wire Gauge: 24 - 30AWG
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type: Fully customizable to your specifications.
• Minimum Order: 200 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
