Molex EXTreme Guardian Connector

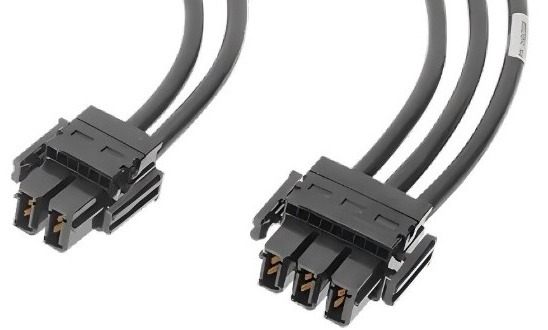

The Molex EXTreme Guardian Power Connector System, formerly known as EXTreme Power Interconnect (EPIC), represents a significant advancement in connector technology, emphasizing compact design and high performance. With a centerline pitch of just 11mm, these connectors excel in space-constrained applications while delivering impressive current ratings of up to 8A per contact. This robust system is specifically engineered for use in electromagnetic interference (EMI) sensitive environments, ensuring optimal shielding characteristics that enhance signal integrity. The inclusion of hot-plugging capabilities allows for easy maintenance and system upgrades without downtime, meeting stringent UL safety standards. Available in versatile configurations, the headers come in two-circuit, single-flanged, and three-circuit, dual-flanged versions, while the cable assemblies offer options such as straight, shielded, and unshielded types tailored for high-voltage applications. Notably, the two-circuit solutions encompass various entry styles to accommodate diverse design needs, promoting efficient space utilization. The EXTreme Guardian Power Connector System is ideal for a wide array of applications, including data communication equipment, telecommunications, power supplies, electric vehicles, solar energy systems, medical devices, and commercial markets, making it a reliable choice for modern connectivity challenges.

Molex EXTreme Guardian connector Features

• System Wide
  • Current-dense design with high-current terminals and relatively small pitch
  • Relatively small 11mm pitch
  • Fully isolated receptacle terminals and header blades
• Receptacle
  • Housings accept large gauge wires up to 6AWG
  • Housing lead-in chambers
  • Positive locking housing
  • Terminal position assurance (TPA) feature
• Terminals
  • Terminal interface with 6 independent points of contact
  • Low-halogen
  • Gold-plated terminals
• Header
  • Through-hold solder retention design
  • Compliant, press-fit tails available
  • Solder tails in multiple lengths
  • Locating pegs on housing
  • The Right-angle header has 2 contact blade lengths

EXTreme Guardian connector Specifications

Support Custom Wire Harness Assembly

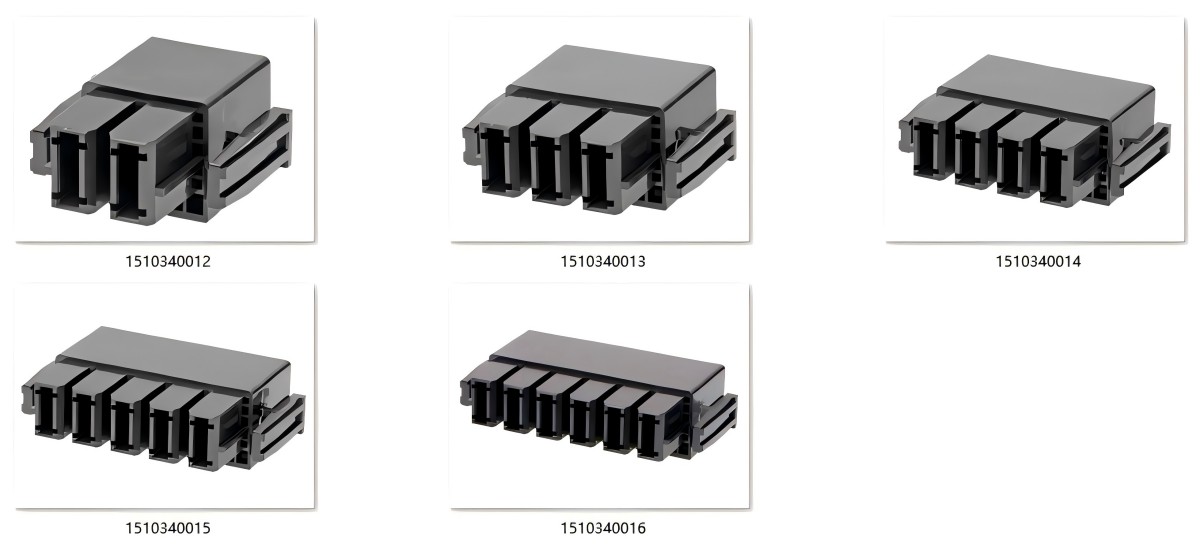

• Connectors series: 151034, 170351, and 170352.
• Connector circuits: 2 - 6 Pins
• Wire Gauge: 6AWG and 8AWG
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type: Fully customizable to your specifications.
• Minimum Order: 200 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
