Molex EXTreme Ten60Power Connector

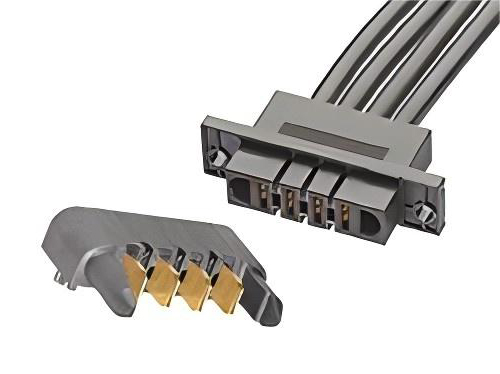

Molex EXTreme Ten60Power High-Current Connectors are advanced hybrid devices specifically engineered to handle the demanding requirements of high-current applications while maintaining optimal signal integrity. Capable of delivering an impressive 260A per linear inch, these connectors facilitate faster response times and improved power efficiency, making them ideal for a variety of applications across multiple industries. Their innovative design offers a higher current capacity and a reduced profile compared to conventional connectors, with a compact 10mm height that enhances airflow within power systems, ultimately contributing to better thermal management. The EXTreme Ten60Power connectors feature both plug and receptacle configurations that incorporate Molex's proven power and signal contact technologies, ensuring reliability and performance. This combination of high current density, low power loss, and an efficient form factor makes the Molex EXTreme Ten60Power Connectors an excellent choice for applications requiring robust power delivery and minimal space consumption, paving the way for advancements in modern electrical systems and contributing to the efficiency of next-generation electronic designs.

EXTreme Ten60Power Connector Features

• 600V power voltage
• 250V signal voltage
• 1500V dielectric withstanding voltage
• 5000MΩ insulation resistance
• 60A board-to-board power rating
• 50A wire-to-board power rating
• 50A panel-to-board power rating
• 200 cycles of durability
• -40°C to +105°C operating temperature rating
• 94V-0 flammability rating
• RoHS compliant

EXTreme Ten60Power Connector Specifications

Support Custom Wire Harness Assembly

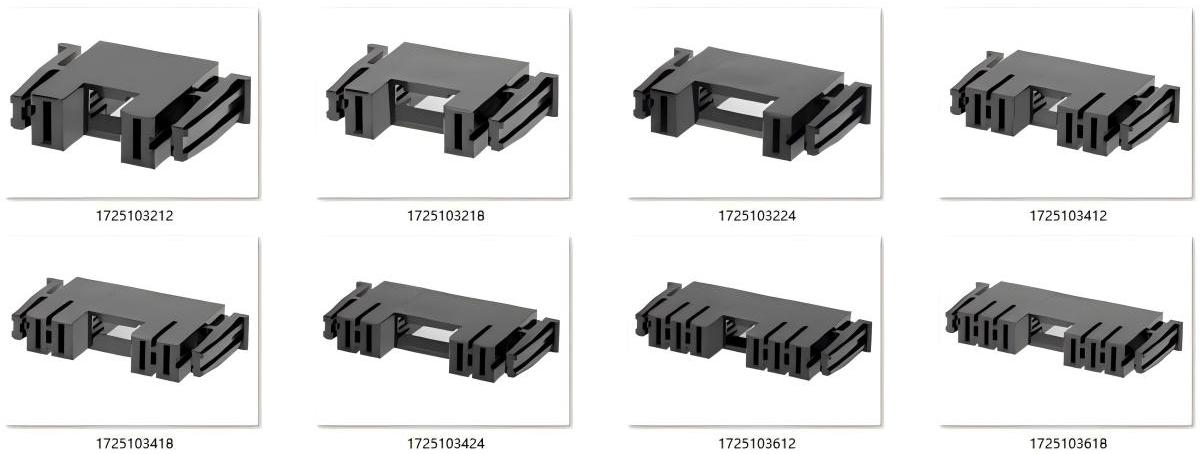

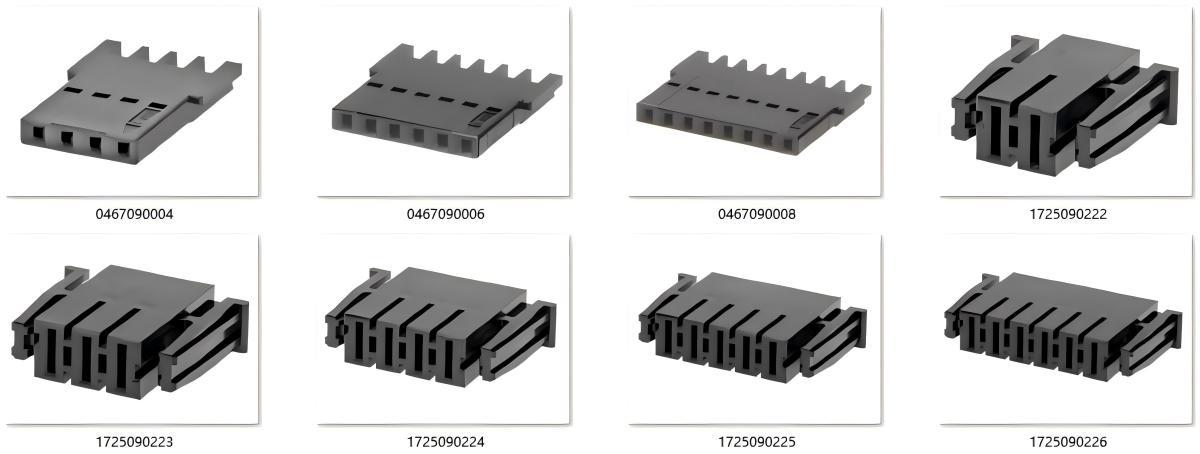

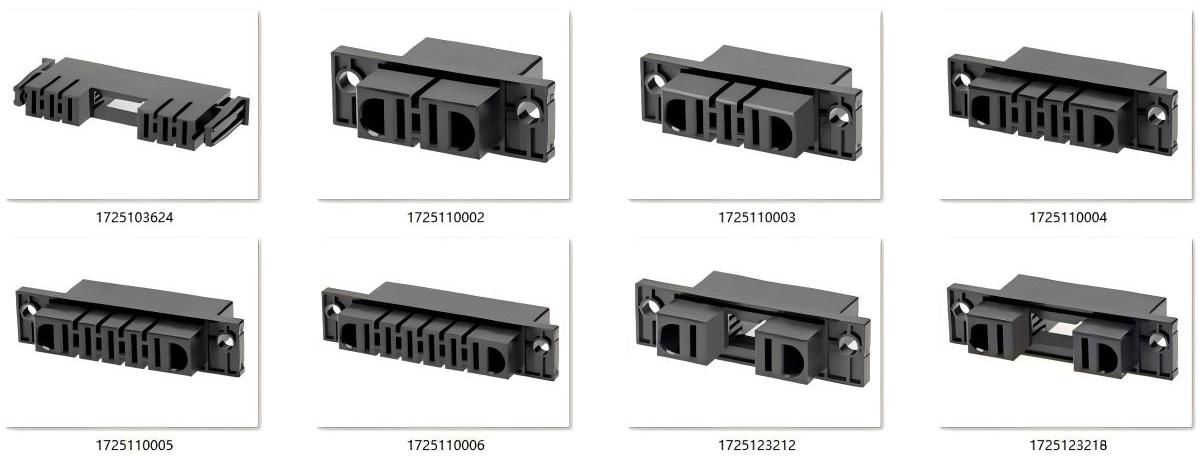

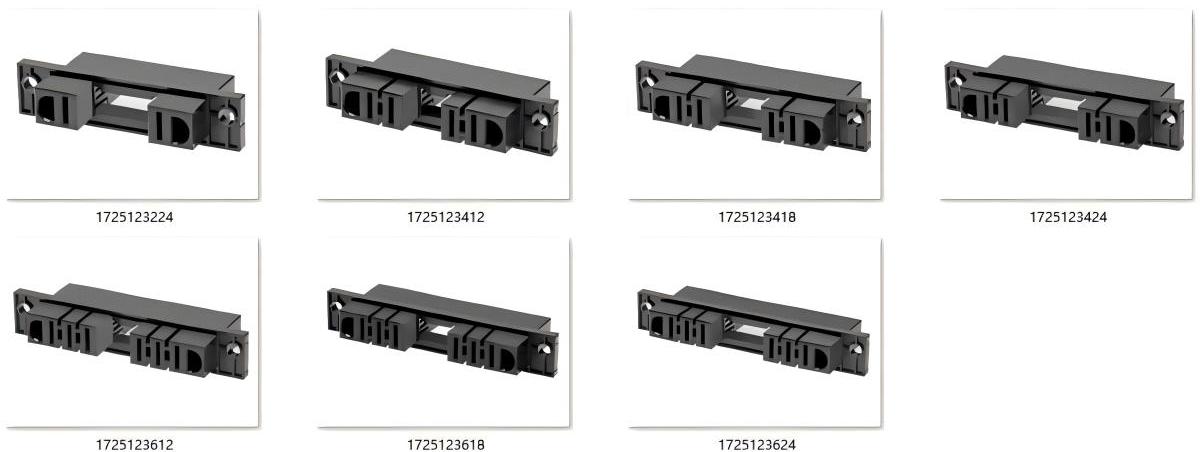

• Connectors series: 46586, 46709, 172509, 172510, 172511, 172512.
• Connector circuits: 3 - 30 Pins
• Wire Gauge: 8 to 16 AWG power receptacle terminals, 22 to 28 AWG signal receptacle terminals
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type: Fully customizable to your specifications.
• Minimum Order: 200 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
