Molex H-DAC 64 Unsealed Connector

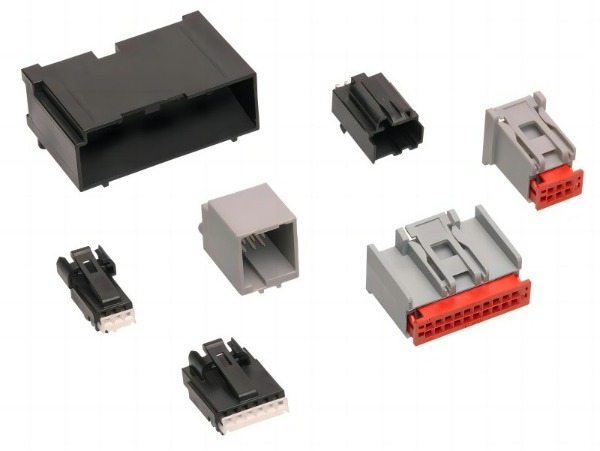

Molex H-DAC 64 Unsealed Connector System provides space-saving, flexible options for unsealed applications. H-DAC 64 single- and dual-row connectors meet all unsealed USCAR-2 class 2 requirements. A positive lock with an audible click ensures proper mating and a TPA feature increases terminal retention. The single-row connector system consists of vertical and right-angle, four-circuit headers, male and female in-line connectors, and is available in three- to six-circuit configurations. Each terminal in the single-row system is capable of supporting both low-signal and low-power applications up to 10.0A. The dual-row connector system offers six- to 20-circuit configurations, as well as a 24-way hybrid connector. Each dual-row system terminal is capable of supporting both low-signal and low-power applications up to 7.0A.

H-DAC 64 Connector Features

• Meet USCAR Class 2 requirements
• Scoop-proof housing
• Terminal Position Assurance (TPA)
• The positive lock provides an audible click during mating
• 3x polarization options based on USCAR color differentiation scheme (black, gray, and brown)
• Optional clip slot (or Xmas-tree slot) feature on male connectors
• 2.54mm pitch
• 22AWG to 18AWG range
• 10.0A maximum current rating
• 500VDC maximum voltage
• 20mΩ maximum contact resistance
• 500VDC dielectric withstanding voltage
• 20MΩ minimum insulation resistance
• SPS + 30% glass-filled material
• Copper alloy contacts
• -40°C to +100°C operating temperature range

H-DAC 64 Connector Specifications Chart

Sort by the number of circuits.

Support Custom Wire Harness Assembly

• Connectors series: 30700, 30968, 31067, 31068, 31072, and 31073.
• Connector circuits: 3 - 24 Pins
• Wire Gauge: 22AWG to 18AWG
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type: Fully customizable to your specifications.
• Minimum Order: 200 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
