Molex KK 254 Connector, Custom Wire Harness Manufacturer

Molex KK 254 Connector Specifications Chart



Sort by the number of circuits.

P/N Old P/N Circuits Color Description Datasheet
22012021 2695-02 2 Natural KK 254 Crimp Housing https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022012021_sd.pdf?inline
22012027 2695-02R 2 Natural KK 254 Crimp Housing， Friction Ramp https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022012027_sd.pdf?inline
22013027 2695-02RP 2 Natural KK 254 Crimp Housing， Friction Ramp with Polarizing Ribs https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022013027_sd.pdf?inline
10112033 7880-3B 3 Natural KK 254 Crimp Housing， High Pressure https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/788/7880/010112033_sd.pdf?inline
22012031 2695-03 3 Natural KK 254 Crimp Housing https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022012031_sd.pdf?inline
22012037 2695-03R 3 Natural KK 254 Crimp Housing， Friction Ramp https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022012037_sd.pdf?inline
22013037 2695-03RP 3 Natural KK 254 Crimp Housing， Friction Ramp with Polarizing Ribs https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022013037_sd.pdf?inline
50291558 2695-3RP-BK 3 Black KK 254 Crimp Housing，Friction Ramp https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/050291558_sd.pdf?inline
22012041 2695-04 4 Natural KK 254 Crimp Housing https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022012041_sd.pdf?inline
22012047 2695-04R 4 Natural KK 254 Crimp Housing， Friction Ramp https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022012047_sd.pdf?inline
22013047 2695-04RP 4 Natural KK 254 Crimp Housing， Friction Ramp with Polarizing Ribs https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022013047_sd.pdf?inline
50291559 2695-04RP-BK 4 Black KK 254 Crimp Housing， Friction Ramp https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/050291559_sd.pdf?inline
470541000 47054-1000 4   KK 254 Housing with Polarization Rib https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/470/47054/470541000_sd.pdf?inline
10112053 7880-5B 5 Natural KK 254 Crimp Housing， High Pressure https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/788/7880/010112053_sd.pdf?inline
22012051 2695-05 5 Natural KK 254 Crimp Housing https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022012051_sd.pdf?inline
22012057 2695-05R 5 Natural KK 254 Crimp Housing， Friction Ramp https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022012057_sd.pdf?inline
22013057 2695-05RP 5 Natural KK 254 Crimp Housing， Friction Ramp with Polarizing Ribs https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022013057_sd.pdf?inline
10112063 7880-6B 6 Natural KK 254 Crimp Housing，High Pressure https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/788/7880/010112063_sd.pdf?inline
22012061 2695-06 6 Natural KK 254 Crimp Housing https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022012061_sd.pdf?inline
22012067 2695-06R 6 Natural KK 254 Crimp Housing，Friction Ramp https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022012067_sd.pdf?inline
22013067 2695-06RP 6 Natural KK 254 Crimp Housing，Friction Ramp with Polarizing Ribs https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022013067_sd.pdf?inline
10112073 7880-7B 7 Natural KK 254 Crimp Housing，High Pressure https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/788/7880/010112073_sd.pdf?inline
22012071 2695-07 7 Natural KK 254 Crimp Housing https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022012071_sd.pdf?inline
22012077 2695-07R 7 Natural KK 254 Crimp Housing，Friction Ramp https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022012077_sd.pdf?inline
22013077 2695-07RP 7 Natural KK 254 Crimp Housing，Friction Ramp with Polarizing Ribs https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022013077_sd.pdf?inline
10112083 7880-8B 8 Natural KK 254 Crimp Housing，High Pressure https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/788/7880/010112083_sd.pdf?inline
22012087 2695-08R 8 Natural KK 254 Crimp Housing，Friction Ramp https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022012087_sd.pdf?inline
22013087 2695-08RP 8 Natural KK 254 Crimp Housing，Friction Ramp with Polarizing Ribs https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022013087_sd.pdf?inline
10112093 7880-09B 9 Natural KK 254 Crimp Housing，High Pressure https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/788/7880/010112093_sd.pdf?inline
22012091 2695-09 9 Natural KK 254 Crimp Housing https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022012091_sd.pdf?inline
22012097 2695-09R 9 Natural KK 254 Crimp Housing，Friction Ramp https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022012097_sd.pdf?inline
22013097 2695-09RP 9 Natural KK 254 Crimp Housing，Friction Ramp with Polarizing Ribs https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022013097_sd.pdf?inline
10112103 7880-10B 10 Natural KK 254 Crimp Housing，High Pressure https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/788/7880/010112103_sd.pdf?inline
22012101 2695-10 10 Natural KK 254 Crimp Housing https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022012101_sd.pdf?inline
22012107 2695-10R 10 Natural KK 254 Crimp Housing，Friction Ramp https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022012107_sd.pdf?inline
22013107 2695-10RP 10 Natural KK 254 Crimp Housing，Friction Ramp with Polarizing Ribs https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022013107_sd.pdf?inline
10112113 7880-11B 11   KK 254 Crimp Housing，High Pressure https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/788/7880/010112113_sd.pdf?inline
22012111 2695-11 11   KK 254 Crimp Housing https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022012111_sd.pdf?inline
22012117 2695-11R 11   KK 254 Crimp Housing，Friction Ramp https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022012117_sd.pdf?inline
22013117 2695-11RP 11 Natural KK 254 Crimp Housing，Friction Ramp with Polarizing Ribs https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022013117_sd.pdf?inline
10112123 7880-12B 12 Natural KK 254 Crimp Housing，High Pressure https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/788/7880/010112123_sd.pdf?inline
22012121 2695-12 12 Natural KK 254 Crimp Housing https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022012121_sd.pdf?inline
22012127 2695-12R 12 Natural KK 254 Crimp Housing，Friction Ramp https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022012127_sd.pdf?inline
22013127 2695-12RP 12 Natural KK 254 Crimp Housing，Friction Ramp with Polarizing Ribs https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022013127_sd.pdf?inline
10112133 7880-13B 13 Natural KK 254 Crimp Housing，High Pressure https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/788/7880/010112133_sd.pdf?inline
22012131 2695-13 13 Natural KK 254 Crimp Housing https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022012131_sd.pdf?inline
22012137 2695-13R 13 Natural KK 254 Crimp Housing，Friction Ramp https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022012137_sd.pdf?inline
22013137 2695-13RP 13 Natural KK 254 Crimp Housing，Friction Ramp with Polarizing Ribs https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022013137_sd.pdf?inline
10112143 7880-14B 14 Natural KK 254 Crimp Housing，High Pressure https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/788/7880/010112143_sd.pdf?inline
22012141 2695-14 14 Natural KK 254 Crimp Housing https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022012141_sd.pdf?inline
22012147 2695-14R 14 Natural KK 254 Crimp Housing，Friction Ramp https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022012147_sd.pdf?inline
22013147 2695-14RP 14 Natural KK 254 Crimp Housing，Friction Ramp with Polarizing Ribs https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022013147_sd.pdf?inline
10112153 7880-15B 15 Natural KK 254 Crimp Housing，High Pressure https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/788/7880/010112153_sd.pdf?inline
22012151 2695-15 15 Natural KK 254 Crimp Housing https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022012151_sd.pdf?inline
22012157 2695-15R 15 Natural KK 254 Crimp Housing，Friction Ramp https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022012157_sd.pdf?inline
22013157 2695-15RP 15 Natural KK 254 Crimp Housing，Friction Ramp with Polarizing Ribs https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022013157_sd.pdf?inline
10112163 7880-16B 16 Natural KK 254 Crimp Housing，High Pressure https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/788/7880/010112163_sd.pdf?inline
22012161 2695-16 16 Natural KK 254 Crimp Housing https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022012161_sd.pdf?inline
22012167 2695-16R 16 Natural KK 254 Crimp Housing，Friction Ramp https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022012167_sd.pdf?inline
22013167 2695-16RP 16 Natural KK 254 Crimp Housing，Friction Ramp with Polarizing Ribs https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/269/2695/022013167_sd.pdf?inline
10112173 7880-17B 17 Natural KK 254 Crimp Housing，High Pressure https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/788/7880/010112173_sd.pdf?inline
10112183 7880-18B 18 Natural KK 254 Crimp Housing，High Pressure https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/788/7880/010112183_sd.pdf?inline





Support Custom Wire Harness Assembly



  • Connector Series: 2695, 7880, and 47054.
  • Connector circuits: 2 - 18 Pin
  • Wire Gauge: 30-24 AWG, depending on real needs.
  • Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
  • Wire Length: Fully customizable to your specifications.
  • Wiring Diagram: Tailor-made to meet your project needs.
  • Custom type: Fully customizable to your specifications.
  • Minimum Order: 100 pieces per order.

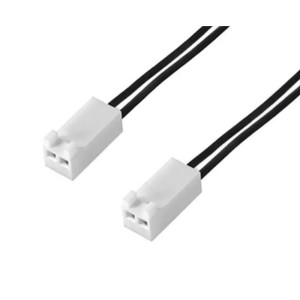

Molex KK254 2-way

Molex KK254 2-way

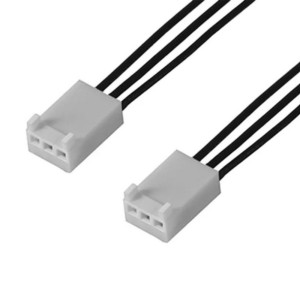

Molex KK254 3-way

Molex KK254 3-way

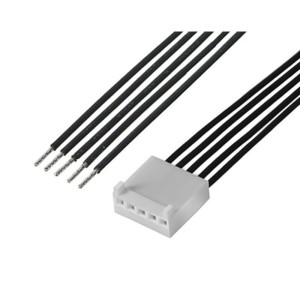

Molex KK254 5-way

Molex KK254 5-way

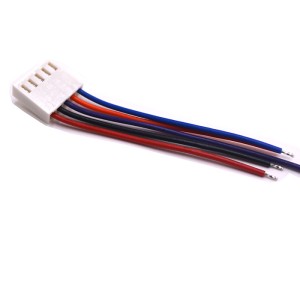

Molex KK254 5 pin wire assembly

Molex KK254 5 pin wire assembly

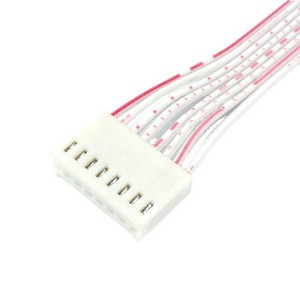

Molex KK254 8 pin flat cable

Molex KK254 8 pin flat cable

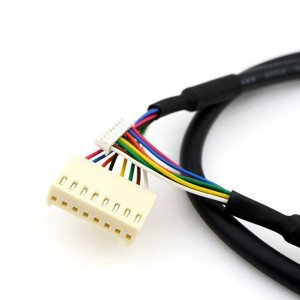

Molex KK254 8 pin wire harness
