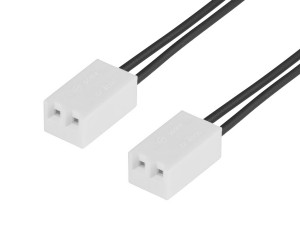

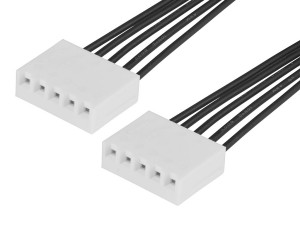

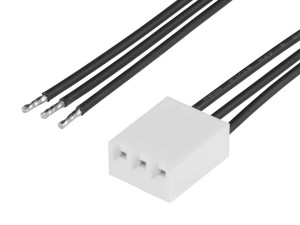

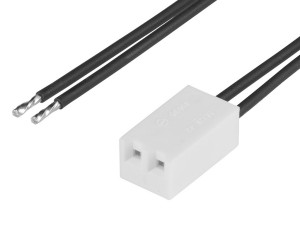

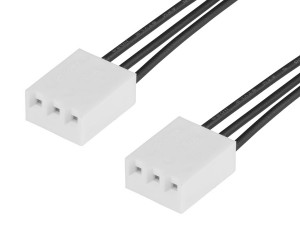

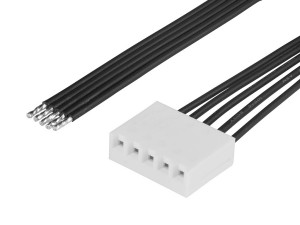

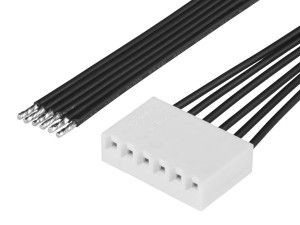

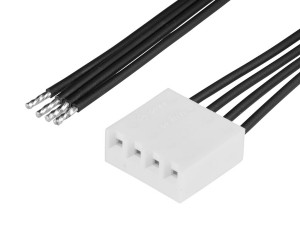

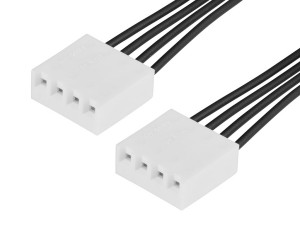

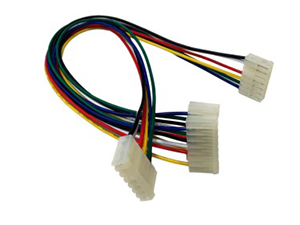

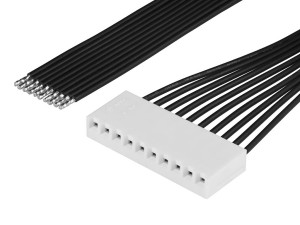

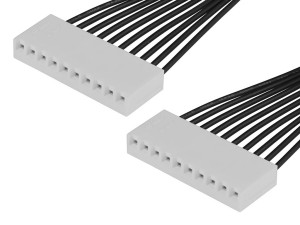

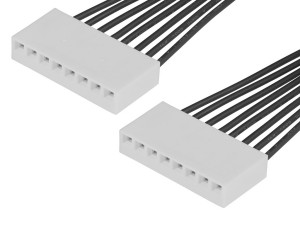

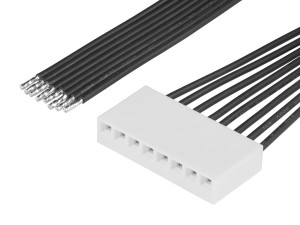

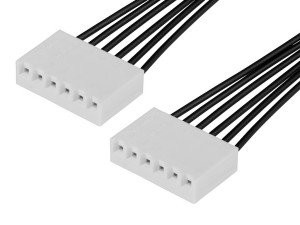

Molex KK 396 Connector Cable Assembly

Molex KK 396 connector Wire and Cable Assemblies are reliable and versatile connectivity across various industries. With a 3.96mm pitch, these assemblies offer a robust solution for applications requiring a maximum voltage rating of 600V and a current rating of up to 13A. The connectors are built with high-temperature nylon housings that can withstand lead-free solder processing up to +260°C, ensuring durability and performance under challenging conditions. Featuring pin-to-pin mapping from the receptacle to the PCB header, they enable easy, plug-and-play connections, making them ideal for both prototyping and global preproduction. The assemblies come in multiple cable lengths, providing flexibility for diverse setups. Additional features include matte-tin over nickel plating for enhanced conductivity and optional reflow options for added versatility. Suitable for a wide range of applications, Molex KK 396 Wire Cable Assemblies are commonly used in appliances, security systems, networking equipment like routers and servers, medical diagnostic devices, and automotive systems, delivering dependable performance and easy integration.

KK 396 Connector Features

• Pitch: 3.96mm
• Circuits: 2-15
• Applicable wire: AWG#18-#24 (Max.OD:2.8mm)
• Current Rating: 5A
• Voltage Rating: 250V
• Temperature Range: -25°C~+85°C
• Contact Resistance: 20m Omega Max
• Insulation Resistance: 1000M Omega Min
• Withstanding Voltage: 1500V AC/minute
• Crimp Terminals: 2478, 2578, 2878, 2477, 8818
• Crimp Housings: 2139, 41695, 3069
• PCB Connectors: 41815
• Vertical Header without Peg: 41771
• Right angle Header without peg: 41772
• Vertical Header with Friction Lock: 41791
• Right Angle Header with Friction Lock: 41792
• Vertical Header with press fit plastic Peg: 42491, 42891
• Right Angle Header with press fit plastic Peg: 42492, 42892
• Vertical Break away Header: 41661, 41671
• Right Angle Break away Header: 41662, 172173
• Right angle break away header with Friction Lock: 41672
• Vertical header with Round Pin with Polarizing Wall: 3190
• Vertical header with Round Pin without Polarizing Wall: 3192

KK 396 Connector Specifications Chart

Sort by the number of circuits.

Support Custom Wire Harness Assembly

• Connector circuits: 2 - 24 Pins
• Wire Gauge: depends on terminal needs
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type: Fully customizable to your specifications.
• Minimum Order: 100 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
