Molex KK Plus Connector

The Molex KK Plus Connector System is an advanced wire-to-board solution designed to deliver reliable and efficient performance across a wide range of applications. It supports up to 11.0A of current with two pitch sizes, 2.50mm, 3.0mm, and 3.96mm, providing flexibility for various design requirements. A key feature of the KK Plus system is its unique keying design, which ensures proper mating and prevents mismating, accompanied by a distinct audible click for secure connection assurance. The Terminal Position Assurance (TPA) design enhances the security of terminals within the receptacle, reducing the risk of terminal back-out and preventing potential failures in end products. Additionally, the use of V0/Glow Wire combination materials helps streamline the bill of materials (BOM), facilitating OEMs in designing globally compliant products. Suitable for automotive, consumer electronics, industrial equipment, medical devices, and telecommunications or networking, the Molex KK Plus Connector System is an ideal choice for applications requiring dependable connectivity and easy, efficient assembly.

KK Plus Connector Classification

KK Plus Connector Features

• 2.50mm, 3.0mm, and 3.96mm pitch sizes
• Unique keying design prevents mismating
• Positive-locking latch offers a clear audible click for connection assurance
• TPA design prevents terminal back-out
• V-0/Glow Wire combination resin allows OEMs to design products on a global scale
• Reflow-capable header withstands +260°C reflow process
• Reflow options available

KK Plus Connector Specifications Chart

Sort by the number of circuits.

KK Plus Connector Applications

Automotive

• Commonly utilized in non-sealed environments within vehicles, these connectors support systems like in-car entertainment, lighting, and internal device connections.
• They are also used in charging stations for electric vehicles, enabling reliable and secure connections in power distribution systems.

Harness Manufacturers

• These connectors are essential components for wire harness assemblies, where they provide robust connections for various devices and systems, ensuring consistent electrical performance.

Consumer Electronics

• Utilized in products such as gaming machines, printers, scanners, and security systems, these connectors support internal device communication, power distribution, and control systems.
• They find applications in white goods like refrigerators, freezers, washing machines, and vending machines, ensuring reliable connections that withstand frequent use and operational demands.

Industrial

• Ideal for assembly line equipment, where they facilitate connections for sensors, controls, and other automated systems.
• Used in the food and beverage industry, particularly in equipment that requires quick and secure connections to control systems.

Medical

• Reliable connections for diagnostic equipment and patient monitors, supporting devices that require precise and consistent electrical performance.
• These connectors help ensure secure and durable connections for critical systems where reliability and accuracy are essential.

Telecommunications and Networking

• Used in routers and switches, servers, and storage devices, enabling efficient data transmission and connectivity in networking environments.
• Their ability to handle multiple configurations and wire gauges makes them suitable for flexible and scalable telecommunications setups.

This list is not exhaustive but highlights some of the more common uses for Molex KK Plus Connectors, demonstrating their flexibility and reliability across diverse applications.

Support Custom Wire Harness Assembly

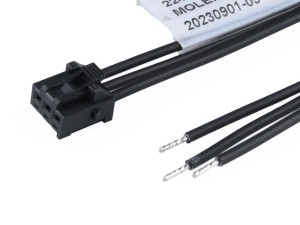

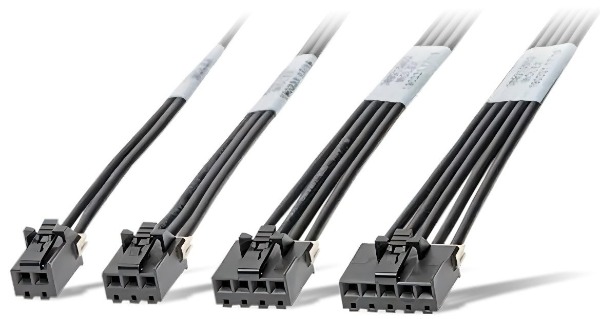

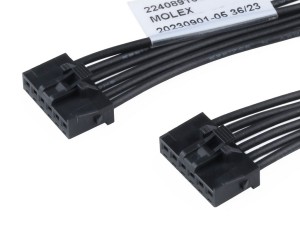

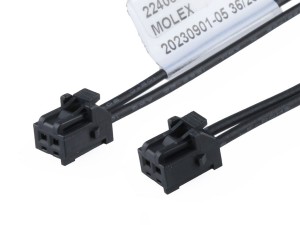

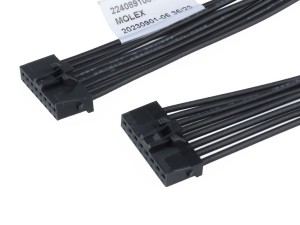

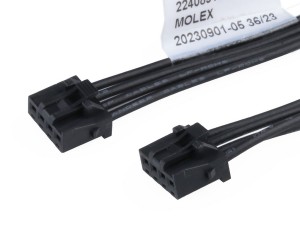

• Connector circuits: 2 - 8 Pin
• Wire Gauge: 18 - 24AWG, depends on real needs
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type: Fully customizable to your specifications.
• Minimum Order: 200 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
