Molex MLX Connector

Molex MLX Power Connectors provide a versatile and reliable solution for a wide range of power connection needs, featuring a 2.13mm diameter plug and cap design with a secure positive lock mechanism. These connectors ensure fully isolated contacts for safety and performance and are designed to be interchangeable, interminable, and inter-mountable with industry-standard products, making them a flexible choice for various applications. The polarized housing is compatible with both male and female Molex terminals, as well as other industry-standard terminals, offering easy integration into existing systems. Additionally, Molex MLX connectors include circuit identification grooves for circuits two and three, along with an industry-standard identification rib for circuit one, simplifying the installation and maintenance process. Their robust design makes them suitable for demanding environments, including networking, industrial automation, commercial vehicles, and ATMs, where reliable power connectivity is essential.

MLX Connector Features

• Polarized cap and plug
• Positive lock design
• Fully isolated contacts

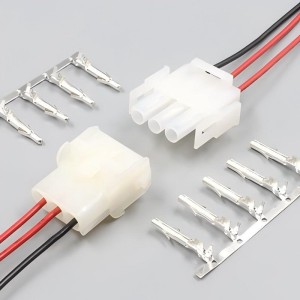

• Cap and plugs accept both male and female terminals
• Plugs available in panel-mount or free-hanging versions
• Circular contacts and positive locking of terminals in housing
• Caps, plugs, and terminals are compatible with industry-standard versions
• Available in a variety of materials and plating options
• Slit-pin design of male terminals
• UL 94V-2, UL 94V-0 rated
• Glow wire compliant material

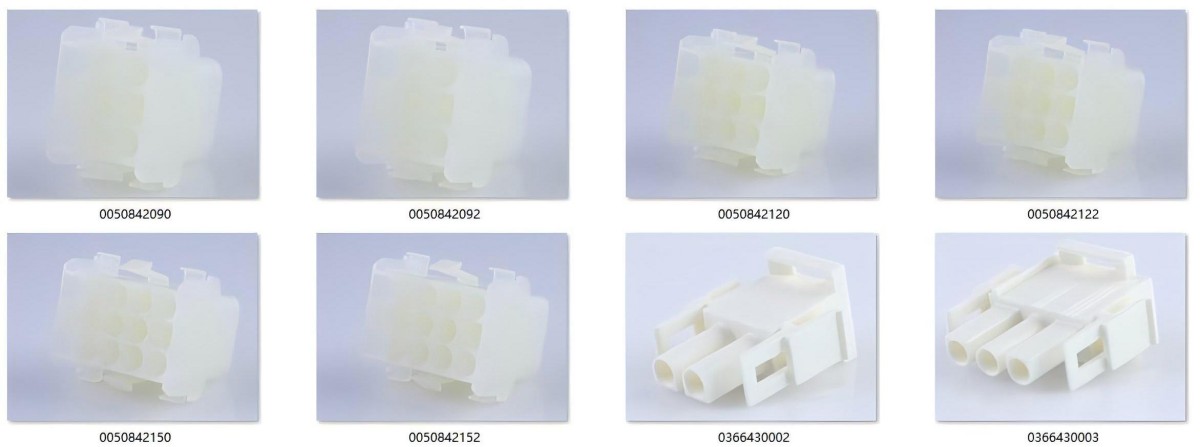

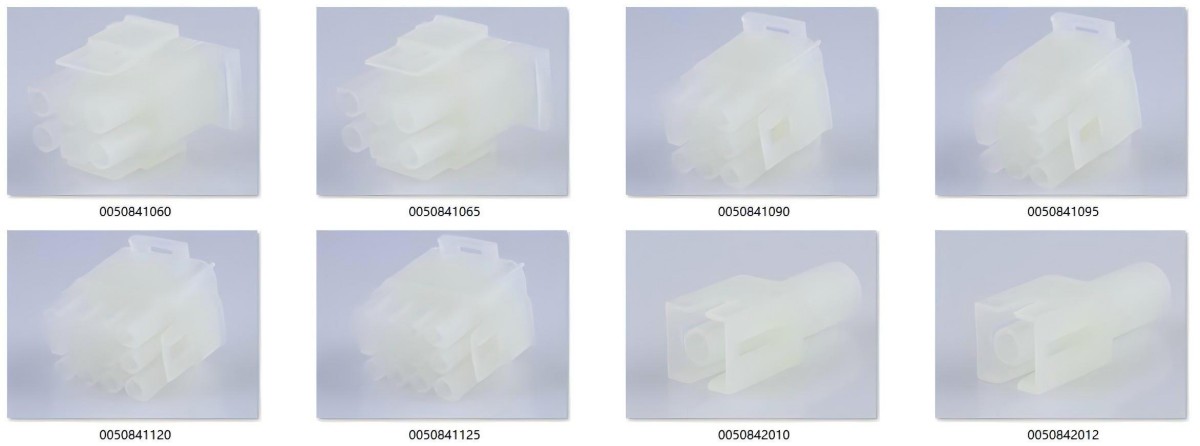

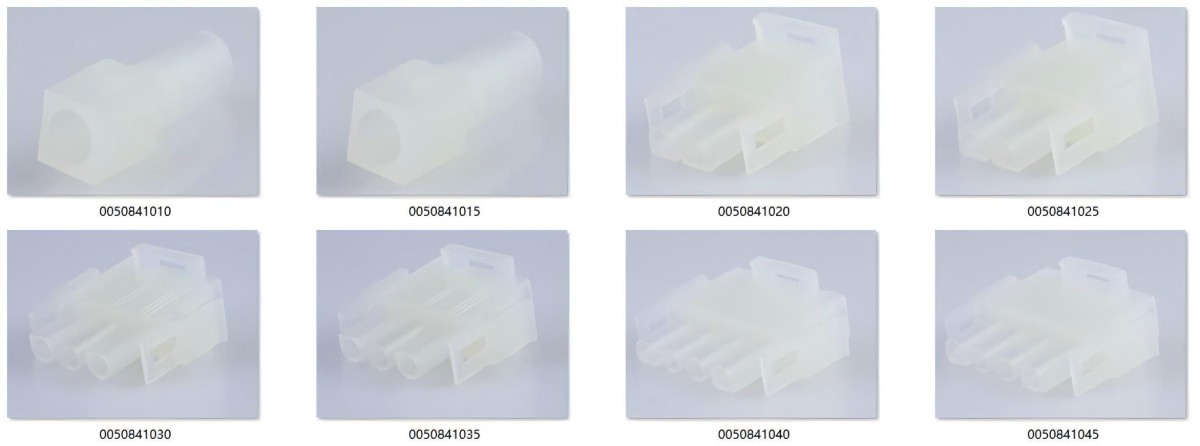

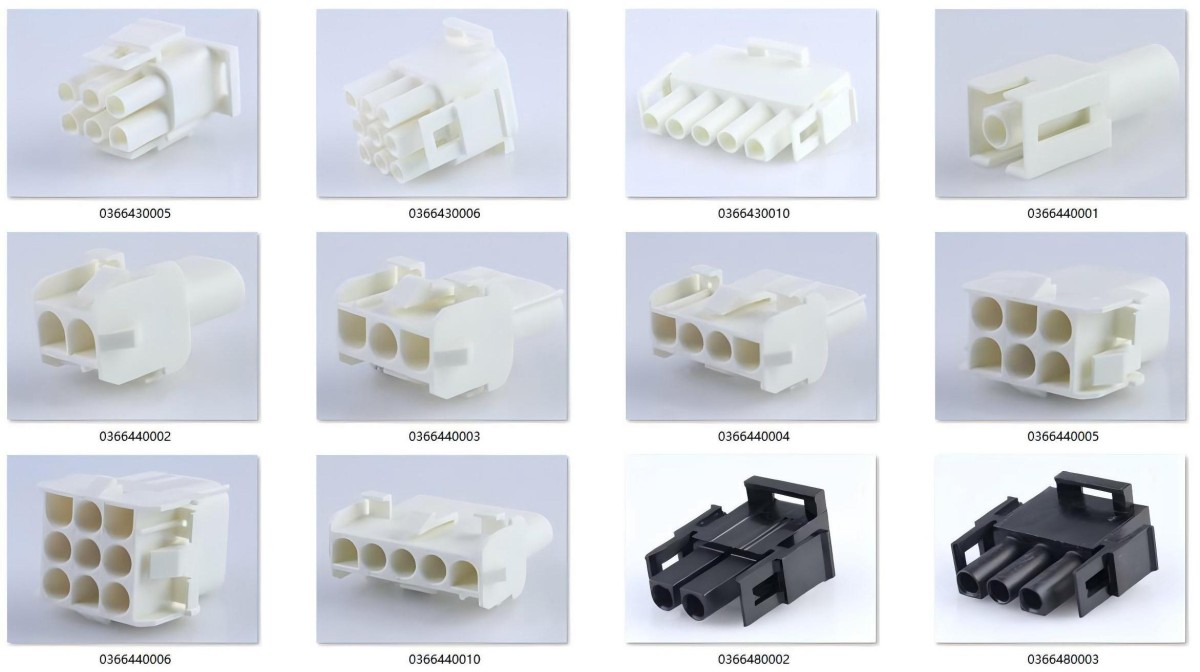

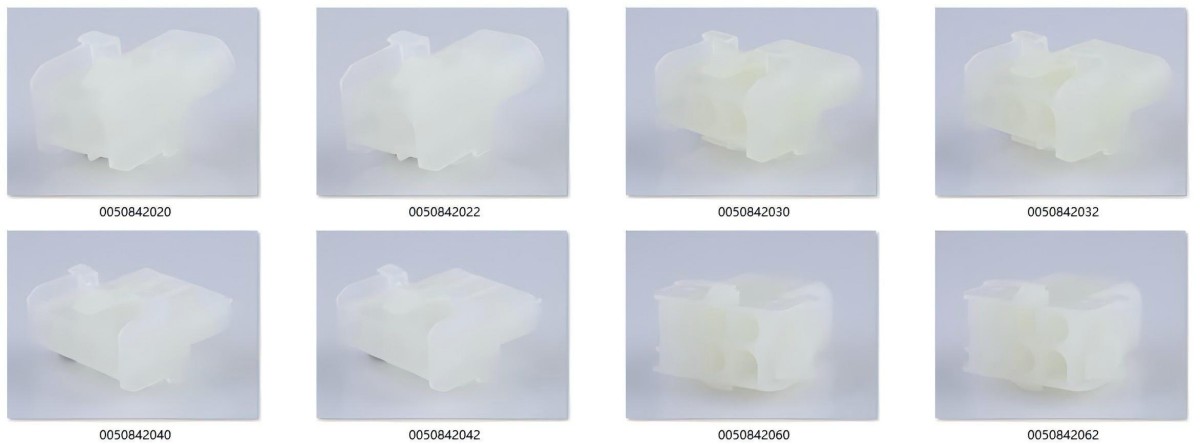

MLX Connector Specifications Chart

Sort by the number of circuits.

MLX Power Connector Applications

Molex MLX Power Connectors are engineered for diverse applications across various industries, ensuring robust and reliable power connections. In the industrial sector, they are widely used in automation equipment and conveyor systems, where consistent power delivery is crucial for maintaining operational efficiency. Networking equipment, including fan tray assemblies and rack-mount servers, benefits from the secure and stable connectivity these connectors provide, ensuring optimal performance in data centers and telecommunications setups.

In the consumer market, Molex MLX connectors are found in ATMs and refrigerators, offering durable connections that withstand everyday use. For commercial vehicles, these connectors support applications such as ATVs, boating, construction, and heavy equipment systems, where harsh environmental conditions demand connectors that can handle vibrations, moisture, and temperature variations. Additionally, they are well-suited for marine equipment and recreational vehicles, ensuring reliable power delivery in challenging conditions. While these examples highlight some of the common uses, the versatility of Molex MLX Power Connectors allows them to be adapted to a wide range of other applications, making them a trusted choice for engineers seeking dependable power connectivity solutions.

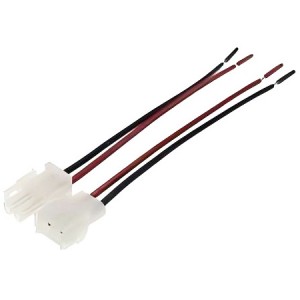

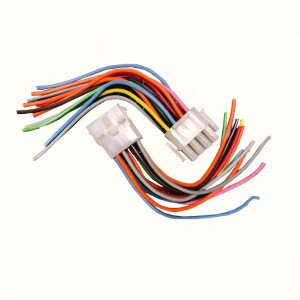

Support Custom Wire Harness Assembly

• Connector circuits: 1 - 15 Pin
• Wire Gauge: 10 - 24AWG, depends on real needs
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type: Fully customizable to your specifications.
• Minimum Order: 200 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
