Molex MX-DaSH Connectors

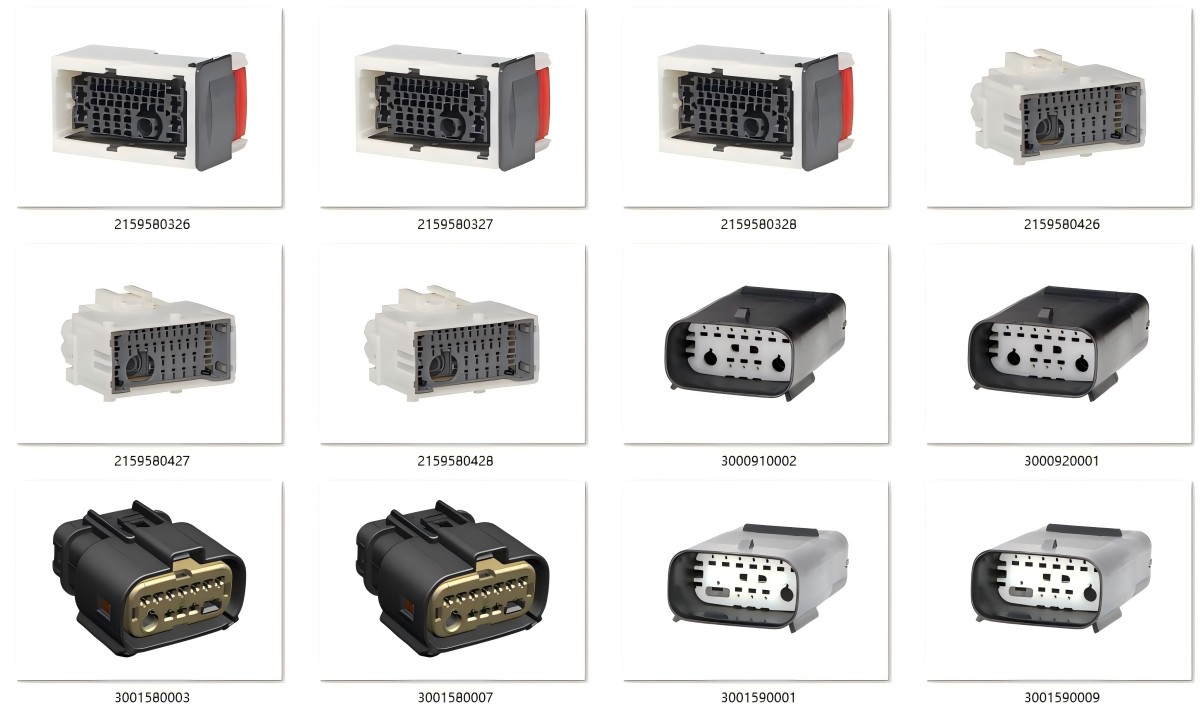

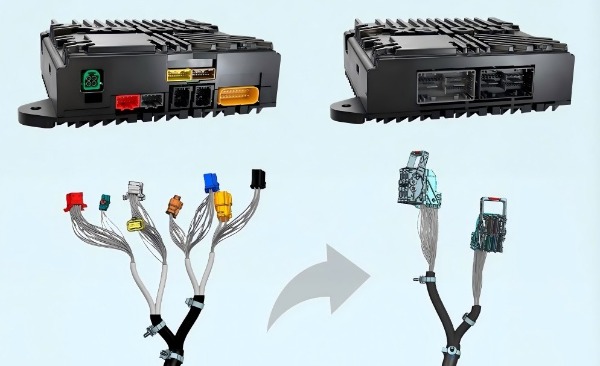

The Molex MX-DaSH Wire-to-Wire Connector System is a cutting-edge solution that enhances automotive wiring harness efficiency by integrating power, ground, and high-speed data connections into a single, streamlined connector. Designed to meet the evolving needs of automotive and commercial vehicle applications, the MX-DaSH system reduces weight, size, and costs, making it ideal for modern vehicles transitioning to zonal architecture. It is engineered for compact connectivity in electronic control units (ECUs) and supports up to 31 circuits, including a High-Speed FAKRA Mini (HFM®) data terminal. The system's robust design ensures reliable performance in harsh environments, featuring secure mating with an independent secondary lock (ISL), pin protection plate (PPP), and blade protections. Additionally, the MX-DaSH series simplifies the assembly process, reducing errors and improving efficiency, making it a versatile and reliable choice for automotive wiring solutions.

MX-DaSH Connector Features

• Optimizes wiring harness
• Combines multiple connectors into a single connector system
• Supports zonal architecture
• 1.20mm, 1.50mm, and 2.80mm terminal sizes
• Includes HFM modules for high-speed data transmission
• Delivers reliable operation in harsh environments
• T2/V1/S3-rated sealing capability
• ISL, PPP, and blade protection
• Ensures secure mating and connectivity
• Facilitates design assembly implementation
• Four unique keyways
• Prevents mismating and minimizes assembly errors
• RoHS compliant
• Up to 31 circuits and data
• Keyed pair mating requirement
• 100N min terminal retention force
• 70N max mating/unmating force
• 250V max voltage rating
• 100MΩ min insulation resistance
• PA66 housing
• Tin contacts
• -40°C to +85°C or +120°C operating temperature range (model dependent)

MX-DaSH Connector Specifications Chart

MX-DaSH Connector Applications

Automotive

1. Autonomous Driving Modules: These connectors are used in modules that require fast and reliable data transfer for processing sensor inputs, decision-making, and vehicle control in autonomous systems.
2. Computing Modules: Essential for connecting computing units within vehicles, including those responsible for managing various subsystems such as engine control, braking, and navigation.
3. Camera Systems: Integral to automotive camera setups, providing the high-speed data transmission for real-time video feeds, essential for driver assistance and safety systems.
4. Gateway/Switch Modules: Employed in networking modules that act as data hubs within the vehicle, ensuring seamless communication between various electronic systems.
5. High-Resolution 4K Displays: Connects display modules that offer enhanced visual clarity, improving driver and passenger experience in navigation and infotainment systems.
6. GPS: Provides reliable connections for GPS modules, ensuring accurate navigation and location tracking.
7. High-Speed Cable Networking: Suitable for applications requiring efficient data exchange over high-speed networks, which is critical for connected car features.
8. Sensor-Device Connectivity: Facilitates connections between sensors (e.g., temperature, pressure, speed) and the vehicle’s electronic control units (ECUs), enabling accurate and efficient data collection.
9. Surround-View Cameras: Used in camera systems providing a 360-degree view around the vehicle to assist with parking, obstacle detection, and driving safety.
10. LiDAR: Supports connections for LiDAR systems, which are essential for autonomous driving, object detection, and navigation.

Commercial Vehicles

1. Infotainment: Ensures stable connections for infotainment systems, supporting high-quality audio and video output and internet connectivity for passenger entertainment.
2. Fleet Management: Helps in connecting devices within fleet management systems, aiding in vehicle tracking, route optimization, and maintenance scheduling.
3. Telematics Modules: Used in modules that communicate vehicle health, location, and usage data, which is important for fleet monitoring and logistics.
4. Heavy-Duty Sensor Applications: Suitable for rugged environments where commercial vehicles operate, ensuring reliable connections for sensors monitoring vehicle performance.

Support Custom Wire Harness Assembly

• Connector circuits: 10 - 31+ Pin
• Wire Gauge: 0.13 ~ 4.0mm², depends on real needs
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type: Fully customizable to your specifications.
• Minimum Order: 50 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
