Molex MX150 Connector

The Molex MX150 Connector System is a cutting-edge solution designed for high-performance applications in challenging environments. Featuring pre-assembled, fully-submersible connectors, the MX150 combines compactness with reliability, making it an ideal choice for SAE- and ISO-style wiring. This system supports both single- and dual-row configurations with a current rating of up to 22A, accommodating a diverse range of applications from on-engine automotive systems to rugged off-road construction equipment. The MX150 is built on a 1.50mm ISO blade-type terminal architecture and offers versatile terminal options, including tin, silver, and gold finishes, to meet various performance requirements. Each connector is equipped with a single silicone-based seal that features individual wire openings and a seal cap, ensuring secure retention and strain relief while safeguarding against environmental contaminants. Additionally, the system includes integral terminal position assurance (TPA) and optional connector position assurance (CPA) components, streamlining assembly processes and reducing labor costs. Complying with stringent GMW3191, USCAR-2, and USCAR-21 specifications, the Molex MX150 Sealed Connector System is engineered for durability and efficiency, making it a preferred choice for both automotive and commercial vehicle applications.

MX150 Connector Features

• Mat seal technology for MX150 (1.50mm) Terminals
• -40 to +150˚C temperature class
• 22.0A current rating
• Preassembled terminal position assurance (TPA) housing
• 1-piece 3.5mm-pitch housing
• Grommet cap
• USCAR Interface
• 4 polarization and color options facilitate quick visual installation
• Clip-slot feature standard on blade connectors, optional on the receptacle
• Flashover options (i.e., custom void patterns) are available
• Single- and dual-row backshells/wire dress covers available in 2-, 3-, 6-, 8-, 12-, 16- and 20-circuit sizes
• Connector position assurance (CPA) option available
• Single- and dual-row V0 versions available (UL1977 certified)
• Flashover options (custom void patterns) are available, providing design flexibility
• Conforms to USCAR-2/USCAR-21/GMW3191

MX150 Connector Specifications Chart

Sort by the number of circuits.

MX150 Connector Applications

The Molex Sealed MX150 Connectors are engineered for versatility and reliability across a broad spectrum of automotive and commercial vehicle applications. These connectors excel in demanding environments, making them ideal for use in critical systems such as transmissions, where robust performance is essential for optimal functionality. They are also widely utilized in head and tail lamp assemblies, ensuring secure connections that withstand vibrations and moisture exposure.

In body harnesses, the MX150 connectors facilitate efficient wiring solutions, contributing to the overall integrity of vehicle electrical systems. They are essential in the operation of wipers, washers, and defoggers, enhancing driver visibility and safety under various weather conditions. Additionally, these connectors support speedometers and A/C modules, providing reliable signal and power connections for accurate performance and climate control.

Turn signals and airbag harnesses benefit from the secure sealing and strain relief features of the MX150, promoting safety and compliance with stringent automotive standards. The connectors are also utilized in speaker systems, ensuring high-quality audio transmission without interference. Door connectors and brake modules rely on the durability and reliability of the MX150, providing critical functionality in everyday vehicle operation. Horns, which require dependable electrical connections, also find a place within the range of applications for these connectors.

While this list highlights some of the most common uses for the Molex Sealed MX150 Connectors, it is by no means exhaustive. Their adaptability and performance make them suitable for countless other applications, further establishing their reputation as a trusted choice for engineers and manufacturers in the automotive industry.

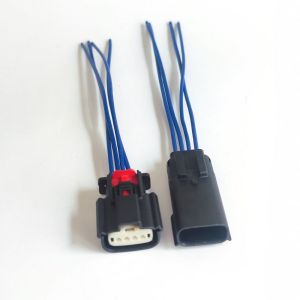

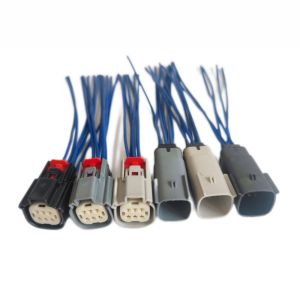

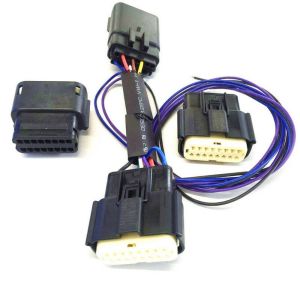

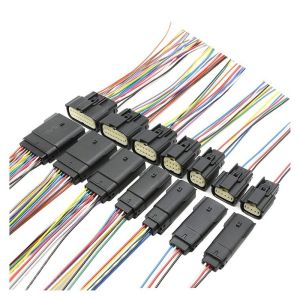

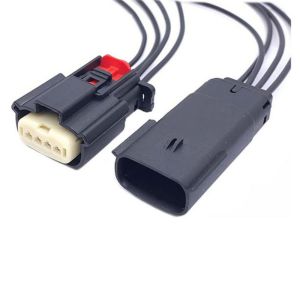

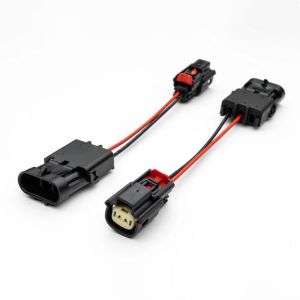

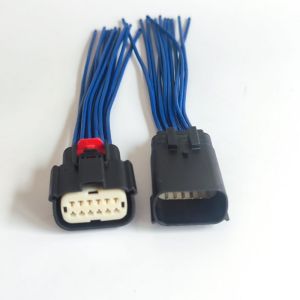

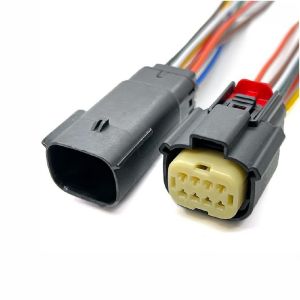

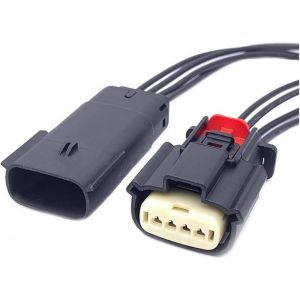

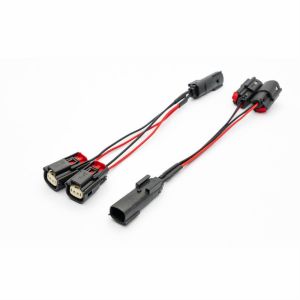

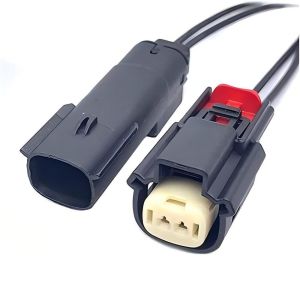

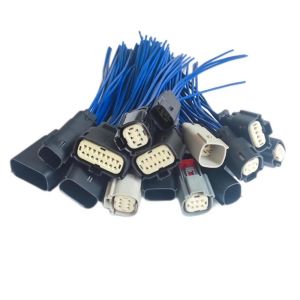

Custom Wiring Harness Cases

Customize Your Wire Harness

Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
