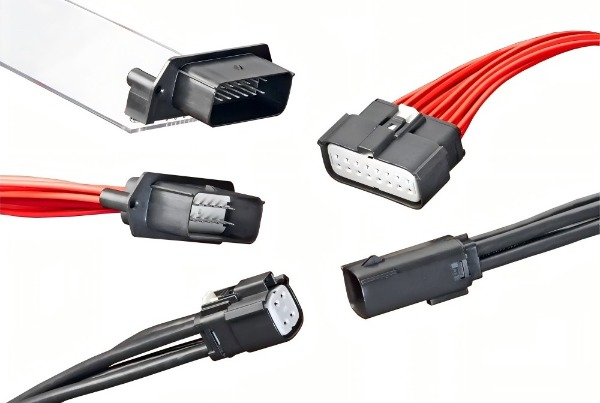

Molex MX150L Connector, Custom Wire Harness Manufacturer

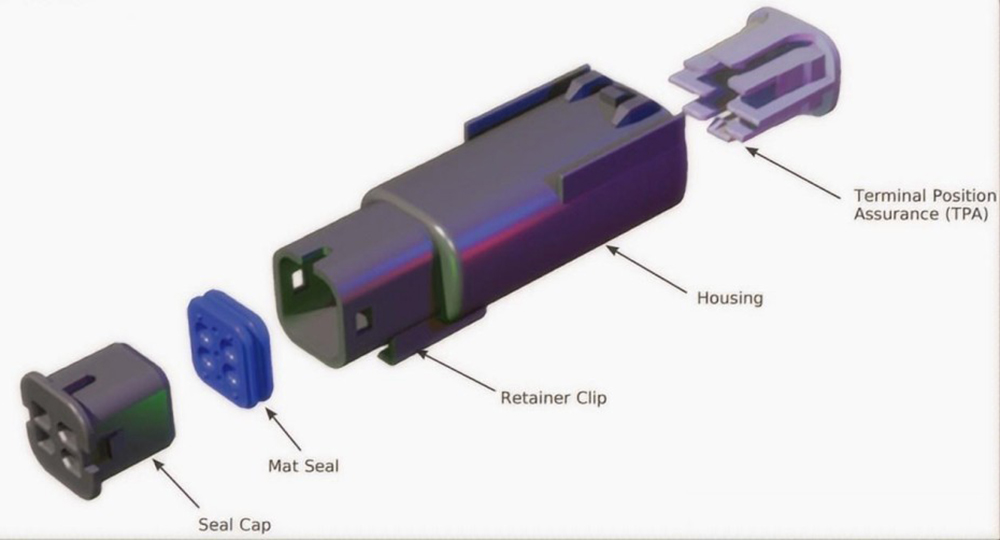

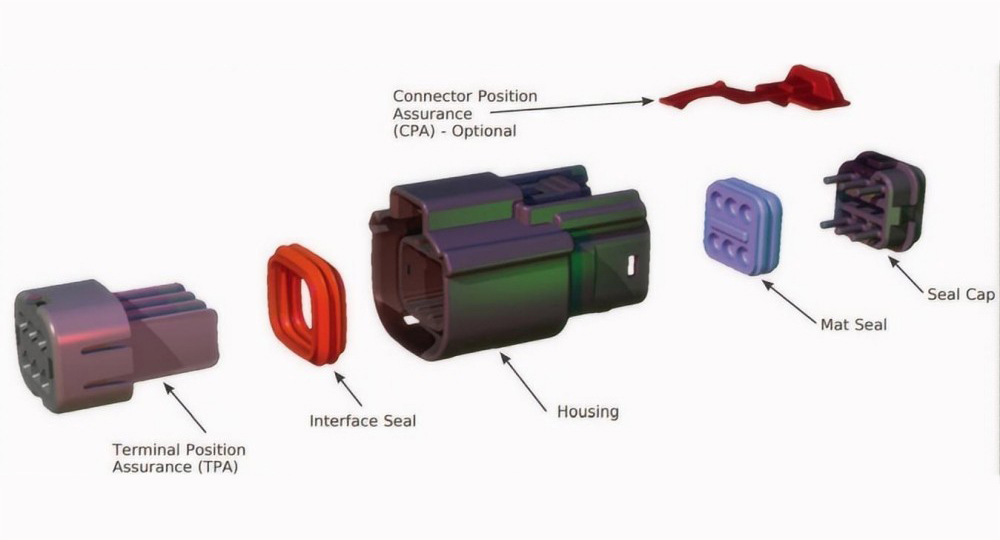

MX150L Connector Features

• Pre-assembled connector housings and TPA components shipped in one-piece units
• Integral, two-way mat seal on the plugs and receptacles
• Exceeds IEC IP67 waterproof requirements for a sealed-connector system; fully tested under submersed conditions in various fluids
• Provides customers design flexibility with wire-to-board, wire-to-wire, and wire-to-panel connection capabilities
• Exceeds IP67 requirements and conforms to UL 1977 but is not designed for automotive applications with requirements such as USCAR-2, USCAR-25, GMW3191, AK testing, J2030, Volvo technology requirements, or Toyota connector spec (TCS)
• Meets stringent industry requirements for industrial vehicles
• Integral terminal position assurance (TPA)
• Ensures that crimped terminal leads are properly locked into the connector (TPA will not seat into the final lock position and the connector system will not latch if a terminal is not locked properly into position)
• Sealed panel-mount plugs are equipped with the blind-hole boss feature
• Eliminates water ingress into the connector system up to three feet of water submersion. Reduces extra hardware previously required for waterproof mating

MX150L Connector Specifications Chart

MX150 Connector Applications

The Molex Sealed MX150L Connectors are versatile and durable, making them suitable for a wide range of applications across various sectors. In commercial settings, they are often used in vehicles such as ATVs, where reliable, sealed connections are essential for withstanding harsh environments and frequent exposure to dust, dirt, and moisture. They also find use in critical safety components, such as airbag sensors, providing robust and secure connections under demanding conditions. The connectors are well-suited for marine and boating applications, where they deliver consistent performance and protection against water intrusion. In the construction and agricultural industries, they are integrated into heavy machinery and farm equipment, offering resistance to vibration, mechanical stress, and extreme weather.

For consumer markets, the MX150L Connectors play a key role in security systems, ensuring reliable connections for surveillance, alarm systems, and access controls that require both durability and ease of installation. Within industrial environments, these connectors are employed in automation equipment, providing dependable electrical connections for systems that demand precision and reliability. They are also used in process control systems, where accurate and uninterrupted signal transmission is critical for efficient operations.

This list represents some of the more common uses for the Molex MX150L Connectors, highlighting their adaptability and effectiveness in environments where robust, sealed connections are a priority.

Support Custom Wire Harness Assembly

• Connector circuits: 2 - 16 Pin
• Wire Gauge: 8 - 22AWG, depends on real needs
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type: Fully customizable to your specifications.
• Minimum Order: 100 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
