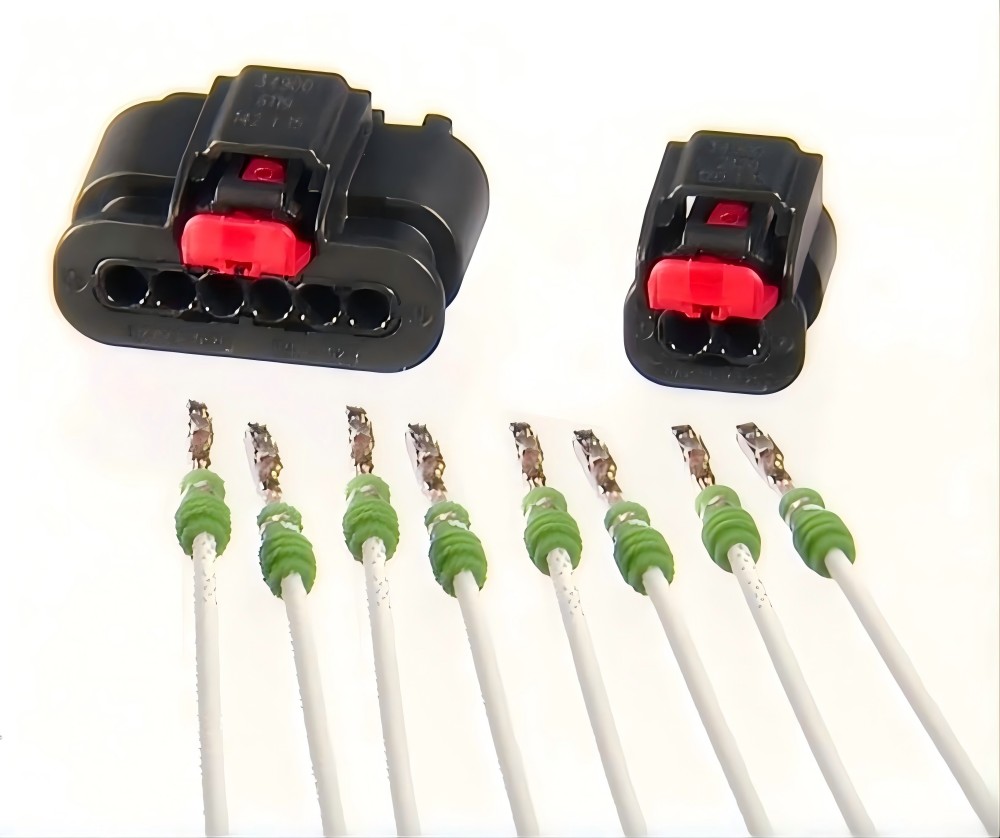

Molex MXP120 Sealed Connector

The Molex MXP120 Sealed Connector System is a compact, high-performance in-line connection solution designed for automotive and commercial vehicle applications. Featuring a 1.20mm terminal design, it significantly reduces the connector interface size compared to traditional 1.50mm pitch connectors, offering space savings for modern, confined design parameters. With a 4mm pitch, this system supports medium-power applications up to 13A and is compatible with wire gauges up to 1mm². Built to withstand harsh conditions, the connectors are sealed to endure high-pressure spray environments, making them ideal for most sealed harnessing needs. The MXP120 series is USCAR compliant and meets T3-V2-S2 performance standards, ensuring reliability in safety-critical vehicle systems. It incorporates a Single Wire Seal (SWS) system with a robust perimeter seal, and features such as Independent Secondary Locking (ISL) and Primary Lock Reinforcement (PLR) enhance terminal positioning and secure mating. Additionally, the design ensures scoop-proof connections and includes features like bridge-protected locking latches with an audible click, preventing latch damage during handling and ensuring a secure, reliable connection.

MXP120 Sealed Connector Features

• 4mm pitch connection system based on 1.20mm terminals
  • Meets medium-power application requirements up to 13A
  • Suitable for most sealed harnessing applications
• Single wire seal (SWS) connection system with robust perimeter seal
  • Withstands high-pressure spray environments
• Reduced package size when compared to the existing 1.50mm connection systems
  • Offers significant space savings for confined design parameters
• Accommodates wire gauges up to 1mm²
  • Limits the connector pitch to 4mm with SWS
• Compatible with AK and USCAR interfaces
  • Confirms global acceptance and marketability
• Female receptacles feature long shrouds for 1 by 4 circuits and above (short shrouds for circuits below 4-circuit)
  • Ensures all circuit sizes and keying options are scoop-proof
• Female receptacles with Independent Secondary Locking (ISL), Male blade connectors with Primary Lock Reinforcement (PLR)
  • Ensures efficient terminal positioning and detection of partial installation of terminals
• Female receptacles feature an integral locking latch with bridge protection and an audible click
  • Secure mating performance
  • It avoids damage to the latch during packaging and transit

MXP120 Sealed Connector Specifications Chart

MXP120 Sealed Connector Applications

The Molex MXP120 Sealed Connectors are versatile and reliable, making them suitable for a wide range of automotive and industrial applications. These connectors are designed for medium-power usage, handling up to 13A, and provide excellent environmental protection, ensuring performance even in challenging conditions. Here are some common applications:

Airbags

Steering Wheel, Side, and Curtain Airbags: Ensuring safe and dependable electrical connections within the airbag deployment systems, enhancing vehicle safety.

Door-Lock Mechanisms

Providing reliable connections for the electronic components controlling door locks, essential for vehicle security and remote control functions.

Emission Controls

Facilitating connections in emission control systems, which monitor and reduce the amount of pollutants released by the vehicle.

Exterior Lighting

Headlights, Taillights, and Turn Signal Lamps: Supporting electrical connections for various lighting components, offering durability in external automotive environments.

Fuel Injection

Connecting to fuel injection systems to ensure efficient and precise fuel delivery, optimizing engine performance and fuel economy.

Ignition Coil

Enabling stable and consistent connections to ignition coils, which are critical for the efficient operation of combustion engines.

Safety and Chassis Systems

Used in various safety and chassis systems, ensuring robust electrical connections to enhance overall vehicle safety and stability.

Safety Restraint Systems (SRS)

Supporting connections for safety restraint mechanisms, including seat belts and airbags, enhancing passenger protection during collisions.

Seat-Belt Pretensioners

Ensuring reliable electrical connections for systems that activate seat-belt pretensioners, which secure passengers in their seats during sudden stops or impacts.

Supplemental Inflatable Restraints (SIR)

Providing dependable connections for additional inflatable restraints that supplement primary airbags, ensuring comprehensive occupant safety.

Turn Signal Lamps

Facilitating electrical connections for turn signal indicators, and maintaining clear and reliable signaling for safe driving.

Medium-Power Sealed Applications

Suitable for various other medium-power applications where sealed connections are necessary, particularly in environments exposed to dust, moisture, and vibration.

Note: This list is not exhaustive and represents some of the more common uses for the Molex MXP120 Sealed Connectors. Their design allows them to be adapted for numerous other applications requiring robust, reliable, and sealed electrical connections.

Support Custom Wire Harness Assembly

• Connector circuits: 2 - 6 Pin
• Wire Gauge: 16 - 26AWG, depends on real needs
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type: Fully customizable to your specifications.
• Minimum Order: 100 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
