Molex Micro-Fit 3.0 BMI Connector
The Molex Micro-Fit 3.0 Blind-Mate Interface (BMI) Connectors are engineered specifically for blind-mating scenarios, accommodating slight misalignments during connection. Ideal for confined or hard-to-access spaces, these connectors are commonly used in applications such as sliding drawers, fan trays, and equipment where mating and unmating occur without direct visibility. Available in a wide range of circuit configurations and cable lengths, the BMI series is suitable for both power and signal transmission, supporting a maximum current rating of 8.5A and a 3.00mm pitch. Offering versatility in wire-to-wire and wire-to-board formats, these connectors meet various connection and orientation requirements, making them a robust choice for harness assembly, patient monitoring equipment, refrigeration units, and vending machines.
Micro-Fit 3.0 BMI Connector Features
- Blind-mating wire-to-wire and wire-to-board connectors:
- Offers a full range of options for every application and orientation
- Fitting nails and solderable clips are available
- Fully isolated terminals
- Fully polarized housings
- High-temperature LCP headers
- Optional Terminal Position Assurance (TPA) feature
- Positive latching
- Self-aligning feature molded into housings:
- Allows up to 2.54mm misalignment
- SMT, press-fit, or surface mount compatible versions are available
Micro-Fit 3.0 BMI Connector Specifications Chart
| P/N | Old P/N | Circuits | Row | Descriptions | Datasheet |

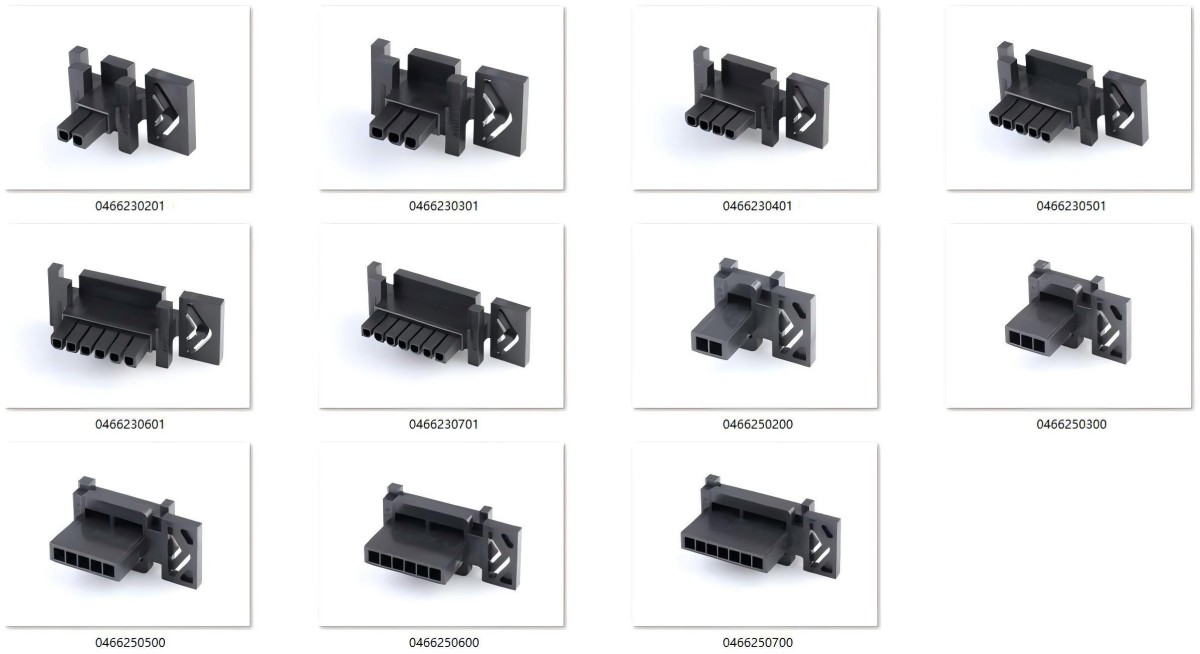

| 466230201 | 46623-0201 | 2 | Single Row | Micro-Fit BMI Receptacle Housing，Panel Mount，Nylon，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/466230201#documents-and-resources |
| 466250200 | 46625-0200 | 2 | Single Row | Micro-Fit BMI Plug Housing，Panel Mount，Nylon，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/466250200#documents-and-resources |
| 466230301 | 46623-0301 | 3 | Single Row | Micro-Fit BMI Receptacle Housing，Panel Mount，Nylon，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/466230301#documents-and-resources |
| 466250300 | 46625-0300 | 3 | Single Row | Micro-Fit BMI Plug Housing，Panel Mount，Nylon，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/466250300#documents-and-resources |

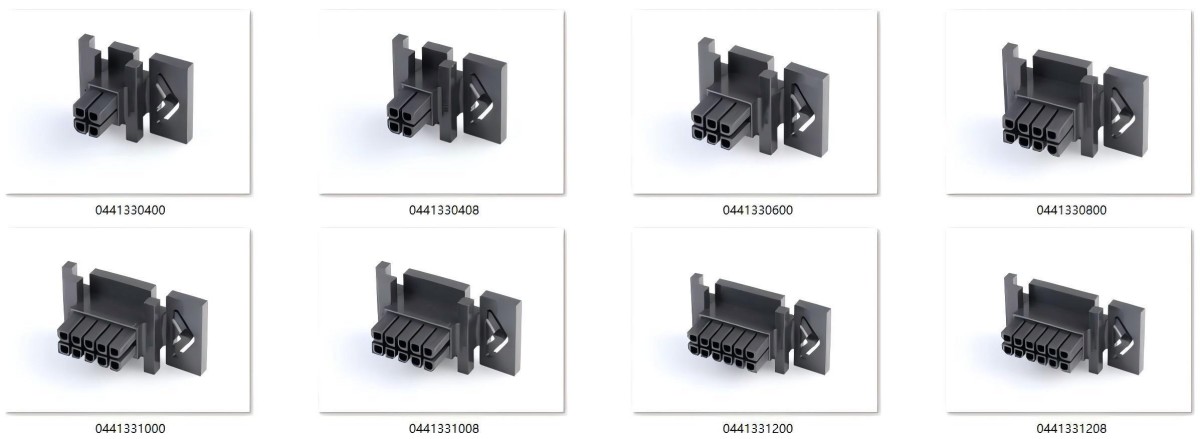

| 441330400 | 44133-0400 | 4 | Dual Row | Micro-Fit BMI Receptacle Housing，Panel Mount，Polyester，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/441330400#documents-and-resources |
| 441330408 | 44133-0408 | 4 | Dual Row | Micro-Fit BMI Receptacle Housing，Panel Mount，Nylon，UL 94V-0，Halogen- Free | https://www.molex.com/en-us/products/part-detail/441330408#documents-and-resources |
| 443000400 | 44300-0400 | 4 | Dual Row | Micro-Fit BMI Plug Housing，Panel Mount，Black | https://www.molex.com/en-us/products/part-detail/443000400#documents-and-resources |
| 466230401 | 46623-0401 | 4 | Single Row | Micro-Fit BMI Receptacle Housing，Panel Mount，Nylon，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/466230401#documents-and-resources |
| 466230501 | 46623-0501 | 5 | Single Row | Micro-Fit BMI Receptacle Housing，Panel Mount，Nylon，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/466230501#documents-and-resources |
| 466250500 | 46625-0500 | 5 | Single Row | Micro-Fit BMI Plug Housing，Panel Mount，Nylon，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/466250500#documents-and-resources |
| 441330600 | 44133-0600 | 6 | Dual Row | Micro-Fit BMI Receptacle Housing，Panel Mount，Polyester，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/441330600#documents-and-resources |
| 443000600 | 44300-0600 | 6 | Dual Row | Micro-Fit BMI Plug Housing，Panel Mount，Black | https://www.molex.com/en-us/products/part-detail/443000600#documents-and-resources |
| 443000631 | 44300-0631 | 6 | Dual Row | Micro-Fit BMI Plug Housing，Panel Mount，Make First/Break Last，Black | https://www.molex.com/en-us/products/part-detail/443000631 |
| 466230601 | 46623-0601 | 6 | Single Row | Micro-Fit BMI Receptacle Housing，Panel Mount，Nylon，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/466230601#documents-and-resources |
| 466250600 | 46625-0600 | 6 | Single Row | Micro-Fit BMI Plug Housing，Panel Mount，Nylon，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/466250600#documents-and-resources |
| 466230701 | 46623-0701 | 7 | Single Row | Micro-Fit BMI Receptacle Housing，Panel Mount，Nylon，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/466230701#documents-and-resources |
| 466250700 | 46625-0700 | 7 | Single Row | Micro-Fit BMI Plug Housing，Panel Mount，Nylon，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/466250700#documents-and-resources |
| 441330800 | 44133-0800 | 8 | Dual Row | Micro-Fit BMI Receptacle Housing，Panel Mount，Polyester，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/441330800#documents-and-resources |

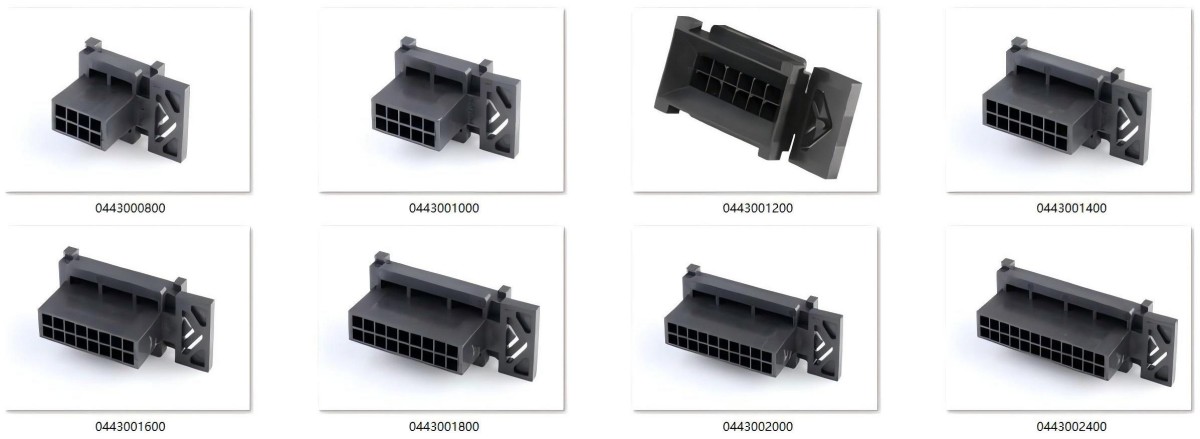

| 443000800 | 44300-0800 | 8 | Dual Row | Micro-Fit BMI Plug Housing，Panel Mount，Black | https://www.molex.com/en-us/products/part-detail/443000800#documents-and-resources |
| 466230801 | 46623-0801 | 8 | Single Row | Micro-Fit BMI Receptacle Housing，Panel Mount，Nylon，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/466230801#documents-and-resources |
| 441331000 | 44133-1000 | 10 | Dual Row | Micro-Fit BMI Receptacle Housing，Panel Mount，Polyester，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/441331000#documents-and-resources |
| 441331008 | 44133-1008 | 10 | Dual Row | Micro-Fit BMI Receptacle Housing，Panel Mount，Nylon，UL 94V-0，Halogen-Free | https://www.molex.com/en-us/products/part-detail/441331008#documents-and-resources |
| 441331011 | 44133-1011 | 10 | Dual Row | Micro-Fit BMI Receptacle Housing，Panel Mount，Nylon，Glow-Wire Capable，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/441331011#documents-and-resources |
| 443001000 | 44300-1000 | 10 | Dual Row | Micro-Fit BMI Plug Housing，Panel Mount，Black | https://www.molex.com/en-us/products/part-detail/443001000#documents-and-resources |
| 441331200 | 44133-1200 | 12 | Dual Row | Micro-Fit BMI Receptacle Housing，Panel Mount，Polyester，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/441331200#documents-and-resources |
| 441331208 | 44133-1208 | 12 | Dual Row | Micro-Fit BMI Receptacle Housing，Panel Mount，Nylon，UL 94V-0，Halogen-Free | https://www.molex.com/en-us/products/part-detail/441331208#documents-and-resources |
| 443001200 | 44300-1200 | 12 | Dual Row | Micro-Fit BMI Plug Housing，Panel Mount，Black | https://www.molex.com/en-us/products/part-detail/443001200#documents-and-resources |

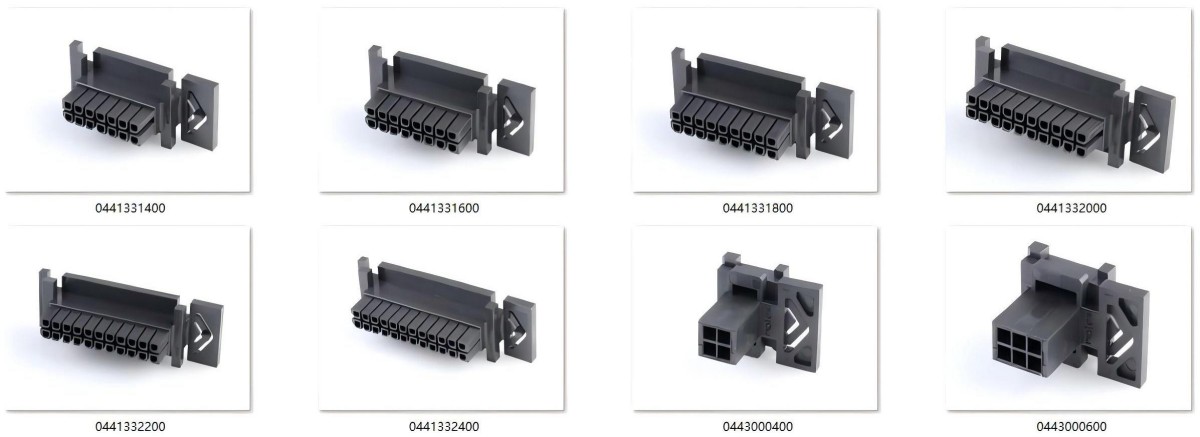

| 441331400 | 44133-1400 | 14 | Dual Row | Micro-Fit BMI Receptacle Housing，Panel Mount，Polyester，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/441331400#documents-and-resources |
| 443001400 | 44300-1400 | 14 | Dual Row | Micro-Fit BMI Plug Housing，Panel Mount，Black | https://www.molex.com/en-us/products/part-detail/443001400#documents-and-resources |
| 441331600 | 44133-1600 | 16 | Dual Row | Micro-Fit BMI Receptacle Housing，Panel Mount，Polyester，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/441331600#documents-and-resources |
| 443001600 | 44300-1600 | 16 | Dual Row | Micro-Fit BMI Plug Housing，Panel Mount，Black | https://www.molex.com/en-us/products/part-detail/443001600#documents-and-resources |
| 441331800 | 44133-1800 | 18 | Dual Row | Micro-Fit BMI Receptacle Housing，Panel Mount，Polyester，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/441331800#documents-and-resources |
| 443001800 | 44300-1800 | 18 | Dual Row | Micro-Fit BMI Plug Housing，Panel Mount，Black | https://www.molex.com/en-us/products/part-detail/443001800#documents-and-resources |
| 441332000 | 44133-2000 | 20 | Dual Row | Micro-Fit BMI Receptacle Housing，Panel Mount，Polyester，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/441332000#documents-and-resources |
| 443002000 | 44300-2000 | 20 | Dual Row | Micro-Fit BMI Plug Housing，Panel Mount，Black | https://www.molex.com/en-us/products/part-detail/443002000#documents-and-resources |
| 441332200 | 44133-2200 | 22 | Dual Row | Micro-Fit BMI Receptacle Housing，Panel Mount，Polyester，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/441332200#documents-and-resources |
| 441332400 | 44133-2400 | 24 | Dual Row | Micro-Fit BMI Receptacle Housing，Panel Mount，Polyester，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/441332400#documents-and-resources |
| 443002400 | 44300-2400 | 24 | Dual Row | Micro-Fit BMI Plug Housing，Panel Mount，Black | https://www.molex.com/en-us/products/part-detail/443002400#documents-and-resources |
Micro-Fit 3.0 BMI Connector Applications
As a professional custom wire harness manufacturer in China, using the Molex Micro-Fit 3.0 BMI Connector for wire harness assemblies opens a wide range of applications.
Here’s an expanded look at common uses across various industries:
Automotive and Transportation
- Vehicle Electronics: This connector is well-suited for automotive applications, providing reliable power connections within in-cabin electronic systems.
- Custom Wire Harnesses for Harness Manufacturers: Trusted by wire harness manufacturers for compact, high-current connectors, ideal for power and signal transmission in diverse vehicular systems.
Consumer Appliances and Electronics
- Home Appliances (White Goods): Used in large appliances such as freezers, refrigerators, washers, and dryers due to its compact design and strong current-carrying capabilities.
- Entertainment and Office Equipment: Perfect for gaming machines, printers, and scanners, stable connections in a compact format are necessary for consistent device performance.
- Retail and Security Systems: Frequently used in vending machines and security systems for dependable power and data connectivity.
Medical Devices
- Diagnostic and Monitoring Equipment: Commonly applied in patient monitors and other diagnostic devices, meeting the high-reliability demands of medical environments.
Sustainable Energy
- Solar Power Systems: Used in solar applications for efficient power connections in compact spaces, ideal for clean energy solutions like photovoltaic panels and battery systems.
Telecommunications and Networking
- Data and Networking Equipment: Ideal for routers, switches, servers, and storage systems in telecommunications, supporting data and power needs in high-performance network setups.
These represent some of the most common applications for wire harness assemblies using the Molex Micro-Fit 3.0 BMI Connector, tailored for high-current, non-sealed environments across various industries.
Support Custom Wire Harness Assembly
- Connector circuits: 2 - 24 Pin
- Wire Gauge: 18 - 30AWG, depends on real needs
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type: Fully customizable to your specifications.
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
