Molex Micro-Fit TPA Connector
The Molex Micro-Fit TPA Connector Cable Assemblies provide a versatile and reliable solution for a wide range of applications, featuring various cable lengths to accommodate specific needs. Designed with a 3.00mm pitch and a robust 5A maximum current rating, these connectors ensure optimal performance and durability. The use of multi-color cable configurations not only enhances aesthetic appeal but also facilitates correct connections, minimizing the risk of installation errors. Rated for a maximum of 600V, these assemblies are suitable for diverse environments, including consumer and home appliances, data and computing systems, telecommunications, and networking, as well as automotive and commercial vehicles. With options ranging from 2 to 24 connector positions, they can be tailored to fit various designs and requirements. Constructed from UL style wire—such as 1061, 1007, and 1569—these assemblies are ready for immediate use in electronic appliance applications. Additionally, the Micro-Fit TPA Cable Assemblies comply with the stringent 2011/65/EU RoHS directive and are assembled in facilities certified to ISO/TS16949 standards, ensuring high quality and reliability across all applications.
Micro-Fit TPA Connector Features
- Premium housing
- Small pitch
- Increased cycle durability
- Nylon material
- -40°C to +105°C operating temperature range
- Prevents terminal back-outs
- Compatible with all Micro-Fit 3.0 receptacles
Micro-Fit TPA Connector Applications

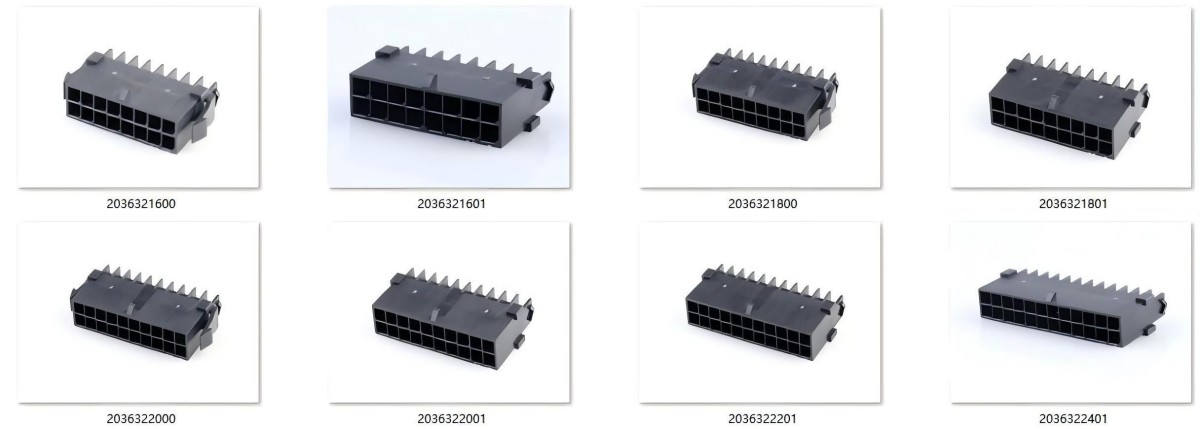

| P/N | Old P/N | Circuits | Row | Descriptions | Datasheet |
| 1718500200 | 171850-0200 | 2 | Single Row | Micro-Fit TPA Receptacle Housing，UL 94V-0，Low-Halogen，Black | https://www.molex.com/en-us/products/part-detail/1718500200#documents-and-resources |
| 2008750002 | 200875-0002 | 2 | Single Row | Micro-Fit TPA Free-Hanging Plug Housing，UL 94V-0，Low-Halogen，Black | https://www.molex.com/en-us/products/part-detail/2008750002#documents-and-resources |
| 2008750102 | 200875-0102 | 2 | Single Row | Micro-Fit TPA Panel Mount Plug Housing，UL 94V-0，Low-Halogen，Black | https://www.molex.com/en-us/products/part-detail/2008750102#documents-and-resources |
| 1718500300 | 171850-0300 | 3 | Single Row | Micro-Fit TPA Receptacle Housing，UL 94V-0，Low-Halogen，Black | https://www.molex.com/en-us/products/part-detail/1718500300#documents-and-resources |
| 2008750003 | 200875-0003 | 3 | Single Row | Micro-Fit TPA Free-Hanging Plug Housing，UL 94V-0，Low-Halogen，Black | https://www.molex.com/en-us/products/part-detail/2008750003#documents-and-resources |
| 2008750103 | 200875-0103 | 3 | Single Row | Micro-Fit TPA Panel Mount Plug Housing，UL 94V-0，Low-Halogen，Black | https://www.molex.com/en-us/products/part-detail/2008750103#documents-and-resources |
| 1718500400 | 171850-0400 | 4 | Single Row | Micro-Fit TPA Receptacle Housing，UL 94V-0，Low-Halogen，Black | https://www.molex.com/en-us/products/part-detail/1718500400#documents-and-resources |
| 1729520401 | 172952-0401 | 4 | Dual Row | Micro-Fit TPA Receptacle Housing，UL 94V-0，Low-Halogen，Black | https://www.molex.com/en-us/products/part-detail/1729520401#documents-and-resources |
| 1729520402 | 172952-0402 | 4 | Dual Row | Micro-Fit TPA Receptacle Housing，UL 94V-2，Glow-Wire Capable，Black | https://www.molex.com/en-us/products/part-detail/1729520402#documents-and-resources |
| 2008750004 | 200875-0004 | 4 | Single Row | Micro-Fit TPA Free-Hanging Plug Housing，UL 94V-0，Low-Halogen，Black | https://www.molex.com/en-us/products/part-detail/2008750004#documents-and-resources |
| 2008750104 | 200875-0104 | 4 | Single Row | Micro-Fit TPA Panel Mount Plug Housing，UL 94V-0，Low-Halogen，Black | https://www.molex.com/en-us/products/part-detail/2008750104#documents-and-resources |
| 2036320400 | 203632-0400 | 4 | Dual Row | Micro-Fit TPA Plug Housing，UL 94V-0，Low-Halogen，with Panel Mounts，Black | https://www.molex.com/en-us/products/part-detail/2036320400#documents-and-resources |
| 2036320401 | 203632-0401 | 4 | Dual Row | Micro-Fit TPA Plug Housing，UL 94V-0，Low-Halogen，without Panel Mounts，Black | https://www.molex.com/en-us/products/part-detail/2036320401#documents-and-resources |
| 1718500500 | 171850-0500 | 5 | Single Row | Micro-Fit TPA Receptacle Housing，UL 94V-0，Low-Halogen，Black | https://www.molex.com/en-us/products/part-detail/1718500500#documents-and-resources |
| 2008750005 | 200875-0005 | 5 | Single Row | Micro-Fit TPA Free-Hanging Plug Housing，UL 94V-0，Low-Halogen，Black | https://www.molex.com/en-us/products/part-detail/2008750005#documents-and-resources |
| 2008750105 | 200875-0105 | 5 | Single Row | Micro-Fit TPA Panel Mount Plug Housing，UL 94V-0，Low-Halogen，Black | https://www.molex.com/en-us/products/part-detail/2008750105#documents-and-resources |
| 1718500600 | 171850-0600 | 6 | Single Row | Micro-Fit TPA Receptacle Housing，UL 94V-0，Low-Halogen，Black | https://www.molex.com/en-us/products/part-detail/1718500600#documents-and-resources |
| 1729520601 | 172952-0601 | 6 | Dual Row | Micro-Fit TPA Receptacle Housing，UL 94V-0，Low-Halogen，Black | https://www.molex.com/en-us/products/part-detail/1729520601#documents-and-resources |
| 1729520602 | 172952-0602 | 6 | Dual Row | Micro-Fit TPA Receptacle Housing，UL 94V-2，Glow-Wire Capable，Black | https://www.molex.com/en-us/products/part-detail/1729520602#documents-and-resources |
| 2008750006 | 200875-0006 | 6 | Single Row | Micro-Fit TPA Free-Hanging Plug Housing，UL 94V-0，Low-Halogen，Black | https://www.molex.com/en-us/products/part-detail/2008750006#documents-and-resources |
| 2008750106 | 200875-0106 | 6 | Single Row | Micro-Fit TPA Panel Mount Plug Housing，UL 94V-0，Low-Halogen，Black | https://www.molex.com/en-us/products/part-detail/2008750106#documents-and-resources |
| 2036320600 | 203632-0600 | 6 | Dual Row | Micro-Fit TPA Plug Housing，UL 94V-0，Low-Halogen，with Panel Mounts，Black | https://www.molex.com/en-us/products/part-detail/2036320600#documents-and-resources |
| 2036320601 | 203632-0601 | 6 | Dual Row | Micro-Fit TPA Plug Housing，UL 94V-0，Low-Halogen，without Panel Mounts，Black | https://www.molex.com/en-us/products/part-detail/2036320601#documents-and-resources |
| 1718500700 | 171850-0700 | 7 | Single Row | Micro-Fit TPA Receptacle Housing，UL 94V-0，Low-Halogen，Black | https://www.molex.com/en-us/products/part-detail/1718500700#documents-and-resources |
| 2008750107 | 200875-0107 | 7 | Single Row | Micro-Fit TPA Panel Mount Plug Housing，UL 94V-0，Low-Halogen，Black | https://www.molex.com/en-us/products/part-detail/2008750107#documents-and-resources |
| 1729520801 | 172952-0801 | 8 | Dual Row | Micro-Fit TPA Receptacle Housing，UL 94V-0，Low-Halogen，Black | https://www.molex.com/en-us/products/part-detail/1729520801#documents-and-resources |
| 1729520802 | 172952-0802 | 8 | Dual Row | Micro-Fit TPA Receptacle Housing，UL 94V-2，Glow-Wire Capable，Black | https://www.molex.com/en-us/products/part-detail/1729520802#documents-and-resources |
| 2008750008 | 200875-0008 | 8 | Single Row | Micro-Fit TPA Free-Hanging Plug Housing，UL 94V-0，Low-Halogen，Black | https://www.molex.com/en-us/products/part-detail/2008750008 |
| 2008750108 | 200875-0108 | 8 | Single Row | Micro-Fit TPA Panel Mount Plug Housing，UL 94V-0，Low-Halogen，Black | https://www.molex.com/en-us/products/part-detail/2008750108 |
| 2036320800 | 203632-0800 | 8 | Dual Row | Micro-Fit TPA Plug Housing，UL 94V-0，Low-Halogen，with Panel Mounts，Black | https://www.molex.com/en-us/products/part-detail/2036320800#documents-and-resources |
| 2036320801 | 203632-0801 | 8 | Dual Row | Micro-Fit TPA Plug Housing，UL 94V-0，Low-Halogen，without Panel Mounts，Black | https://www.molex.com/en-us/products/part-detail/2036320801#documents-and-resources |
| 1729521001 | 172952-1001 | 10 | Dual Row | Micro-Fit TPA Receptacle Housing，UL 94V-0，Low-Halogen，Black | https://www.molex.com/en-us/products/part-detail/1729521001#documents-and-resources |
| 1729521002 | 172952-1002 | 10 | Dual Row | Micro-Fit TPA Receptacle Housing，UL 94V-2，Glow-Wire Capable，Black | https://www.molex.com/en-us/products/part-detail/1729521002#documents-and-resources |
| 2036321000 | 203632-1000 | 10 | Dual Row | Micro-Fit TPA Plug Housing，UL 94V-0，Low-Halogen，with Panel Mounts，Black | https://www.molex.com/en-us/products/part-detail/2036321000#documents-and-resources |
| 2036321001 | 203632-1001 | 10 | Dual Row | Micro-Fit TPA Plug Housing，UL 94V-0，Low-Halogen，without Panel Mounts，Black | https://www.molex.com/en-us/products/part-detail/2036321001#documents-and-resources |
| 1729521201 | 172952-1201 | 12 | Dual Row | Micro-Fit TPA Receptacle Housing，UL 94V-0，Low-Halogen，Black | https://www.molex.com/en-us/products/part-detail/1729521201#documents-and-resources |
| 1729521202 | 172952-1202 | 12 | Dual Row | Micro-Fit TPA Receptacle Housing，UL 94V-2，Glow-Wire Capable，Black | https://www.molex.com/en-us/products/part-detail/1729521202#documents-and-resources |
| 2036321200 | 203632-1200 | 12 | Dual Row | Micro-Fit TPA Plug Housing，UL 94V-0，Low-Halogen，with Panel Mounts，Black | https://www.molex.com/en-us/products/part-detail/2036321200#documents-and-resources |
| 2036321201 | 203632-1201 | 12 | Dual Row | Micro-Fit TPA Plug Housing，UL 94V-0，Low-Halogen，without Panel Mounts，Black | https://www.molex.com/en-us/products/part-detail/2036321201#documents-and-resources |
| 1729521401 | 172952-1401 | 14 | Dual Row | Micro-Fit TPA Receptacle Housing，UL 94V-0，Low-Halogen，Black | https://www.molex.com/en-us/products/part-detail/1729521401#documents-and-resources |
| 1729521402 | 172952-1402 | 14 | Dual Row | Micro-Fit TPA Receptacle Housing，UL 94V-2，Glow-Wire Capable，Black | https://www.molex.com/en-us/products/part-detail/1729521402#documents-and-resources |
| 2036321400 | 203632-1400 | 14 | Dual Row | Micro-Fit TPA Plug Housing，UL 94V-0，Low-Halogen，with Panel Mounts，Black | https://www.molex.com/en-us/products/part-detail/2036321400#documents-and-resources |
| 2036321401 | 203632-1401 | 14 | Dual Row | Micro-Fit TPA Plug Housing，UL 94V-0，Low-Halogen，without Panel Mounts，Black | https://www.molex.com/en-us/products/part-detail/2036321401#documents-and-resources |
| 1729521601 | 172952-1601 | 16 | Dual Row | Micro-Fit TPA Receptacle Housing，UL 94V-0，Low-Halogen，Black | https://www.molex.com/en-us/products/part-detail/1729521601#documents-and-resources |
| 2036321600 | 203632-1600 | 16 | Dual Row | Micro-Fit TPA Plug Housing，UL 94V-0，Low-Halogen，with Panel Mounts，Black | https://www.molex.com/en-us/products/part-detail/2036321600#documents-and-resources |
| 2036321601 | 203632-1601 | 16 | Dual Row | Micro-Fit TPA Plug Housing，UL 94V-0，Low-Halogen，without Panel Mounts，Black | https://www.molex.com/en-us/products/part-detail/2036321601#documents-and-resources |
| 1729521801 | 172952-1801 | 18 | Dual Row | Micro-Fit TPA Receptacle Housing，UL 94V-0，Low-Halogen，Black | https://www.molex.com/en-us/products/part-detail/1729521801#documents-and-resources |
| 2036321800 | 203632-1800 | 18 | Dual Row | Micro-Fit TPA Plug Housing，UL 94V-0，Low-Halogen，with Panel Mounts，Black | https://www.molex.com/en-us/products/part-detail/2036321800#documents-and-resources |
| 2036321801 | 203632-1801 | 18 | Dual Row | Micro-Fit TPA Plug Housing，UL 94V-0，Low-Halogen，without Panel Mounts，Black | https://www.molex.com/en-us/products/part-detail/2036321801#documents-and-resources |
| 1729522001 | 172952-2001 | 20 | Dual Row | Micro-Fit TPA Receptacle Housing，UL 94V-0，Low-Halogen，Black | https://www.molex.com/en-us/products/part-detail/1729522001#documents-and-resources |
| 2036322000 | 203632-2000 | 20 | Dual Row | Micro-Fit TPA Plug Housing，UL 94V-0，Low-Halogen，with Panel Mounts，Black | https://www.molex.com/en-us/products/part-detail/2036322000#documents-and-resources |
| 2036322001 | 203632-2001 | 20 | Dual Row | Micro-Fit TPA Plug Housing，UL 94V-0，Low-Halogen，without Panel Mounts，Black | https://www.molex.com/en-us/products/part-detail/2036322001#documents-and-resources |
| 1729522201 | 172952-2201 | 22 | Dual Row | Micro-Fit TPA Receptacle Housing，UL 94V-0，Low-Halogen，Black | https://www.molex.com/en-us/products/part-detail/1729522201#documents-and-resources |
| 2036322201 | 203632-2201 | 22 | Dual Row | Micro-Fit TPA Plug Housing，UL 94V-0，Low-Halogen，without Panel Mounts，Black | https://www.molex.com/en-us/products/part-detail/2036322201#documents-and-resources |
| 1729522401 | 172952-2401 | 24 | Dual Row | Micro-Fit TPA Receptacle Housing，UL 94V-0，Low-Halogen，Black | https://www.molex.com/en-us/products/part-detail/1729522401#documents-and-resources |
| 2036322401 | 203632-2401 | 24 | Dual Row | Micro-Fit TPA Plug Housing，UL 94V-0，Low-Halogen，without Panel Mounts，Black | https://www.molex.com/en-us/products/part-detail/2036322401#documents-and-resources |
Micro-Fit TPA Connector Applications
The Molex Micro-Fit TPA Connector is a versatile interconnect solution designed for a wide range of applications across various industries. Its robust design, reliability, and compact form factor make it suitable for numerous environments.
Automotive
In the automotive sector, the Micro-Fit TPA Connector is employed for various wiring applications, including infotainment systems, powertrain connections, and safety features. Its resistance to vibrations and environmental factors ensures dependable performance in demanding conditions.
Consumer Electronics
The connector finds its place in consumer electronics, connecting components in devices such as televisions, audio systems, and smart home devices. Its compact design allows for efficient space management within tight enclosures.
Washers and Dryers
In household appliances like washers and dryers, the Micro-Fit TPA Connector is used to facilitate reliable connections for motors, control panels, and sensors, contributing to efficient operation and longevity of the appliances.
Freezers and Refrigerators
These connectors play a vital role in refrigeration systems, connecting various components such as compressors, thermostats, and fans, ensuring effective cooling performance while withstanding fluctuating temperatures.
Gaming Machines
In gaming machines, the Micro-Fit TPA Connector supports connections between control panels, gaming boards, and power supplies, ensuring seamless operation and user experience.
Printers and Scanners
These connectors are integral to printers and scanners, linking print heads, sensors, and control circuitry, enabling precise operations and high-quality output.
Security Systems
Micro-Fit TPA Connectors are utilized in security systems, connecting cameras, sensors, and alarms, ensuring reliable communication and monitoring for enhanced safety.
Vending Machines
In vending machines, the connector helps in interfacing payment systems, product dispensers, and control units, facilitating efficient transactions and operation.
Telecommunication/Networking
The telecommunications and networking industry employs Micro-Fit TPA Connectors for interconnecting routers, switches, and other networking equipment, supporting high-speed data transfer and communication.
Servers and Storage Solutions
In servers and storage devices, these connectors ensure reliable connections for power supply units, hard drives, and other critical components, contributing to overall system stability and performance.
Medical Devices
In medical applications, the Micro-Fit TPA Connector is used in diagnostic equipment, patient monitoring systems, and therapeutic devices, where reliable performance and safety are paramount.
Solar Power
In solar power systems, these connectors facilitate connections between solar panels, inverters, and batteries, ensuring efficient energy conversion and storage while withstanding outdoor environmental conditions.
This list highlights some of the more common uses of the Molex Micro-Fit TPA Connector wire harness. Its adaptability and reliability make it a preferred choice in various sectors, but the potential applications extend beyond those mentioned here, reflecting the connector's versatility in modern interconnect solutions.
Support Custom Wire Harness Assembly
- Connector circuits: 2 - 24 Pin
- Wire Gauge: 18 - 30AWG, depends on real needs
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type: Fully customizable to your specifications.
- Minimum Order: 100 pieces per order.

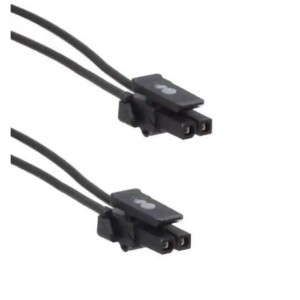

Molex Micro-Fit TPA Connector 2P wire harness

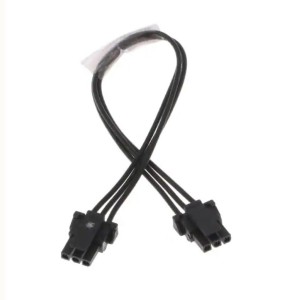

Molex Micro-Fit TPA Connector 3P wire harness

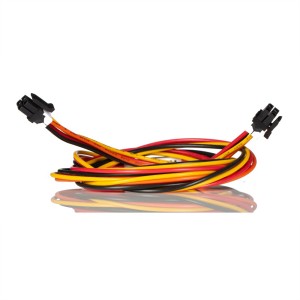

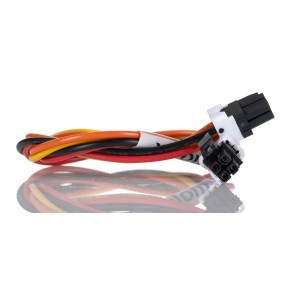

Molex Micro-Fit TPA Connector 4 way wire harness
Molex Micro-Fit TPA Connector 4P wire harness
Molex Micro-Fit TPA Connector 5P wire harness
Molex Micro-Fit TPA Connector 6P wire harness
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
