Molex Micro-Latch Connector

The Molex Micro-Latch 2.00mm Wire-to-Board Connector System offers an ideal solution for demanding environments that require robust electrical and mechanical reliability in high-temperature conditions, making it suitable for applications in automotive, consumer electronics, and industrial sectors. This connector system provides a secure, reliable interface for 2.00mm wire-to-board applications, which are commonly used across various industries. Designed with a versatile female crimp terminal, receptacle housings, and semi-shrouded PCB headers available in both vertical and right-angle configurations, the Micro-Latch system meets diverse assembly needs. The connector’s friction lock mechanism features a unique nose on the receptacle housing that slides into wall openings in the header, ensuring a stable and consistent connection while protecting the electrical circuits from damage due to accidental disconnection or misalignment. This design allows the Molex Micro-Latch system to deliver enduring performance under harsh conditions, enhancing the reliability and lifespan of electronic systems across a wide array of applications.

Micro-Latch Connector Features

• Uses popular terminals
• Straight and right-angle headers
• SMC vertical header available - reflow-process capable
• Friction lock for good mating retention
• Polarizing features ensure mating in a proper orientation

Micro-Latch Connector Specifications Chart

Micro-Latch Connector Applications

The Molex Micro-Latch 2.00mm Wire-to-Board Connector is a versatile component with a variety of applications across multiple industries. Its compact design supports secure, reliable connections in space-constrained environments, making it ideal for both consumer and automotive applications.

Automotive Applications

• Steering Wheel: Enables integration of controls within the steering wheel, including paddle shifters and combination switches, providing reliable connections in a compact form factor.
• Shifters: Suitable for shifter assemblies, where secure connections are critical for operation under vibration and movement.
• Lighting Systems: Commonly used in head-, rear-, and side-mirror lights, the Micro-Latch 2.00mm connector supports internal connections within automotive lighting units, ensuring stable performance even under temperature fluctuations and exposure to light.
• Internal Unit Connections: Ideal for interfacing with other units in automotive interiors, providing compact, reliable connections in confined spaces.

Consumer Applications

• Gaming Machines: Facilitates secure internal connections, offering reliable performance in high-vibration environments such as gaming consoles and machines.
• Vending Machines: Supports wiring needs in vending systems, from control boards to lighting units, ensuring operational reliability.
• White Goods: Commonly integrated in home appliances like washing machines, refrigerators, and microwaves for control panel connections and inter-unit communication.

Medical Applications

• Monitoring Devices: Used in medical monitoring equipment, the Micro-Latch 2.00mm connector provides reliable and stable performance, critical for sensitive applications requiring accurate data transmission.

Telecommunications/Networking Applications

• Printers, Servers, and Switches: Ideal for internal connections in printers, servers, and network switches, the connector supports high data rates and secure connections in data management environments.

This list highlights some frequent applications of the Molex Micro-Latch 2.00mm Connector in different industries, though the product's full potential extends to numerous other uses in complex electronic assemblies requiring durable, compact, and reliable wire-to-board connections.

Support Custom Wire Harness Assembly

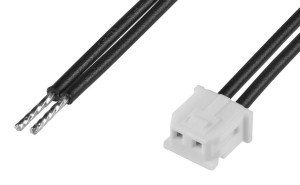

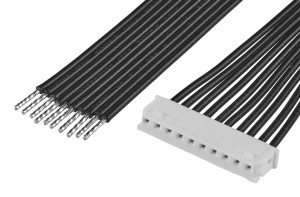

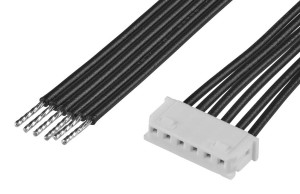

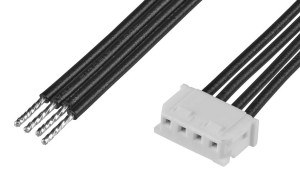

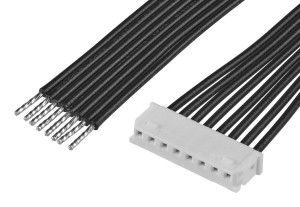

• Connector circuits: 2 - 15 Pin
• Wire Gauge: 22 - 30AWG, depends on real needs
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type: Fully customizable to your specifications.
• Minimum Order: 100 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
