Molex Micro-Lock Plus Connector
The Molex Micro-Lock Plus Wire-to-Board Connectors offer dependable electrical and mechanical performance, designed to withstand challenging environments and meet strict industry standards, especially for automotive and high-temperature applications. Available in compact 1.25mm and 2mm pitch sizes, these connectors ensure secure mating retention through a positive lock mechanism that doesn’t compromise their streamlined design. They are engineered to operate in temperature ranges from -40ºC to 105ºC, making them highly suitable for use in harsh conditions. Built with robust metal solder tabs, these connectors provide enhanced durability and stability during soldering, while a wide positive latch generates an audible click, giving users confidence in secure connections. The 1.25mm version incorporates a dual-contact terminal design, offering extra reliability by maintaining connectivity even under vibration or shock. With applications spanning automotive systems, power connections in data centers, and consumer appliances, the Micro-Lock Plus connectors cater to a wide range of needs that demand compactness, secure retention, and resilience in challenging environments.
Micro-Lock Plus Connector Features
- 1.25mm and 2mm pitch versions
- Small 1.25mm-pitch connector with positive lock
- Variety of connector colors
- Operating temperature withstands up to +105°C
- 2 to 16 circuits for single row and 8 to 42 circuits for dual row (1.25mm pitch)
- 2 to 16 circuits for single row and 4 to 26 circuits for dual row (2mm pitch)
- Dual-contact terminal design
- Robust metal solder tabs
- Tin-bismuth terminals

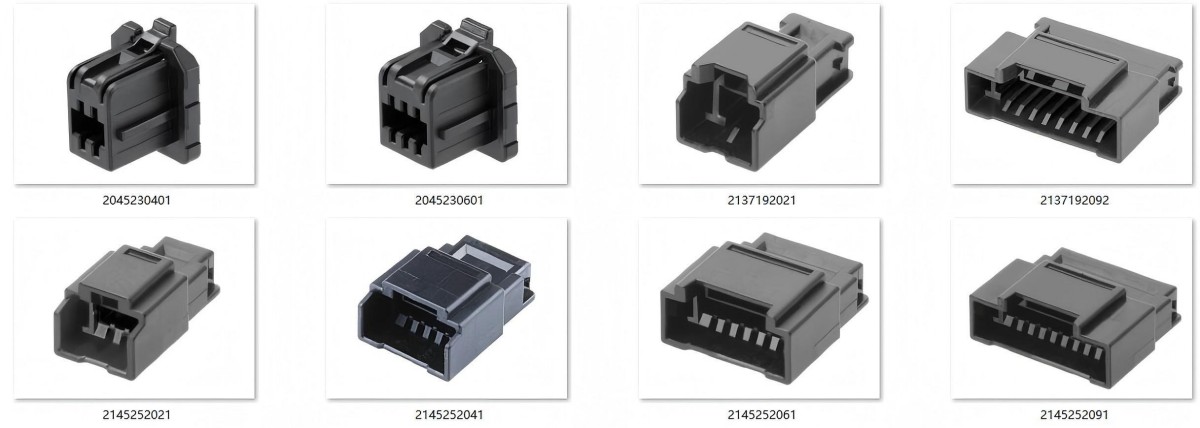

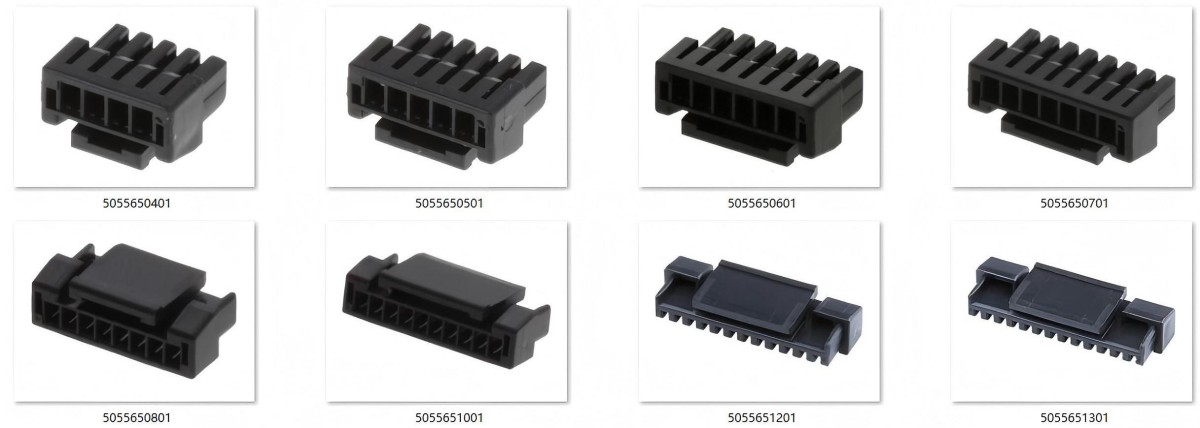

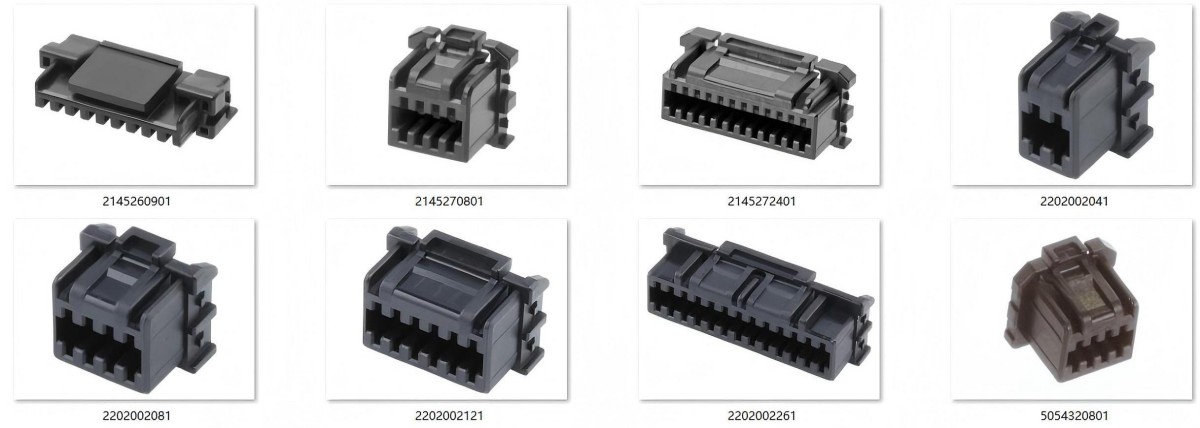

Micro-Lock Plus Connector Specifications Chart
Sort by the number of circuits.
| P/N | Old P/N | Circuits | Row | Pitch | Type | Descriptions | Datasheet |
| 2045320201 | 2045320201 | 2 | Single Row | 1.25mm | Micro-Lock Plus Receptacle Housing | Low-Halogen，with Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2045320201#documents-and-resources |
| 2137192021 | 2137192021 | 2 | Single Row | 2.00mm | Micro-Lock Plus Plug Crimp Housing | UL 94V-0，Black | https://www.molex.com/en-us/products/part-detail/2137192021#documents-and-resources |
| 2145252021 | 2145252021 | 2 | Single Row | 1.25mm | Micro-Lock Plus Plug Crimp Housing | Low-Halogen，UL 94V-0，Black | https://www.molex.com/en-us/products/part-detail/2145252021#documents-and-resources |
| 2145260201 | 2145260201 | 2 | Single Row | 1.25mm | Micro-Lock Plus TPA Type Receptacle Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2145260201#documents-and-resources |
| 5055650201 | 5055650201 | 2 | Single Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5055650201#documents-and-resources |
| 5055700201 | 505570-0201 | 2 | Single Row | 2.00mm | Micro-Lock Plus Receptacle Crimp Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5055700201#documents-and-resources |
| 2045320301 | 2045320301 | 3 | Single Row | 1.25mm | Micro-Lock Plus Receptacle Housing | Low-Halogen，with Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2045320301#documents-and-resources |
| 2137192031 | 2137192031 | 3 | Single Row | 2.00mm | Micro-Lock Plus Plug Crimp Housing | UL 94V-0，Black | https://www.molex.com/en-us/products/part-detail/2137192031#documents-and-resources |
| 2145252031 | 2145252031 | 3 | Single Row | 1.25mm | Micro-Lock Plus Plug Crimp Housing | Low-Halogen，UL 94V-0，Black | https://www.molex.com/en-us/products/part-detail/2145252031#documents-and-resources |
| 2145260301 | 2145260301 | 3 | Single Row | 1.25mm | Micro-Lock Plus TPA Type Receptacle Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2145260301#documents-and-resources |
| 5055650301 | 5055650301 | 3 | Single Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5055650301#documents-and-resources |
| 5055700301 | 505570-0301 | 3 | Single Row | 2.00mm | Micro-Lock Plus Receptacle Crimp Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5055700301#documents-and-resources |
| 2045230401 | 2045230401 | 4 | Dual Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2045230401#documents-and-resources |
| 2045320401 | 2045320401 | 4 | Single Row | 1.25mm | Micro-Lock Plus Receptacle Housing | Low-Halogen，with Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2045320401#documents-and-resources |
| 2137192041 | 2137192041 | 4 | Single Row | 2.00mm | Micro-Lock Plus Plug Crimp Housing | UL 94V-0，Black | https://www.molex.com/en-us/products/part-detail/2137192041#documents-and-resources |
| 2145252041 | 2145252041 | 4 | Single Row | 1.25mm | Micro-Lock Plus Plug Crimp Housing | Low-Halogen，UL 94V-0，Black | https://www.molex.com/en-us/products/part-detail/2145252041#documents-and-resources |
| 2145260401 | 2145260401 | 4 | Single Row | 1.25mm | Micro-Lock Plus TPA Type Receptacle Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2145260401#documents-and-resources |
| 2202002041 | 2202002041 | 4 | Dual Row | 2.00mm | Micro-Lock Plus Receptacle Crimp Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2202002041 |
| 5055650401 | 5055650401 | 4 | Single Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5055650401#documents-and-resources |
| 5055700401 | 505570-0401 | 4 | Single Row | 2.00mm | Micro-Lock Plus Receptacle Crimp Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5055700401#documents-and-resources |
| 2045320501 | 2045320501 | 5 | Single Row | 1.25mm | Micro-Lock Plus Receptacle Housing | Low-Halogen，with Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2045320501#documents-and-resources |
| 2137192051 | 2137192051 | 5 | Single Row | 2.00mm | Micro-Lock Plus Plug Crimp Housing | UL 94V-0，Black | https://www.molex.com/en-us/products/part-detail/2137192051#documents-and-resources |
| 2145252051 | 2145252051 | 5 | Single Row | 1.25mm | Micro-Lock Plus Plug Crimp Housing | Low-Halogen，UL 94V-0，Black | https://www.molex.com/en-us/products/part-detail/2145252051#documents-and-resources |
| 2145260501 | 2145260501 | 5 | Single Row | 1.25mm | Micro-Lock Plus TPA Type Receptacle Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2145260501#documents-and-resources |
| 5055650501 | 5055650501 | 5 | Single Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5055650501#documents-and-resources |
| 5055700501 | 505570-0501 | 5 | Single Row | 2.00mm | Micro-Lock Plus Receptacle Crimp Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5055700501#documents-and-resources |
| 2045230601 | 2045230601 | 6 | Dual Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2045230601#documents-and-resources |
| 2045320601 | 2045320601 | 6 | Single Row | 1.25mm | Micro-Lock Plus Receptacle Housing | Low-Halogen，with Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2045320601#documents-and-resources |
| 2137192061 | 2137192061 | 6 | Single Row | 2.00mm | Micro-Lock Plus Plug Crimp Housing | UL 94V-0，Black | https://www.molex.com/en-us/products/part-detail/2137192061#documents-and-resources |
| 2145252061 | 2145252061 | 6 | Single Row | 1.25mm | Micro-Lock Plus Plug Crimp Housing | Low-Halogen，UL 94V-0，Black | https://www.molex.com/en-us/products/part-detail/2145252061#documents-and-resources |
| 2145260601 | 2145260601 | 6 | Single Row | 1.25mm | Micro-Lock Plus TPA Type Receptacle Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2145260601#documents-and-resources |
| 2202002061 | 2202002061 | 6 | Dual Row | 2.00mm | Micro-Lock Plus Receptacle Crimp Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2202002061 |
| 5055650601 | 5055650601 | 6 | Single Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5055650601#documents-and-resources |
| 5055700601 | 505570-0601 | 6 | Single Row | 2.00mm | Micro-Lock Plus Receptacle Crimp Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5055700601#documents-and-resources |
| 2045320701 | 2045320701 | 7 | Single Row | 1.25mm | Micro-Lock Plus Receptacle Housing | Low-Halogen，with Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2045320701#documents-and-resources |
| 2137192071 | 2137192071 | 7 | Single Row | 2.00mm | Micro-Lock Plus Plug Crimp Housing | UL 94V-0，Black | https://www.molex.com/en-us/products/part-detail/2137192071#documents-and-resources |
| 2145252071 | 2145252071 | 7 | Single Row | 1.25mm | Micro-Lock Plus Plug Crimp Housing | Low-Halogen，UL 94V-0，Black | https://www.molex.com/en-us/products/part-detail/2145252071#documents-and-resources |
| 2145260701 | 2145260701 | 7 | Single Row | 1.25mm | Micro-Lock Plus TPA Type Receptacle Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2145260701#documents-and-resources |
| 5055650701 | 5055650701 | 7 | Single Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5055650701#documents-and-resources |
| 5055700701 | 505570-0701 | 7 | Single Row | 2.00mm | Micro-Lock Plus Receptacle Crimp Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5055700701#documents-and-resources |
| 2045230801 | 2045230801 | 8 | Dual Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2045230801#documents-and-resources |
| 2045320801 | 2045320801 | 8 | Single Row | 1.25mm | Micro-Lock Plus Receptacle Housing | Low-Halogen，with Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2045320801#documents-and-resources |
| 2137192081 | 2137192081 | 8 | Single Row | 2.00mm | Micro-Lock Plus Plug Crimp Housing | UL 94V-0，Black | https://www.molex.com/en-us/products/part-detail/2137192081#documents-and-resources |
| 2145252081 | 2145252081 | 8 | Single Row | 1.25mm | Micro-Lock Plus Plug Crimp Housing | Low-Halogen，UL 94V-0，Black | https://www.molex.com/en-us/products/part-detail/2145252081#documents-and-resources |
| 2145260801 | 2145260801 | 8 | Single Row | 1.25mm | Micro-Lock Plus TPA Type Receptacle Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2145260801#documents-and-resources |
| 2145270801 | 2145270801 | 8 | Dual Row | 1.25mm | Micro-Lock Plus TPA Type Receptacle Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2145270801#documents-and-resources |
| 2202002081 | 2202002081 | 8 | Dual Row | 2.00mm | Micro-Lock Plus Receptacle Crimp Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2202002081 |
| 5054320801 | 5054320801 | 8 | Dual Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5054320801#documents-and-resources |
| 5055650801 | 5055650801 | 8 | Single Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5055650801#documents-and-resources |
| 5055700801 | 505570-0801 | 8 | Single Row | 2.00mm | Micro-Lock Plus Receptacle Crimp Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5055700801#documents-and-resources |
| 2045320901 | 2045320901 | 9 | Single Row | 1.25mm | Micro-Lock Plus Receptacle Housing | Low-Halogen，with Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2045320901#documents-and-resources |
| 2137192091 | 2137192091 | 9 | Single Row | 2.00mm | Micro-Lock Plus Plug Crimp Housing | UL 94V-0，Black | https://www.molex.com/en-us/products/part-detail/2137192091#documents-and-resources |
| 2145252091 | 2145252091 | 9 | Single Row | 1.25mm | Micro-Lock Plus Plug Crimp Housing | Low-Halogen，UL 94V-0，Black | https://www.molex.com/en-us/products/part-detail/2145252091#documents-and-resources |
| 2145260901 | 2145260901 | 9 | Single Row | 1.25mm | Micro-Lock Plus TPA Type Receptacle Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2145260901#documents-and-resources |
| 5055650901 | 5055650901 | 9 | Single Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5055650901#documents-and-resources |
| 5055700901 | 505570-0901 | 9 | Single Row | 2.00mm | Micro-Lock Plus Receptacle Crimp Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5055700901#documents-and-resources |
| 2045231001 | 2045231001 | 10 | Dual Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2045231001#documents-and-resources |
| 2045321001 | 2045321001 | 10 | Single Row | 1.25mm | Micro-Lock Plus Receptacle Housing | Low-Halogen，with Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2045321001#documents-and-resources |
| 2145271001 | 2145271001 | 10 | Dual Row | 1.25mm | Micro-Lock Plus TPA Type Receptacle Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2145271001#documents-and-resources |
| 2202002101 | 2202002101 | 10 | Dual Row | 2.00mm | Micro-Lock Plus Receptacle Crimp Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2202002101 |
| 5054321001 | 5054321001 | 10 | Dual Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5054321001#documents-and-resources |
| 5055651001 | 5055651001 | 10 | Single Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5055651001#documents-and-resources |
| 5055701001 | 505570-1001 | 10 | Single Row | 2.00mm | Micro-Lock Plus Receptacle Crimp Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5055701001#documents-and-resources |
| 2045321101 | 2045321101 | 11 | Single Row | 1.25mm | Micro-Lock Plus Receptacle Housing | Low-Halogen，with Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2045321101#documents-and-resources |
| 5055651101 | 5055651101 | 11 | Single Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5055651101#documents-and-resources |
| 5055701101 | 505570-1101 | 11 | Single Row | 2.00mm | Micro-Lock Plus Receptacle Crimp Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5055701101#documents-and-resources |
| 2045231201 | 2045231201 | 12 | Dual Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2045231201#documents-and-resources |
| 2045321201 | 2045321201 | 12 | Single Row | 1.25mm | Micro-Lock Plus Receptacle Housing | Low-Halogen，with Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2045321201#documents-and-resources |
| 2145271201 | 2145271201 | 12 | Dual Row | 1.25mm | Micro-Lock Plus TPA Type Receptacle Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2145271201#documents-and-resources |
| 2202002121 | 2202002121 | 12 | Dual Row | 2.00mm | Micro-Lock Plus Receptacle Crimp Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2202002121 |
| 5054321201 | 5054321201 | 12 | Dual Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5054321201#documents-and-resources |
| 5055651201 | 5055651201 | 12 | Single Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5055651201#documents-and-resources |
| 5055701201 | 505570-1201 | 12 | Single Row | 2.00mm | Micro-Lock Plus Receptacle Crimp Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5055701201#documents-and-resources |
| 2045321301 | 2045321301 | 13 | Single Row | 1.25mm | Micro-Lock Plus Receptacle Housing | Low-Halogen，with Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2045321301#documents-and-resources |
| 5055651301 | 5055651301 | 13 | Single Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5055651301#documents-and-resources |
| 2045231401 | 2045231401 | 14 | Dual Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2045231401#documents-and-resources |
| 2045321401 | 2045321401 | 14 | Single Row | 1.25mm | Micro-Lock Plus Receptacle Housing | Low-Halogen，with Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2045321401#documents-and-resources |
| 2145271401 | 2145271401 | 14 | Dual Row | 1.25mm | Micro-Lock Plus TPA Type Receptacle Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2145271401#documents-and-resources |
| 2202002141 | 2202002141 | 14 | Dual Row | 2.00mm | Micro-Lock Plus Receptacle Crimp Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2202002141 |
| 5054321401 | 5054321401 | 14 | Dual Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5054321401#documents-and-resources |
| 5055651401 | 5055651401 | 14 | Single Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5055651401#documents-and-resources |
| 5055701401 | 505570-1401 | 14 | Single Row | 2.00mm | Micro-Lock Plus Receptacle Crimp Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5055701401#documents-and-resources |
| 2045321501 | 2045321501 | 15 | Single Row | 1.25mm | Micro-Lock Plus Receptacle Housing | Low-Halogen，with Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2045321501#documents-and-resources |
| 5055651501 | 5055651501 | 15 | Single Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5055651501#documents-and-resources |
| 5055701501 | 505570-1501 | 15 | Single Row | 2.00mm | Micro-Lock Plus Receptacle Crimp Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5055701501#documents-and-resources |
| 2045321601 | 2045321601 | 16 | Single Row | 1.25mm | Micro-Lock Plus Receptacle Housing | Low-Halogen，with Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2045321601#documents-and-resources |
| 2145271601 | 2145271601 | 16 | Dual Row | 1.25mm | Micro-Lock Plus TPA Type Receptacle Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2145271601#documents-and-resources |
| 2202002161 | 2202002161 | 16 | Dual Row | 2.00mm | Micro-Lock Plus Receptacle Crimp Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2202002161 |
| 5054321601 | 5054321601 | 16 | Dual Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5054321601#documents-and-resources |
| 5055651601 | 5055651601 | 16 | Single Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5055651601#documents-and-resources |
| 5055701601 | 505570-1601 | 16 | Single Row | 2.00mm | Micro-Lock Plus Receptacle Crimp Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5055701601#documents-and-resources |
| 2145271801 | 2145271801 | 18 | Dual Row | 1.25mm | Micro-Lock Plus TPA Type Receptacle Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2145271801#documents-and-resources |
| 2202002181 | 2202002181 | 18 | Dual Row | 2.00mm | Micro-Lock Plus Receptacle Crimp Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2202002181 |
| 5054321801 | 5054321801 | 18 | Dual Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5054321801#documents-and-resources |
| 2145272001 | 2145272001 | 20 | Dual Row | 1.25mm | Micro-Lock Plus TPA Type Receptacle Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2145272001#documents-and-resources |
| 2202002201 | 2202002201 | 20 | Dual Row | 2.00mm | Micro-Lock Plus Receptacle Crimp Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2202002201 |
| 5054322001 | 5054322001 | 20 | Dual Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5054322001#documents-and-resources |
| 2145272201 | 2145272201 | 22 | Dual Row | 1.25mm | Micro-Lock Plus TPA Type Receptacle Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2145272201#documents-and-resources |
| 2202002221 | 2202002221 | 22 | Dual Row | 2.00mm | Micro-Lock Plus Receptacle Crimp Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2202002221 |
| 5054322201 | 5054322201 | 22 | Dual Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5054322201#documents-and-resources |
| 2145272401 | 2145272401 | 24 | Dual Row | 1.25mm | Micro-Lock Plus TPA Type Receptacle Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2145272401#documents-and-resources |
| 2202002241 | 2202002241 | 24 | Dual Row | 2.00mm | Micro-Lock Plus Receptacle Crimp Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2202002241 |
| 5054322401 | 5054322401 | 24 | Dual Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5054322401#documents-and-resources |
| 2202002261 | 2202002261 | 26 | Dual Row | 2.00mm | Micro-Lock Plus Receptacle Crimp Housing | Low-Halogen，Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/2202002261 |
| 5054322601 | 5054322601 | 26 | Dual Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5054322601#documents-and-resources |
| 5054322801 | 5054322801 | 28 | Dual Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5054322801#documents-and-resources |
| 5054323001 | 5054323001 | 30 | Dual Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5054323001#documents-and-resources |
| 5054323201 | 5054323201 | 32 | Dual Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5054323201#documents-and-resources |
| 5054323401 | 5054323401 | 34 | Dual Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5054323401#documents-and-resources |
| 5054323601 | 5054323601 | 36 | Dual Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5054323601#documents-and-resources |
| 5054323801 | 5054323801 | 38 | Dual Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5054323801#documents-and-resources |
| 5054324001 | 5054324001 | 40 | Dual Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5054324001#documents-and-resources |
| 5054324201 | 5054324201 | 42 | Dual Row | 1.25mm | Micro-Lock Plus Receptacle Crimp Housing | Positive Lock，Black | https://www.molex.com/en-us/products/part-detail/5054324201#documents-and-resources |
Micro-Lock Plus Connector Applications
Consumer Applications
In the consumer electronics sector, the Molex Micro-Lock Plus Connector is valued for its compact design, secure latching, and ability to withstand the demands of daily-use appliances and devices.
-
Air Conditioners: Facilitates reliable connections in control units, thermostats, and fan motor wiring for temperature regulation and energy-efficient operations.
-
Desktop PCs: Supports internal connections, enabling seamless data and power transmission between components such as motherboards, hard drives, and cooling systems.
-
Drones: Ensures secure connections for vital drone functions, including propulsion systems, cameras, sensors, and battery interfaces, supporting long-lasting durability in lightweight designs.
-
Gaming Machines: Used for connection points within gaming hardware, providing secure, low-profile interconnections in consoles, controllers, and VR systems.
-
Laser Printers: Vital for establishing connections between printer heads, control boards, and power supplies, supporting high-speed printing and efficient thermal management.
-
Power Tools: Suitable for connections in hand-held power tools where vibration resistance is critical, such as cordless drills, saws, and grinders, ensuring stable power delivery in rugged conditions.
-
Vacuum Cleaners: Used for motor and control unit wiring, enabling robust connections that withstand the physical demands of high-usage household and industrial cleaning devices.
-
White Goods: Commonly applied in washing machines, refrigerators, microwaves, and ovens, supporting reliable connections for control panels, sensors, and high-current components.
Automotive Applications
In automotive environments, the Molex Micro-Lock Plus Connector is engineered to meet stringent requirements for security, durability, and vibration resistance, making it ideal for vehicle control systems and in-car electronics.
-
Head, Rear, and Side-Mirror Lights: Supports compact, secure connections in lighting units, contributing to efficient, long-lasting LED lighting solutions.
-
Internal Connection with Other Units: Enables intra-system connections, such as those between entertainment units, climate control systems, and in-dash displays, maintaining streamlined operations within confined automotive interiors.
-
Shifters: Facilitates precise signal transmission in gear shifter assemblies, ensuring smooth transitions and responsive control for the driver.
-
Steering Wheel, Paddle Shift, and Combination Switches: Essential for wiring within steering systems, these connectors enable safe and responsive control for vehicle operations, handling frequent mechanical movement and vibrations without compromising reliability.
Server Applications
In server environments, where space optimization, heat management, and signal integrity are essential, the Molex Micro-Lock Plus Connector provides secure, compact solutions for various critical server applications. Servers Used in internal server connections, linking hard drives, power supplies, fans, and other components, ensuring consistent, high-quality data and power connections for long-term, high-performance operation in data centers.
This is not an exhaustive list of all potential applications. The Molex Micro-Lock Plus Connector is designed to support a wide array of uses beyond these sectors, adapting to various configurations and performance requirements across numerous industries.
Support Custom Wire Harness Assembly
- Connector circuits: 2 - 42 Pin
- Wire Gauge: 22 - 30AWG, depends on real needs
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type: Fully customizable to your specifications.
- Minimum Order: 100 pieces per order.

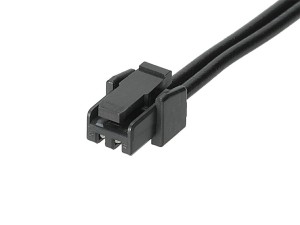

Molex Micro-Lock Plus 1.25mm pitch connector 2P wire harness

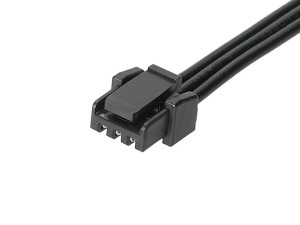

Molex Micro-Lock Plus 1.25mm pitch connector 3P wire harness

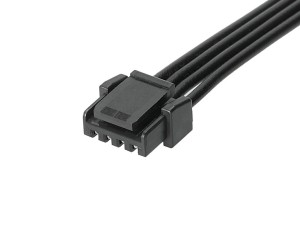

6Molex Micro-Lock Plus 1.25mm pitch connector 4P wire harness

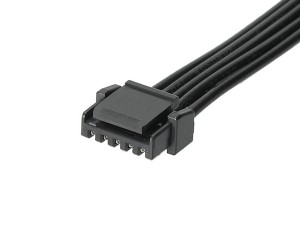

Molex Micro-Lock Plus 1.25mm pitch connector 5P wire harness

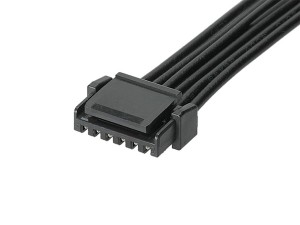

Molex Micro-Lock Plus 1.25mm pitch connector 6P wire harness

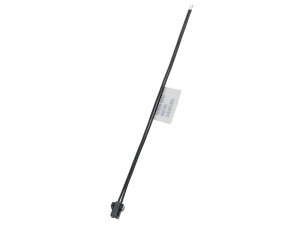

Molex Micro-Lock Plus 2.0mm pitch connector 2P to open end wire harness

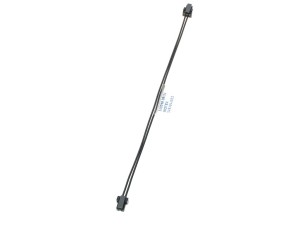

Molex Micro-Lock Plus 2.0mm pitch connector 2P wire harness

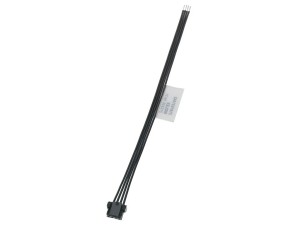

Molex Micro-Lock Plus 2.0mm pitch connector 4P to open end wire harness

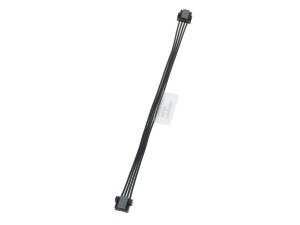

Molex Micro-Lock Plus 2.0mm pitch connector 4P wire harness

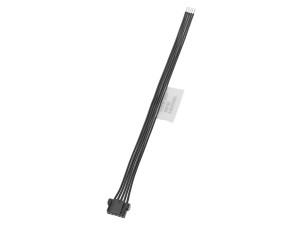

Molex Micro-Lock Plus 2.0mm pitch connector 5P to open end wire harness

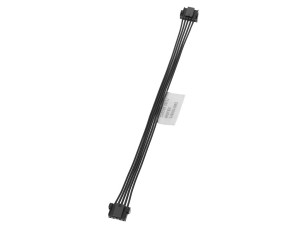

Molex Micro-Lock Plus 2.0mm pitch connector 5P wire harness

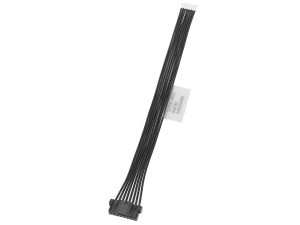

Molex Micro-Lock Plus 2.0mm pitch connector 8P to open end wire harness
