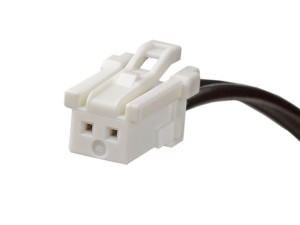

Molex MicroClasp Connector

Molex's MicroClasp Wire-to-Board Connector, with its 2.0 mm pitch design, is engineered to provide optimal space savings and smooth functionality for compact applications. Unlike typical 2.0 mm and 2.5 mm pitch wire-to-board systems, the MicroClasp system incorporates a unique inner positive locking mechanism that enhances latch protection and ensures secure retention, along with an audible "click" that confirms proper mating. This added feature strengthens the connection and enhances user confidence during assembly by providing tactile and auditory feedback. The terminals are designed with low insertion and withdrawal forces, making the connectors easy to mate and unmate, even in high-density configurations. Despite its compact form, the MicroClasp system supports a robust 3 A current, addressing space and power needs. Available in single- and dual-row configurations, the system offers versatile circuit sizes ranging from 2 to 40 positions and options for surface mount technology (SMT) and through-hole mounting. This adaptability makes the MicroClasp ideal for a broad range of wire-to-board applications, particularly in high-density, space-sensitive environments.

MicroClasp Connector Features

• 2.00mm pitch connector, delivers secure mating retention without sacrificing compactness
• High-power cable allows up to 3.0A current
• TPA Retainer, ensures wires are fully inserted
• Readily available tooling, the crimp applicators are widely available in the market
• The inner positive lock, provides latch protection, secure terminal retention, and an audible mating click for better mating retention of header and harness
• Through-hole single- and dual-row headers in vertical and right-angle orientations, provide design flexibility

MicroClasp Connector Specifications Chart

MicroClasp Connector Applications

The Molex MicroClasp Wire-to-Board Connector is a compact, high-performance solution designed to meet the connectivity needs of various industrial, consumer, and medical applications. Below are some common use cases, though the versatility of this connector allows it to be used in numerous other applications beyond those listed.

Industrial Applications

• Computers: MicroClasp connectors facilitate reliable internal wiring within computer systems, enabling secure connections between PCBs and supporting essential computing functions.
• Smoke and Smog Detectors: The connector’s secure, low-profile design is ideal for compact devices like detectors, which require stable connectivity for accurate air quality monitoring.
• Networks: In networking devices, MicroClasp connectors provide stable wire-to-board connections for efficient data transfer, supporting devices such as routers and network switches in industrial settings.

Consumer Applications

• Gaming Machines: For gaming devices requiring frequent input/output connections, MicroClasp connectors provide reliable and compact connectivity to ensure smooth user interaction.
• Vending Machines: In vending and other automated retail machines, MicroClasp connectors connect critical control and user interface components, supporting a seamless user experience.
• White Goods: This connector’s durability and reliability make it well-suited for home appliances (e.g., refrigerators, washing machines), where robust connectivity is essential to withstand the wear and tear of daily use.

Medical Applications

• Monitoring Devices: For medical monitoring equipment, the MicroClasp connector offers a secure connection in devices such as patient monitors, ensuring continuous data flow and device performance in critical healthcare environments.

While these examples are common, the Molex MicroClasp Wire-to-Board Connector’s adaptability makes it suitable for a wide range of other applications in need of durable and efficient wire-to-board connections.

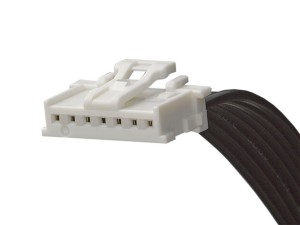

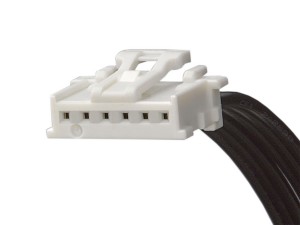

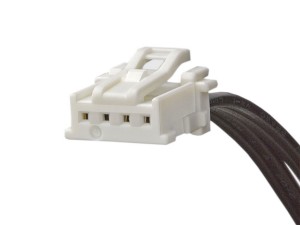

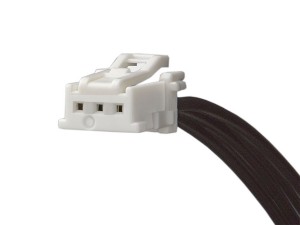

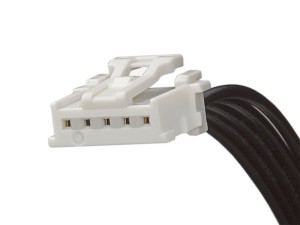

Support Custom Wire Harness Assembly

• Connector circuits: 2 - 40 Pin
• Wire Gauge: 22 - 28AWG, depends on real needs
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type: Fully customizable to your specifications.
• Minimum Order: 100 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
