Molex Mini-Fit BMI Connector
Molex Mini-Fit BMI (Blind-Mate Interface) connectors are engineered for reliable and flexible connections, providing a "float" feature with up to 2.54 mm (.100") of misalignment tolerance between mating surfaces, ideal for applications requiring blind-mate capability. This floating feature ensures smooth and error-free connections even in challenging environments. The Mini-Fit BMI series offers a comprehensive selection to suit a wide range of needs, including vertical and right-angle configurations, single and dual-row options, and circuit sizes ranging from 4 to 24. Designed for versatility and durability, these connectors incorporate standard Mini-Fit female and male crimp terminals, ensuring compatibility and ease of use. The panel-mount receptacles are uniquely crafted to self-align or "float," while headers and plugs are equipped with flanges that guide the mating process for seamless connectivity. The lineup includes two primary receptacle styles: the classic Mini-Fit BMI receptacle (Series 42474) and the advanced Mini-Fit BMI Slide-and-Lock™, which features a convenient thumb latch for effortless panel removal. This innovative design makes the Mini-Fit BMI connectors a robust and user-friendly solution for diverse applications.
Mini-Fit BMI Connector Features
- Blind mating wire-to-wire, wire-to-board (parallel mounting), wire-to-board (right-angle mounting), board-to-board (parallel stacked boards), and board-to-board (right-angle boards)
- Full range of options for every application and orientation
- Fully-polarized and fully-isolated terminals
- Protects contacts and provides polarization to prevent mismating
- UL, CSA, and TUV listed
- Full agency approvals; UL 94 V-0 and 94 V-2 versions available
- 13.0 A current carrying capability
- Higher power capacity in a small package
- Accepts standard Mini-Fit female and male crimp terminals
- No need to purchase or inventory additional terminals
- Tin and select gold plating options available for design flexibility
Mini-Fit BMI Connector Specifications Chart
Sort by the number of circuits.
| P/N | Old P/N | Circuits | Pitch | Row | Series | Descriptions | Datasheet |

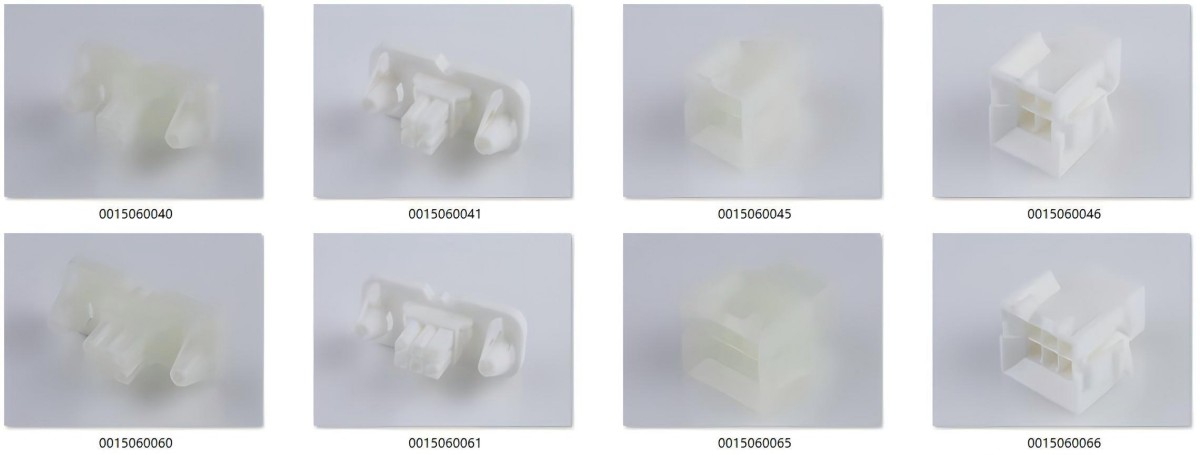

| 15060040 | 42474-0411 | 4 | 4.20mm | Dual Row | Mini-Fit BMI Receptacle Housing | with Panel Mount Ears，PA Polyamide Nylon 6/6，UL 94V-2 | https://www.molex.com/en-us/products/part-detail/15060040#documents-and-resources |
| 15060041 | 42474-0421 | 4 | 4.20mm | Dual Row | Mini-Fit BMI Receptacle Housing | with Panel Mount Ears，PA Polyamide Nylon 6/6，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/15060041#documents-and-resources |
| 15060045 | 42475-0411 | 4 | 4.20mm | Dual Row | Mini-Fit BMI Plug Housing | with Panel Mount Ears，PA Polyamide Nylon 6/6，UL 94V-2 | https://www.molex.com/en-us/products/part-detail/15060045#documents-and-resources |
| 15060046 | 42475-0421 | 4 | 4.20mm | Dual Row | Mini-Fit BMI Plug Housing | with Panel Mount Ears，PA Polyamide Nylon 6/6，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/15060046#documents-and-resources |
| 424750451 | 42475-0451 | 4 | 4.20mm | Dual Row | Mini-Fit BMI Plug Housing | with Panel Mount Ears，Nylon，Glow-Wire Capable，Natural | https://www.molex.com/en-us/products/part-detail/424750451#documents-and-resources |
| 424750461 | 42475-0461 | 4 | 4.20mm | Dual Row | Mini-Fit BMI Plug Housing | with Panel Mount Ears，Nylon，Glow-Wire Capable，Black | https://www.molex.com/en-us/products/part-detail/424750461#documents-and-resources |
| 15060060 | 42474-0611 | 6 | 4.20mm | Dual Row | Mini-Fit BMI Receptacle Housing | with Panel Mount Ears，PA Polyamide Nylon 6/6，UL 94V-2 | https://www.molex.com/en-us/products/part-detail/15060060#documents-and-resources |
| 15060061 | 42474-0621 | 6 | 4.20mm | Dual Row | Mini-Fit BMI Receptacle Housing | with Panel Mount Ears，PA Polyamide Nylon 6/6，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/15060061#documents-and-resources |
| 15060065 | 42475-0611 | 6 | 4.20mm | Dual Row | Mini-Fit BMI Plug Housing | with Panel Mount Ears，PA Polyamide Nylon 6/6，UL 94V-2 | https://www.molex.com/en-us/products/part-detail/15060065#documents-and-resources |
| 15060066 | 42475-0621 | 6 | 4.20mm | Dual Row | Mini-Fit BMI Plug Housing | with Panel Mount Ears，PA Polyamide Nylon 6/6，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/15060066#documents-and-resources |
| 424740641 | 42474-0641 | 6 | 4.20mm | Dual Row | Mini-Fit BMI Receptacle Housing | with Panel Mount Ears，PA Polyamide Nylon 6/6，UL 94V-0，Black | https://www.molex.com/en-us/products/part-detail/424740641#documents-and-resources |
| 424750661 | 42475-0661 | 6 | 4.20mm | Dual Row | Mini-Fit BMI Plug Housing | with Panel Mount Ears，Nylon，Glow-Wire Capable，Black | https://www.molex.com/en-us/products/part-detail/424750661#documents-and-resources |
| 445160003 | 44516-0003 | 6 | 4.20mm | Dual Row | Mini-Fit BMI Receptacle Housing | Panel Mount，Slide-and-Lock，UL 94V-0，Nylon 6/6 | https://www.molex.com/en-us/products/part-detail/445160003#documents-and-resources |

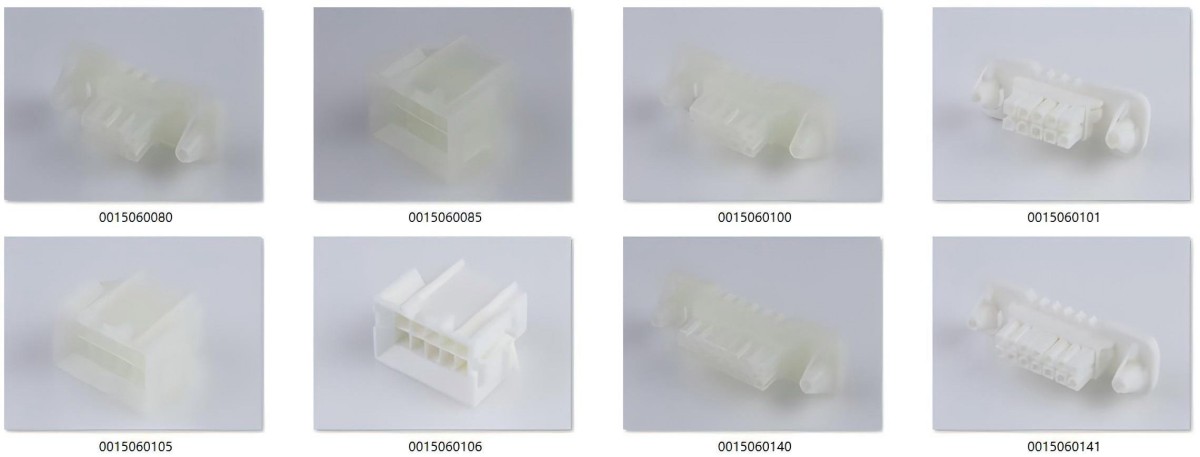

| 15060080 | 42474-0811 | 8 | 4.20mm | Dual Row | Mini-Fit BMI Receptacle Housing | with Panel Mount Ears，PA Polyamide Nylon 6/6，UL 94V-2 | https://www.molex.com/en-us/products/part-detail/15060080#documents-and-resources |
| 15060085 | 42475-0811 | 8 | 4.20mm | Dual Row | Mini-Fit BMI Plug Housing | with Panel Mount Ears，PA Polyamide Nylon 6/6，UL 94V-2 | https://www.molex.com/en-us/products/part-detail/15060085#documents-and-resources |

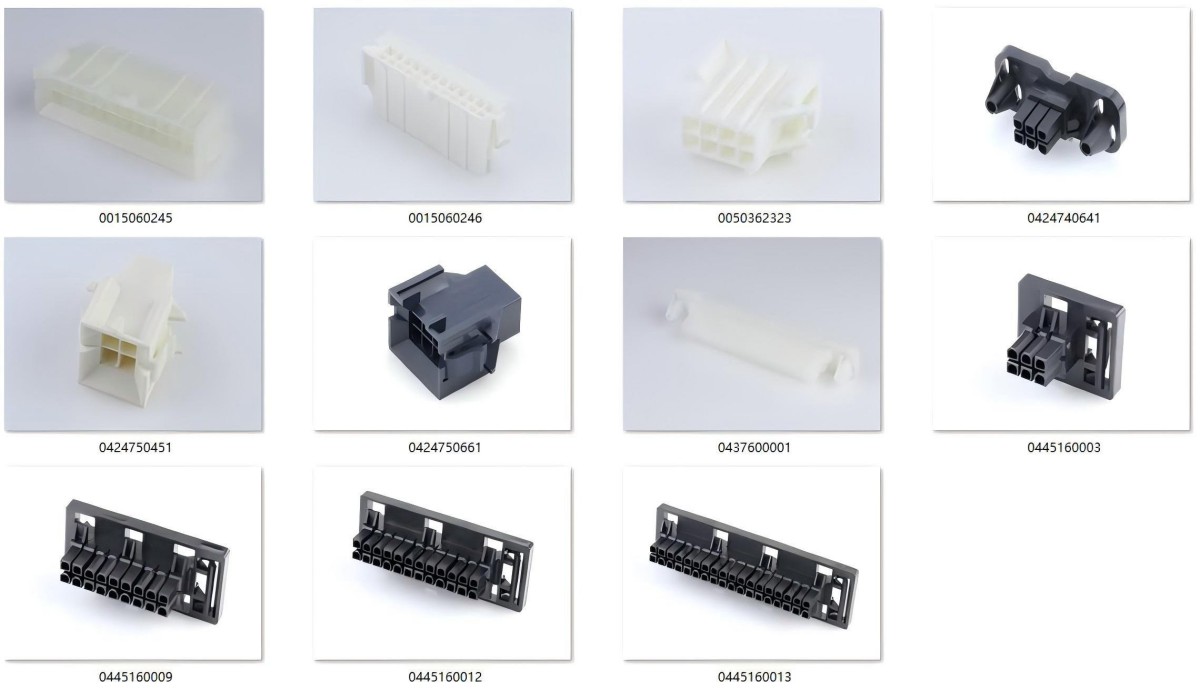

| 50362323 | 42475-0821 | 8 | 4.20mm | Dual Row | Mini-Fit BMI Plug Housing | White，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/50362323#documents-and-resources |
| 15060100 | 42474-1011 | 10 | 4.20mm | Dual Row | Mini-Fit BMI Receptacle Housing | with Panel Mount Ears，PA Polyamide Nylon 6/6，UL 94V-2 | https://www.molex.com/en-us/products/part-detail/15060100#documents-and-resources |
| 15060101 | 42474-1021 | 10 | 4.20mm | Dual Row | Mini-Fit BMI Receptacle Housing | with Panel Mount Ears，PA Polyamide Nylon 6/6，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/15060101#documents-and-resources |
| 15060105 | 42475-1011 | 10 | 4.20mm | Dual Row | Mini-Fit BMI Plug Housing | with Panel Mount Ears，PA Polyamide Nylon 6/6，UL 94V-2 | https://www.molex.com/en-us/products/part-detail/15060105#documents-and-resources |
| 15060106 | 42475-1021 | 10 | 4.20mm | Dual Row | Mini-Fit BMI Plug Housing | with Panel Mount Ears，PA Polyamide Nylon 6/6，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/15060106#documents-and-resources |
| 15060140 | 42474-1411 | 14 | 4.20mm | Dual Row | Mini-Fit BMI Receptacle Housing | with Panel Mount Ears，PA Polyamide Nylon 6/6，UL 94V-2 | https://www.molex.com/en-us/products/part-detail/15060140#documents-and-resources |
| 15060141 | 42474-1421 | 14 | 4.20mm | Dual Row | Mini-Fit BMI Receptacle Housing | with Panel Mount Ears，PA Polyamide Nylon 6/6，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/15060141#documents-and-resources |

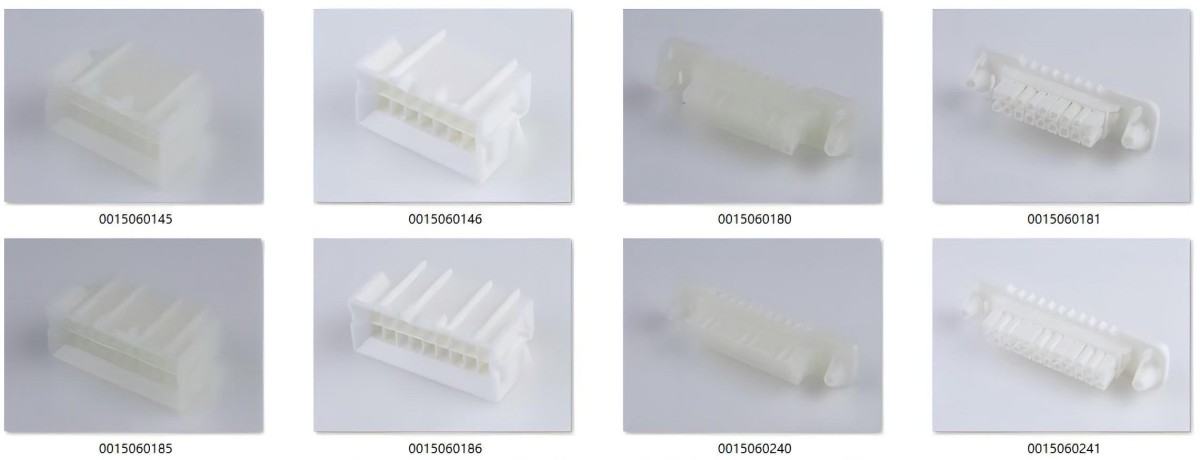

| 15060145 | 42475-1411 | 14 | 4.20mm | Dual Row | Mini-Fit BMI Plug Housing | with Panel Mount Ears，PA Polyamide Nylon 6/6，UL 94V-2 | https://www.molex.com/en-us/products/part-detail/15060145#documents-and-resources |
| 15060146 | 42475-1421 | 14 | 4.20mm | Dual Row | Mini-Fit BMI Plug Housing | with Panel Mount Ears，PA Polyamide Nylon 6/6，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/15060146#documents-and-resources |
| 15060180 | 42474-1811 | 18 | 4.20mm | Dual Row | Mini-Fit BMI Receptacle Housing | with Panel Mount Ears，PA Polyamide Nylon 6/6，UL 94V-2 | https://www.molex.com/en-us/products/part-detail/15060180#documents-and-resources |
| 15060181 | 42474-1821 | 18 | 4.20mm | Dual Row | Mini-Fit BMI Receptacle Housing | with Panel Mount Ears，PA Polyamide Nylon 6/6，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/15060181#documents-and-resources |
| 15060185 | 42475-1811 | 18 | 4.20mm | Dual Row | Mini-Fit BMI Plug Housing | with Panel Mount Ears，PA Polyamide Nylon 6/6，UL 94V-2 | https://www.molex.com/en-us/products/part-detail/15060185#documents-and-resources |
| 15060186 | 42475-1821 | 18 | 4.20mm | Dual Row | Mini-Fit BMI Plug Housing | with Panel Mount Ears，PA Polyamide Nylon 6/6，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/15060186#documents-and-resources |
| 445160009 | 44516-0009 | 18 | 4.20mm | Dual Row | Mini-Fit BMI Receptacle Housing | Panel Mount，Slide-and-Lock，UL 94V-0，Nylon 6/6 | https://www.molex.com/en-us/products/part-detail/445160009#documents-and-resources |
| 15060240 | 42474-2411 | 24 | 4.20mm | Dual Row | Mini-Fit BMI Receptacle Housing | with Panel Mount Ears，PA Polyamide Nylon 6/6，UL 94V-2 | https://www.molex.com/en-us/products/part-detail/15060240#documents-and-resources |
| 15060241 | 42474-2421 | 24 | 4.20mm | Dual Row | Mini-Fit BMI Receptacle Housing | with Panel Mount Ears，PA Polyamide Nylon 6/6，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/15060241#documents-and-resources |
| 15060245 | 42475-2411 | 24 | 4.20mm | Dual Row | Mini-Fit BMI Plug Housing | with Panel Mount Ears，PA Polyamide Nylon 6/6，UL 94V-2 | https://www.molex.com/en-us/products/part-detail/15060245#documents-and-resources |
| 15060246 | 42475-2421 | 24 | 4.20mm | Dual Row | Mini-Fit BMI Plug Housing | with Panel Mount Ears，White，UL 94V-0 | https://www.molex.com/en-us/products/part-detail/15060246#documents-and-resources |
| 445160012 | 44516-0012 | 24 | 4.20mm | Dual Row | Mini-Fit BMI Receptacle Housing | Panel Mount，Slide-and-Lock，UL 94V-0，PBT Polyester | https://www.molex.com/en-us/products/part-detail/445160012#documents-and-resources |
| 437600001 | 43760-0001 | 36 | 4.20mm | Dual Row | Mini-Fit BMI Receptacle Housing | with Panel Mount Ears，PA Polyamide Nylon 6/6，UL 94V-2 | https://www.molex.com/en-us/products/part-detail/437600001#documents-and-resources |
| 445160013 | 44516-0013 | 36 | 4.20mm | Dual Row | Mini-Fit BMI Receptacle Housing | Panel Mount，Slide-and-Lock，UL 94V-0，PBT Polyester | https://www.molex.com/en-us/products/part-detail/445160013#documents-and-resources |
Mini-Fit BMI Connector Applications
- Home Appliances: Commonly used in refrigerators, washing machines, dryers, and other large household devices requiring secure and durable power connections.
- Vending Machines: Provide power and signal transmission for automated dispensing mechanisms, ensuring reliable operation in commercial environments.
- White Goods: Ideal for air conditioners, heaters, and other household utilities demanding consistent electrical connections.
- Office Equipment: Support devices such as printers, scanners, and copiers with compact and efficient wiring solutions.
- Networking: Essential for networking hardware, including routers and switches, where robust and reliable connections are critical for maintaining high-speed data transfer.
- Fan-Tray Assemblies: Used in cooling systems for server racks and other high-performance computing equipment.
- Medical Devices: Suitable for diagnostic equipment, monitoring systems, and portable medical devices due to their compact size and reliable electrical connections.
The Molex Mini-Fit BMI Connectors find applications across consumer, data/communications, and medical sectors, particularly where compact, durable, and dependable wire harness solutions are required. While the above highlights common uses, the connector’s versatility makes it adaptable for other industries and specialized applications as well. This list is not exhaustive and serves as an example of the product's diverse potential.
Support Custom Wire Harness Assembly
- Connector circuits: 4 - 36Pin
- Wire Gauge: 18 - 28AWG, depends on real needs
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type: Fully customizable to your specifications.
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
