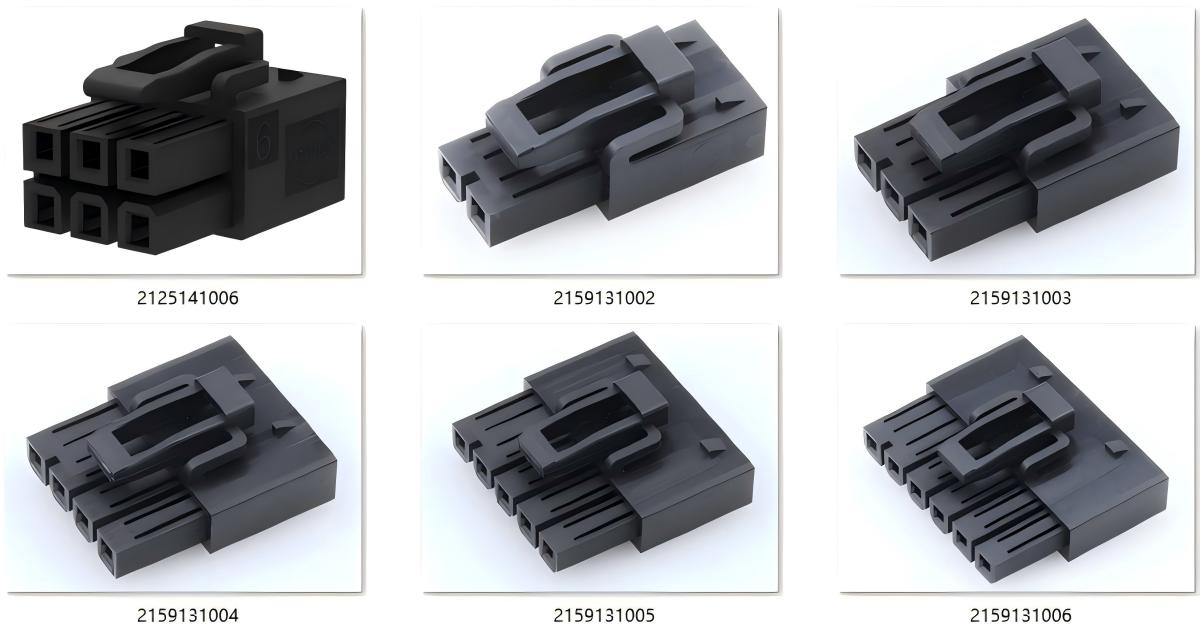

Molex Mini-Fit Max Connector

Molex Mini-Fit Max Connectors offer high current capacity with a compact, space-saving design, delivering up to 20.5A per circuit, ideal for demanding power applications where efficiency and reliability are critical. These connectors feature a robust, tangless terminal design, which improves safety during handling and assembly by eliminating tangs that can catch or bend, reducing potential damage. Additionally, the connectors incorporate a Terminal Position Assurance (TPA)-capable receptacle, providing an extra layer of security by ensuring terminals are fully seated and locked into place, which minimizes risks associated with misalignment or dislodging during assembly, packaging, or transport. Engineered to meet the requirements of telecommunications, networking, industrial automation, home appliances, and commercial vehicles, Molex Mini-Fit Max Connectors are designed to perform in a broad range of environments and applications, offering a versatile solution that maintains integrity under continuous, high-current loads. This combination of high-current handling, compact form factor, and added terminal protection makes the Mini-Fit Max series a reliable choice for power-dense applications demanding enhanced connection stability and durability.

Mini-Fit Max Connector Features

• UL 94V-0 Glow Wire combination resin
• Keying and polarization help prevent mismating
• End-to-end stackable, delivering more power per linear inch and square millimeter than other mid-range power connectors
• Four independent points of contact
• TPA stop helps ensure terminals are fully seated in their housing to reduce terminal backout
• Tangless terminals provide safety for the terminals during packing and assembly insertion
• Slim profile design saves PCB space
• 600V maximum voltage
• 20.5A maximum current
• 2MΩ contact resistance
• < 5mA dielectric withstanding voltage
• 1000MΩ minimum insulation resistance
• -40°C to +105°C operating temperature range

Mini-Fit Max Connector Specifications Chart

Mini-Fit Max Connector Applications

Telecommunications/Networking

The Molex Mini-Fit Max Connector is ideal for telecommunications and networking environments where power demands are high, and space is at a premium:

• Switches: Provides efficient power delivery in compact switch units.
• Servers: Enhances power distribution within server setups, ensuring reliable connections.
• Power Supplies and Distribution: Connects internal components of power supplies, maintaining consistent energy flow.
• Network Towers: Supports robust connections in telecommunications towers and associated equipment.

Industrial Applications

Industrial environments often demand durable, high-performance connectors to handle various equipment and systems:

• Machinery: Connects critical components in machinery, ensuring consistent power to drive operations.
• Commercial Equipment: Powers commercial equipment, including vending machines and POS systems.
• Commercial Lighting: Integrates into lighting systems, supporting high-output power needs in commercial spaces.
• Industrial HVAC Systems: Ensures power for heating, ventilation, and air conditioning units in industrial applications.

Home Appliances

For home and consumer appliances, the Mini-Fit Max Connector is valued for its compact form and strong current-carrying capability:

• Heaters and Air Conditioners: Supports power needs in heating and cooling appliances for homes and offices.
• Washers and Dryers: Delivers power to key components, helping maintain high-performance cycles.

Commercial Vehicles

Commercial and transport vehicles require reliable connectors to handle challenging environmental conditions and high-power requirements:

• Power Converters: Connects power conversion systems, ensuring stable energy transfer across systems.
• Unsealed Electronic Control Modules: Powers essential control modules in commercial vehicles that do not require waterproofing.
• Transportation Trucks: Supports power distribution in truck systems, ensuring dependable connections.

This list highlights common applications but is not exhaustive. The Mini-Fit Max Connector's versatility enables it to be used in a range of settings beyond those mentioned.

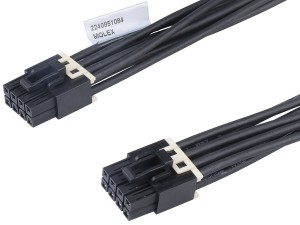

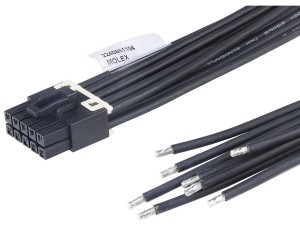

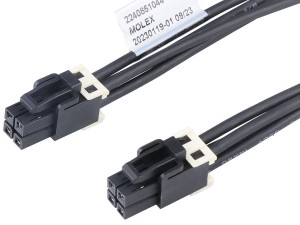

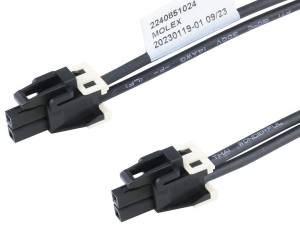

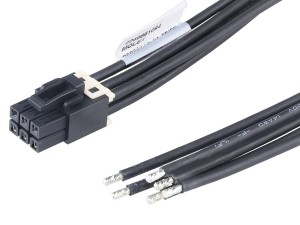

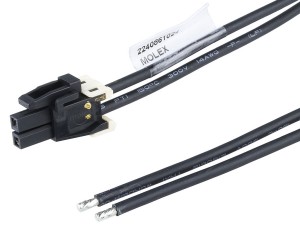

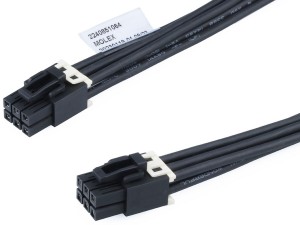

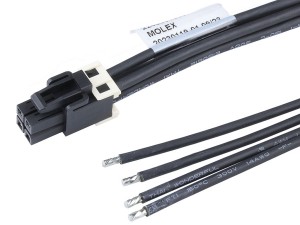

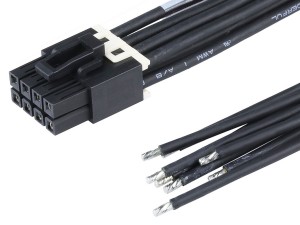

Support Custom Wire Harness Assembly

• Connector circuits: 2 - 12 Pin
• Wire Gauge: 14 - 16AWG, depending on real needs
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type: Fully customizable to your specifications.
• Minimum Order: 100 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
