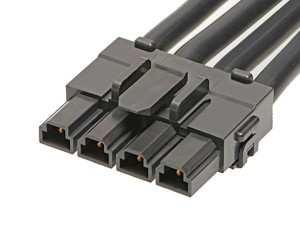

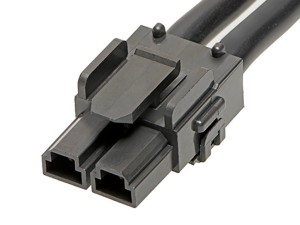

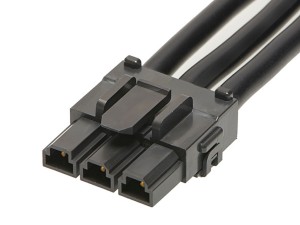

Molex Mini-Fit Sr. Connector

The Molex Mini-Fit Sr. Power Connectors deliver outstanding performance with a current rating of up to 50.0A, making them ideal for a broad spectrum of demanding applications, including industrial equipment, consumer electronics, automotive systems, medical devices, and telecommunications and networking infrastructure. These connectors are designed for high electrical reliability, featuring a compact, polarized housing that prevents mismating, ensuring safe and accurate connections. Equipped with silver-plated contacts, they resist corrosion and maintain efficient conductivity over time. The female terminals incorporate a dual-beam design with four contact points, enhancing contact reliability and reducing the risk of electrical interruptions. Additionally, the connectors are secured by a Terminal Position Assurance (PTA) retainer, which prevents terminal back-out, thus further safeguarding connection integrity under rigorous usage conditions. This cost-effective, high-performance solution meets the needs of various industries where consistent power delivery and robust design are essential.

Mini-Fit Sr. Connector Features

• Silver-plated contacts offer significant cost savings over gold-plating and avoid the need to manually lubricate tin-plated versions to mitigate fretting corrosion
• 50A interconnect solution supports high-power server, telecommunication, and industrial equipment requirements
• Polarized housing prevents connector mismating
• Dual-beam (female) terminal design provides four points of contact and ensures superb contact reliability
• Terminal Position Assurance (TPA) retainer required on housings prevents terminal back-out
• RoHS compliant
• Electrical
  • 600VAC/DC maximum voltage rating
  • 50.0A maximum current rating per contact
  • 1.0mΩ contact resistance
  • 1000MΩ insulation resistance
• Mechanical
  • 0.25kg to 3kg contact insertion force range
  • 10.0kg minimum contact retention to housing
  • 3.0kg maximum insertion force to PCB
  • 3.0kg maximum mating force
  • 3.0kg maximum unmating force
  • 30 cycle durability
• -40°C to +105°C operating temperature range
• Materials
  • Black housing
  • Copper alloy contacts
  • Plating
    • Silver in the contact area
    • Tin in the solder tail area
    • Nickel underplating
• 0.062mm, 0.093mm, 0.125mm, and 0.25mm PCB thicknesses

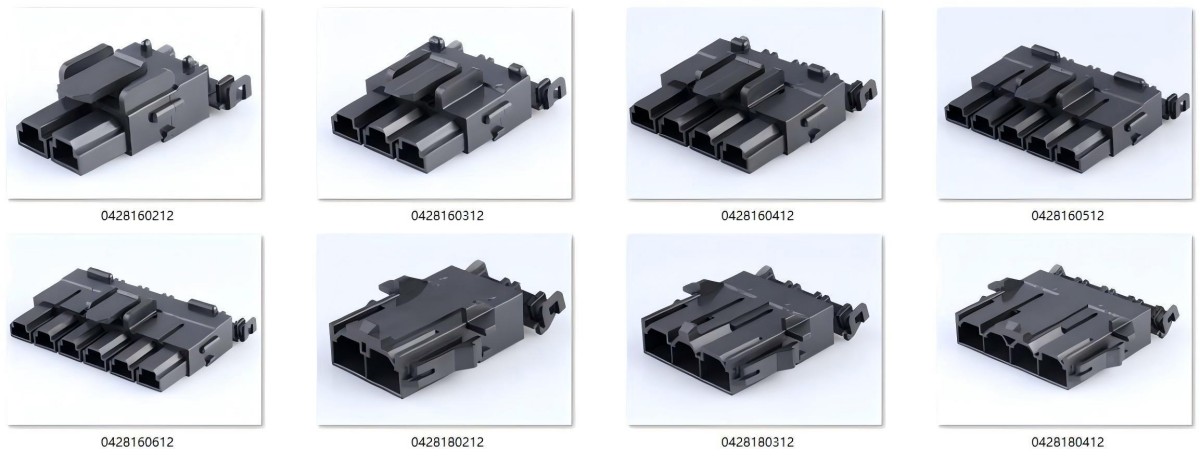

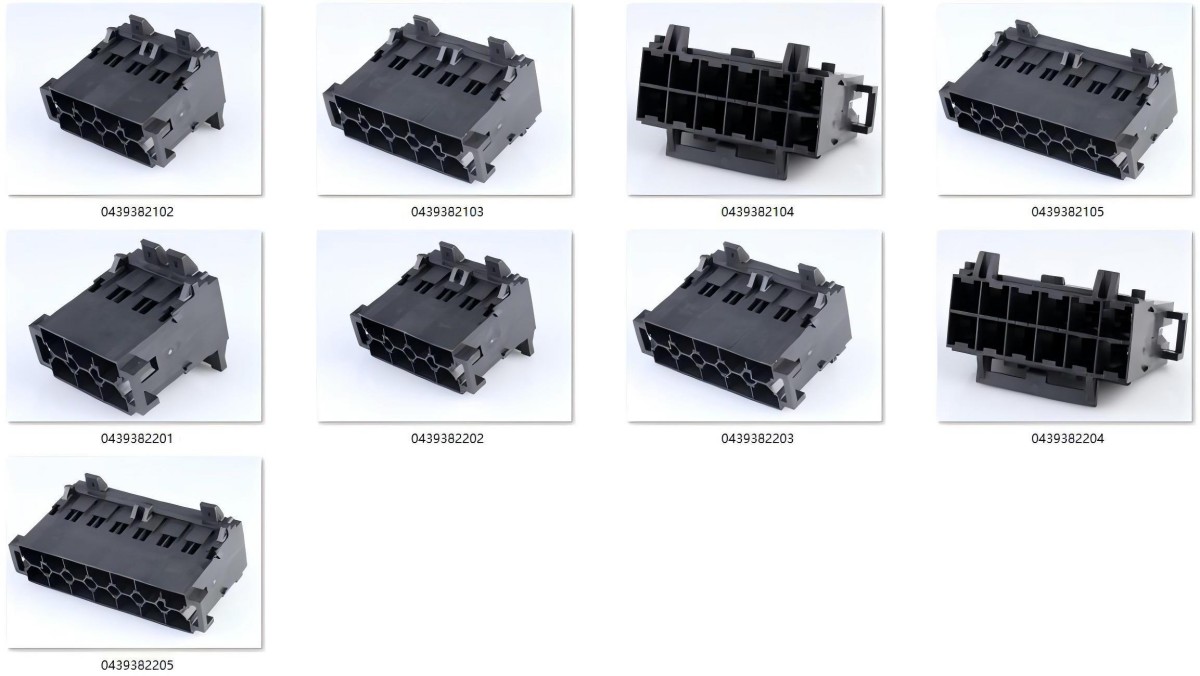

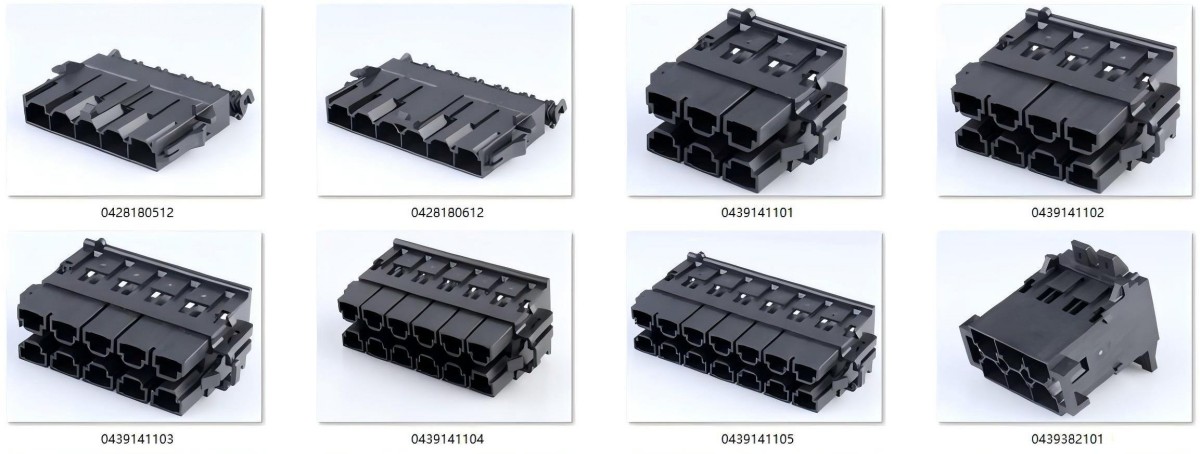

Mini-Fit Sr. Connector Specifications Chart

Mini-Fit Sr. Connector Applications

Industrial Applications

• Copiers and Printers: The high-current handling and secure mating features of Mini-Fit Sr. Connectors ensure stable power delivery for industrial copiers and printers, helping to maintain continuous operation.
• Power Supplies: Mini-Fit Sr. Connectors support reliable power transfer in high-demand environments, such as industrial power supplies, where consistent performance is crucial for operational stability.

Consumer Applications

• Washers and Dryers: With their durability and current-carrying capacity, Mini-Fit Sr. Connectors are ideal for the power needs of large appliances like washers and dryers, ensuring reliable power transfer and long service life in household environments.

Medical Applications

• X-Ray Machines: In the medical sector, Mini-Fit Sr. Connectors support equipment that requires dependable, high-current power, such as X-ray machines, which depend on uninterrupted, precise power for critical imaging applications.

Automotive Applications

• Two-Wheelers: For two-wheeled vehicles, including motorcycles and scooters, Mini-Fit Sr. Connectors offer vibration resistance and power stability, crucial for vehicle electronics in compact, mobile formats.
• Commercial Vehicles: These connectors handle high power requirements with robust connections, making them suitable for commercial vehicles that require durable, high-performance harnesses.

Telecommunications/Networking Applications

• Servers and Power Supplies: Within the telecommunications and networking field, Mini-Fit Sr. Connectors are commonly used in server power supplies, where they contribute to stable, high-power connectivity essential for continuous network operations.

This application list represents common uses of the Molex Mini-Fit Sr. Power Connectors but is not limited to these fields.

Support Custom Wire Harness Assembly

• Connector circuits: 2 - 14 Pin
• Wire Gauge: 8 - 16AWG, depending on real needs
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type: Fully customizable to your specifications.
• Minimum Order: 100 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
