Molex Mini-Fit Versa Color Connector
Molex Mini-Fit Versa Color Connectors provide an innovative solution for reducing assembly errors and improving product reliability by incorporating distinct color coding. Available in red, green, and blue, these connectors simplify visual identification, allowing for easy and accurate pairing of mating connectors during the assembly process. This color-coding system aids in ensuring that terminals are fully seated, reducing the risk of end-product malfunctions or failures due to incomplete connections. With circuit options ranging from 2 to 12, the connectors are versatile enough to meet a broad range of application requirements. Their robust design and flexibility make them particularly suitable for automotive and commercial vehicle applications, as well as consumer electronics, data systems, home appliances, industrial equipment, and medical devices. This adaptability, combined with color-coded simplicity, positions Mini-Fit Versa Color Connectors as a highly effective choice for reducing installation errors across various high-demand settings.
Mini-Fit Versa Color Connector Features
- Red, green, and blue color options
- Panel-mount and vertical-header options maintain the current rating through application surfaces or panels
- Visual color pairing (colors can be intermated) reduces assembly errors and helps ensure terminals are fully sealed
- 2 to 12 circuits
- Robust latch design provides superior retention
- V-0 Glow Wire combination resin enhances cost-effectiveness and meets European standards for electrical requirements
- 600VAC/DC maximum voltage
- 11.5A maximum current
- 10mΩ maximum contact resistance
- 2200VAC dielectric withstanding voltage
- 1000MΩ minimum insulation resistance
- -40°C to +105°C operating temperature range

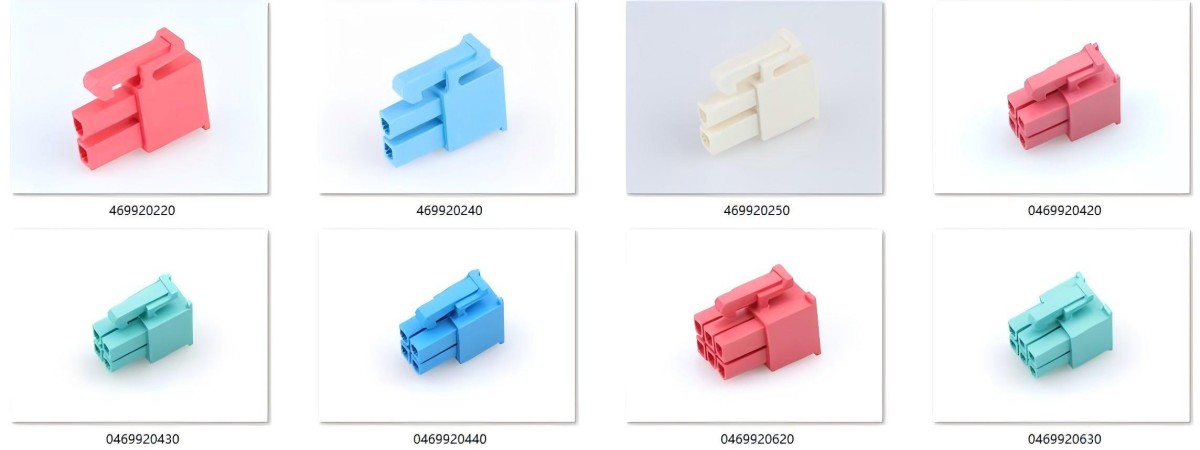

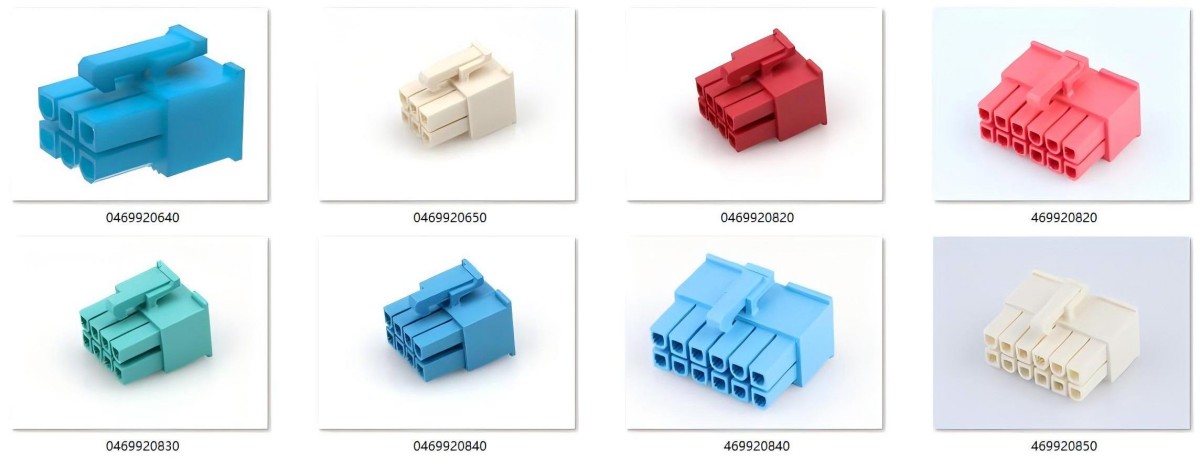

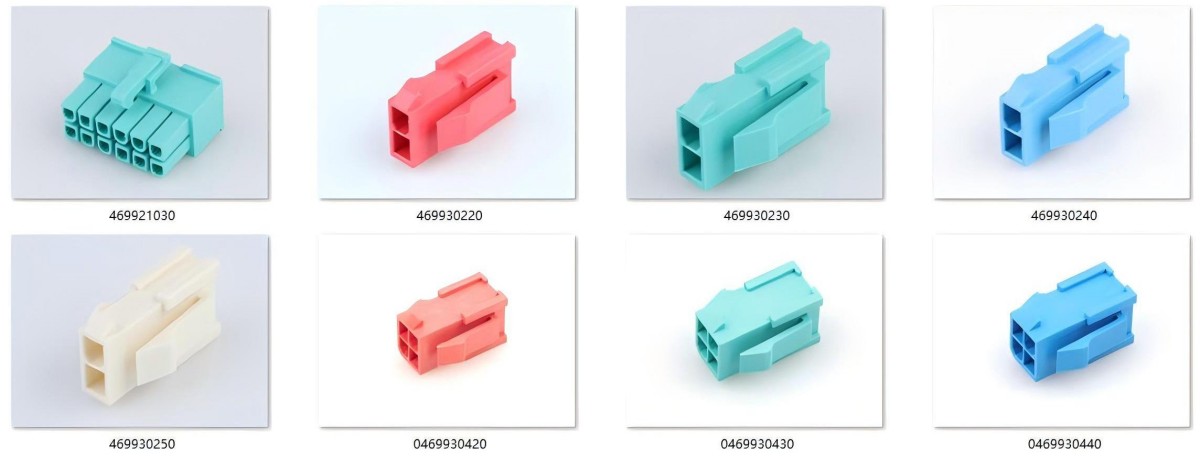

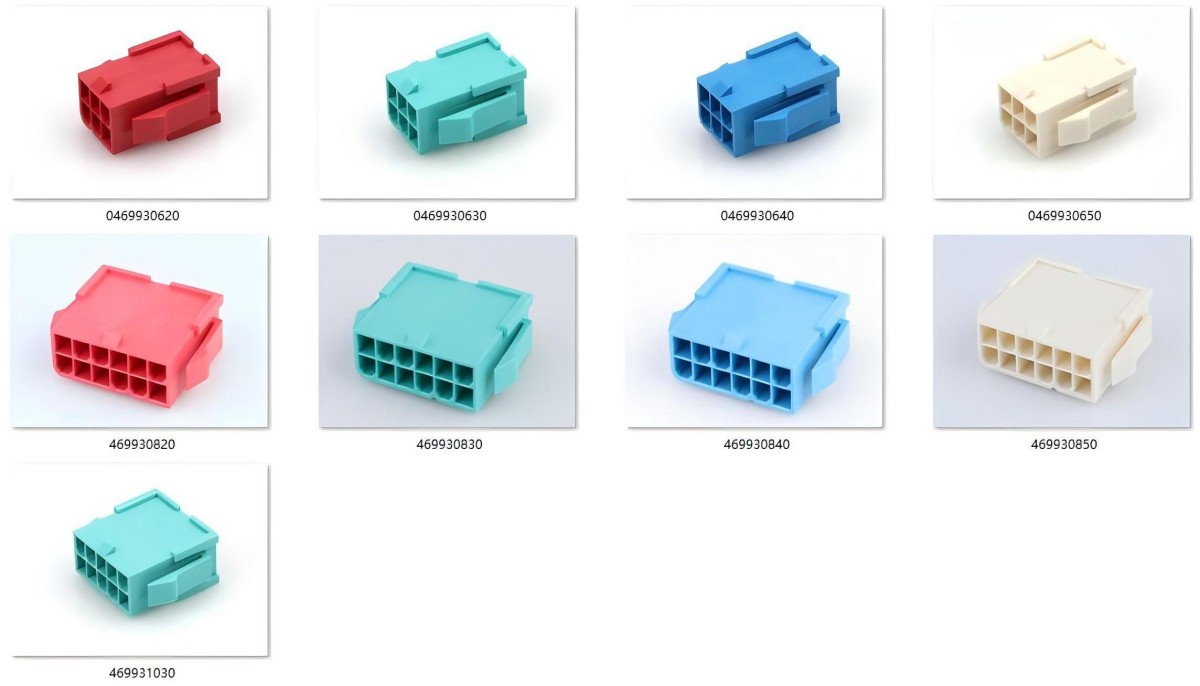

Mini-Fit Versa Color Connector Specifications Chart
| P/N | Old P/N | Circuit | Row | Color | Descriptions | Datasheet |
| 469920220 | 46992-0220 | 2 | Dual Row | Red | Mini-Fit Versa Color Receptacle Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469920220#documents-and-resources |
| 469920230 | 46992-0230 | 2 | Dual Row | Green | Mini-Fit Versa Color Receptacle Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469920230#documents-and-resources |
| 469920240 | 46992-0240 | 2 | Dual Row | Blue | Mini-Fit Versa Color Receptacle Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469920240#documents-and-resources |
| 469920250 | 46992-0250 | 2 | Dual Row | Natural | Mini-Fit Versa Color Receptacle Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469920250#documents-and-resources |
| 469930220 | 46993-0220 | 2 | Dual Row with Panel Mount Ears | Red | Mini-Fit Versa Color Plug Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469930220#documents-and-resources |
| 469930230 | 46993-0230 | 2 | Dual Row with Panel Mount Ears | Green | Mini-Fit Versa Color Plug Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469930230#documents-and-resources |
| 469930240 | 46993-0240 | 2 | Dual Row with Panel Mount Ears | Blue | Mini-Fit Versa Color Plug Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469930240#documents-and-resources |
| 469930250 | 46993-0250 | 2 | Dual Row with Panel Mount Ears | Natural | Mini-Fit Versa Color Plug Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469930250#documents-and-resources |
| 469920420 | 46992-0420 | 4 | Dual Row | Red | Mini-Fit Versa Color Receptacle Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469920420#documents-and-resources |
| 469920430 | 46992-0430 | 4 | Dual Row | Green | Mini-Fit Versa Color Receptacle Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469920430#documents-and-resources |
| 469920440 | 46992-0440 | 4 | Dual Row | Blue | Mini-Fit Versa Color Receptacle Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469920440#documents-and-resources |
| 469920450 | 46992-0450 | 4 | Dual Row | Natural | Mini-Fit Versa Color Receptacle Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469920450#documents-and-resources |
| 469930420 | 46993-0420 | 4 | Dual Row with Panel Mount Ears | Red | Mini-Fit Versa Color Plug Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469930420#documents-and-resources |
| 469930430 | 46993-0430 | 4 | Dual Row with Panel Mount Ears | Green | Mini-Fit Versa Color Plug Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469930430#documents-and-resources |
| 469930440 | 46993-0440 | 4 | Dual Row with Panel Mount Ears | Blue | Mini-Fit Versa Color Plug Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469930440#documents-and-resources |
| 469930450 | 46993-0450 | 4 | Dual Row with Panel Mount Ears | Natural | Mini-Fit Versa Color Plug Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469930450#documents-and-resources |
| 469920620 | 46992-0620 | 6 | Dual Row | Red | Mini-Fit Versa Color Receptacle Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469920620#documents-and-resources |
| 469920630 | 46992-0630 | 6 | Dual Row | Green | Mini-Fit Versa Color Receptacle Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469920630#documents-and-resources |
| 469920640 | 46992-0640 | 6 | Dual Row | Blue | Mini-Fit Versa Color Receptacle Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469920640#documents-and-resources |
| 469920650 | 46992-0650 | 6 | Dual Row | Natural | Mini-Fit Versa Color Receptacle Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469920650#documents-and-resources |
| 469930620 | 46993-0620 | 6 | Dual Row with Panel Mount Ears | Red | Mini-Fit Versa Color Plug Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469930620#documents-and-resources |
| 469930630 | 46993-0630 | 6 | Dual Row with Panel Mount Ears | Green | Mini-Fit Versa Color Plug Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469930630#documents-and-resources |
| 469930640 | 46993-0640 | 6 | Dual Row with Panel Mount Ears | Blue | Mini-Fit Versa Color Plug Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469930640#documents-and-resources |
| 469930650 | 46993-0650 | 6 | Dual Row with Panel Mount Ears | Natural | Mini-Fit Versa Color Plug Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469930650#documents-and-resources |
| 469920820 | 46992-0820 | 8 | Dual Row | Red | Mini-Fit Versa Color Receptacle Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469920820#documents-and-resources |
| 469920830 | 46992-0830 | 8 | Dual Row | Green | Mini-Fit Versa Color Receptacle Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469920830#documents-and-resources |
| 469920840 | 46992-0840 | 8 | Dual Row | Blue | Mini-Fit Versa Color Receptacle Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469920840#documents-and-resources |
| 469920850 | 46992-0850 | 8 | Dual Row | Natural | Mini-Fit Versa Color Receptacle Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469920850#documents-and-resources |
| 469930820 | 46993-0820 | 8 | Dual Row with Panel Mount Ears | Red | Mini-Fit Versa Color Plug Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469930820#documents-and-resources |
| 469930830 | 46993-0830 | 8 | Dual Row with Panel Mount Ears | Green | Mini-Fit Versa Color Plug Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469930830#documents-and-resources |
| 469930840 | 46993-0840 | 8 | Dual Row with Panel Mount Ears | Blue | Mini-Fit Versa Color Plug Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469930840#documents-and-resources |
| 469930850 | 46993-0850 | 8 | Dual Row with Panel Mount Ears | Natural | Mini-Fit Versa Color Plug Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469930850#documents-and-resources |
| 469921020 | 46992-1020 | 10 | Dual Row | Red | Mini-Fit Versa Color Receptacle Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469921020#documents-and-resources |
| 469921030 | 46992-1030 | 10 | Dual Row | Green | Mini-Fit Versa Color Receptacle Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469921030#documents-and-resources |
| 469921040 | 46992-1040 | 10 | Dual Row | Blue | Mini-Fit Versa Color Receptacle Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469921040#documents-and-resources |
| 469921050 | 46992-1050 | 10 | Dual Row | Natural | Mini-Fit Versa Color Receptacle Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469921050#documents-and-resources |
| 469931020 | 46993-1020 | 10 | Dual Row with Panel Mount Ears | Red | Mini-Fit Versa Color Plug Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469931020#documents-and-resources |
| 469931030 | 46993-1030 | 10 | Dual Row with Panel Mount Ears | Green | Mini-Fit Versa Color Plug Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469931030#documents-and-resources |
| 469931040 | 46993-1040 | 10 | Dual Row with Panel Mount Ears | Blue | Mini-Fit Versa Color Plug Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469931040#documents-and-resources |
| 469931050 | 46993-1050 | 10 | Dual Row with Panel Mount Ears | Natural | Mini-Fit Versa Color Plug Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469931050#documents-and-resources |
| 469921220 | 46992-1220 | 12 | Dual Row | Red | Mini-Fit Versa Color Receptacle Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469921220#documents-and-resources |
| 469921230 | 46992-1230 | 12 | Dual Row | Green | Mini-Fit Versa Color Receptacle Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469921230#documents-and-resources |
| 469921240 | 46992-1240 | 12 | Dual Row | Blue | Mini-Fit Versa Color Receptacle Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469921240#documents-and-resources |
| 469921250 | 46992-1250 | 12 | Dual Row | Natural | Mini-Fit Versa Color Receptacle Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469921250#documents-and-resources |
| 469931220 | 46993-1220 | 12 | Dual Row with Panel Mount Ears | Red | Mini-Fit Versa Color Plug Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469931220#documents-and-resources |
| 469931230 | 46993-1230 | 12 | Dual Row with Panel Mount Ears | Green | Mini-Fit Versa Color Plug Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469931230#documents-and-resources |
| 469931240 | 46993-1240 | 12 | Dual Row with Panel Mount Ears | Blue | Mini-Fit Versa Color Plug Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469931240#documents-and-resources |
| 469931250 | 46993-1250 | 12 | Dual Row with Panel Mount Ears | Natural | Mini-Fit Versa Color Plug Housing，Nylon 6/6，UL 94V-0，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469931250#documents-and-resources |
Mini-Fit Versa Color Connector Applications
Automotive
In the automotive industry, Molex Mini-Fit Versa Color Connectors are ideal for non-sealed applications within the vehicle's interior. Their color-coding feature aids harness manufacturers by providing quick and accurate identification during assembly and repairs, enhancing both speed and quality. They can be found in a variety of automotive devices, where their robust design ensures reliable connectivity.
Applications include:
- Harness manufacturing for vehicle interiors
- Inside-device connections in electronic control units and modules
Commercial Vehicles
Mini-Fit Versa Color Connectors are equally effective in commercial vehicle applications, specifically within electronic control modules. The connectors are dependable under demanding operational conditions, ensuring the stability and performance required in commercial vehicle environments.
Applications include:
- Control modules for trucks, buses, and other heavy-duty vehicles
Consumer Electronics
In consumer electronics, Molex Mini-Fit Versa Color Connectors are commonly utilized in gaming and vending equipment. Their high-reliability contact design supports durable, high-cycle applications, perfect for frequently used devices that need consistent performance.
Applications include:
- Gaming equipment and consoles
- Vending machines, supporting consistent connectivity and low maintenance
Data and Communications
The connectors provide reliable, high-density connections in data and communication equipment, supporting devices like copiers and printers where space and dependability are key. Their color coding also benefits service technicians by allowing for easy troubleshooting and repair.
Applications include:
- Printers and copiers
Home Appliances
In the home appliance sector, Mini-Fit Versa Color Connectors offer high performance and easy identification, making them ideal for power connections in various household devices. Their robust design ensures a long life cycle in high-usage environments.
Applications include:
- Various home appliances require dependable internal power connections
Industrial
Mini-Fit Versa Color Connectors are well-suited to industrial settings, supporting equipment and power supply applications with high current requirements. They provide reliable power distribution and easy identification, essential for efficient maintenance in industrial environments.
Applications include:
- Industrial machinery and power supplies
- Automation equipment in manufacturing lines
- Food and beverage dispensers requiring sanitary, reliable connections
Medical Devices
The connectors also see use in medical devices, such as X-ray machines, where stable connections are critical for safe operation. The color-coding feature allows medical technicians to easily identify wiring and maintain connections with confidence, supporting the stringent requirements of medical applications.
Applications include:
- Diagnostic and imaging devices like X-rays
Telecommunications and Networking
In telecommunications and networking applications, Mini-Fit Versa Color Connectors are commonly utilized in backplanes, fan-tray assemblies, and rack-mount servers. The connectors support high-density power and signal connections, essential for the continuous operation of network equipment.
Applications include:
- Backplanes in communication infrastructure
- Fan-tray assemblies
- Rack-mount server systems for data centers
Industrial Automation
In automation, food and beverage dispensers, and other automated industrial equipment, Mini-Fit Versa Color Connectors provide stable connections for motor drives, sensors, and other automation components. Their durability and color-coded design improve maintenance efficiency and system uptime.
Applications include:
- Food and beverage dispensing equipment
- Automation machinery and systems
This is not a comprehensive list of applications for Molex Mini-Fit Versa Color Connectors; rather, it highlights some of the more common use cases. Their adaptability and reliability make them valuable in many other fields requiring high-performance connectors with easy-to-identify, color-coded options.
Support Custom Wire Harness Assembly
- Connector circuits: 2 - 12 Pin
- Wire Gauge: 16 - 28AWG, depending on real needs
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type: Fully customizable to your specifications.
- Minimum Order: 100 pieces per order.

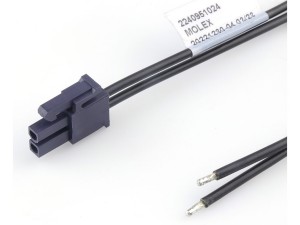

Mini-Fit Versa Color Connector black 2P to tinned end wire harness

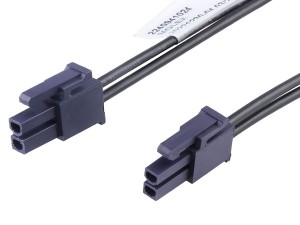

Mini-Fit Versa Color Connector black 2P wire harness

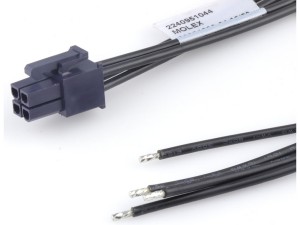

Mini-Fit Versa Color Connector black 4P to tinned end wire harness

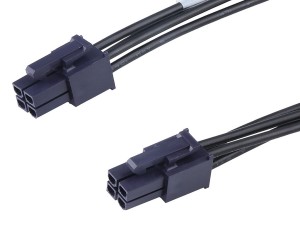

Mini-Fit Versa Color Connector black 4P wire harness

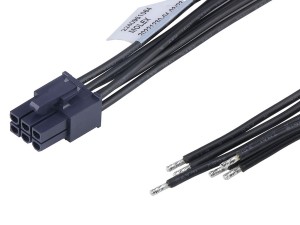

Mini-Fit Versa Color Connector black 6P to tinned end wire harness

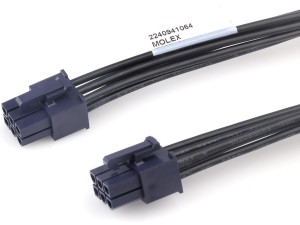

Mini-Fit Versa Color Connector black 6P wire harness

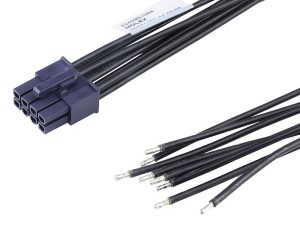

Mini-Fit Versa Color Connector black 8P to tinned end wire harness

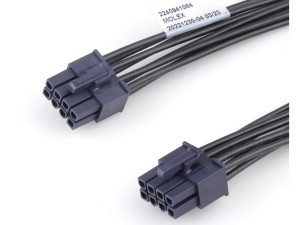

Mini-Fit Versa Color Connector black 8P wire harness

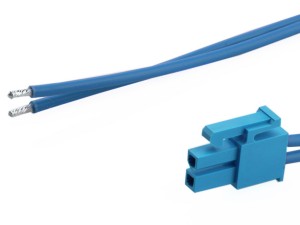

Mini-Fit Versa Color Connector Blue 2P to tinned end wire harness

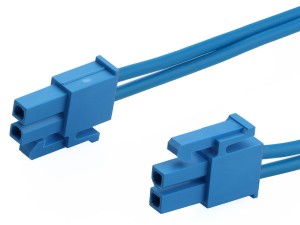

Mini-Fit Versa Color Connector Blue 2P wire harness

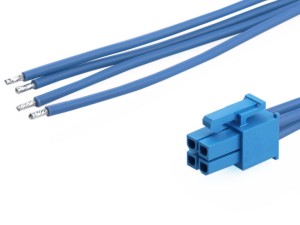

Mini-Fit Versa Color Connector Blue 4P to tinned end wire harness

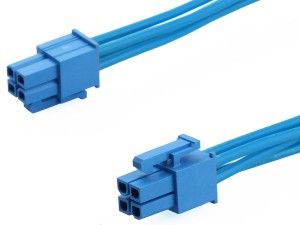

Mini-Fit Versa Color Connector Blue 4P wire harness

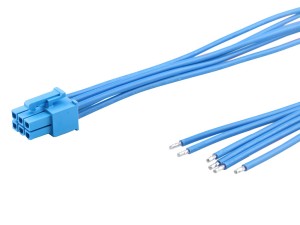

Mini-Fit Versa Color Connector Blue 6P to tinned end wire harness

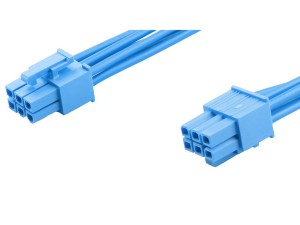

Mini-Fit Versa Color Connector Blue 6P wire harness

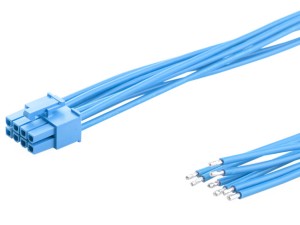

Mini-Fit Versa Color Connector Blue 8P to tinned end wire harness

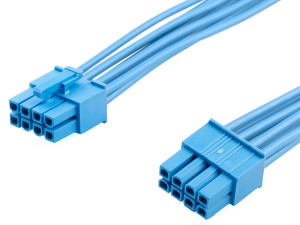

Mini-Fit Versa Color Connector Blue 8P wire harness

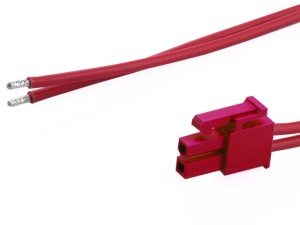

Mini-Fit Versa Color Connector Red 2P to tinned end wire harness

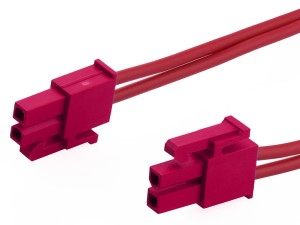

Mini-Fit Versa Color Connector Red 2P wire harness

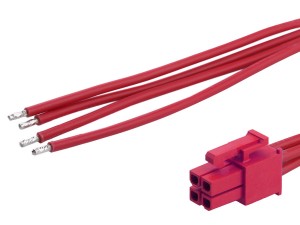

Mini-Fit Versa Color Connector Red 4P to tinned end wire harness

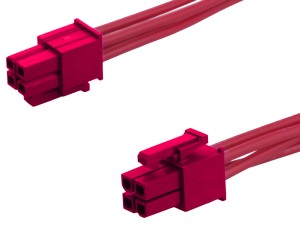

Mini-Fit Versa Color Connector Red 4P wire harness

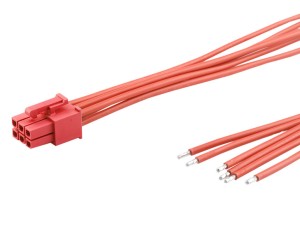

Mini-Fit Versa Color Connector Red 6P to tinned end wire harness

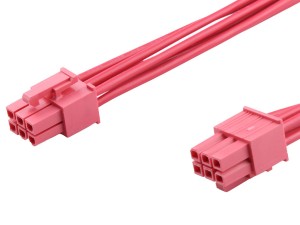

Mini-Fit Versa Color Connector Red 6P wire harness

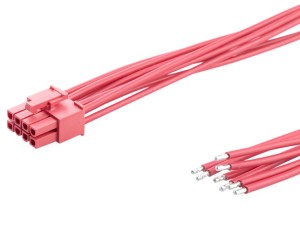

Mini-Fit Versa Color Connector Red 8P to tinned end wire harness

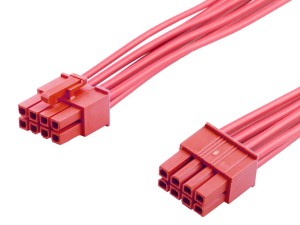

Mini-Fit Versa Color Connector Red 8P wire harness
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
