Molex Mini50 Sealed Connector

The Molex Mini50 Sealed Connector offers a versatile solution for compact, reliable connections in challenging transportation-vehicle environments. Available in configurations from 2 to 16 circuits, the Mini50 Sealed Connector provides a 25% reduction in space compared to standard sealed 0.64mm connectors. This efficient design enables a higher density of low-current circuits, making it ideal for applications where space is limited yet reliability is crucial. The smaller terminal design supports compact, sealed connections while maintaining robust protection against environmental factors, making the Mini50 Sealed Connector an excellent choice for modern automotive and transportation needs.

Mini50 Sealed Connector Features

• Sealed Receptacle
  • Delivers a 0.50mm connector interface tested to meet full USCAR specifications.
  • No parting lines on sealing surfaces.
  • IP68 rating,
  • IP69K with backshell.
  • Enhances design flexibility
• Optional CPA
  • Mating assurance feedback device that prevents accidental un-mating
• Polarization Options
  • Eliminates mating and assembly errors.
  • Color-coded to correspond to polarity
• Reduced package sizes
  • Shrink footprint 25% compared to USCAR 0.64mm unsealed interfaces.
  • Reduces PCB footprint by 30% compared to 4-circuit connectors
• Independent secondary lock (ISL) terminal-retention feature
  • Molds into the receptacle housing as one piece for applied cost savings
• Rounded Shape
  • Allows for through-hole routing

Mini50 Sealed Connector Specifications Chart

Sort by the number of circuits.

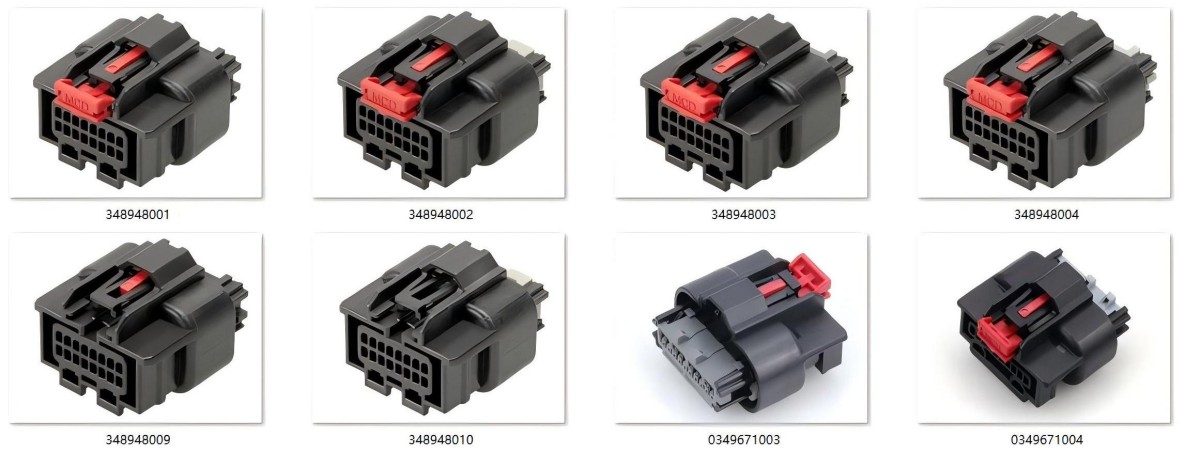

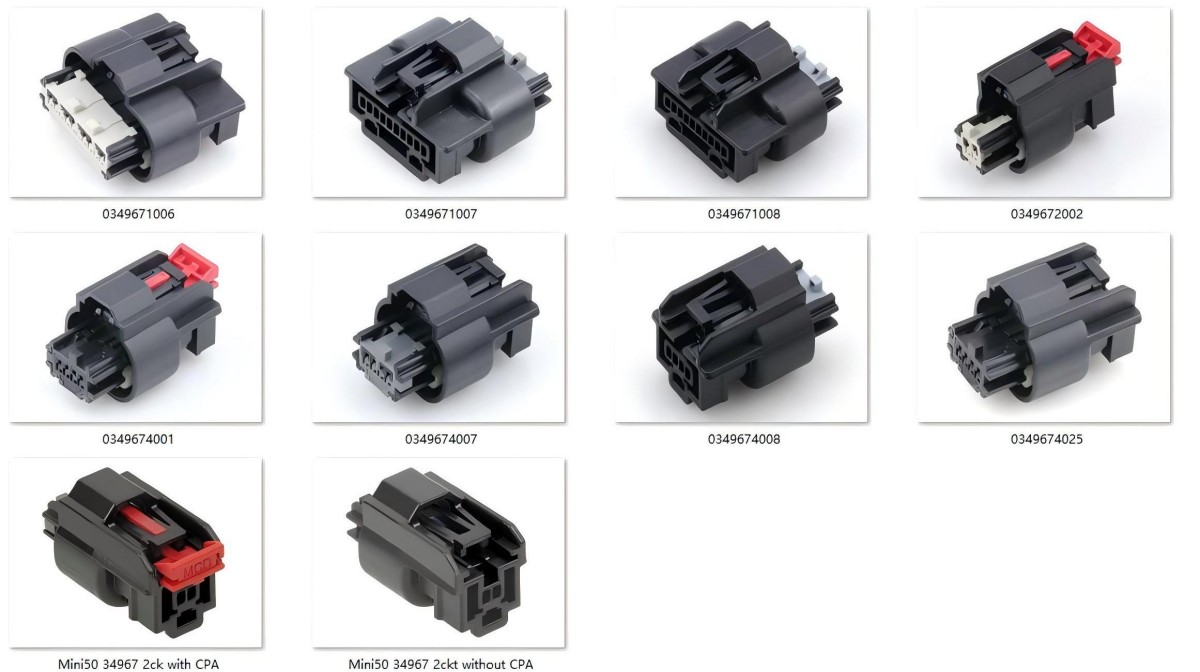

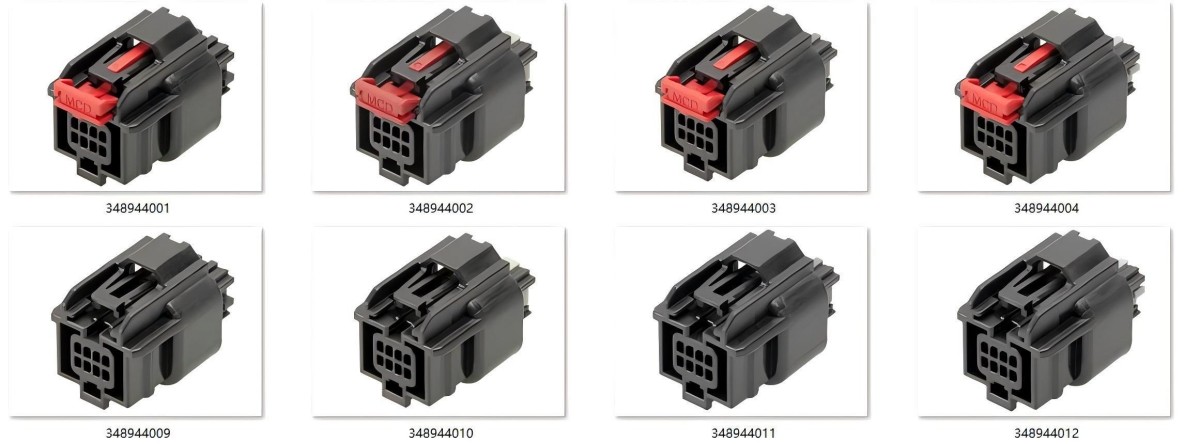

Mini50 Sealed Connector

Automotive Applications

• Cameras/Sensors: Connectors provide dependable links in systems like reverse cameras, parking sensors, and ADAS (Advanced Driver Assistance Systems), crucial for modern vehicle safety and functionality.

• Clusters/Navigation: Used in instrument clusters and navigation systems, these connectors support seamless integration and data transfer for real-time driver information and navigation aids.

• Exterior Lighting: Ideal for headlights, taillights, and indicator lights, the Mini50 Sealed Connectors ensure consistent electrical connections in systems exposed to outdoor elements.

• HVAC Systems: Enable reliable connectivity in heating, ventilation, and air conditioning systems, essential for maintaining passenger comfort in all climate conditions.

• Headliners: Support overhead components, including interior lighting and control modules embedded within the headliner of the vehicle.

• Mirrors: Used in powered mirrors, these connectors aid in adjusting mirror position and integrating additional features like blind spot detection.

• Power Steering: Contributes to electronic power steering systems, helping deliver precise and responsive steering control.

• Radios/DVDs/CDs & Entertainment Systems: Connects entertainment components, offering clear audio and video transmission to infotainment systems.

• Switches: Designed for vehicle switches controlling various systems, from window controls to lighting switches, providing reliable actuation.

• Sensors: Critical for multiple in-vehicle sensors that monitor parameters like temperature, pressure, and vehicle position, ensuring optimal performance.

Commercial Vehicle Applications

• Cameras/Sensors: Facilitate connections for safety-enhancing systems such as rear-view cameras and proximity sensors, essential for large vehicle maneuverability.

• Clusters/Navigation: Used in instrumentation clusters and fleet navigation systems, aiding drivers in monitoring vital vehicle data and routes.

• Exterior Lighting: Support heavy-duty lighting systems, including work lights, brake lights, and indicator lights, which are vital for vehicle visibility and signaling.

• HVAC Systems: Power commercial vehicle HVAC units, maintaining consistent climate control in varying work environments.

• Headliners: Connect overhead lighting and controls in the headliners, enhancing in-cabin lighting and accessibility.

• Mirrors: Provide side-view and rear-view mirror connectivity, including adjustments and integration with other sensor-based features.

• Radios: Support audio systems that deliver clear communication and entertainment options within the vehicle.

• Sensors: Ensure stable connections to sensors tracking vehicle operation and performance, crucial for maintaining commercial fleet efficiency.

• Switches: Connect switches that control lighting, air conditioning, and other vehicle functions, providing rugged performance in frequent-use applications.

In total, this list represents some of the more common applications but is not exhaustive. The Molex Mini50 Sealed Connectors can support a broader range of systems, including additional applications as required by custom automotive and commercial vehicle designs. The connectors' versatility, compact design, and sealed properties make them adaptable to various uses beyond those listed here.

Support Custom Wire Harness Assembly

• Connector circuits: 2 - 16 Pin
• Wire Gauge: 0.08 - 0.35mm², depending on real needs
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type: Fully customizable to your specifications.
• Minimum Order: 100 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
