Molex Nano-Fit BMI Connector

Molex Nano-Fit BMI Connectors offer a compact and reliable solution for applications where space efficiency and robust performance are critical. Featuring fully protected header terminals, these connectors ensure long-term durability and prevent terminal damage, even in challenging environments. Designed for wire-to-board and wire-to-wire configurations, the Nano-Fit BMI Connectors incorporate a blind-mate interface (BMI) that eliminates the risk of damage from misalignment during mating, enhancing assembly efficiency. Their innovative design provides up to 69% more space savings in the x-axis compared to conventional connectors, making them ideal for applications with tight spatial constraints. The connectors also include a positive-lock housing with an anti-snag feature, ensuring secure engagement while preventing accidental disconnection. This combination of features makes Molex Nano-Fit BMI Connectors an excellent choice for small appliances, 3D printers, and non-critical automotive systems, where compact design, reliable performance, and ease of assembly are paramount.

Nano-Fit BMI Connector Features

• BMI design
• Small package design
• Ultra-low mate force terminal
• Terminal position assurance (TPA) retainer option
• Multiple mechanical keying and color-coded options
• 4-point contact, multilayer boards on the terminal interface
• Positive-lock housing with an anti-snag design
• 8A current rating
• 4 to 16 circuits
• 2.50mm height
• Operating temperature range
  • -40°C to +105°C (tin)
  • -40°C to +115°C (gold)
• 250V maximum voltage rating
• 10mΩ contact resistance
• 1500V dielectric withstanding voltage
• 1000MΩ insulation resistance
• Nylon UL 94V-0 receptacle housing
• LCP UL 94V-0 header housing

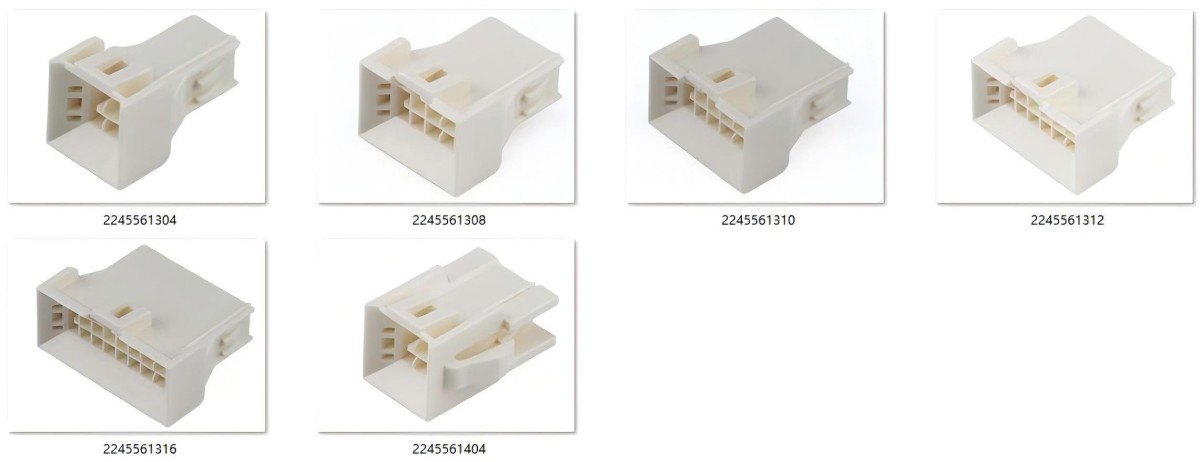

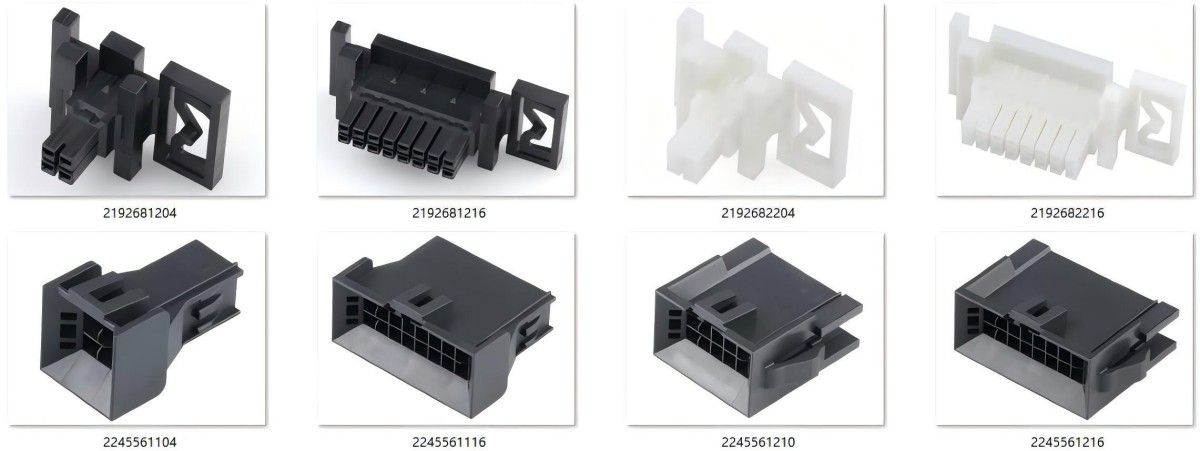

Nano-Fit BMI Connector Specifications Chart

Nano-Fit BMI Connector Applications

Automotive Applications

Consoles

Used for connecting control systems within the vehicle dashboard, enabling seamless communication between devices.

Infotainment Systems

Supports audio-visual systems, providing efficient data and power transmission for entertainment and navigation technologies.

Non-Critical Applications

Ideal for secondary automotive systems where consistent performance and reliability are necessary but safety-critical standards are not required.

Telematics

Powers vehicle tracking, diagnostics, and communication systems that require high-density and compact connectors.

Consumer Applications

3D Printers

Provides reliable connections for motors, sensors, and controllers within compact device structures.

Copiers

Ensures stable power and data connections in multi-functional office equipment.

Home Appliances

Supports compact, high-efficiency wiring in devices like washing machines, refrigerators, and air conditioners.

Small Appliances

Commonly used in small kitchen and personal care appliances such as blenders, toasters, and hairdryers.

Vacuum Cleaners

Enables robust electrical connections in motorized cleaning systems, ensuring operational consistency.

The Molex Nano-Fit BMI Connectors are widely utilized in automotive and consumer product wire harness applications, where compact size, high performance, and reliability are essential. These connectors enable efficient power and signal transmission for systems ranging from vehicle infotainment to home appliances. While this overview highlights popular uses, the applications of Nano-Fit BMI Connectors extend beyond these categories, making them suitable for other industries and innovative designs. Their versatility allows them to adapt to diverse requirements, ensuring they meet the demands of both existing and emerging technologies.

Support Custom Wire Harness Assembly

• Connector circuits: 4 - 16Pin
• Wire Gauge: 20 - 26AWG, depends on real needs
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type: Fully customizable to your specifications.
• Minimum Order: 100 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
