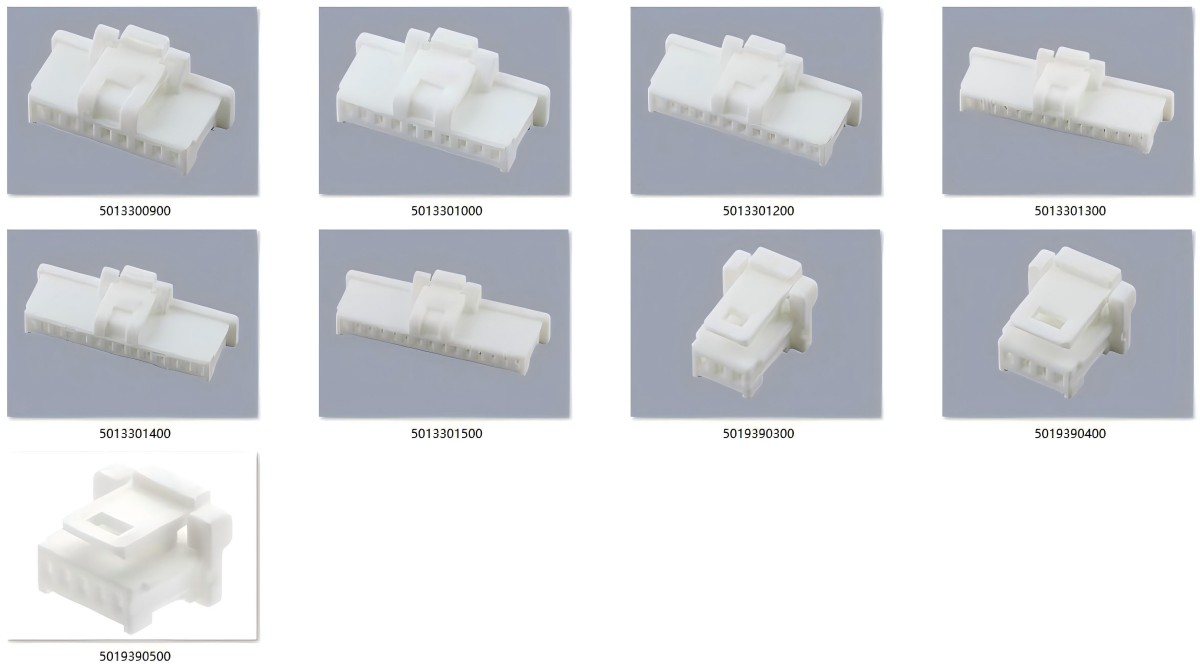

Molex Pico-Clasp Connector

The Molex Pico-Clasp Wire-to-Board Connectors provide a reliable and space-efficient interconnect solution with a compact 1.00mm pitch, ideal for modern electronics that require small form factors and secure connections. These connectors are available in both single-row and dual-row configurations, offering flexibility for various designs and connection requirements. A notable feature of the Pico-Clasp series is its positive lock mechanism, which ensures a secure, stable mating and minimizes the risk of accidental disconnection. Additionally, the series includes friction and positive lock options, allowing for enhanced customization to meet specific application needs. Designed for high-density connections, these connectors are particularly well-suited for flat panel displays (FPDs), notebook PCs, and other compact devices where space is limited. With the Molex Pico-Clasp, manufacturers can achieve robust performance in tightly packed electronic environments while meeting stringent design and functionality standards.

Pico-Clasp Connector Features

• Small pitch for positive lock W2B crimp system
  • Provides space savings for mounting other components
• Inner positive lock (6 to 50 circuit sizes)
  • Prevent wire hooking
  • Blocks direct wire weight and prevents lock lever from leaning
  • Strong mating retention and clear click feeling
• Outer positive lock (3 to 5 circuit sizes) ensures strong mating retention and clear click feeling
• Low mating and unmating forces for easy connector insertion and extraction
• Wide header variations provide design flexibility
• 50V voltage rating
• 1.0A (28AWG to 30AWG), 0.8A (32AWG) current ratings
• 20mΩ maximum contact resistance
• 100MΩ minimum insulation resistance
• 250VAC for 1-minute dielectric strength
• 4.9N (0.5kgf) minimum terminal retention force
• 30 cycles of durability
• -40°C to +85°C operating temperature range

Pico-Clasp Connector Specifications Chart

Pico-Clasp Connector Applications

Plasma Display Panel (PDP) TVs

• Used in signal transmission between the main board and display panel.
• Facilitates connection to driver boards for high-resolution image processing.
• Ensures compact wiring to save space and maintain the sleek design of the television.

Liquid Crystal Display (LCD) TVs

• Essential for connecting various circuit boards within the TV’s slim design.
• Provides reliable data and power connections for backlighting systems.
• Supports integration with touch panel systems for smart TV functionality.

Notebook PCs

• Provides power and signal connections in densely packed motherboard designs.
• Used in display connections, touchpad circuits, and power button assemblies.
• Ideal for internal wiring due to its space-saving design and durability.

Other Compact Devices

• Portable Gaming Consoles: Enables lightweight and compact wiring for controller boards and display units.
• Digital Cameras: Facilitates connections in zoom mechanisms and image sensor modules.
• Wearable Devices: Ensures secure connections for compact sensors and battery management systems.
• IoT Devices: Used in sensor nodes and compact controllers to maintain minimal device profiles.
• Medical Equipment: Ideal for small diagnostic devices or portable medical monitors requiring high reliability and small form factors.

This is not an exhaustive list of applications for the Molex Pico-Clasp Wire-to-Board Connectors. The examples provided are among the more common uses. However, these connectors are highly adaptable and may be utilized in numerous other compact electronic devices or systems requiring efficient and reliable connections in constrained spaces. Their utility spans a wide array of industries, making them a go-to solution for various wire harness needs.

Support Custom Wire Harness Assembly

• Connector circuits: 2 - 40 Pin
• Wire Gauge: 28 - 32AWG, depending on real needs
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type: Fully customizable to your specifications.
• Minimum Order: 100 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
