Molex Pico-EZmate Connector

The Molex Pico-EZmate and Pico-EZmate Slim Connector Systems deliver compact, high-performance wire-to-board interconnect solutions tailored for industries striving to reduce module sizes. Designed with space efficiency in mind, the Pico-EZmate connectors feature mated heights of just 1.55mm or 1.65mm, ensuring suitability for tight packaging requirements. These connectors provide an audible click during mating, reinforcing a secure and reliable connection between the receptacle housing and header. Supporting 2 to 6 circuits with a current rating of up to 1.5A per contact, Pico-EZmate connectors are versatile solutions for low-profile applications, including notebooks, mobile phones, GPS units, MP3/MP4 players, and other compact electronic devices. Meanwhile, the Pico-EZmate Slim System pushes miniaturization further, achieving a remarkably low mated height of 1.2mm while supporting faster pick-and-place assembly processes. Featuring polarization keys, an open-top receptacle design, and an open-header configuration, the Slim variant accommodates higher circuit counts and ensures dependable performance through rigorous test cycles. Typical applications include smartphones, entertainment gadgets, and home appliances. Together, these systems address the growing demand for efficient, reliable, and ultra-compact connectivity in modern electronics.

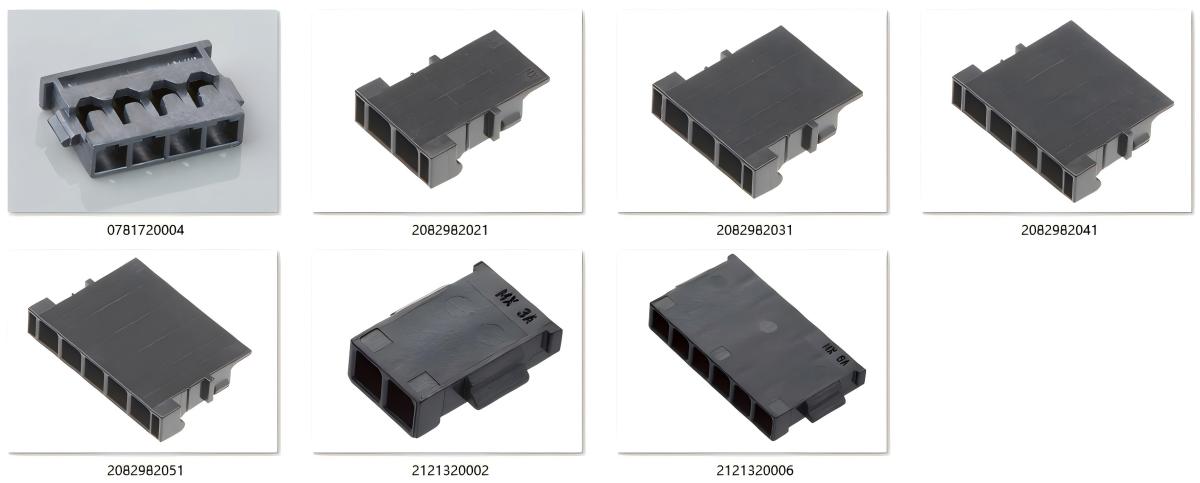

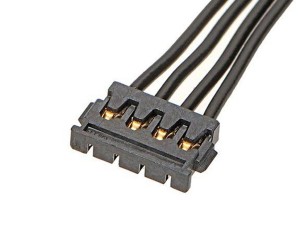

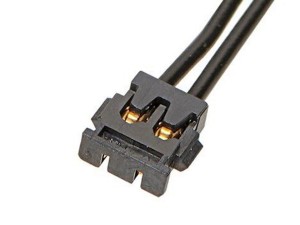

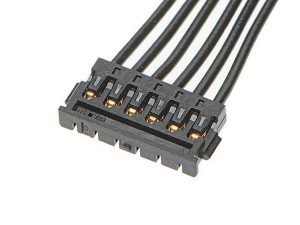

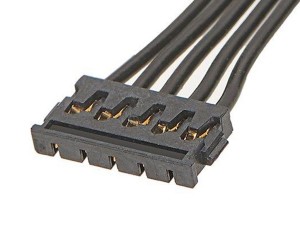

Pico-EZmate Connector Type

Pico-EZmate Connector Features

• Ultra-low profile
• Space saving
• Vertical mating
• Easy application in tight spaces
• Open space on header
• Accommodates pick-and-place
• Gold plating
• Secure contact for multiple cycles
• Polarizing key
• Prevents mismating
• 50V maximum voltage
• 20mΩ contact resistance
• 100MΩ minimum insulation resistance
• 14.7N contact insertion force
• 3.5N contact retention to housing
• 18N maximum mating force
• 10 mating cycles durability

Pico-EZmate Connector Specifications Chart

Pico-EZmate Connector Applications

Automotive

• GPS Navigation Systems: Ensures reliable power and data transmission for vehicle navigation and tracking.

Consumer Electronics

• Electronic Cigarettes and Cigars (E-Cigs): Provides compact, reliable connections for power and control in portable vaping devices.
• Entertainment Devices: Ideal for portable gaming consoles, digital cameras, and audio equipment requiring space-saving connections.
• POS Terminals: Supports compact designs in payment and transaction processing terminals.

Data Center Solutions

• Data Termination Equipment: Enables secure connections for communication and termination systems in high-density data center environments.

Home Appliances

• White Goods: Suitable for use in compact, high-efficiency appliances such as refrigerators, washing machines, and microwaves.

Medical Technology (MedTech)

• Measuring Equipment: Ensures reliable and accurate data transmission in compact diagnostic or monitoring devices.

Mobile Devices

• Mobile Phones and Tablets: Facilitates power and signal transmission in ultra-slim designs, supporting innovation in handheld devices.

This is not a definitive list of applications for Molex Pico-EZmate Connectors. These examples represent common uses but are not limited to these ranges. The connectors' versatility allows them to be tailored to various specialized applications.

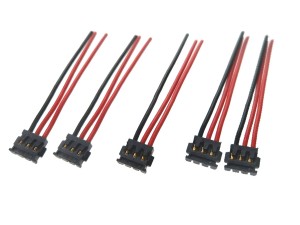

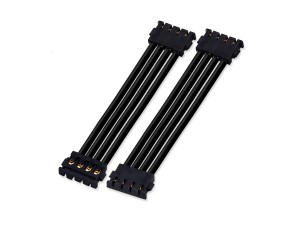

Support Custom Wire Harness Assembly

• Connector circuits: 2 - 6 Pin
• Wire Gauge: 22 - 30AWG, depending on real needs
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type: Fully customizable to your specifications.
• Minimum Order: 100 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
