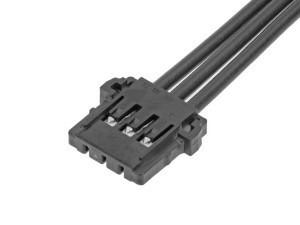

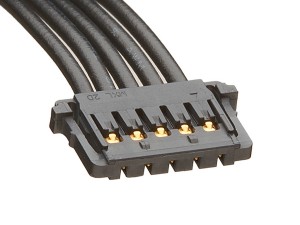

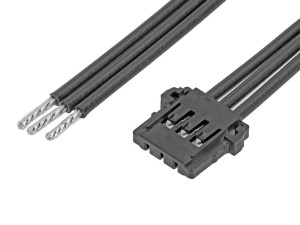

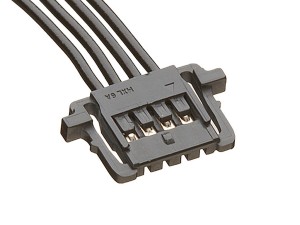

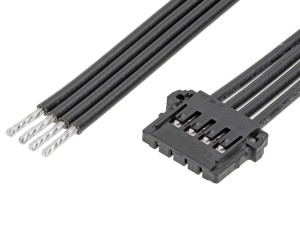

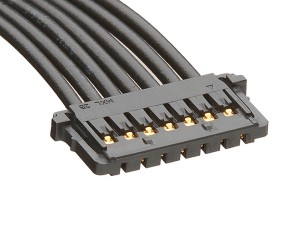

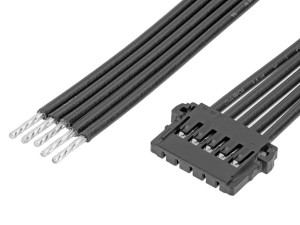

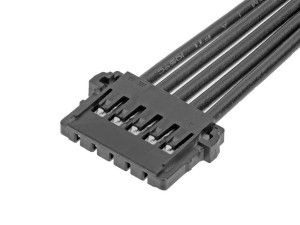

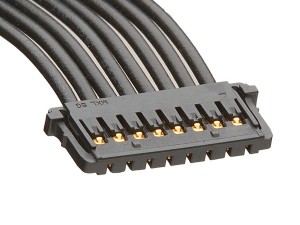

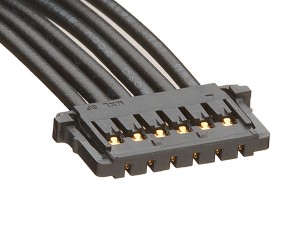

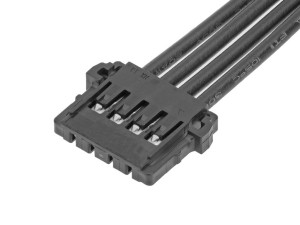

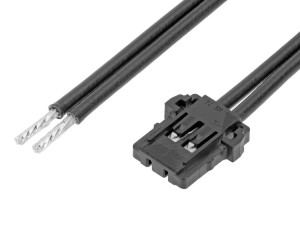

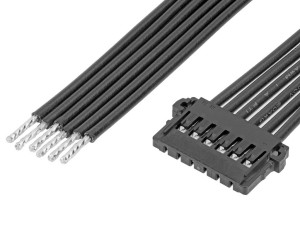

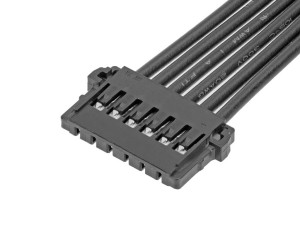

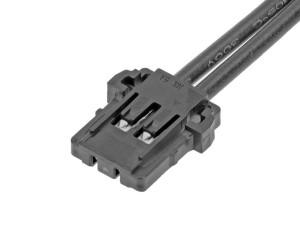

Molex Pico-Lock Connector

The Molex Pico-Lock SMT Wire-to-Board Connectors stand out for their innovative side positive-lock design, enabling secure and reliable connections while optimizing space in consumer applications. Offered in pitch sizes of 1.00mm, 1.50mm, and 2.00mm, these connectors balance a compact form factor with impressive current-handling capabilities, supporting up to 3A for high signal-line performance. Designed for demanding applications like LED TVs, notebooks, and tablet PCs, the Pico-Lock system ensures robust and ultra-low-profile connections. The side positive-lock mechanism not only enhances mating retention but also facilitates quick and secure assembly. Additional features include a guide rib for precise polarization and mating alignment, friction locks for enhanced connection assurance, and visual indicators to confirm proper mating. A wide solder tab integrated into the header and housing provides superior mechanical stability and PCB retention, ensuring long-lasting durability in high-performance environments. With its space-saving design and dependable locking system, the Pico-Lock series is ideal for applications requiring compact, reliable, and high-current solutions.

Pico-Lock Connector Features

• Available in 1.00mm, 1.50mm, and 2.00mm pitch versions
• Current ratings up to 3A (2.00mm pitch version) provide mating boot and pin/contact protection
• Ultra-low-profile mated heights
• Side positive locks provide secure mating retention and additional space savings
• Wide, robust fitting nails (solder tabs) secure PCB retention and add additional mechanical stability
• Polarization/mating guide features prevent mismating while guiding the housing into the header
• Top friction locks provide additional mating retention and visual mating assurance
• 150V maximum voltage
• 20mΩ maximum contact resistance
• 500VAC (rms) for 1 minute dielectric withstanding voltage
• 1000MΩ minimum insulation resistance

Pico-Lock Connector Applications Chart

Pico-Lock Connector Applications

Automotive

• Control Units: Supporting essential vehicle functions with secure and stable wiring.
• Heads-Up Displays: Facilitating advanced visual interfaces in modern vehicles.
• Infotainment Systems: Providing seamless connectivity for entertainment and navigation.
• Interior Equipment: Empowering systems for enhanced passenger comfort and convenience.
• Mirrors: Supporting power and signal transmission for electronically adjustable and heated mirrors.

Consumer Electronics

• Gaming Equipment: Powering controllers and gaming consoles.
• LCD and LED TVs: Enabling streamlined connections for modern display technologies.
• Notebook PCs and Tablets: Ensuring compact, durable, and efficient connections in portable devices.

Industrial

• Factory Automation: Providing robust connections for automated machinery and systems.
• Power Supplies: Ensuring reliable connections in critical power management components.
• Security Systems and Surveillance Cameras: Supporting high-performance wiring for safety and monitoring.
• Smart Meters: Enabling efficient data collection and communication.

Lighting

• LED Lighting: Optimizing connections for modern lighting solutions.
• Transformers: Supporting critical components in lighting and energy systems.

Smartphones and Mobile Devices

• Tablets: Maintaining dependable performance in compact, portable electronics.

Telecommunications and Networking

• Wireless Modems: Supporting advanced networking and communication technologies.

This list highlights some of the common applications for Molex Pico-Lock Connectors. However, their versatility makes them suitable for a broader range of industries and products beyond those mentioned.

Support Custom Wire Harness Assembly

• Connector circuits: 2 - 12 Pin
• Wire Gauge: 20 - 32AWG, depending on real needs
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type: Fully customizable to your specifications.
• Minimum Order: 100 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
