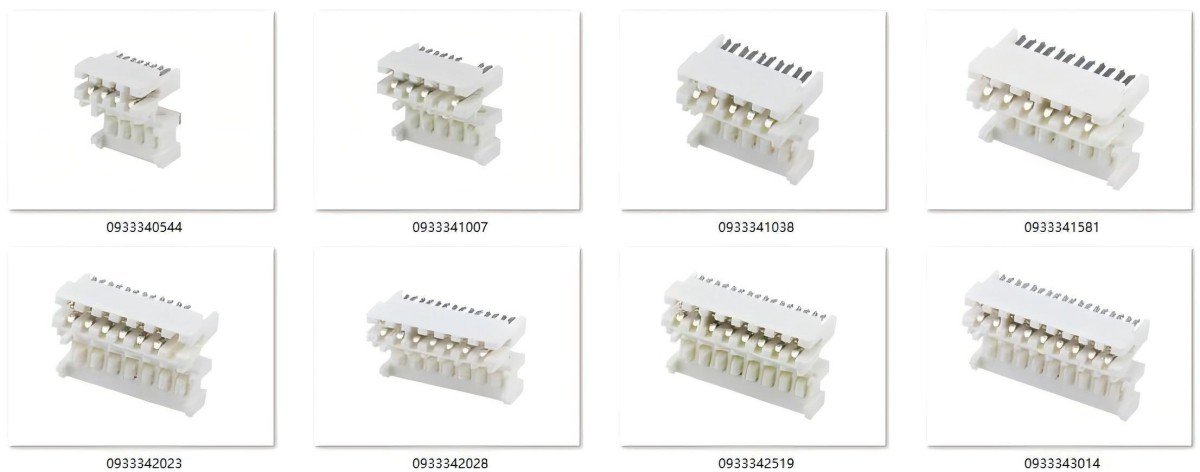

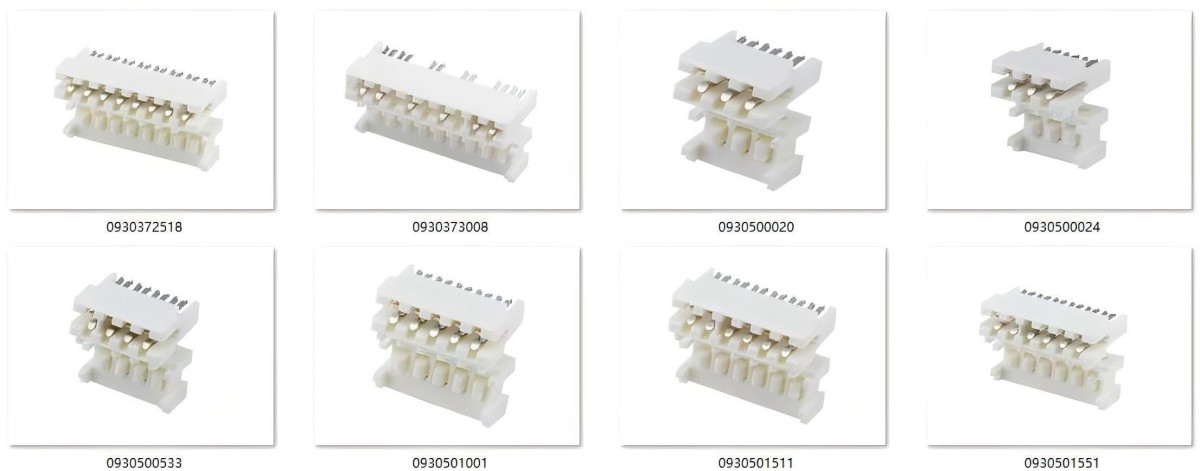

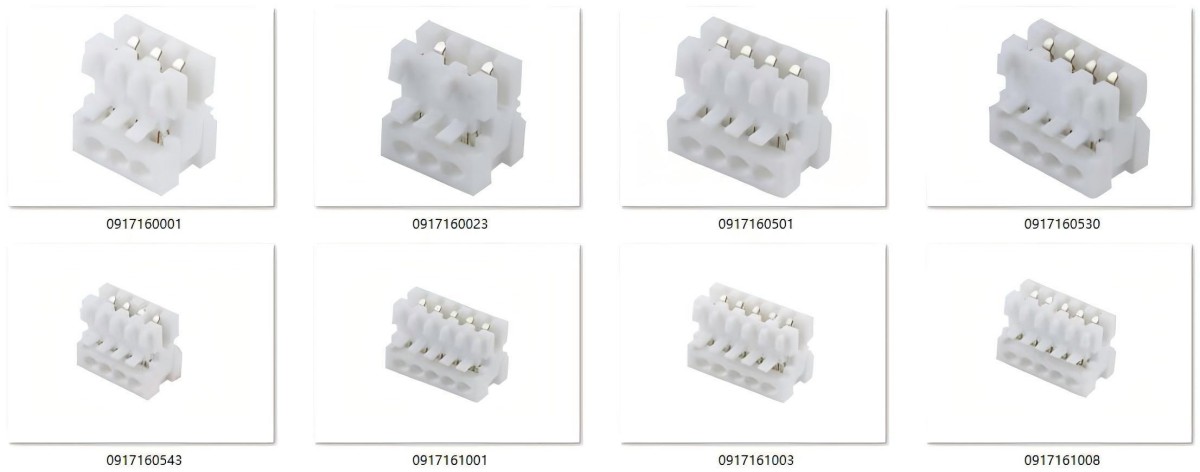

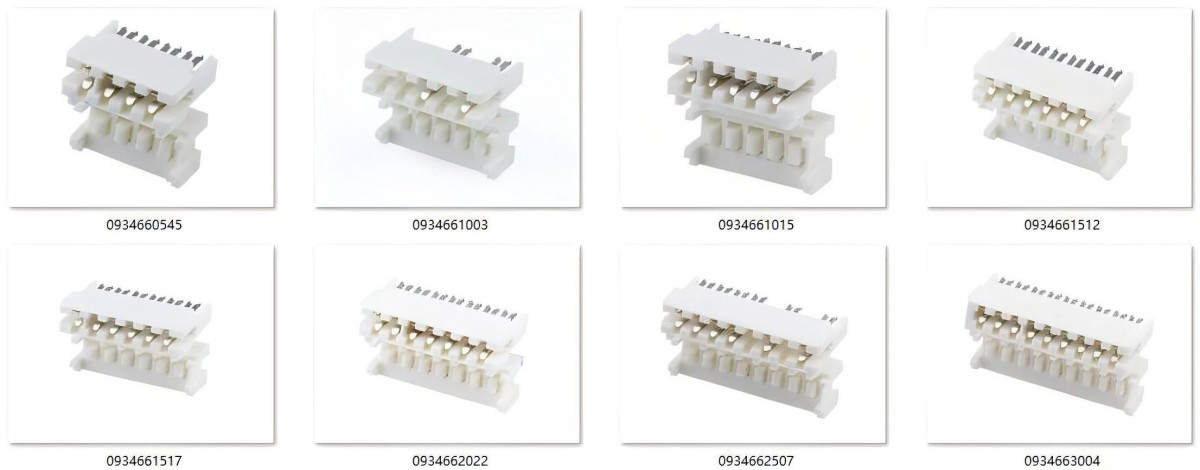

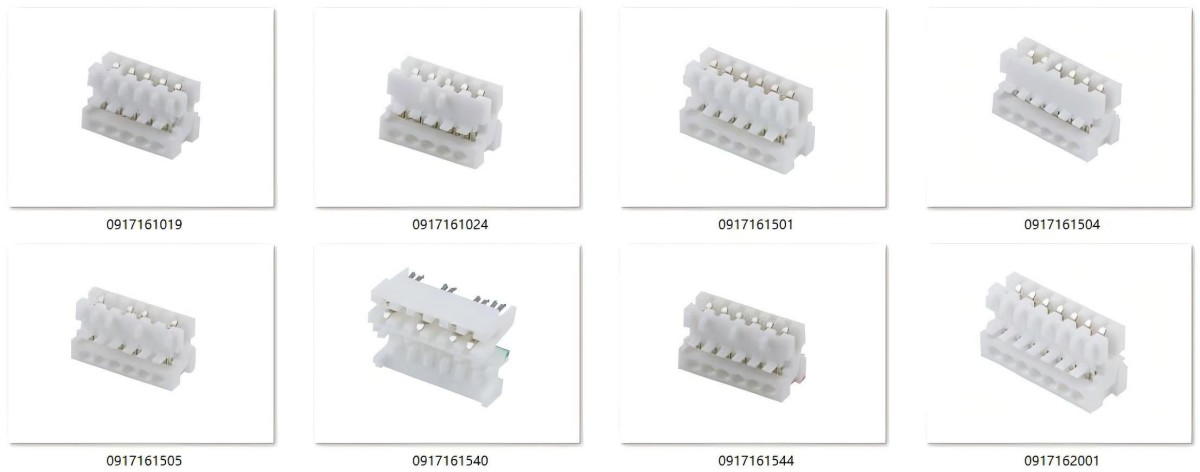

Molex RAST 2.5 Connector

The Molex RAST 2.5 Connectors are designed to deliver robust and reliable performance, with current ratings of 2.0A and 4.0A, making them particularly suitable for automotive lighting and other high-demand applications. Featuring an active latch design, these connectors ensure secure mating to prevent accidental disconnection, enhancing system reliability. Their versatile mating options allow direct connection to the PCB or indirect mating via headers, offering design flexibility. The PCB headers include staggered footprints to provide effective polarization, ensuring proper alignment during assembly. These connectors support both standard and opposite PCB layout configurations, making them compatible with industry-standard terminal arrangements for seamless integration. Compliant with glow-wire testing standards and certified by UL, CSA, and VDE, the RAST 2.5 Connectors meet stringent safety and performance requirements. These attributes make them a dependable choice for engineers seeking high-quality, adaptable, and safety-approved connectors for various electrical and automotive applications.

RAST 2.5 Connectors Features

• 2.0 and 4.0A current rating, Ideal for automotive lighting applications
• Active latch design, Secures mated connectors to eliminate accidental unmating
• Direct and indirect mating, Mates directly with PCB or via headers
• PCB headers have staggered footprints, Provide polarization on the PCB
• Standard and opposite PCB layout options, Compatible with industry-standard terminal layouts
• Glow-wire, UL, CSA, and VDE approved, Ensures performance, safety, and compliance with material specifications

RAST 2.5 Connectors Specifications Chart

Sort by the number of circuits.

RAST 2.5 Connector Applications

Automotive

• Lighting: Providing robust connections for interior and exterior lighting systems, including headlights, taillights, and ambient lighting.

Home Appliance

• Washing Machines: Facilitating secure electrical connections for control panels, motor systems, and sensors.
• Dishwashers: Connecting internal control modules, pumps, and electronic interfaces for seamless operation.
• Clothes Dryers: Ensuring dependable connections for heating elements, sensors, and control systems.
• Refrigerators: Supporting critical components such as compressors, temperature controls, and lighting systems.
• HVAC Systems: Enabling connections in air conditioning units, thermostats, and ventilation control systems.

This list of applications is not exhaustive but highlights some of the more common uses for Molex RAST 2.5 Connectors. These connectors are highly adaptable and may also serve other industries and purposes beyond those mentioned here, offering flexibility to meet diverse design and operational needs. By supporting these applications, Molex RAST 2.5 Connectors contribute to efficient, reliable, and durable performance in automotive and home appliance systems.

Support Custom Wire Harness Assembly

• Connector circuits: 2 - 20Pin
• Wire Gauge: 22 - 24AWG, depends on real needs
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type: Fully customizable to your specifications.
• Minimum Order: 100 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
