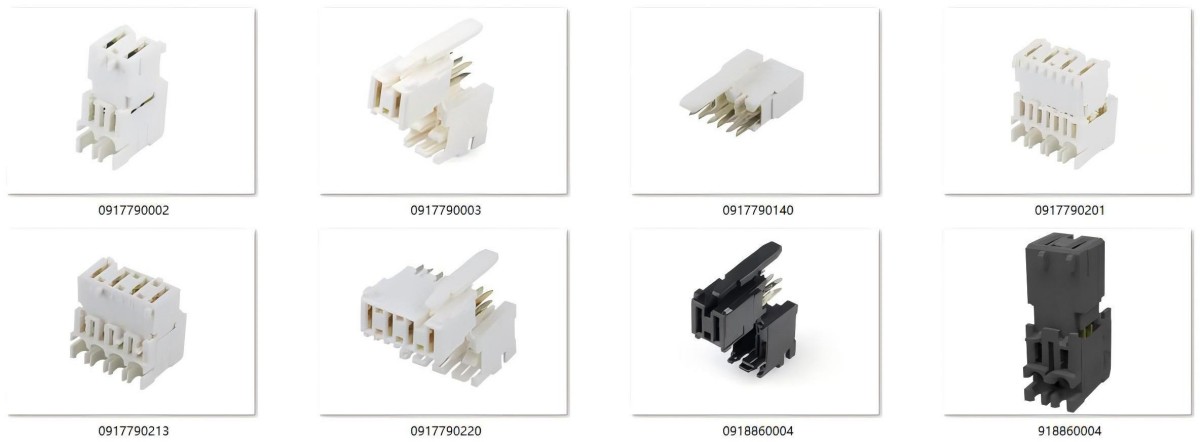

Molex RAST 5 Connector
Molex RAST 5 connectors offer a versatile and reliable solution for power applications, with options tailored to meet diverse requirements. The RAST 5 IDT connectors are available in 10 A versions with 1- to 12-circuit configurations and 16 A versions with 2- to 4-circuit configurations, making them ideal for indirect mating. Featuring a robust design with four points of contact at the mating interface, these connectors ensure high reliability and compliance with industry standards. For streamlined assembly in applications requiring multiple connectors, color-coded housings are available, reducing the risk of errors during installation. Complementing this range are the RAST 5 crimp connectors, which accommodate 2- to 10-circuit configurations and support terminals for varying current requirements—up to 25 A with the 94518 High-Normal Force terminal or 16 A with the 94549 ‘Caiman’-style terminal. Despite their high retention force, these terminals are designed with low-insertion force characteristics for ease of use. Both the IDT and crimp connectors are available in glow-wire-compliant versions (IEC / EN 60335-1 4th Edition) or UL 94V-0 rated, offering enhanced safety. Their range of keying and latching options prevents mis-mating and ensures secure connections. Additionally, Molex RAST 5 headers, available in vertical and right-angle designs with tin or silver plating, complement these connectors. The headers offer multiple PCB footprint options and comply with glow-wire and UL standards, ensuring reliability and versatility in demanding applications.
RAST 5 Connector Features
- 4.0, 10.0, 12.0, and 16.0A current rating, Ideal for a wide range of home appliance applications
- PCB headers have staggered footprints, Provide polarization on the PCB
- Direct and indirect mating, Mates directly with PCB or via headers
- Active latch design, Secures mated connectors to eliminate accidental unmating
- Standard and opposite PCB layout options, Compatible with industry-standard terminal layouts
- Glow-wire, UL, CSA, and VDE approved, Ensures performance, safety, and compliance with material specifications
RAST 5 Connector Specifications Chart
| P/N | Old P/N | Circuit | Pitch | Series | Current | Descriptions | Datasheet |
| 934170002 | 934170002 | 1 | 5.00mm | R5 RAST Female Connector | 10.0A | Internal Latch Position，Glow-Wire Capable，Black | https://www.molex.com/en-us/products/part-detail/934170002#documents-and-resources |
| 930550101 | 930550101 | 2 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latch Between 1/2，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550101#documents-and-resources |
| 930550123 | 930550123 | 2 | 5.00mm | R5 RAST Female Connector | 10.0A | No Position Keys，Fully Coded，Latch Between 1/2，Red Color Stripe，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550123#documents-and-resources |
| 930550128 | 930550128 | 2 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latch Between 1/2，2 Terminals per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550128#documents-and-resources |
| 930550135 | 930550135 | 2 | 5.00mm | R5 RAST Female Connector | 10.0A | Position Keys 1a，2b，Code Key d20，Latch Between 1/2，Black Color Stripe，2 Terminals per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550135#documents-and-resources |
| 930550148 | 930550148 | 2 | 5.00mm | R5 RAST Female Connector | 10.0A | Position Key 2b，Code Key d10，Latch Between 1/2b，2 Terminals per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550148#documents-and-resources |
| 930550155 | 930550155 | 2 | 5.00mm | R5 RAST Female Connector | 10.0A | Position Keys 1b，2a，Fully Coded，Latch Between 1/2，2 Terminals per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550155#documents-and-resources |
| 930550160 | 930550160 | 2 | 5.00mm | R5 RAST Female Connector | 10.0A | Position Keys 1a，2b，Fully Coded，Latch Between 1/2，2 Terminals per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550160#documents-and-resources |
| 930550162 | 930550162 | 2 | 5.00mm | R5 RAST Female Connector | 10.0A | Position Keys 1a，2b，Code Key d20，Latch Between 1/2c，2 Terminals per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550162#documents-and-resources |
| 930652001 | 930652001 | 2 | 5.00mm | R5 RAST Female Connector | 6.0A | Open-Ended，Latch Between 1/2，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930652001#documents-and-resources |
| 930652002 | 930652002 | 2 | 5.00mm | R5 RAST Female Connector | 6.0A | End Wall Option A，Latch Between 1/2，Black Color Stripe，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930652002#documents-and-resources |
| 930652006 | 930652006 | 2 | 5.00mm | R5 RAST Female Connector | 6.0A | End Wall Option B，Latch Between 1/2，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930652006#documents-and-resources |
| 932440101 | 932440101 | 2 | 5.00mm | R5 RAST Female Connector | 16.0A | Tin Plated，All Position Keys，Fully Coded，Latch Between 1/2，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/932440101#documents-and-resources |
| 932440129 | 932440129 | 2 | 5.00mm | R5 RAST Female Connector | 16.0A | Silver Plated，Fully Coded，Latch Between 1/2，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/932440129#documents-and-resources |
| 933950101 | 933950101 | 2 | 5.00mm | R5 RAST Female Connector | 16.0A | All Position Keys，Fully Coded，Latch Between 1/2，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950101#documents-and-resources |
| 933950102 | 933950102 | 2 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Keys 1b，2a，Fully Coded，Latch Between 1/2，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950102#documents-and-resources |
| 933950105 | 933950105 | 2 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Keys 1a，2b，Code Key d20，Latch Between 1/2，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950105#documents-and-resources |
| 933950133 | 933950133 | 2 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Keys 1b，2a，Code Key d20，Latch Between 1/2，Blue Color Stripe，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950133#documents-and-resources |
| 933950134 | 933950134 | 2 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Keys 1a，2b，Code Key d20，Latch Between 1/2，Green Color Stripe，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950134#documents-and-resources |
| 933950135 | 933950135 | 2 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Key 2a，Code Keys 01c，d20，Latch Between 1/2，Black Color Stripe，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950135#documents-and-resources |
| 933950136 | 933950136 | 2 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Key 1a，2b，Fully Coded，Latch Between 1/2b，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950136#documents-and-resources |
| 933950142 | 933950142 | 2 | 5.00mm | R5 RAST Female Connector | 16.0A | No Position Keys，Code Key 01c，Latch Between 1/2b，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950142#documents-and-resources |
| 933950143 | 933950143 | 2 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Keys 2a，2b，No Code Keys，Latch Between 1/2，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950143#documents-and-resources |
| 934170102 | 934170102 | 2 | 5.00mm | R5 RAST Female Connector | 10.0A | Code Key d20，Latch Between Circuits 1 & 2，Glow-Wire Capable，Black | https://www.molex.com/en-us/products/part-detail/934170102#documents-and-resources |
| 934170106 | 934170106 | 2 | 5.00mm | R5 RAST Female Connector | 10.0A | Code Keys d10，02c，Latch Between Circuits 1 & 2，Glow-Wire Capable，Black | https://www.molex.com/en-us/products/part-detail/934170106#documents-and-resources |
| 934170107 | 934170107 | 2 | 5.00mm | R5 RAST Female Connector | 10.0A | Code Keys 01c，d20，Latch Between Circuits 1 & 2，Glow-Wire Capable，Black | https://www.molex.com/en-us/products/part-detail/934170107#documents-and-resources |
| 930550201 | 930550201 | 3 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latch Between 1/2，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550201#documents-and-resources |
| 930550202 | 930550202 | 3 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latch Between 2/3，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550202#documents-and-resources |
| 930550226 | 930550226 | 3 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latch Between 2/3，2 Terminals per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550226#documents-and-resources |
| 930550239 | 930550239 | 3 | 5.00mm | R5 RAST Female Connector | 10.0A | Position Key 2a，Code Keys d10，02c，d30，Latch Between 2/3，2 Terminals per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550239#documents-and-resources |
| 930550242 | 930550242 | 3 | 5.00mm | R5 RAST Female Connector | 10.0A | Position Key 2a，Code Keys 01c，d10，02c，d30，Latch Between 2/3，2 Terminals per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550242#documents-and-resources |
| 930653002 | 930653002 | 3 | 5.00mm | R5 RAST Female Connector | 6.0A | End Wall Option A，Latches Between 1/2 and 2/3，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930653002#documents-and-resources |
| 932440201 | 932440201 | 3 | 5.00mm | R5 RAST Female Connector | 16.0A | Tin Plated，All Position Keys，Fully Coded，Latch Between 1/2，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/932440201#documents-and-resources |
| 932440237 | 932440237 | 3 | 5.00mm | R5 RAST Female Connector | 16.0A | Tin Plated，Position Key 1b，Code Keys 01c，d20，Latch Between 1/2，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/932440237#documents-and-resources |
| 933950201 | 933950201 | 3 | 5.00mm | R5 RAST Female Connector | 16.0A | All Position Keys，Fully Coded，Latch Between 1/2，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950201#documents-and-resources |
| 933950202 | 933950202 | 3 | 5.00mm | R5 RAST Female Connector | 16.0A | All Position Keys，Fully Coded，Latch Between 2/3，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950202#documents-and-resources |
| 933950203 | 933950203 | 3 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Key 1b，Code Keys 01c，d20，Latch Between 1/2，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950203#documents-and-resources |
| 933950218 | 933950218 | 3 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Key 2a，Code Keys d10，02c，d30，Latch Between 2/3，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950218#documents-and-resources |
| 933950228 | 933950228 | 3 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Keys 2b，3b，Code Keys d10，02c，Latch Between 2/3，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950228#documents-and-resources |
| 933950229 | 933950229 | 3 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Keys 2b，3b，Fully Coded，Latch Between 2/3，Blue Color Stripe，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950229#documents-and-resources |
| 933950230 | 933950230 | 3 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Key 2a，No Code Keys，Latch Between 2/3，Black Color Stripe，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950230#documents-and-resources |
| 933950231 | 933950231 | 3 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Keys 2b，3b，Code Keys 01c，d30，Latch Between 2/3，Blue Color Stripe，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950231#documents-and-resources |
| 933950232 | 933950232 | 3 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Key 1b，Code Keys 01c，d20，03c，Latch Between 1/2，Brown Color Stripe，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950232#documents-and-resources |
| 933950233 | 933950233 | 3 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Key 3b，Code Keys 01c，d30，Latch Between 1/2，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950233#documents-and-resources |
| 933950234 | 933950234 | 3 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Keys 1a，3b，Code Key 01c，Latch Between 1/2b，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950234#documents-and-resources |
| 933950239 | 933950239 | 3 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Key 3b，Code Keys 01c，d30，Latch Between 1/2b，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950239#documents-and-resources |
| 933950240 | 933950240 | 3 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Keys 1b，2a，No Code Keys，Latch Between 1/2，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950240#documents-and-resources |
| 934170202 | 3 | 5.00mm | R5 RAST Female Connector | 10.0A | Fully Coded，Latch Between Circuits 2 & 3，Glow-Wire Capable，Black | https://www.molex.com/en-us/products/part-detail/934170202#documents-and-resources | |
| 934170203 | 3 | 5.00mm | R5 RAST Female Connector | 10.0A | Code Keys 01c，d20，Latch Between Circuits 1 & 2，Glow-Wire Capable，Black | https://www.molex.com/en-us/products/part-detail/934170203#documents-and-resources | |
| 934170204 | 3 | 5.00mm | R5 RAST Female Connector | 10.0A | Code Key 03c，Latch Between Circuits 2 & 3b，Glow-Wire Capable，Black | https://www.molex.com/en-us/products/part-detail/934170204#documents-and-resources | |
| 930550301 | 930550301 | 4 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latches Between 1/2 and 3/4，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550301#documents-and-resources |
| 930654003 | 930654003 | 4 | 5.00mm | R5 RAST Female Connector | 6.0A | End Wall Option A Latches Between 1/2 and 3/4，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930654003#documents-and-resources |
| 932440301 | 932440301 | 4 | 5.00mm | R5 RAST Female Connector | 16.0A | All Position Keys，Fully Coded，Latches Between 1/2 and 3/4，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/932440301#documents-and-resources |
| 933950301 | 933950301 | 4 | 5.00mm | R5 RAST Female Connector | 16.0A | All Position Keys，Fully Coded，Latch Between 1/2 and 3/4，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950301#documents-and-resources |
| 933950313 | 933950313 | 4 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Keys 1a，1b，2b，3a，3b，4b，Code Keys d20，d40，Latch Between 3/4，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950313#documents-and-resources |
| 930550401 | 930550401 | 5 | 5.00mm | R5 RAST Female Connector | 10.0A | Position Keys 1a，3a，Code Keys 01c，d30，Latches Between 1/2 and 4/5，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550401#documents-and-resources |
| 930550406 | 930550406 | 5 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latches Between 1/2 and 3/4，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550406#documents-and-resources |
| 930550407 | 930550407 | 5 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latches Between 1/2 and 4/5，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550407#documents-and-resources |
| 930550416 | 930550416 | 5 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latch Between 4/5，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550416#documents-and-resources |
| 930550426 | 930550426 | 5 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latches Between 1/2b and 3/4b，2 Terminals per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550426#documents-and-resources |
| 930550428 | 930550428 | 5 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latches Between 1/2 and 3/4，2 Terminals per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550428#documents-and-resources |
| 930550432 | 930550432 | 5 | 5.00mm | R5 RAST Female Connector | 10.0A | No Position Keys，Fully Coded，Latch Between 4/5，2 Terminals per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550432#documents-and-resources |
| 930655002 | 930655002 | 5 | 5.00mm | R5 RAST Female Connector | 6.0A | End Wall Option A，Latches Between 1/2 and 4/5，Rib Between 3/4，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930655002#documents-and-resources |
| 930655004 | 930655004 | 5 | 5.00mm | R5 RAST Female Connector | 6.0A | Open-Ended，Latch Between 4/5，Rib Between 1/2，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930655004#documents-and-resources |
| 930550501 | 930550501 | 6 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latches Between 2/3 and 4/5，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550501#documents-and-resources |
| 930550503 | 930550503 | 6 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latches Between 1/2 and 5/6，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550503#documents-and-resources |
| 930550510 | 930550510 | 6 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latch Between 2/3，Orange Color Stripe，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550510#documents-and-resources |
| 930550602 | 930550602 | 7 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latches Between 1/2 and 5/6，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550602#documents-and-resources |
| 930550604 | 930550604 | 7 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latches Between 2/3 and 6/7，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550604#documents-and-resources |
| 930550613 | 930550613 | 7 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latches Between 1/2 and 5/6，Blue Color Stripe，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550613#documents-and-resources |
| 930550617 | 930550617 | 7 | 5.00mm | R5 RAST Female Connector | 10.0A | Position Key 6b，Code Keys 03c，07c，Latches Between 1/2 and 5/6，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550617#documents-and-resources |
| 930550621 | 930550621 | 7 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latches Between 1/2 and 5/6，2 Terminals per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550621#documents-and-resources |
| 930550622 | 930550622 | 7 | 5.00mm | R5 RAST Female Connector | 10.0A | No Position Keys，Fully Coded，Latches Between 1/2 and 5/6，2 Terminals per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550622#documents-and-resources |
| 930550701 | 930550701 | 8 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latches Between 3/4 and 5/6，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550701#documents-and-resources |
| 930550703 | 930550703 | 8 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latches Between 1/2 and 7/8，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550703#documents-and-resources |
| 930658003 | 930658003 | 8 | 5.00mm | R5 RAST Female Connector | 6.0A | End Wall Option A，Latches Between 1/2 and 7/8，Rib Between 6/7，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930658003#documents-and-resources |
| 930550801 | 930550801 | 9 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latches Between 3/4 and 6/7，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550801#documents-and-resources |
| 930659003 | 930659003 | 9 | 5.00mm | R5 RAST Female Connector | 6.0A | End Wall Option E，Latches Between 1/2 and 8/9，Rib Between 3/4 and 7/8，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930659003#documents-and-resources |
| 930659005 | 930659005 | 9 | 5.00mm | R5 RAST Female Connector | 6.0A | End Wall Option E，Latches Between 1/2 and 8/9，Rib Between 6/7，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930659005#documents-and-resources |
| 930550901 | 930550901 | 10 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latches Between 3/4 and 7/8，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550901#documents-and-resources |
| 930550903 | 930550903 | 10 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latches Between 4/5 and 7/8，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550903#documents-and-resources |
| 930550904 | 930550904 | 10 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latches Between 4/5 and 6/7，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550904#documents-and-resources |
RAST 5 Connector Applications
1. Washing Machines
RAST 5 connectors ensure dependable connections for various electronic modules within washing machines. They support power distribution to motors, heaters, and control units, enabling seamless operation of wash cycles.
2. Dishwashers
These connectors are integral in dishwashers, facilitating secure connections between control systems, pumps, and heaters. They help maintain efficient water circulation and temperature regulation for optimal cleaning performance.
3. Clothes Dryers
In clothes dryers, RAST 5 connectors manage connections for heating elements, timers, and motors. Their ability to handle high currents ensures consistent performance and longevity in demanding environments.
4. Refrigerators
RAST 5 connectors are used to link compressors, defrost systems, and temperature control units in refrigerators. They support energy efficiency and reliable cooling by providing robust electrical pathways.
5. HVAC Systems
Heating, Ventilation, and Air Conditioning (HVAC) systems rely on these connectors for connecting blowers, sensors, and control modules. Their secure design ensures uninterrupted operation, even in systems subject to vibrations.
The Molex RAST 5 connectors are essential in numerous applications, particularly within household appliances and HVAC systems. While the examples above represent common uses, their versatility and reliability make them suitable for various other industries and applications. This list is not exhaustive but highlights the adaptability and importance of RAST 5 connectors in critical systems.
Support Custom Wire Harness Assembly
- Connector circuits: 1 - 10Pin
- Wire Gauge: 18 - 20AWG, depends on real needs
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type: Fully customizable to your specifications.
- Minimum Order: 100 pieces per order.
