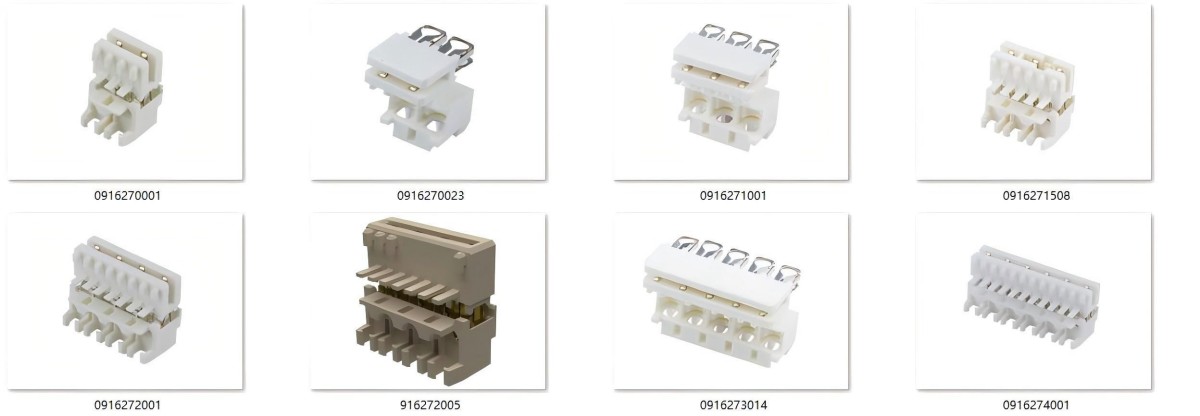

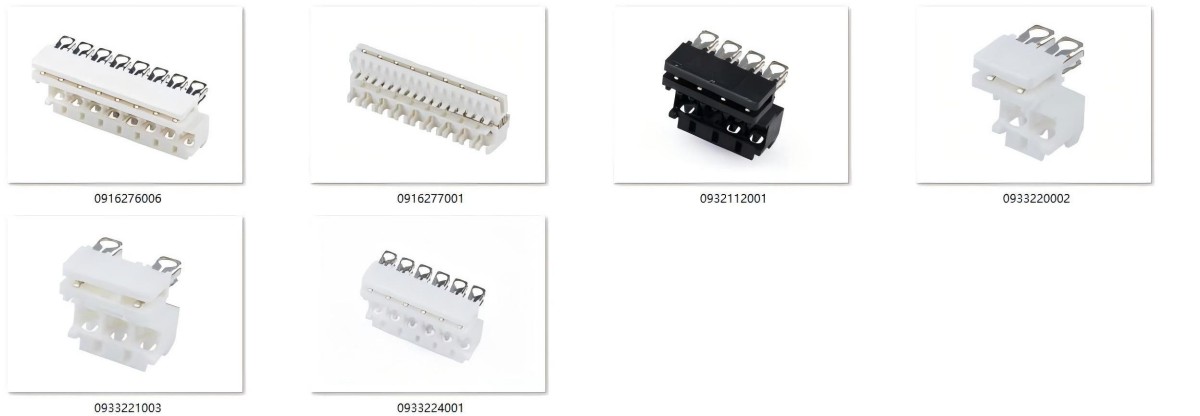

Molex RAST Power Connector
The Molex RAST Power Connectors series provides versatile and dependable solutions for power distribution in compact, high-performance packages, tailored for demanding applications such as home appliance wiring harnesses. This series includes the RAST 5, RAST 2.5, and RAST Power Connector systems, supporting up to 16A of current. Designed for direct mating to PCBs or with standard RAST headers on a 5.00mm pitch, these connectors ensure robust electrical connections while optimizing space. Available in configurations of two to 12 circuits, the connectors deliver a maximum of 6.0A with tin plating and up to 10.0A with silver plating for enhanced performance. Featuring a variety of keying and coding options, polarizing ribs, and open or closed-end walls, they offer design flexibility to meet specific application needs. Molded from glow-wire compliant materials, these housings meet stringent European safety standards, including the IEC-60335-1 4th Edition specification, ensuring reliability in both residential and industrial settings.
RAST Power Connector Features
- UL 94V-0 and +750°C glow-wire compatible housing
- Direct and indirect mating with PCB or via 93070/93071 headers
- Standard and opposite PCB layout options
- Pip-lock and side-latch systems increase PCB retention for direct mating
- RoHS and Glow Wire compliant
- 32VAC to 250VAC maximum voltage range
- 2.0A to 16.0A maximum current range
- 5mΩ or 10mΩ maximum contact resistance
- <10MΩ insulation resistance
- 10-cycle minimum durability
- 2 to 20 positions, 1 to 2 rows
- 2.5mm or 5mm pitch
- 3.75mm row spacing
- 3.3mm termination post length
- 24AWG wire gauge
- Nylon housing
- Tin or Silver-plated Nickel contacts
RAST Power Connector Specifications Chart
Sort by the number of circuits.
| P/N | Circuit | Gender | Pitch | Series | Descriptions | Datasheet |
| 916270001 | 2 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Fully Coded，Open End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916270001#documents-and-resources |
| 916270002 | 2 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Fully Coded，Open End Walls，Yellow Color Stripe，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916270002#documents-and-resources |
| 916270004 | 2 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Fully Coded，Open End Walls，Red Color Stripe，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916270004#documents-and-resources |
| 916270005 | 2 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Code Key B Removed，Open End Walls，Red Color Stripe，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916270005#documents-and-resources |
| 916270006 | 2 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Code Key D Removed，Open End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916270006#documents-and-resources |
| 916270009 | 2 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Code Keys A and B Removed，Open End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916270009#documents-and-resources |
| 916270010 | 2 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Code Keys A and C Removed，Open End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916270010#documents-and-resources |
| 916270014 | 2 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Code Keys B，C and D Removed，Open End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916270014#documents-and-resources |
| 916270016 | 2 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Code Keys B and C Removed，Open End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916270016#documents-and-resources |
| 916270023 | 2 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Code Keys C and D Removed，Open End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916270023#documents-and-resources |
| 916270030 | 2 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Fully Coded，Polarizing Rib Between Circuits 1 and 2，Open End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916270030#documents-and-resources |
| 916270501 | 2 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Fully Coded，Latch Between Circuits 1 and 2，Open End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916270501#documents-and-resources |
| 916270502 | 2 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Fully Coded，Latch Between Circuits 1 and 2，Option A End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916270502#documents-and-resources |
| 933220002 | 2 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Code Key A Removed，Open End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933220002#documents-and-resources |
| 916271001 | 3 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Fully Coded，Open End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916271001#documents-and-resources |
| 916271002 | 3 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Code Keys A，B and C Removed，Polarizing Rib Between Circuits 1 and 2，Open End Walls，Red Color Stripe，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916271002#documents-and-resources |
| 916271004 | 3 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Fully Coded，Polarizing Rib Between Circuits 1 and 2，Open End Walls，Red Color Stripe，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916271004#documents-and-resources |
| 916271006 | 3 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Code Keys B，C and E Removed，Open End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916271006#documents-and-resources |
| 916271007 | 3 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Code Keys D，E and F Removed，Open End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916271007#documents-and-resources |
| 916271014 | 3 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Code Keys B，C，D and E Removed，Open End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916271014#documents-and-resources |
| 916271015 | 3 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Code Keys A，C and E Removed，Open End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916271015#documents-and-resources |
| 916271501 | 3 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Fully Coded，Latch Between Circuits 1 and 2，Open End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916271501#documents-and-resources |
| 916271502 | 3 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Fully Coded，Latches Between Circuits 1 & 2 and 2 & 3，Option A End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916271502#documents-and-resources |
| 916271503 | 3 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Code Keys C and D Removed，Latch Between Circuits 1 and 2，End Wall A Option，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916271503#documents-and-resources |
| 916271504 | 3 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Code Keys A，B and C Removed，Latch Between Circuits 1 and 2，Polarizing Rib Between Circuits 2 and 3，Open End Walls，Red Color Stripe，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916271504#documents-and-resources |
| 916271508 | 3 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Fully Coded，Latch Between Circuits 2 and 3，Polarizing Rib Between Circuits 1 and 2，Open End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916271508#documents-and-resources |
| 933221003 | 3 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Code Key D Removed，Polarizing Rib Between Circuits 2 and 3，Voided Circuit 2，Open End Walls，Black Color Stripe，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933221003#documents-and-resources |
| 916272001 | 4 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Fully Coded，Open End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916272001#documents-and-resources |
| 916272003 | 4 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Fully Coded，Polarizing Rib Between 2 & 3，Open End Walls，Red Color Stripe，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916272003#documents-and-resources |
| 916272004 | 4 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Code Keys B，D，E，F，G and H Removed，Polarizing Rib Between Circuits 2 and 3，Open End Walls，Red Color Stripe，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916272004#documents-and-resources |
| 916272501 | 4 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Fully Coded，Latch Between Circuits 1 and 2，Open End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916272501#documents-and-resources |
| 932112001 | 4 | 5.00mm | Appli-Mate RAST Power IDT Connector | https://www.molex.com/en-us/products/part-detail/932112001#documents-and-resources | ||
| 916273002 | 5 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Code Keys C，D，F，G and I Removed，Open End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916273002#documents-and-resources |
| 916273014 | 5 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Code Keys C，E and J Removed，Open End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916273014#documents-and-resources |
| 916274001 | 6 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Fully Coded，Open End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916274001#documents-and-resources |
| 916274501 | 6 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Fully Coded，Latch Between Circuits 1 and 2，Open End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916274501#documents-and-resources |
| 916274502 | 6 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Fully Coded，Latches Between Circuits 1 & 2 and 5 & 6，Polarizing Rib Between Circuits 3 and 4，Open End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916274502#documents-and-resources |
| 916274508 | 6 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Fully Coded，Latches Between Circuits 1 & 2 and 5 & 6，Polarizing Rib Between Circuits 2 and 3，Open End Walls，Black Color Stripe，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916274508#documents-and-resources |
| 933224001 | 6 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Fully Coded，Open End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933224001#documents-and-resources |
| 916275001 | 7 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Fully Coded，Open End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916275001#documents-and-resources |
| 916275502 | 7 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Fully Coded，Latches Between Circuits 1 & 2 and 6 & 7，Option A End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916275502#documents-and-resources |
| 916275503 | 7 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Fully Coded，Latches Between Circuits 1 & 2 and 6 & 7，Polarizing Rib Between Circuits 3 and 4，Open End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916275503#documents-and-resources |
| 916276001 | 8 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Fully Coded，Open End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916276001#documents-and-resources |
| 916276006 | 8 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Code Keys B，C，D，E，F，G，H，I，J，K，L，M，N，and O Removed，Open End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916276006#documents-and-resources |
| 916277001 | 9 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Fully Coded，Open End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916277001#documents-and-resources |
| 916277003 | 9 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Fully Coded，Polarizing Rib Between Circuits 2 and 3，Open End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916277003#documents-and-resources |
| 916277502 | 9 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Fully Coded，Latches Between Circuits 1 & 2 and 8 & 9，Option A End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916277502#documents-and-resources |
| 916278001 | 10 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Fully Coded，Open End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916278001#documents-and-resources |
| 916279501 | 12 | Female | 5.00mm | Appli-Mate RAST Power IDT Housing | Direct/Indirect，Fully Coded，Open End Walls，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/916279501#documents-and-resources |
RAST Power Connector Applications
Clothes Dryers
These connectors support robust electrical connections in clothes dryers, where high current handling and heat resistance are critical for powering motors, heaters, and control units.
Dishwashers
Ideal for dishwashers due to their ability to maintain secure connections in wet, high-humidity conditions, ensuring reliable operation of pumps, heating elements, and electronic controls.
HVAC Systems
The RAST Power Connectors are utilized in HVAC systems for their durability and vibration resistance, facilitating connections for compressors, fans, and thermostatic controls.
Home Appliances
Widely used across various home appliances, these connectors offer flexibility and reliability for devices requiring consistent power delivery in demanding environments.
Ovens and Ranges
Designed to withstand high temperatures, RAST Power Connectors ensure stable connections in ovens and ranges, powering heating elements, sensors, and control interfaces.
Washing Machines
These connectors handle the electrical demands of washing machines, supporting the operation of motors, solenoids, and water level sensors with ease.
White Goods
Molex RAST Power Connectors are a preferred choice in the white goods industry, offering secure, high-performance connections for various kitchen and laundry appliances.
Molex RAST Power Connectors provide a reliable and durable solution for a variety of high-performance and high-power applications. This list highlights some of the more common use cases but is not exhaustive. The versatility and robust design of these connectors make them suitable for a wide range of applications in both residential and industrial appliances.
Support Custom Wire Harness Assembly
- Connector circuits: 2 - 12Pin
- Wire Gauge: 18 - 24AWG, depends on real needs
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type: Fully customizable to your specifications.
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
