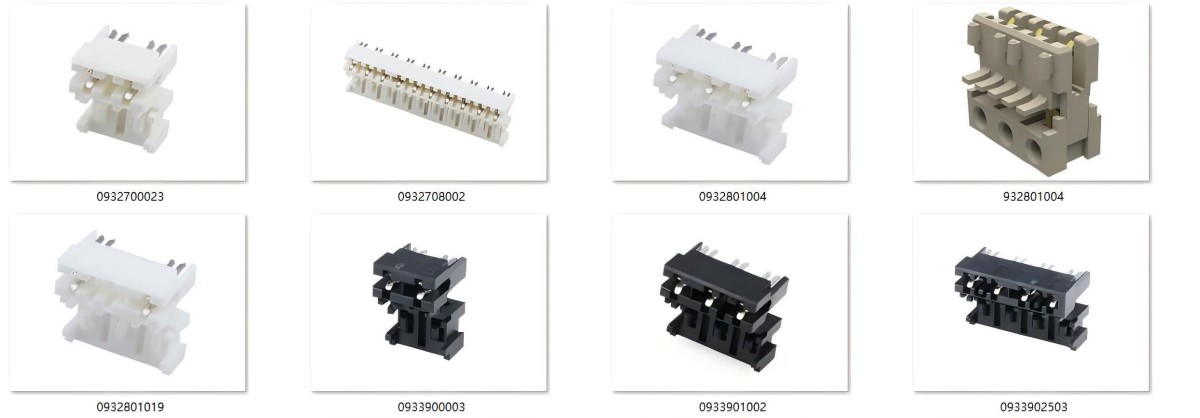

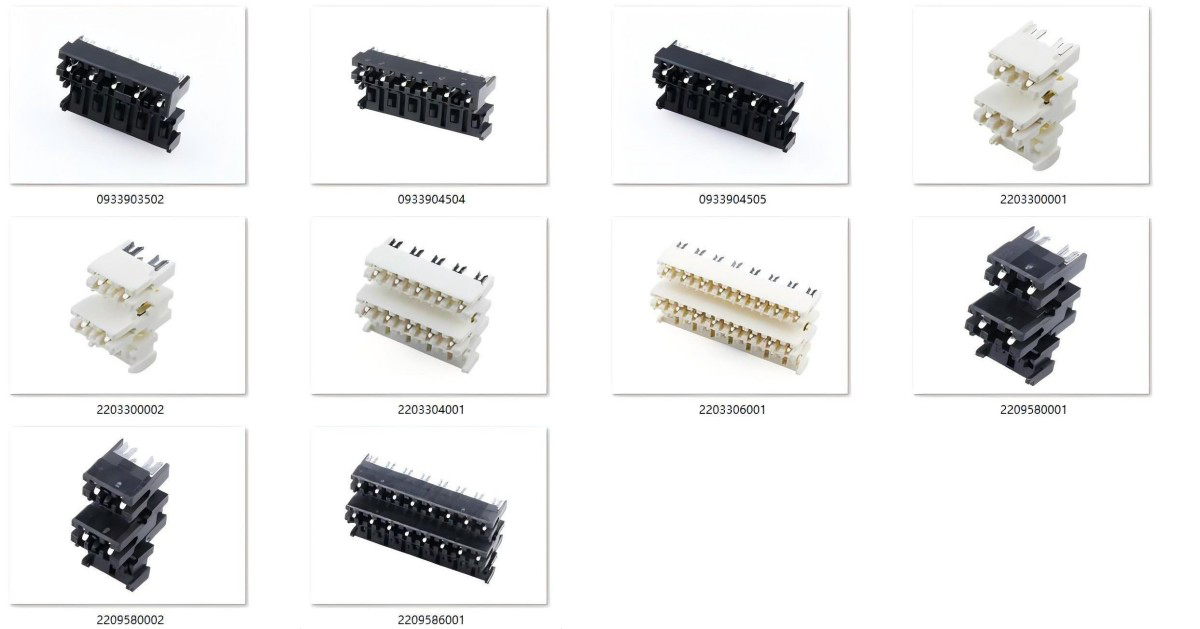

Molex RAST R-Power Connector

The Molex RAST R-Power Connectors, part of the versatile Power Connector series, are designed to deliver robust performance with a current rating of up to 10.0A. These connectors offer manufacturers significant cost savings while ensuring secure and reliable mating for a variety of applications. They provide exceptional design flexibility, making them ideal for use in home appliances and other consumer products. Compatible with industry-standard terminal layouts, the connectors support direct and indirect mating with PCBs through RAST 2.5 headers, accommodating both standard and opposite PCB layouts. Engineered with staggered footprints and polarization features, they ensure proper alignment on the PCB and prevent incorrect mating. Their compliance with stringent safety and performance standards, including Glow-wire, UL, CSA, and VDE certifications, further guarantees reliable operation and material integrity. To enhance usability, the RAST R-Power Connectors are equipped with passive and internal latching mechanisms, securing connections to minimize the risk of accidental disconnection. These features combine to provide a robust, cost-efficient solution for demanding electrical connectivity needs.

RAST R-Power Connector Features

• Provides design flexibility for a range of home appliance applications
• Mates directly with PCB or via RAST 2.5 Headers, Direct and indirect mating
• Is compatible with industry-standard terminal layouts, Standard and opposite PCB layout options
• Ensures performance, safety, and compliance with material specifications, Glow-wire, UL, CSA, and VDE approved
• Provides polarization on the PCB, PCB headers have staggered footprint
• Secures mated connectors to eliminate accidental unmating, Passive latch/internal latch

RAST R-Power Connector Specifications Chart

Sort by the number of circuits.

RAST R-Power Connector Applications

Automotive Applications

• Automotive Lighting: Ensures secure and efficient electrical connections for headlights, taillights, and interior lighting systems, contributing to enhanced safety and performance.

Appliance Applications

1. Coffee Machines: Powers heating elements and control systems for precise brewing performance.
2. Food Preparation Tools: Reliable connections in blenders, food processors, and mixers for consistent functionality.
3. Hair Dryers: Supports high-current requirements for heating elements and motorized fans.
4. Vacuum Cleaners: Ensures stable connections in motor-driven systems and suction units.
5. Washing Machines: Delivers power to motors, sensors, and control panels for efficient operation.
6. Dishwashers: Powers water pumps, heating systems, and control units for seamless washing cycles.
7. Clothes Dryers: Connects heating coils and drum motors for reliable drying performance.
8. Refrigerators: Ensures steady power delivery to compressors, cooling fans, and LED lighting systems.

Molex RAST R-Power Connectors are versatile components ideal for automotive and appliance industries, supporting both high-current and low-voltage applications. This is not an exhaustive list but highlights some of the most common use cases. These connectors offer dependable performance, making them suitable for a broad array of power and data transmission requirements across diverse applications.

Support Custom Wire Harness Assembly

• Connector circuits: 2 - 10Pin
• Wire Gauge: 18 - 20AWG, depends on real needs
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type: Fully customizable to your specifications.
• Minimum Order: 100 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
