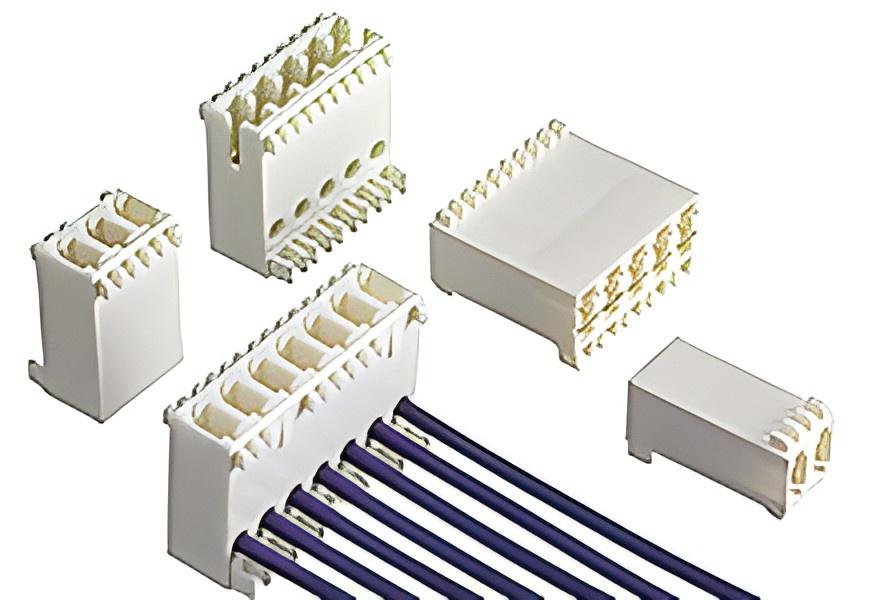

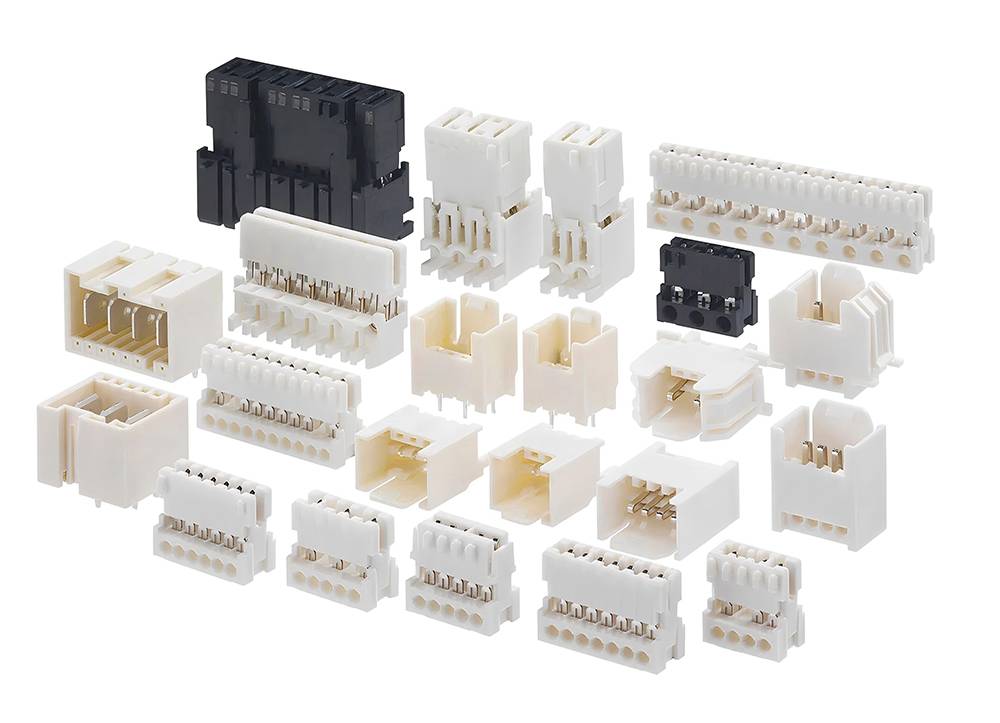

Molex RAST R5 Connector
Molex RAST 5 Connectors provide a versatile and highly reliable solution for power applications, offering both IDC (Insulation Displacement Contact) and crimp terminal configurations. The RAST 5 IDT connectors come in 10 A versions with 1 to 12 circuits and 16 A versions with 2 to 4 circuits, featuring a robust 4-point contact design for enhanced reliability in indirect mating applications. These connectors support rapid assembly with a range of colored housings, enabling easier identification when multiple connectors are used in a single harness. The RAST 5 crimp connectors, available in 2 to 10 circuits, support currents up to 25 A with the High-Normal Force (HNF) terminal or up to 16 A with the “Caiman” terminal, balancing high retention forces with low insertion forces for ease of use. Both connector ranges meet stringent safety standards, offering glow-wire compliance per IEC/EN 60335-1 (4th Edition) and UL 94-V0 flammability ratings. To prevent mis-mating and ensure secure connections, they provide extensive keying and latch options, pairing seamlessly with Molex 91999 and 93003 series headers or standard 6.30 mm tabs. Molex’s RAST 5 headers, available in vertical and right-angle configurations, support currents up to 16 A with tin or silver plating and multiple PCB footprint options, making them ideal for diverse applications.
RAST R5 Connector Features
- RAST R5 Connectors are compact for space savings and design flexibility. Header terminals are fully protected in these connectors, delivering excellent reliability in applications requiring a small PCB footprint.
- RAST R5 Connectors offer up to 16.0A for indirect mating and up to 6.0A for direct mating. These connectors have a range of features for secure retention, proper connector mating, and high performance.
- As customers demand advanced technology, safety is a priority for appliance manufacturers. The RAST Connector Family offers glow wire capable components and meets the UL94V0 safety standards.
- RAST R5 Connectors have 4 points of contact, that deliver extremely reliable power connectors. RAST R5 Connectors ensure reliable connections, supporting end-product reliability and brand reputation.
- RAST R5 Power Connectors offer both glow wire capable and UL94V0-rated versions so consumer manufacturers around the world can find an appropriate connector. RAST R5 connectors are added directly or indirectly to the PCB, which saves cost since terminals do not need to be purchased. RAST R5 connectors also mate with RAST 5 headers. Cables are terminated inside the connector, allowing for time savings as well.
RAST R5 Connector Series Classification
- 093055: RAST R5 Indirect Connector
- 093065: RAST R5 Direct Connector
- 093244: RAST R5 Indirect Connector
- 093395: RAST R5 Direct/Indirect Connector (Ag)
- 093417: RAST R5 Indirect HWI Connector (Sn)
- 093416: RAST R5 Indirect Connector
- 093440: RAST R5 Indirect Connector
RAST R5 Connector Specifications Chart
Sort by the number of circuits.
| P/N | Old P/N | Circuit | Pitch | Series | Current | Descriptions | Datasheet |
| 934170002 | 934170002 | 1 | 5.00mm | R5 RAST Female Connector | 10.0A | Internal Latch Position，Glow-Wire Capable，Black | https://www.molex.com/en-us/products/part-detail/934170002#documents-and-resources |
| 930550101 | 930550101 | 2 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latch Between 1/2，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550101#documents-and-resources |
| 930550123 | 930550123 | 2 | 5.00mm | R5 RAST Female Connector | 10.0A | No Position Keys，Fully Coded，Latch Between 1/2，Red Color Stripe，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550123#documents-and-resources |
| 930550128 | 930550128 | 2 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latch Between 1/2，2 Terminals per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550128#documents-and-resources |
| 930550135 | 930550135 | 2 | 5.00mm | R5 RAST Female Connector | 10.0A | Position Keys 1a，2b，Code Key d20，Latch Between 1/2，Black Color Stripe，2 Terminals per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550135#documents-and-resources |
| 930550148 | 930550148 | 2 | 5.00mm | R5 RAST Female Connector | 10.0A | Position Key 2b，Code Key d10，Latch Between 1/2b，2 Terminals per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550148#documents-and-resources |
| 930550155 | 930550155 | 2 | 5.00mm | R5 RAST Female Connector | 10.0A | Position Keys 1b，2a，Fully Coded，Latch Between 1/2，2 Terminals per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550155#documents-and-resources |
| 930550160 | 930550160 | 2 | 5.00mm | R5 RAST Female Connector | 10.0A | Position Keys 1a，2b，Fully Coded，Latch Between 1/2，2 Terminals per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550160#documents-and-resources |
| 930550162 | 930550162 | 2 | 5.00mm | R5 RAST Female Connector | 10.0A | Position Keys 1a，2b，Code Key d20，Latch Between 1/2c，2 Terminals per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550162#documents-and-resources |
| 930652001 | 930652001 | 2 | 5.00mm | R5 RAST Female Connector | 6.0A | Open-Ended，Latch Between 1/2，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930652001#documents-and-resources |
| 930652002 | 930652002 | 2 | 5.00mm | R5 RAST Female Connector | 6.0A | End Wall Option A，Latch Between 1/2，Black Color Stripe，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930652002#documents-and-resources |
| 930652006 | 930652006 | 2 | 5.00mm | R5 RAST Female Connector | 6.0A | End Wall Option B，Latch Between 1/2，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930652006#documents-and-resources |
| 932440101 | 932440101 | 2 | 5.00mm | R5 RAST Female Connector | 16.0A | Tin Plated，All Position Keys，Fully Coded，Latch Between 1/2，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/932440101#documents-and-resources |
| 932440129 | 932440129 | 2 | 5.00mm | R5 RAST Female Connector | 16.0A | Silver Plated，Fully Coded，Latch Between 1/2，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/932440129#documents-and-resources |
| 933950101 | 933950101 | 2 | 5.00mm | R5 RAST Female Connector | 16.0A | All Position Keys，Fully Coded，Latch Between 1/2，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950101#documents-and-resources |
| 933950102 | 933950102 | 2 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Keys 1b，2a，Fully Coded，Latch Between 1/2，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950102#documents-and-resources |
| 933950105 | 933950105 | 2 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Keys 1a，2b，Code Key d20，Latch Between 1/2，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950105#documents-and-resources |
| 933950133 | 933950133 | 2 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Keys 1b，2a，Code Key d20，Latch Between 1/2，Blue Color Stripe，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950133#documents-and-resources |
| 933950134 | 933950134 | 2 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Keys 1a，2b，Code Key d20，Latch Between 1/2，Green Color Stripe，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950134#documents-and-resources |
| 933950135 | 933950135 | 2 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Key 2a，Code Keys 01c，d20，Latch Between 1/2，Black Color Stripe，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950135#documents-and-resources |
| 933950136 | 933950136 | 2 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Key 1a，2b，Fully Coded，Latch Between 1/2b，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950136#documents-and-resources |
| 933950142 | 933950142 | 2 | 5.00mm | R5 RAST Female Connector | 16.0A | No Position Keys，Code Key 01c，Latch Between 1/2b，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950142#documents-and-resources |
| 933950143 | 933950143 | 2 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Keys 2a，2b，No Code Keys，Latch Between 1/2，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950143#documents-and-resources |
| 934170102 | 934170102 | 2 | 5.00mm | R5 RAST Female Connector | 10.0A | Code Key d20，Latch Between Circuits 1 & 2，Glow-Wire Capable，Black | https://www.molex.com/en-us/products/part-detail/934170102#documents-and-resources |
| 934170106 | 934170106 | 2 | 5.00mm | R5 RAST Female Connector | 10.0A | Code Keys d10，02c，Latch Between Circuits 1 & 2，Glow-Wire Capable，Black | https://www.molex.com/en-us/products/part-detail/934170106#documents-and-resources |
| 934170107 | 934170107 | 2 | 5.00mm | R5 RAST Female Connector | 10.0A | Code Keys 01c，d20，Latch Between Circuits 1 & 2，Glow-Wire Capable，Black | https://www.molex.com/en-us/products/part-detail/934170107#documents-and-resources |
| 930550201 | 930550201 | 3 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latch Between 1/2，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550201#documents-and-resources |
| 930550202 | 930550202 | 3 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latch Between 2/3，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550202#documents-and-resources |
| 930550226 | 930550226 | 3 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latch Between 2/3，2 Terminals per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550226#documents-and-resources |
| 930550239 | 930550239 | 3 | 5.00mm | R5 RAST Female Connector | 10.0A | Position Key 2a，Code Keys d10，02c，d30，Latch Between 2/3，2 Terminals per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550239#documents-and-resources |
| 930550242 | 930550242 | 3 | 5.00mm | R5 RAST Female Connector | 10.0A | Position Key 2a，Code Keys 01c，d10，02c，d30，Latch Between 2/3，2 Terminals per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550242#documents-and-resources |
| 930653002 | 930653002 | 3 | 5.00mm | R5 RAST Female Connector | 6.0A | End Wall Option A，Latches Between 1/2 and 2/3，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930653002#documents-and-resources |
| 932440201 | 932440201 | 3 | 5.00mm | R5 RAST Female Connector | 16.0A | Tin Plated，All Position Keys，Fully Coded，Latch Between 1/2，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/932440201#documents-and-resources |
| 932440237 | 932440237 | 3 | 5.00mm | R5 RAST Female Connector | 16.0A | Tin Plated，Position Key 1b，Code Keys 01c，d20，Latch Between 1/2，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/932440237#documents-and-resources |
| 933950201 | 933950201 | 3 | 5.00mm | R5 RAST Female Connector | 16.0A | All Position Keys，Fully Coded，Latch Between 1/2，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950201#documents-and-resources |
| 933950202 | 933950202 | 3 | 5.00mm | R5 RAST Female Connector | 16.0A | All Position Keys，Fully Coded，Latch Between 2/3，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950202#documents-and-resources |
| 933950203 | 933950203 | 3 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Key 1b，Code Keys 01c，d20，Latch Between 1/2，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950203#documents-and-resources |
| 933950218 | 933950218 | 3 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Key 2a，Code Keys d10，02c，d30，Latch Between 2/3，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950218#documents-and-resources |
| 933950228 | 933950228 | 3 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Keys 2b，3b，Code Keys d10，02c，Latch Between 2/3，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950228#documents-and-resources |
| 933950229 | 933950229 | 3 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Keys 2b，3b，Fully Coded，Latch Between 2/3，Blue Color Stripe，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950229#documents-and-resources |
| 933950230 | 933950230 | 3 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Key 2a，No Code Keys，Latch Between 2/3，Black Color Stripe，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950230#documents-and-resources |
| 933950231 | 933950231 | 3 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Keys 2b，3b，Code Keys 01c，d30，Latch Between 2/3，Blue Color Stripe，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950231#documents-and-resources |
| 933950232 | 933950232 | 3 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Key 1b，Code Keys 01c，d20，03c，Latch Between 1/2，Brown Color Stripe，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950232#documents-and-resources |
| 933950233 | 933950233 | 3 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Key 3b，Code Keys 01c，d30，Latch Between 1/2，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950233#documents-and-resources |
| 933950234 | 933950234 | 3 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Keys 1a，3b，Code Key 01c，Latch Between 1/2b，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950234#documents-and-resources |
| 933950239 | 933950239 | 3 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Key 3b，Code Keys 01c，d30，Latch Between 1/2b，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950239#documents-and-resources |
| 933950240 | 933950240 | 3 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Keys 1b，2a，No Code Keys，Latch Between 1/2，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950240#documents-and-resources |
| 934170202 | 3 | 5.00mm | R5 RAST Female Connector | 10.0A | Fully Coded，Latch Between Circuits 2 & 3，Glow-Wire Capable，Black | https://www.molex.com/en-us/products/part-detail/934170202#documents-and-resources | |
| 934170203 | 3 | 5.00mm | R5 RAST Female Connector | 10.0A | Code Keys 01c，d20，Latch Between Circuits 1 & 2，Glow-Wire Capable，Black | https://www.molex.com/en-us/products/part-detail/934170203#documents-and-resources | |
| 934170204 | 3 | 5.00mm | R5 RAST Female Connector | 10.0A | Code Key 03c，Latch Between Circuits 2 & 3b，Glow-Wire Capable，Black | https://www.molex.com/en-us/products/part-detail/934170204#documents-and-resources | |
| 930550301 | 930550301 | 4 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latches Between 1/2 and 3/4，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550301#documents-and-resources |
| 930654003 | 930654003 | 4 | 5.00mm | R5 RAST Female Connector | 6.0A | End Wall Option A Latches Between 1/2 and 3/4，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930654003#documents-and-resources |
| 932440301 | 932440301 | 4 | 5.00mm | R5 RAST Female Connector | 16.0A | All Position Keys，Fully Coded，Latches Between 1/2 and 3/4，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/932440301#documents-and-resources |
| 933950301 | 933950301 | 4 | 5.00mm | R5 RAST Female Connector | 16.0A | All Position Keys，Fully Coded，Latch Between 1/2 and 3/4，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950301#documents-and-resources |
| 933950313 | 933950313 | 4 | 5.00mm | R5 RAST Female Connector | 16.0A | Position Keys 1a，1b，2b，3a，3b，4b，Code Keys d20，d40，Latch Between 3/4，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/933950313#documents-and-resources |
| 930550401 | 930550401 | 5 | 5.00mm | R5 RAST Female Connector | 10.0A | Position Keys 1a，3a，Code Keys 01c，d30，Latches Between 1/2 and 4/5，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550401#documents-and-resources |
| 930550406 | 930550406 | 5 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latches Between 1/2 and 3/4，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550406#documents-and-resources |
| 930550407 | 930550407 | 5 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latches Between 1/2 and 4/5，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550407#documents-and-resources |
| 930550416 | 930550416 | 5 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latch Between 4/5，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550416#documents-and-resources |
| 930550426 | 930550426 | 5 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latches Between 1/2b and 3/4b，2 Terminals per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550426#documents-and-resources |
| 930550428 | 930550428 | 5 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latches Between 1/2 and 3/4，2 Terminals per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550428#documents-and-resources |
| 930550432 | 930550432 | 5 | 5.00mm | R5 RAST Female Connector | 10.0A | No Position Keys，Fully Coded，Latch Between 4/5，2 Terminals per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550432#documents-and-resources |
| 930655002 | 930655002 | 5 | 5.00mm | R5 RAST Female Connector | 6.0A | End Wall Option A，Latches Between 1/2 and 4/5，Rib Between 3/4，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930655002#documents-and-resources |
| 930655004 | 930655004 | 5 | 5.00mm | R5 RAST Female Connector | 6.0A | Open-Ended，Latch Between 4/5，Rib Between 1/2，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930655004#documents-and-resources |
| 930550501 | 930550501 | 6 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latches Between 2/3 and 4/5，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550501#documents-and-resources |
| 930550503 | 930550503 | 6 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latches Between 1/2 and 5/6，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550503#documents-and-resources |
| 930550510 | 930550510 | 6 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latch Between 2/3，Orange Color Stripe，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550510#documents-and-resources |
| 930550602 | 930550602 | 7 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latches Between 1/2 and 5/6，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550602#documents-and-resources |
| 930550604 | 930550604 | 7 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latches Between 2/3 and 6/7，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550604#documents-and-resources |
| 930550613 | 930550613 | 7 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latches Between 1/2 and 5/6，Blue Color Stripe，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550613#documents-and-resources |
| 930550617 | 930550617 | 7 | 5.00mm | R5 RAST Female Connector | 10.0A | Position Key 6b，Code Keys 03c，07c，Latches Between 1/2 and 5/6，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550617#documents-and-resources |
| 930550621 | 930550621 | 7 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latches Between 1/2 and 5/6，2 Terminals per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550621#documents-and-resources |
| 930550622 | 930550622 | 7 | 5.00mm | R5 RAST Female Connector | 10.0A | No Position Keys，Fully Coded，Latches Between 1/2 and 5/6，2 Terminals per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550622#documents-and-resources |
| 930550701 | 930550701 | 8 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latches Between 3/4 and 5/6，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550701#documents-and-resources |
| 930550703 | 930550703 | 8 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latches Between 1/2 and 7/8，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550703#documents-and-resources |
| 930658003 | 930658003 | 8 | 5.00mm | R5 RAST Female Connector | 6.0A | End Wall Option A，Latches Between 1/2 and 7/8，Rib Between 6/7，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930658003#documents-and-resources |
| 930550801 | 930550801 | 9 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latches Between 3/4 and 6/7，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550801#documents-and-resources |
| 930659003 | 930659003 | 9 | 5.00mm | R5 RAST Female Connector | 6.0A | End Wall Option E，Latches Between 1/2 and 8/9，Rib Between 3/4 and 7/8，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930659003#documents-and-resources |
| 930659005 | 930659005 | 9 | 5.00mm | R5 RAST Female Connector | 6.0A | End Wall Option E，Latches Between 1/2 and 8/9，Rib Between 6/7，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930659005#documents-and-resources |
| 930550901 | 930550901 | 10 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latches Between 3/4 and 7/8，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550901#documents-and-resources |
| 930550903 | 930550903 | 10 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latches Between 4/5 and 7/8，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550903#documents-and-resources |
| 930550904 | 930550904 | 10 | 5.00mm | R5 RAST Female Connector | 10.0A | All Position Keys，Fully Coded，Latches Between 4/5 and 6/7，1 Terminal per Circuit，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/930550904#documents-and-resources |
RAST R5 Connector Applications
Clothes Dryers
RAST 5 connectors provide reliable electrical connections for control panels, heating elements, and sensors in clothes dryers. They enhance durability under high temperatures and repetitive use cycles.
Dishwashers
Used to connect motors, pumps, and control boards, these connectors ensure safe and stable performance even in environments with high humidity and varying temperatures.
HVAC Systems
RAST 5 connectors are utilized in heating, ventilation, and air conditioning units to manage connections for fans, compressors, and thermostats. Their secure locking features withstand vibration and thermal changes.
Refrigerators
These connectors manage critical connections for compressors, defrosting systems, lighting, and control interfaces. Their reliable performance supports energy efficiency and operational stability in cold and variable conditions.
Washing Machines
In washing machines, RAST 5 connectors ensure robust connections for motors, control units, and water-level sensors. They help withstand the mechanical stress of frequent usage.
Air Conditioning Units
RAST 5 connectors are integral to air conditioning systems, enabling efficient connections for blower motors, thermostats, and compressors. They maintain performance in high-temperature and vibration-prone environments.
Molex RAST 5 connectors are indispensable in wire harness assemblies for appliances such as clothes dryers, dishwashers, HVAC systems, refrigerators, washing machines, and air conditioning units. These applications highlight their reliability in managing electrical connections under challenging conditions like temperature variations, humidity, and mechanical stresses. This list represents some of the more common uses but is not exhaustive. The versatility of RAST 5 connectors allows them to be applied in a broader range of electrical systems and appliances, meeting the demands of various industries.
Support Custom Wire Harness Assembly
- Connector circuits: 1 - 10Pin
- Wire Gauge: 18 - 20AWG, depends on real needs
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type: Fully customizable to your specifications.
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
