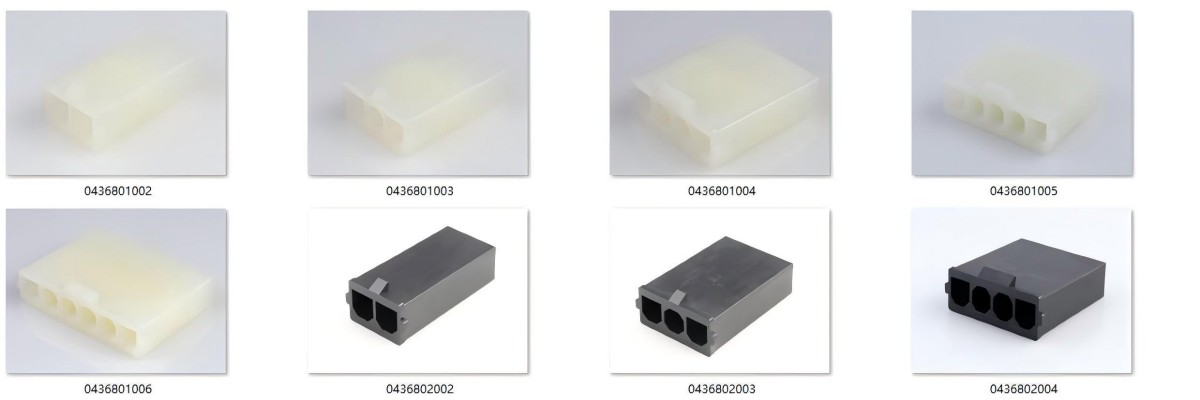

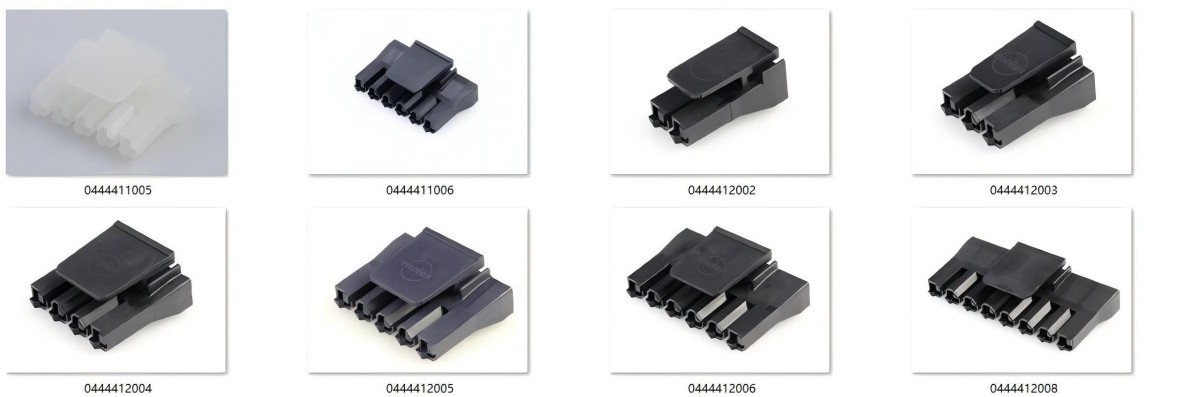

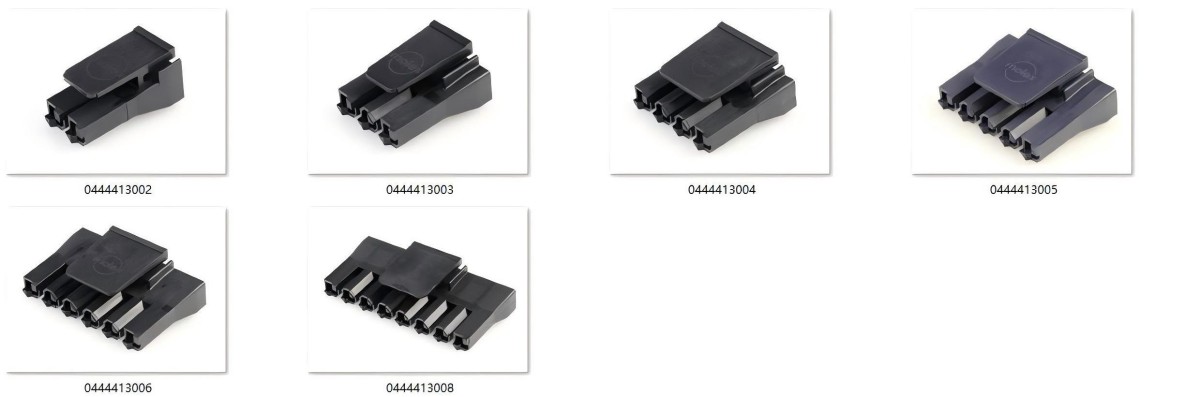

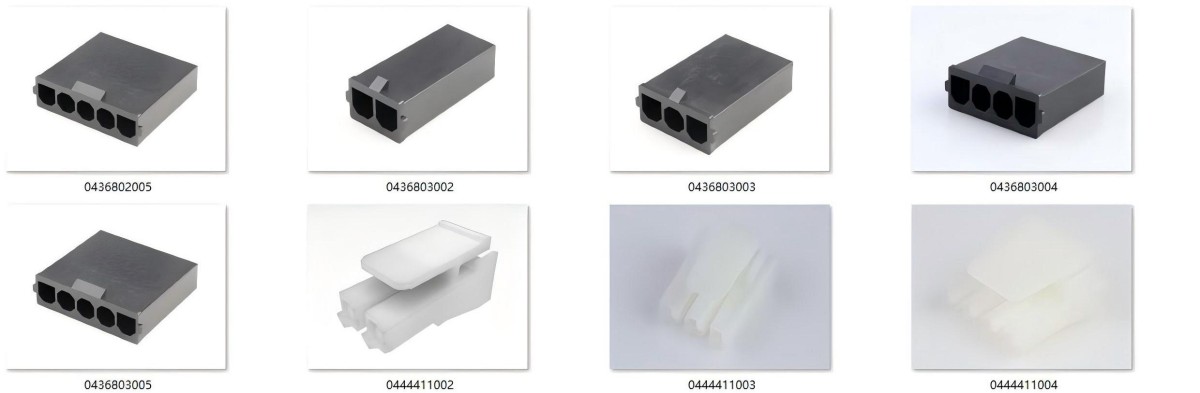

Molex Sabre Connector
The Molex Sabre Power Connector System is specifically engineered for high-performance applications requiring dependable, higher-current solutions with versatile design options. Supporting both wire-to-wire and wire-to-board configurations, these connectors accommodate vertical and right-angle orientations, offering flexibility for various designs. With a robust current rating of up to 18A per circuit at 600V, Sabre connectors support a wide range of wire gauges and insulation thicknesses, ensuring compatibility across diverse use cases. A standout feature of the Sabre system is the integrated Terminal Position Assurance (TPA) mechanism, which can be optionally activated to securely lock terminals within the housing, providing an extra layer of reliability in high-vibration environments. Available in single-row configurations with 2 to 8 circuits, these connectors also feature through-hole PCB termination styles that suit standard PCB thicknesses. The Molex Sabre Power Connector System delivers a reliable, flexible solution for demanding electrical and electronic applications by combining high power capacity, advanced locking mechanisms, and design adaptability.
Sabre Connector Features
- Designed for high-current and high-voltage applications
- Complies with UL 1977 finger-proof access requirements
- Terminal design incorporates a 0.125" (3.18mm) wide blade tab that mates to the industry standard solderless style 0.125" NEMA tabs
- Integral Terminal Position Assistance (TPA) located on both male and female terminals
- Positive latch on receptacle housing
- Anti-tangle latch on receptacle housing
- Blade-terminal design has four independent points of electrical contact
- Right-angle or vertical header configurations
- Metal clips are available on headers for 1.75mm, 2.36mm, and 3.17mm PCB thicknesses
Sabre Connector Specifications Chart
Sort by the number of circuits.
Sabre Connector Applications
Networking, Telecom, and Storage Equipment
- Hubs and Routers: Reliable power connections for efficient data traffic management.
- Servers: High-power distribution for continuous performance in data centers.
- Power Supplies: Secure connections for critical voltage regulation and distribution.
- Fan Trays: Powering cooling systems for networking devices.
Medical Equipment
- Diagnostics: Ensuring stable connections for imaging and analysis equipment.
- Patient Monitoring: Reliable power delivery for continuous monitoring of vital signs.
Business Equipment
- Printers and Scanners: Providing robust power supply connections for everyday business operations.
Vending and Gaming
- Scoreboards: Delivering power for reliable display operations.
- Electronic Games: Supporting power demands in gaming systems.
Appliance/White Goods
- Freezers and Refrigerators: Ensuring secure and stable power delivery in cooling appliances.
- Washing Machines and Dryers: Powering high-energy components in laundry systems.
Automotive and Transportation
- Ideal for vehicle systems, Sabre Connectors power various automotive applications.
Military/Aerospace (COTS)
- HVAC Systems: Power connections for heating, ventilation, and cooling in harsh conditions.
- Industrial Applications: Supporting automation, machinery, and robotics.
- Security Systems: Delivering reliable power to surveillance and protective systems.
- Solar Energy Systems: Suitable for renewable energy applications with high power requirements.
- Lighting Systems: Providing stable connections for advanced illumination technologies.
Molex Sabre Connectors serve various industries, from networking and healthcare to appliances and aerospace. Their versatility and reliability make them an excellent choice for high-power applications in both commercial and industrial settings. While the above categories highlight common use cases, these connectors are not limited to these applications, as their adaptability allows them to meet the demands of evolving technologies and industries.
Support Custom Wire Harness Assembly
- Connector circuits: 2 - 8Pin
- Wire Gauge: 14 - 20AWG, depends on real needs
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type: Fully customizable to your specifications.
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
