Molex Splash Proof Connector

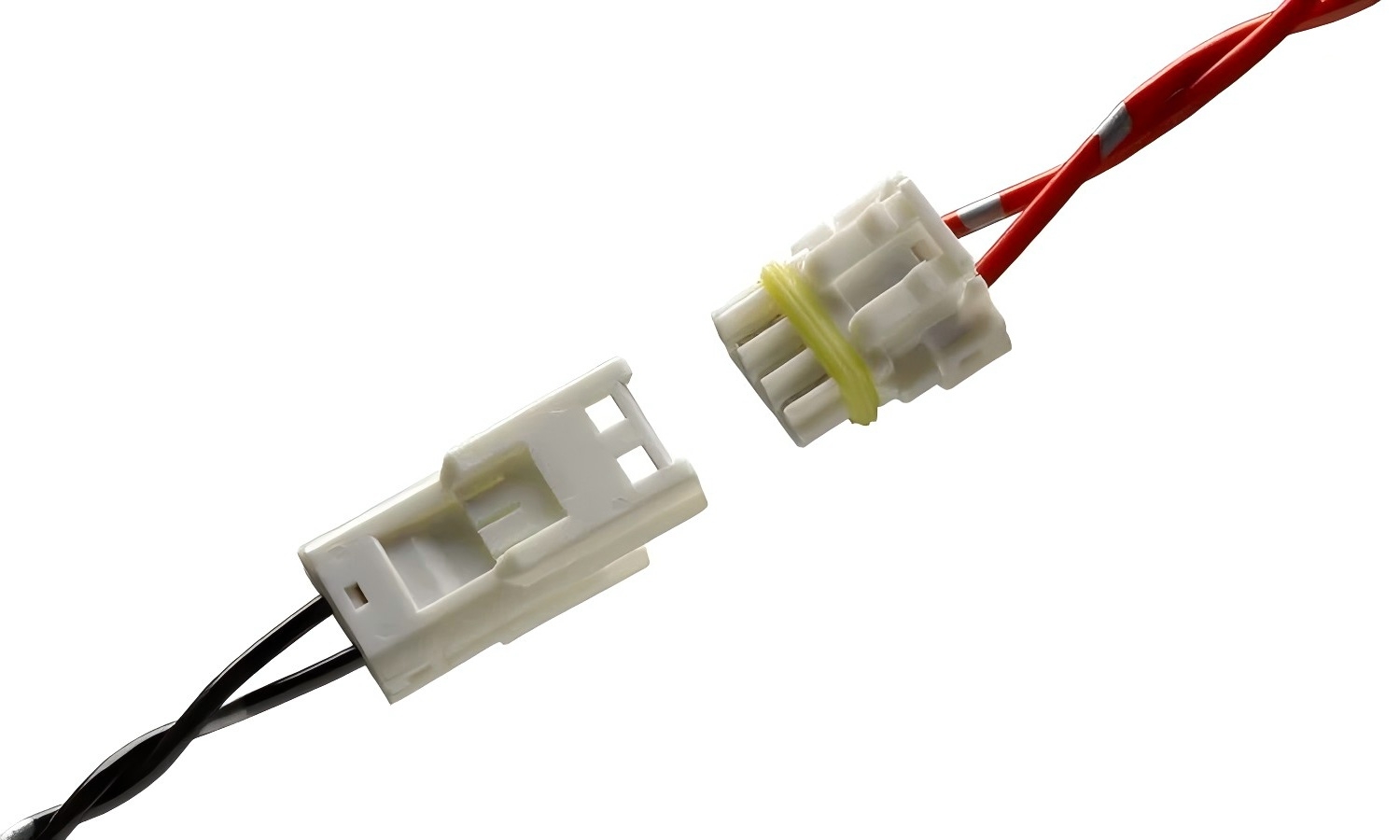

The Molex Mizu-P25 Splash Proof Connector system is specifically designed for applications requiring robust performance in compact, space-constrained environments, such as motorcycles, air conditioners, and other devices incorporating increasingly sophisticated electronics. Engineered to prevent dust and water from compromising signal integrity, the Mizu-P25 family ensures reliable connectivity even in challenging conditions. The system is available in two sub-families: a low-voltage version rated up to 125 volts and a high-voltage version supporting up to 250 volts. Both variants offer some of the smallest mated diameters in their class, enabling seamless integration into tight spaces, narrow passages, and small hinges where traditional connectors might struggle. Additionally, Mizu-P25 connectors are user-friendly, featuring color-coded housings for easy identification, low-insertion-force terminals to reduce operator fatigue, and positive-lock mechanisms for secure connections. Polarization features further enhance assembly reliability by ensuring proper mating alignment, making the Mizu-P25 family a versatile and efficient solution for demanding wire-to-wire applications.

Splash Proof Connector Features

• IP67 rating provides complete dustproof and waterproof protection
• Compact size
• Positive locks ensure secure mating retention
• Integral seal stopper feature provides waterproof protection
• Spring-beam terminal design provides high pressure and small deflection for high-vibration applications
• Raised-body male terminal design provides polarization to prevent mismating

Splash Proof Connector Specifications Chart

Sort by the number of circuits.

Splash Proof Connector Applications

Automotive Applications

• Bank Angle Switches: Ensures reliable connectivity in vehicle stability systems for accident prevention.
• Crank Position Sensors: Delivers precise engine timing information critical for efficient performance.
• Fuel Sensors: Maintains secure connections to measure fuel levels accurately.
• Injectors: Provides robust, waterproof connections for fuel injection systems.
• Lamp Mirrors and Side Mirror/Lamps: Supports electrical wiring for lighting and reflective systems.
• Mirror Motor Harnesses and Powered Rear-View Mirrors: Ensures dependable motorized mirror adjustments and operation.
• Parking Sensors: Connects parking assistance devices to ensure operational integrity.
• Rear Stop Lamp Switches: Provides durable connections for brake light systems.
• Seating Systems: Powers adjustable and heated seating components.
• Speed Sensors and Throttle Body Sensors: Facilitates accurate vehicle speed and throttle monitoring.
• Steering Systems: Ensures secure wiring for electronic steering aids.
• Stereo Systems and Door Electronics: Supports infotainment and electrical door mechanisms.
• Wipers: Delivers consistent power and control for windshield wipers.

Marine and Off-Road Applications

• Boats and Utility Vehicles: Ensures robust waterproof connections in environments prone to water exposure.
• Tractors and Forklifts: Provides vibration-resistant connections for agricultural and industrial machinery.
• Side Stand Switches: Reliable in harsh conditions for motorcycles and off-road vehicles.

General Equipment Applications

• Black Box Recorders: Offers secure connections in critical data storage systems for vehicles.
• Sensors (T-Oil Sensors, etc.): Powers diverse monitoring systems, including temperature and oil sensors.
• Solenoid Valves: Supports precise control in fluid and pneumatic systems.

Molex Splash Proof Connectors are engineered for durability, reliability, and ease of integration in demanding environments. These connectors find common use in various systems, such as vehicle electronics, marine equipment, heavy machinery, and consumer devices. This is not a definitive list of applications, as the versatility of Molex Splash Proof Connectors allows them to serve a broader range of uses beyond those highlighted. They remain a preferred choice for applications requiring robust performance in challenging conditions.

Support Custom Wire Harness Assembly

• Connector circuits: 2 - 4Pin
• Wire Gauge: 20 - 22AWG, depends on real needs
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type: Fully customizable to your specifications.
• Minimum Order: 100 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
