Molex Spot-On Connector

The Molex Spot-On 1.5mm and 2.0mm Connector System is an advanced SMT-style wire-to-board connector solution designed for potting applications, offering exceptional mechanical reliability and process versatility. Engineered for demanding environments, it provides robust protection against water ingress, making it ideal for use in white goods and other applications requiring potting treatments. Its durable design incorporates fully polarized, color-coded receptacle housings, which enhance usability by ensuring accurate and secure mating of the wired assembly. This foolproof feature minimizes the risk of mismatching wires, significantly improving assembly efficiency and reducing errors. With its high-performance capabilities and design precision, the Molex Spot-On Connector System addresses the needs of modern electronic devices, delivering superior reliability, ease of integration, and long-lasting performance under challenging conditions.

Spot-On Connector Features

• Retainer provides secure insertion of crimped terminal
• Positive inner lock offers secure mating retention and prevents wire tangling and latch breakage

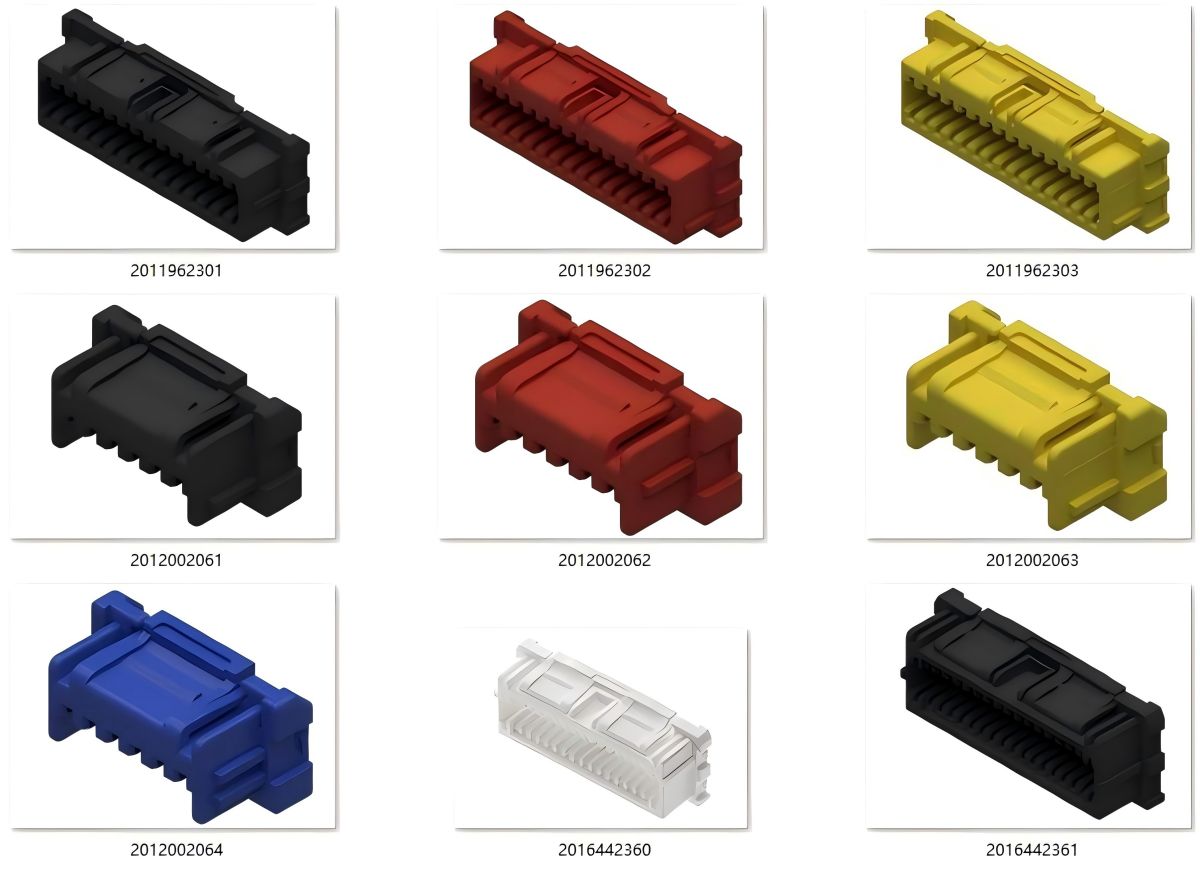

• Fully polarized and color-coded receptacle housing ensures fool-proof mating of the wired assembly
• Robust center nail reduces stress on SMT solder joints to prevent solder cracking
• Higher-profile plug housing ensures protection from potting material ingress into housing
• 5.0mm maximum potting height
• SMT mounting tails for automated assembly that reduces manual labor processes

Spot-On Connector Specifications Chart

Sort by the number of circuits.

Spot-On Connector Applications

• Air Conditioners: Facilitate reliable power and signal transmission in temperature control and fan systems, ensuring consistent cooling and airflow.
• Refrigerators: Provide dependable connections for compressor systems, temperature sensors, and control boards for optimal cooling performance.
• Microwave Ovens: Enable stable connections for power supply and control circuits, ensuring safety and functionality in high-temperature environments.
• Washing Machines: Ensure secure connections for motor controls, sensors, and user interface systems for efficient washing cycles.
• Water Heaters: Support robust connections in control modules, temperature sensors, and heating elements for consistent hot water supply.
• Washers/Dryers: Deliver reliable connections for motor drives, sensors, and control panels, enhancing performance and safety in laundry systems.
• Stoves: Ensure durable connections for burner controls, temperature regulators, and safety systems in cooking appliances.

The Molex Spot-On 1.5mm & 2.0mm Connectors are widely used in home appliances like air conditioners, refrigerators, and washing machines, among others. Their applications range from power management to control system integration, offering a dependable solution for critical electrical connections. While this list highlights some of the most common uses, the versatility of these connectors allows them to be applied in many other industries and devices, not limited to the ones listed above.

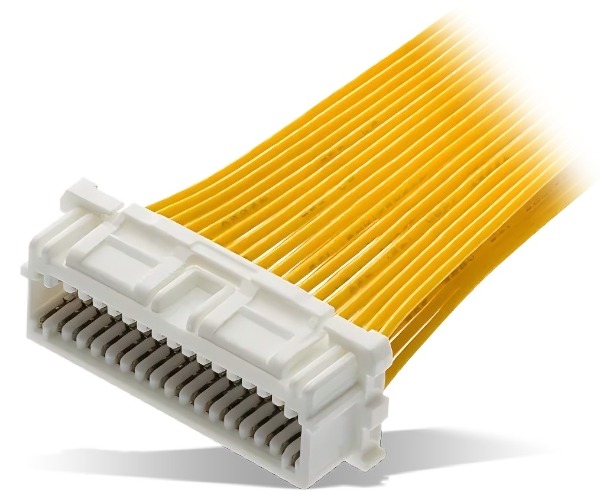

Support Custom Wire Harness Assembly

• Connector circuits: 2 - 40Pin
• Wire Gauge: 24 - 28AWG, depends on real needs
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type: Fully customizable to your specifications.
• Minimum Order: 100 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
