Molex Squba Connector

Molex's Squba 3.6 mm- and 1.8 mm-pitch sealed connector system is designed to meet the growing demand for compact, reliable solutions in space-constrained applications across commercial vehicle, consumer, and industrial markets. As devices continue to shrink and incorporate more advanced features, the need for connectors that can deliver high performance without consuming valuable real estate becomes critical. Squba connectors are engineered to support up to 14 A with wire gauges ranging from 16 AWG to 24 AWG, offering superior power delivery in a smaller form factor compared to competitors. This innovative design helps manufacturers maintain compactness while reducing costs associated with larger wire sizes. Furthermore, wet environments in these applications pose significant risks to unsealed connectors, making the Squba system's UL-approved IP68 rating an essential feature for ensuring reliable performance in harsh conditions. To enhance durability and ease of use, each Squba connector is equipped with protective caps that safeguard the seals from damage during assembly, shipping, or handling. These caps also guide terminal insertion, preventing punctures and ensuring a secure, long-lasting connection. With its compact size, robust sealing, and user-friendly features, the Squba system is a versatile solution for demanding applications requiring reliable, high-power connectivity.

Molex Squba Connector

Squba Connector Features

Protected, low-profile positive latch
Miniature size
Sealed components with proven performance (delivers IP68 NEMA rating)
Seal caps with protective terminal channels
Wraparound insulation crimp to protect against seal punctures
The primary lock enables 30N terminal retention
Clean-body terminals avoid seal punctures
1.80mm and 3.60mm pitch
125V maximum voltage
6.0A maximum current
10mΩ contact resistance
<5mA dielectric withstanding voltage
100MΩ insulation resistance
IP68 rating

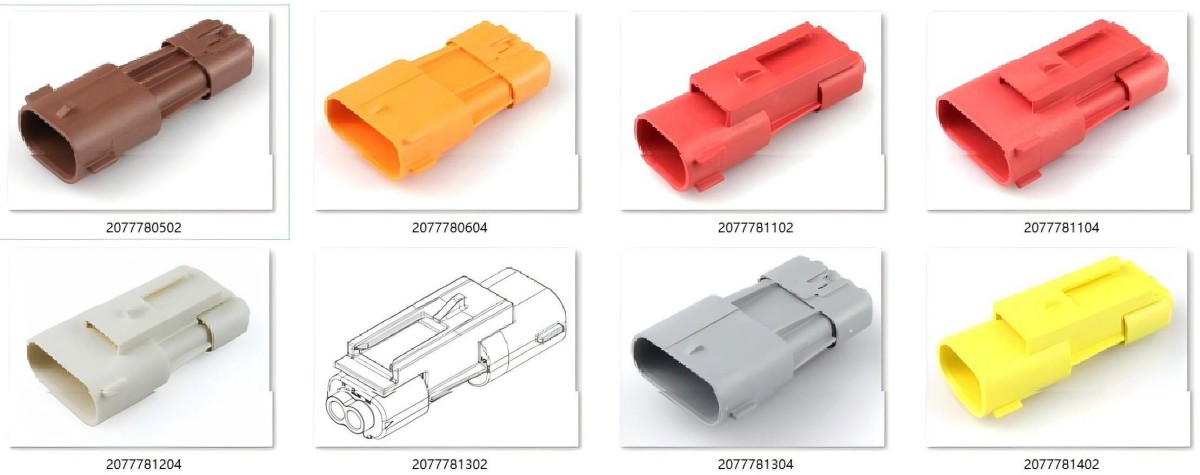

Squba Connector Specifications Chart

Sort by the number of circuits.

P/N	Old P/N	Circuit	Row	Pitch	Series	Descriptions	Datasheet
2042200002	204220-0002	2	Single Row	1.80mm	Squba Sealed Receptacle Assembly		https://www.molex.com/en-us/products/part-detail/2042200002#documents-and-resources
2042230002	204223-0002	2	Single Row	1.80mm	Squba Sealed Plug Assembly		https://www.molex.com/en-us/products/part-detail/2042230002#documents-and-resources
2042230102	204223-0102	2	Single Row	1.80mm	Squba Sealed Panel Mount Plug Assembly		https://www.molex.com/en-us/products/part-detail/2042230102#documents-and-resources
2042239902	2042239902	2	Single Row	1.80mm	Squba Sealed Plug Assembly	All Circuits Voided	https://www.molex.com/en-us/products/part-detail/2042239902#documents-and-resources
2077780002		2	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Black	https://www.molex.com/en-us/products/part-detail/2077780002#documents-and-resources
2077780012	207778-0012	2	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Black	https://www.molex.com/en-us/products/part-detail/2077780012#documents-and-resources
2077780102	207778-0102	2	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key A，Red	https://www.molex.com/en-us/products/part-detail/2077780102#documents-and-resources
2077780112	207778-0112	2	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key A，Red	https://www.molex.com/en-us/products/part-detail/2077780112#documents-and-resources
2077780202	207778-0202	2	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key B，Natural	https://www.molex.com/en-us/products/part-detail/2077780202#documents-and-resources
2077780212	207778-0212	2	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key B，Natural	https://www.molex.com/en-us/products/part-detail/2077780212#documents-and-resources
2077780302	207778-0302	2	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key C，Gray	https://www.molex.com/en-us/products/part-detail/2077780302#documents-and-resources
2077780312	207778-0312	2	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key C，Gray	https://www.molex.com/en-us/products/part-detail/2077780312#documents-and-resources
2077780402	207778-0402	2	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key D，Yellow	https://www.molex.com/en-us/products/part-detail/2077780402#documents-and-resources
2077780412	207778-0412	2	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key D，Yellow	https://www.molex.com/en-us/products/part-detail/2077780412#documents-and-resources
2077780502	207778-0502	2	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key E，Brown	https://www.molex.com/en-us/products/part-detail/2077780502#documents-and-resources
2077780512	207778-0512	2	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key E，Brown	https://www.molex.com/en-us/products/part-detail/2077780512#documents-and-resources
2077780602	207778-0602	2	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key F，Orange	https://www.molex.com/en-us/products/part-detail/2077780602#documents-and-resources
2077780612	207778-0612	2	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key F，Orange	https://www.molex.com/en-us/products/part-detail/2077780612#documents-and-resources
2077781102	207778-1102	2	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key A，Red	https://www.molex.com/en-us/products/part-detail/2077781102#documents-and-resources
2077781112	207778-1112	2	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key A，Red	https://www.molex.com/en-us/products/part-detail/2077781112#documents-and-resources
2077781202	207778-1202	2	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key B，Natural	https://www.molex.com/en-us/products/part-detail/2077781202#documents-and-resources
2077781212	207778-1212	2	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key B，Natural	https://www.molex.com/en-us/products/part-detail/2077781212#documents-and-resources
2077781302	207778-1302	2	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key C，Gray	https://www.molex.com/en-us/products/part-detail/2077781302#documents-and-resources
2077781312	207778-1312	2	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key C，Gray	https://www.molex.com/en-us/products/part-detail/2077781312#documents-and-resources
2077781402	207778-1402	2	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key D，Yellow	https://www.molex.com/en-us/products/part-detail/2077781402#documents-and-resources
2077781412	207778-1412	2	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key D，Yellow	https://www.molex.com/en-us/products/part-detail/2077781412#documents-and-resources
2077781502	207778-1502	2	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key E，Brown	https://www.molex.com/en-us/products/part-detail/2077781502#documents-and-resources
2077781512	207778-1512	2	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key E，Brown	https://www.molex.com/en-us/products/part-detail/2077781512#documents-and-resources
2077781602	207778-1602	2	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key F，Orange	https://www.molex.com/en-us/products/part-detail/2077781602#documents-and-resources
2077781612	207778-1612	2	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key F，Orange	https://www.molex.com/en-us/products/part-detail/2077781612#documents-and-resources
2077820002		2	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Black	https://www.molex.com/en-us/products/part-detail/2077820002#documents-and-resources
2077820012	207782-0012	2	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Black	https://www.molex.com/en-us/products/part-detail/2077820012#documents-and-resources
2077820102	207782-0102	2	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key A，Red	https://www.molex.com/en-us/products/part-detail/2077820102#documents-and-resources
2077820112	207782-0112	2	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key A，Red	https://www.molex.com/en-us/products/part-detail/2077820112#documents-and-resources
2077820202	207782-0202	2	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key B，Natural	https://www.molex.com/en-us/products/part-detail/2077820202#documents-and-resources
2077820212	207782-0212	2	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key B，Natural	https://www.molex.com/en-us/products/part-detail/2077820212#documents-and-resources
2077820302	207782-0302	2	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key C，Gray	https://www.molex.com/en-us/products/part-detail/2077820302#documents-and-resources
2077820312	207782-0312	2	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key C，Gray	https://www.molex.com/en-us/products/part-detail/2077820312#documents-and-resources
2077820402	207782-0402	2	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key D，Yellow	https://www.molex.com/en-us/products/part-detail/2077820402#documents-and-resources
2077820412	207782-0412	2	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key D，Yellow	https://www.molex.com/en-us/products/part-detail/2077820412#documents-and-resources
2077820502	207782-0502	2	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key E，Brown	https://www.molex.com/en-us/products/part-detail/2077820502#documents-and-resources
2077820512	207782-0512	2	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key E，Brown	https://www.molex.com/en-us/products/part-detail/2077820512#documents-and-resources
2077820602	207782-0602	2	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key F，Orange	https://www.molex.com/en-us/products/part-detail/2077820602#documents-and-resources
2077820612	207782-0612	2	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key F，Orange	https://www.molex.com/en-us/products/part-detail/2077820612#documents-and-resources
2077780003		3	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Black	https://www.molex.com/en-us/products/part-detail/2077780003#documents-and-resources
2077780013	207778-0013	3	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Black	https://www.molex.com/en-us/products/part-detail/2077780013#documents-and-resources
2077780103	207778-0103	3	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key A，Red	https://www.molex.com/en-us/products/part-detail/2077780103#documents-and-resources
2077780113	207778-0113	3	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key A，Red	https://www.molex.com/en-us/products/part-detail/2077780113#documents-and-resources
2077780203	207778-0203	3	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key B，Natural	https://www.molex.com/en-us/products/part-detail/2077780203#documents-and-resources
2077780213	207778-0213	3	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key B，Natural	https://www.molex.com/en-us/products/part-detail/2077780213#documents-and-resources
2077780303	207778-0303	3	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key C，Gray	https://www.molex.com/en-us/products/part-detail/2077780303#documents-and-resources
2077780313	207778-0313	3	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key C，Gray	https://www.molex.com/en-us/products/part-detail/2077780313#documents-and-resources
2077780403	207778-0403	3	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key D，Yellow	https://www.molex.com/en-us/products/part-detail/2077780403#documents-and-resources
2077780413	207778-0413	3	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key D，Yellow	https://www.molex.com/en-us/products/part-detail/2077780413#documents-and-resources
2077780503	207778-0503	3	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key E，Brown	https://www.molex.com/en-us/products/part-detail/2077780503#documents-and-resources
2077780513	207778-0513	3	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key E，Brown	https://www.molex.com/en-us/products/part-detail/2077780513#documents-and-resources
2077780603	207778-0603	3	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key F，Orange	https://www.molex.com/en-us/products/part-detail/2077780603#documents-and-resources
2077780613	207778-0613	3	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key F，Orange	https://www.molex.com/en-us/products/part-detail/2077780613#documents-and-resources
2077781103	207778-1103	3	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key A，Red	https://www.molex.com/en-us/products/part-detail/2077781103#documents-and-resources
2077781113	207778-1113	3	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key A，Red	https://www.molex.com/en-us/products/part-detail/2077781113#documents-and-resources
2077781203	207778-1203	3	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key B，Natural	https://www.molex.com/en-us/products/part-detail/2077781203#documents-and-resources
2077781213	207778-1213	3	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key B，Natural	https://www.molex.com/en-us/products/part-detail/2077781213#documents-and-resources
2077781303	207778-1303	3	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key C，Gray	https://www.molex.com/en-us/products/part-detail/2077781303#documents-and-resources
2077781313	207778-1313	3	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key C，Gray	https://www.molex.com/en-us/products/part-detail/2077781313#documents-and-resources
2077781403	207778-1403	3	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key D，Yellow	https://www.molex.com/en-us/products/part-detail/2077781403#documents-and-resources
2077781413	207778-1413	3	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key D，Yellow	https://www.molex.com/en-us/products/part-detail/2077781413#documents-and-resources
2077781503	207778-1503	3	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key E，Brown	https://www.molex.com/en-us/products/part-detail/2077781503#documents-and-resources
2077781513	207778-1513	3	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key E，Brown	https://www.molex.com/en-us/products/part-detail/2077781513#documents-and-resources
2077781603	207778-1603	3	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key F，Orange	https://www.molex.com/en-us/products/part-detail/2077781603#documents-and-resources
2077781613	207778-1613	3	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key F，Orange	https://www.molex.com/en-us/products/part-detail/2077781613#documents-and-resources
2077820003		3	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Black	https://www.molex.com/en-us/products/part-detail/2077820003#documents-and-resources
2077820013	207782-0013	3	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Black	https://www.molex.com/en-us/products/part-detail/2077820013#documents-and-resources
2077820103	207782-0103	3	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key A，Red	https://www.molex.com/en-us/products/part-detail/2077820103#documents-and-resources
2077820113	207782-0113	3	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key A，Red	https://www.molex.com/en-us/products/part-detail/2077820113#documents-and-resources
2077820203	207782-0203	3	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key B，Natural	https://www.molex.com/en-us/products/part-detail/2077820203#documents-and-resources
2077820213	207782-0213	3	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key B，Natural	https://www.molex.com/en-us/products/part-detail/2077820213#documents-and-resources
2077820303	207782-0303	3	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key C，Gray	https://www.molex.com/en-us/products/part-detail/2077820303#documents-and-resources
2077820313	207782-0313	3	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key C，Gray	https://www.molex.com/en-us/products/part-detail/2077820313#documents-and-resources
2077820403	207782-0403	3	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key D，Yellow	https://www.molex.com/en-us/products/part-detail/2077820403#documents-and-resources
2077820413	207782-0413	3	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key D，Yellow	https://www.molex.com/en-us/products/part-detail/2077820413#documents-and-resources
2077820503	207782-0503	3	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key E，Brown	https://www.molex.com/en-us/products/part-detail/2077820503#documents-and-resources
2077820513	207782-0513	3	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key E，Brown	https://www.molex.com/en-us/products/part-detail/2077820513#documents-and-resources
2077820603	207782-0603	3	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key F，Orange	https://www.molex.com/en-us/products/part-detail/2077820603#documents-and-resources
2077820613	207782-0613	3	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key F，Orange	https://www.molex.com/en-us/products/part-detail/2077820613#documents-and-resources
2042200004	204220-0004	4	Single Row	1.80mm	Squba Sealed Receptacle Assembly		https://www.molex.com/en-us/products/part-detail/2042200004#documents-and-resources
2042204004	204220-4004	4	Single Row	1.80mm	Squba Sealed Receptacle Assembly	Circuit #4 Voided	https://www.molex.com/en-us/products/part-detail/2042204004#documents-and-resources
2042230004	204223-0004	4	Single Row	1.80mm	Squba Sealed Plug Assembly		https://www.molex.com/en-us/products/part-detail/2042230004#documents-and-resources
2042230104	204223-0104	4	Single Row	1.80mm	Squba Sealed Panel Mount Plug Assembly		https://www.molex.com/en-us/products/part-detail/2042230104#documents-and-resources
2042234004	204223-4004	4	Single Row	1.80mm	Squba Sealed Plug Assembly	Circuit #4 Voided	https://www.molex.com/en-us/products/part-detail/2042234004#documents-and-resources
2042239904	2042239904	4	Single Row	1.80mm	Squba Sealed Plug Assembly	All Circuits Voided	https://www.molex.com/en-us/products/part-detail/2042239904#documents-and-resources
2077780004		4	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Black	https://www.molex.com/en-us/products/part-detail/2077780004#documents-and-resources
2077780014	207778-0014	4	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Black	https://www.molex.com/en-us/products/part-detail/2077780014#documents-and-resources
2077780104	207778-0104	4	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key A，Red	https://www.molex.com/en-us/products/part-detail/2077780104#documents-and-resources
2077780114	207778-0114	4	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key A，Red	https://www.molex.com/en-us/products/part-detail/2077780114#documents-and-resources
2077780204	207778-0204	4	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key B，Natural	https://www.molex.com/en-us/products/part-detail/2077780204#documents-and-resources
2077780214	207778-0214	4	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key B，Natural	https://www.molex.com/en-us/products/part-detail/2077780214#documents-and-resources
2077780304	207778-0304	4	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key C，Gray	https://www.molex.com/en-us/products/part-detail/2077780304#documents-and-resources
2077780314	207778-0314	4	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key C，Gray	https://www.molex.com/en-us/products/part-detail/2077780314#documents-and-resources
2077780404	207778-0404	4	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key D，Yellow	https://www.molex.com/en-us/products/part-detail/2077780404#documents-and-resources
2077780414	207778-0414	4	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key D，Yellow	https://www.molex.com/en-us/products/part-detail/2077780414#documents-and-resources
2077780504	207778-0504	4	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key E，Brown	https://www.molex.com/en-us/products/part-detail/2077780504#documents-and-resources
2077780514	207778-0514	4	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key E，Brown	https://www.molex.com/en-us/products/part-detail/2077780514#documents-and-resources
2077780604	207778-0604	4	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key F，Orange	https://www.molex.com/en-us/products/part-detail/2077780604#documents-and-resources
2077780614	207778-0614	4	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，Key F，Orange	https://www.molex.com/en-us/products/part-detail/2077780614#documents-and-resources
2077781104	207778-1104	4	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key A，Red	https://www.molex.com/en-us/products/part-detail/2077781104#documents-and-resources
2077781114	207778-1114	4	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key A，Red	https://www.molex.com/en-us/products/part-detail/2077781114#documents-and-resources
2077781204	207778-1204	4	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key B，Natural	https://www.molex.com/en-us/products/part-detail/2077781204#documents-and-resources
2077781214	207778-1214	4	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key B，Natural	https://www.molex.com/en-us/products/part-detail/2077781214#documents-and-resources
2077781304	207778-1304	4	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key C，Gray	https://www.molex.com/en-us/products/part-detail/2077781304#documents-and-resources
2077781314	207778-1314	4	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key C，Gray	https://www.molex.com/en-us/products/part-detail/2077781314#documents-and-resources
2077781404	207778-1404	4	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key D，Yellow	https://www.molex.com/en-us/products/part-detail/2077781404#documents-and-resources
2077781414	207778-1414	4	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key D，Yellow	https://www.molex.com/en-us/products/part-detail/2077781414#documents-and-resources
2077781504	207778-1504	4	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key E，Brown	https://www.molex.com/en-us/products/part-detail/2077781504#documents-and-resources
2077781514	207778-1514	4	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key E，Brown	https://www.molex.com/en-us/products/part-detail/2077781514#documents-and-resources
2077781604	207778-1604	4	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key F，Orange	https://www.molex.com/en-us/products/part-detail/2077781604#documents-and-resources
2077781614	207778-1614	4	Single Row	3.60mm	Squba 3.6 Sealed Plug Assembly	Glow-Wire Capable，with Clipslot，Key F，Orange	https://www.molex.com/en-us/products/part-detail/2077781614#documents-and-resources
2077820004		4	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Black	https://www.molex.com/en-us/products/part-detail/2077820004#documents-and-resources
2077820014	207782-0014	4	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Black	https://www.molex.com/en-us/products/part-detail/2077820014#documents-and-resources
2077820104	207782-0104	4	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key A，Red	https://www.molex.com/en-us/products/part-detail/2077820104#documents-and-resources
2077820114	207782-0114	4	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key A，Red	https://www.molex.com/en-us/products/part-detail/2077820114#documents-and-resources
2077820204	207782-0204	4	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key B，Natural	https://www.molex.com/en-us/products/part-detail/2077820204#documents-and-resources
2077820214	207782-0214	4	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key B，Natural	https://www.molex.com/en-us/products/part-detail/2077820214#documents-and-resources
2077820304	207782-0304	4	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key C，Gray	https://www.molex.com/en-us/products/part-detail/2077820304#documents-and-resources
2077820314	207782-0314	4	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key C，Gray	https://www.molex.com/en-us/products/part-detail/2077820314#documents-and-resources
2077820404	207782-0404	4	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key D，Yellow	https://www.molex.com/en-us/products/part-detail/2077820404#documents-and-resources
2077820414	207782-0414	4	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key D，Yellow	https://www.molex.com/en-us/products/part-detail/2077820414#documents-and-resources
2077820504	207782-0504	4	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key E，Brown	https://www.molex.com/en-us/products/part-detail/2077820504#documents-and-resources
2077820514	207782-0514	4	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key E，Brown	https://www.molex.com/en-us/products/part-detail/2077820514#documents-and-resources
2077820604	207782-0604	4	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key F，Orange	https://www.molex.com/en-us/products/part-detail/2077820604#documents-and-resources
2077820614	207782-0614	4	Single Row	3.60mm	Squba 3.6 Sealed Receptacle Assembly	Glow-Wire Capable，Key F，Orange	https://www.molex.com/en-us/products/part-detail/2077820614#documents-and-resources
2042200006	204220-0006	6	Single Row	1.80mm	Squba Sealed Receptacle Assembly		https://www.molex.com/en-us/products/part-detail/2042200006#documents-and-resources
2042206006	204220-6006	6	Single Row	1.80mm	Squba Sealed Receptacle Assembly	Circuit #6 Voided	https://www.molex.com/en-us/products/part-detail/2042206006#documents-and-resources
2042230006	204223-0006	6	Single Row	1.80mm	Squba Sealed Plug Assembly		https://www.molex.com/en-us/products/part-detail/2042230006#documents-and-resources
2042230106	204223-0106	6	Single Row	1.80mm	Squba Sealed Panel Mount Plug Assembly		https://www.molex.com/en-us/products/part-detail/2042230106#documents-and-resources
2042236006	204223-6006	6	Single Row	1.80mm	Squba Sealed Plug Assembly	Circuit #6 Voided	https://www.molex.com/en-us/products/part-detail/2042236006#documents-and-resources
2042239906	2042239906	6	Single Row	1.80mm	Squba Sealed Plug Assembly	All Circuits Voided	https://www.molex.com/en-us/products/part-detail/2042239906#documents-and-resources
2042200008	204220-0008	8	Single Row	1.80mm	Squba Sealed Receptacle Assembly		https://www.molex.com/en-us/products/part-detail/2042200008#documents-and-resources
2042208008	204220-8008	8	Single Row	1.80mm	Squba Sealed Receptacle Assembly	Circuit #8 Voided	https://www.molex.com/en-us/products/part-detail/2042208008#documents-and-resources
2042230008	204223-0008	8	Single Row	1.80mm	Squba Sealed Plug Assembly		https://www.molex.com/en-us/products/part-detail/2042230008#documents-and-resources
2042230108	204223-0108	8	Single Row	1.80mm	Squba Sealed Panel Mount Plug Assembly		https://www.molex.com/en-us/products/part-detail/2042230108#documents-and-resources
2042238008	204223-8008	8	Single Row	1.80mm	Squba Sealed Plug Assembly	Circuit #8 Voided	https://www.molex.com/en-us/products/part-detail/2042238008#documents-and-resources
2042239608	204223-9608	8	Single Row	1.80mm	Squba Sealed Plug Assembly	Circuit #3 and 6 Voided	https://www.molex.com/en-us/products/part-detail/2042239608#documents-and-resources
2042239708	204223-9708	8	Single Row	1.80mm	Squba Sealed Plug Assembly	Circuit #5 Voided	https://www.molex.com/en-us/products/part-detail/2042239708#documents-and-resources
2042239808	204223-9808	8	Single Row	1.80mm	Squba Sealed Plug Assembly	Circuit #1，2，5 and 6 Voided	https://www.molex.com/en-us/products/part-detail/2042239808#documents-and-resources
2042239908	2042239908	8	Single Row	1.80mm	Squba Sealed Plug Assembly	All Circuits Voided	https://www.molex.com/en-us/products/part-detail/2042239908#documents-and-resources
2042200010	204220-0010	10	Single Row	1.80mm	Squba Sealed Receptacle Assembly		https://www.molex.com/en-us/products/part-detail/2042200010#documents-and-resources
2042201110	204220-1110	10	Single Row	1.80mm	Squba Sealed Receptacle Assembly	Circuit #10 Voided	https://www.molex.com/en-us/products/part-detail/2042201110#documents-and-resources
2042230010	204223-0010	10	Single Row	1.80mm	Squba Sealed Plug Assembly		https://www.molex.com/en-us/products/part-detail/2042230010#documents-and-resources
2042230110	204223-0110	10	Single Row	1.80mm	Squba Sealed Panel Mount Plug Assembly		https://www.molex.com/en-us/products/part-detail/2042230110#documents-and-resources
2042231110	20422-31110	10	Single Row	1.80mm	Squba Sealed Plug Assembly	Circuit #10 Voided	https://www.molex.com/en-us/products/part-detail/2042231110#documents-and-resources
2042239910	2042239910	10	Single Row	1.80mm	Squba Sealed Plug Assembly	All Circuits Voided	https://www.molex.com/en-us/products/part-detail/2042239910#documents-and-resources

Squba Connector Applications

1. Commercial Vehicles

ATVs: Squba Connectors provide dependable wiring for off-road vehicles that demand resistance to dirt, moisture, and vibration.
Buses: Used in internal and external wiring, ensuring reliable operation for lighting, safety systems, and electronics.
Forklifts: Suitable for connecting control panels, motor systems, and auxiliary equipment.
Marine Applications: Ideal for under-dash wiring and lighting, where water resistance and corrosion prevention are critical.
Recreational Vehicles: Powering entertainment, lighting, and climate control systems.
Trucks: Handling wiring for cabin controls, engine diagnostics, and external systems like lighting and sensors.

2. Connected Home Appliances

Home Automation: Integrating smart home systems, including lighting, temperature control, and voice-enabled devices.
Home Health and Wellness: Supporting medical-grade devices and monitoring systems with secure electrical connections.
Security and Surveillance: Used in sensors, cameras, and alarm systems for continuous performance.
Smart Appliances: Connecting components in refrigerators, dishwashers, washing machines, and other IoT-enabled devices.

3. Consumer Products

HVAC Systems: Powering and controlling units, ensuring efficient heating, cooling, and ventilation.
Home Appliances: Reliable connections for high-performing washers, dryers, and small kitchen appliances.
Landscaping Equipment: Rugged wiring for mowers, trimmers, and other outdoor tools exposed to elements.
Liquid Dispensing Equipment: Applied in beverage dispensers, water filtration units, and automated dispensing systems.
Vending Machines: Supporting touchscreens, payment systems, and refrigeration components.

4. Industrial Automation

Food Processing Equipment: Ensuring connections in clean, humid environments with strict hygiene requirements.
Food Processing Facilities: Withstanding high-pressure washdowns and corrosive cleaning agents.
Industrial Controllers: Supporting precise control for manufacturing and automation systems.
Industrial Machines and Motors: Providing stable wiring for high-performance machinery.
Robotics: Enabling movement, control, and data transmission in robotic applications.

Molex Squba Connectors offer broad applicability in various fields, ranging from automotive and marine to connected home devices, consumer appliances, and industrial automation. Their robust sealing, compact design, and adaptability to harsh environments make them an excellent choice for ensuring reliable and long-lasting electrical connections. This list highlights common applications but is not exhaustive, as these connectors can be utilized in numerous other scenarios demanding similar performance characteristics.

Support Custom Wire Harness Assembly

Connector circuits: 2 - 10 Pin
Wire Gauge: 16 - 24AWG, depends on real needs
Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
Wire Length: Fully customizable to your specifications.
Wiring Diagram: Tailor-made to meet your project needs.
Custom type: Fully customizable to your specifications.
Minimum Order: 100 pieces per order.

Molex Squba Connector Sealed 3.6mm pitch 2P Male to Tinned end Cable Assembly

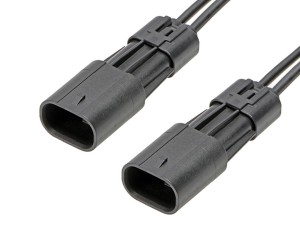

Molex Squba Connector Sealed 3.6mm pitch 2P to 2P Female Wire Harness

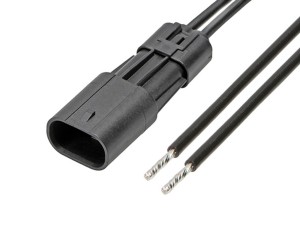

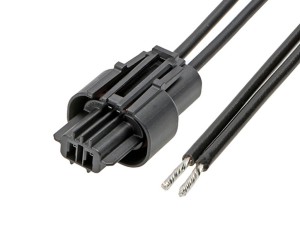

Molex Squba Connector Sealed 3.6mm pitch 2P Female to Tinned end Cable Assembly

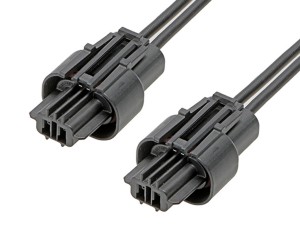

Molex Squba Connector Sealed 3.6mm pitch 2P to 2P Male Wire Harness

Molex Squba Connector Sealed 3.6mm pitch 3P Female to tinned end Cable Assembly

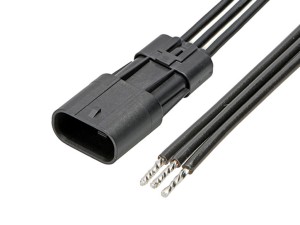

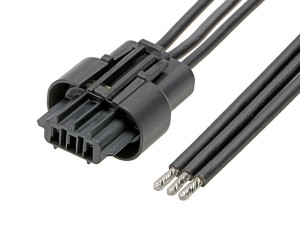

Molex Squba Connector Sealed 3.6mm pitch 3P Male to tinned end Cable Assembly

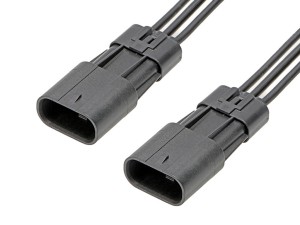

Molex Squba Connector Sealed 3.6mm pitch 3P to 3P Female Wire Harness

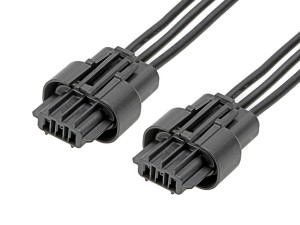

Molex Squba Connector Sealed 3.6mm pitch 3P to 3P Male Wire Harness

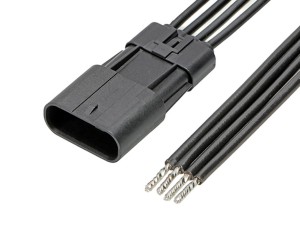

Molex Squba Connector Sealed 3.6mm pitch 4P Female to tinned end Cable Assembly

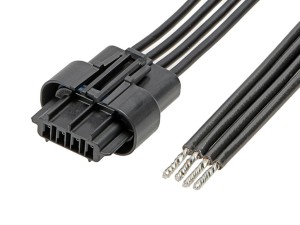

Molex Squba Connector Sealed 3.6mm pitch 4P Male to tinned end Cable Assembly

Molex Squba Connector Sealed 3.6mm pitch 4P to 4P Female Wire Harness

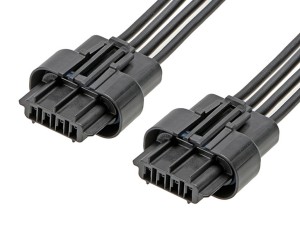

Molex Squba Connector Sealed 3.6mm pitch 4P to 4P Male Wire Harness

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.

Molex Squba Connector, Custom Wire Harness Manufacturer
