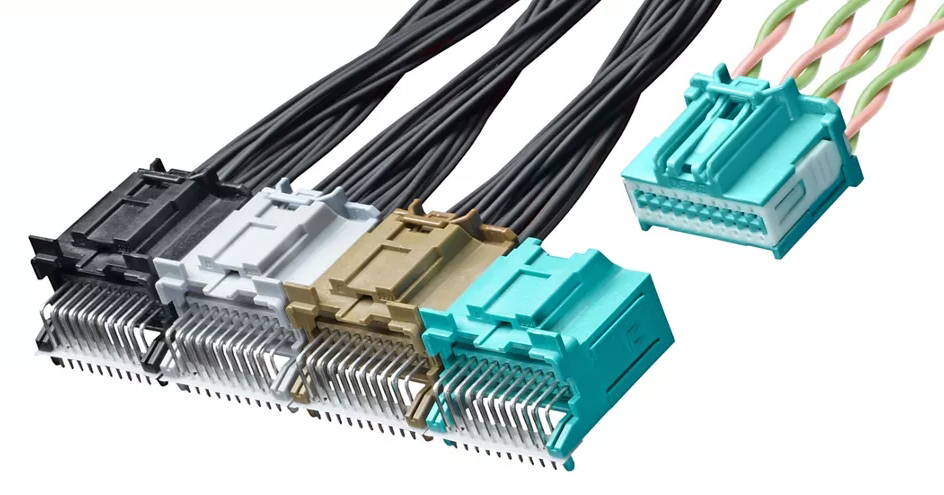

Molex Stac64 Connector
The Molex Stac64 Automotive Connection System is a versatile and innovative 2.54mm (.100") pitch connector solution designed to meet the demanding requirements of modern automotive applications. Now available in 14-circuit hybrid headers and receptacles, it offers an extensive range of circuit sizes to support diverse design needs. This stackable system provides exceptional design flexibility for OEMs and device manufacturers by eliminating the need for custom tooling, accommodating both low-level signal transmission and high-power applications of up to 30A. Compliant with USCAR-2 Class II mechanical and electrical performance standards for unsealed applications, the Stac64 system ensures seamless compatibility with wire harness connectors adhering to USCAR/EWCAP industry footprints. Additionally, it enables automotive manufacturers to use header assemblies as stand-alone components or combine multiple headers to address varied signal and power requirements for devices and modules. This adaptability makes the Stac64 system a robust choice for integrating signal and power connectivity in automotive designs.
Stac64 Connector Features
- Stackable and modular 2.54mm pitch PCB headers
- Selection of 0.64mm, 1.5mm, and 2.8mm terminals
- Validated to USCAR Class 2 requirements
- Housing molded to standard USCAR color codes
- PCB-alignment posts
- PCCB stand-ffs molded into housings
- High-temperature thermoplastic housings
- Right-angle headers with hard plastic Pin-Alignment Plate (PAP)
- Female connector series 34729 and 31372 mates to male unsealed header series 34690, 34691, 34695
- 500V electrical voltage
- Mechanical / Electrical:
- Mating & unmating force of less than 60N (13.5 lbf)
- Physical:
- 30% glass-filled SPS/nylon blend harness housing
- 15% glass-filled polyester TPAs
- 305 glass-filled SPS header housing
- -40°C to +100°C operating temperature range
Stac64 Connector Specifications Chart
Sort by the number of circuits.

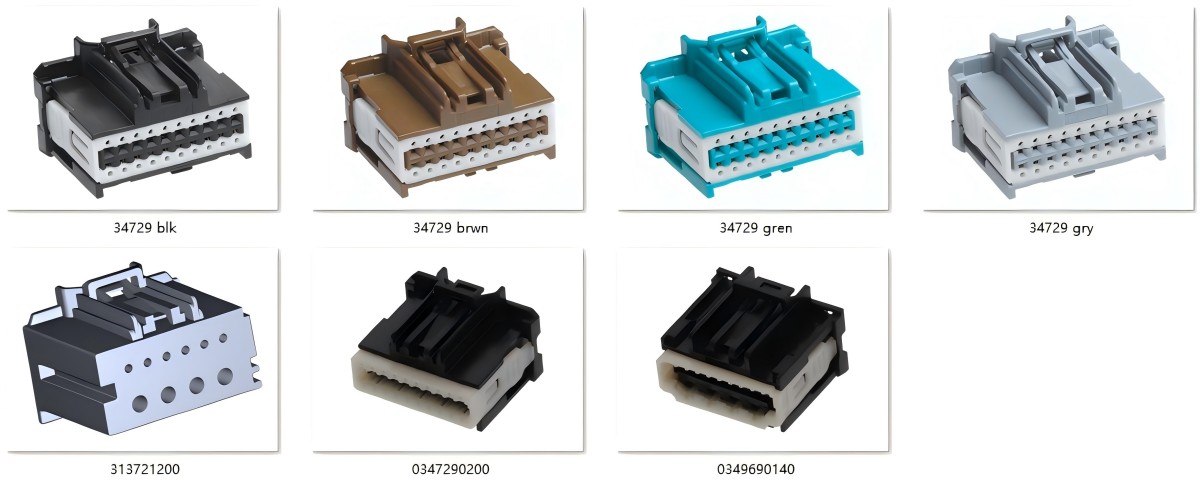

| P/N | Old P/N | Circuit | Color | Series | Polarization | Note | Datasheet |
| 347290080 | 34729-0080 | 8 | Black | Stac64 Receptacle Housing | Polarization A | Dual Row | https://www.molex.com/en-us/products/part-detail/347290080#documents-and-resources |
| 347290081 | 34729-0081 | 8 | Gray | Stac64 Receptacle Housing | Polarization B | Dual Row | https://www.molex.com/en-us/products/part-detail/347290081#documents-and-resources |
| 347290082 | 34729-0082 | 8 | Brown | Stac64 Receptacle Housing | Polarization C | Dual Row | https://www.molex.com/en-us/products/part-detail/347290082#documents-and-resources |
| 313721000 | 31372-1000 | 10 | Black | Stac64 Hybrid Receptacle Assembly | Polarization A | without CPA | https://www.molex.com/en-us/products/part-detail/313721000#documents-and-resources |
| 313721100 | 31372-1100 | 10 | Gray | Stac64 Hybrid Receptacle Assembly | Polarization B | without CPA | https://www.molex.com/en-us/products/part-detail/313721100#documents-and-resources |
| 313721200 | 31372-1200 | 10 | Brown | Stac64 Hybrid Receptacle Assembly | Polarization C | without CPA | https://www.molex.com/en-us/products/part-detail/313721200#documents-and-resources |
| 313721600 | 31372-1600 | 10 | Black | Stac64 Hybrid Receptacle Assembly | Polarization A | with CPA | https://www.molex.com/en-us/products/part-detail/313721600#documents-and-resources |
| 313721700 | 10 | Gray | Stac64 Hybrid Receptacle Assembly | Polarization B | with CPA | https://www.molex.com/en-us/products/part-detail/313721700#documents-and-resources | |
| 313721800 | 10 | Brown | Stac64 Hybrid Receptacle Assembly | Polarization C | with CPA | https://www.molex.com/en-us/products/part-detail/313721800#documents-and-resources | |
| 347290120 | 34729-0120 | 12 | Black | Stac64 Receptacle Housing | Polarization A | Dual Row | https://www.molex.com/en-us/products/part-detail/347290120#documents-and-resources |
| 347290121 | 34729-0121 | 12 | Gray | Stac64 Receptacle Housing | Polarization B | Dual Row | https://www.molex.com/en-us/products/part-detail/347290121#documents-and-resources |
| 347290122 | 34729-0122 | 12 | Brown | Stac64 Receptacle Housing | Polarization C | Dual Row | https://www.molex.com/en-us/products/part-detail/347290122#documents-and-resources |
| 349690140 | 34969-0140 | 14 | Black | Stac64 Hybrid Receptacle Assembly | Polarization A | https://www.molex.com/en-us/products/part-detail/349690140#documents-and-resources | |
| 349690141 | 34969-0141 | 14 | Gray | Stac64 Hybrid Receptacle Assembly | Polarization B | https://www.molex.com/en-us/products/part-detail/349690141#documents-and-resources | |
| 349690142 | 347290201 | 14 | Brown | Stac64 Hybrid Receptacle Assembly | Polarization C | https://www.molex.com/en-us/products/part-detail/349690142#documents-and-resources | |
| 347290160 | 34729-160 | 16 | Black | Stac64 Receptacle Housing | Polarization A | Dual Row | https://www.molex.com/en-us/products/part-detail/347290160#documents-and-resources |
| 347290161 | 34729-0161 | 16 | Gray | Stac64 Receptacle Housing | Polarization B | Dual Row | https://www.molex.com/en-us/products/part-detail/347290161#documents-and-resources |
| 347290162 | 34729-0162 | 16 | Brown | Stac64 Receptacle Housing | Polarization C | Dual Row | https://www.molex.com/en-us/products/part-detail/347290162#documents-and-resources |
| 347290200 | 34729-0200 | 20 | Black | Stac64 Receptacle Housing | Polarization A | Dual Row | https://www.molex.com/en-us/products/part-detail/347290200#documents-and-resources |
| 347290201 | 34729-0201 | 20 | Gray | Stac64 Receptacle Housing | Polarization B | Dual Row | https://www.molex.com/en-us/products/part-detail/347290201#documents-and-resources |
| 347290202 | 34729-0202 | 20 | Brown | Stac64 Receptacle Housing | Polarization C | Dual Row | https://www.molex.com/en-us/products/part-detail/347290202#documents-and-resources |
| 347290203 | 34729-0203 | 20 | Green | Stac64 Receptacle Housing | Polarization D | Dual Row | https://www.molex.com/en-us/products/part-detail/347290203#documents-and-resources |
Stac64 Connector Applications
Automotive Vehicles
- Radios and DVD Entertainment Systems: These connectors provide secure connections for in-vehicle entertainment systems, ensuring smooth audio and video functionality.
- Interior Lighting and Navigation Systems: They facilitate the integration of navigation modules and customizable interior lighting systems.
- Instrument Panel Clusters: Critical for delivering accurate and real-time data display to drivers.
- Power Seat Modules: Enable electronic control of power-adjustable seats for enhanced passenger comfort.
- Door Zone Modules: Support functions such as power windows, door locks, and mirror adjustments.
Non-Automotive Transportation
- Interior Electronic Modules: Used in transport systems for controlling lighting, HVAC, and entertainment features.
- Body Electronic Modules: Enable the operation of various vehicle body systems, ensuring seamless performance in public transport and commercial vehicles.
Automotive OEMs and Device Tiers
- Original Equipment Manufacturers (OEMs): Supporting modular and scalable design architectures for diverse vehicle models.
- Automotive Device Tiers: Used in components and systems supplied by tiered automotive vendors, ensuring compatibility and compliance with industry standards.
Molex Stac64 Connectors are versatile components designed to meet the demands of both automotive and non-automotive transportation applications. They are commonly used in entertainment systems, navigation, power modules, and electronic control systems across various sectors. While this list highlights typical use cases, the range of applications is not limited to those mentioned, reflecting the adaptability of these connectors to diverse needs.
Support Custom Wire Harness Assembly
- Connector circuits: 8 - 20Pin
- Wire Gauge: 14 - 22AWG, depends on real needs
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type: Fully customizable to your specifications.
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
