Molex Standard .062 Connector
Molex Standard .062" Pin and Socket Power Connectors are a versatile and reliable solution for a wide range of power and signal interconnect applications. Designed to handle up to 5A per circuit, these connectors are built with standard brass terminals, ensuring optimal conductivity and performance in various environments. The connectors feature durable nylon housings that provide structural integrity and resistance to wear, while the robust terminal design offers long-lasting reliability. With a broad array of product configurations, including free-hanging and panel-mount housings, Molex Standard .062" connectors provide flexibility for diverse design requirements. Additionally, the connectors are compatible with a wide range of wire gauges, from 18AWG to 30AWG, and feature terminals made from either brass or phosphor bronze, with options for tin or gold plating to meet specific electrical and mechanical needs. These connectors are particularly well-suited for applications in networking, consumer electronics, and data communications, making them an ideal choice for both high-performance and cost-effective interconnect solutions. Whether used in low- or high-power applications, Molex Standard .062" Pin and Socket Connectors deliver excellent versatility and reliability for engineers and designers.
Standard .062 Connector Features
- Offers design flexibility
- 1 to 36 circuit housings
- Male and female terminals can be used in either plug or receptacle housings
- Round terminals may be oriented in any direction for fast assembly
- Passive (friction) lock provides secure mating of the housings
- Free-hanging or panel-mount housing version available
Standard .062 Connector Specifications Chart
Sort by the number of circuits.

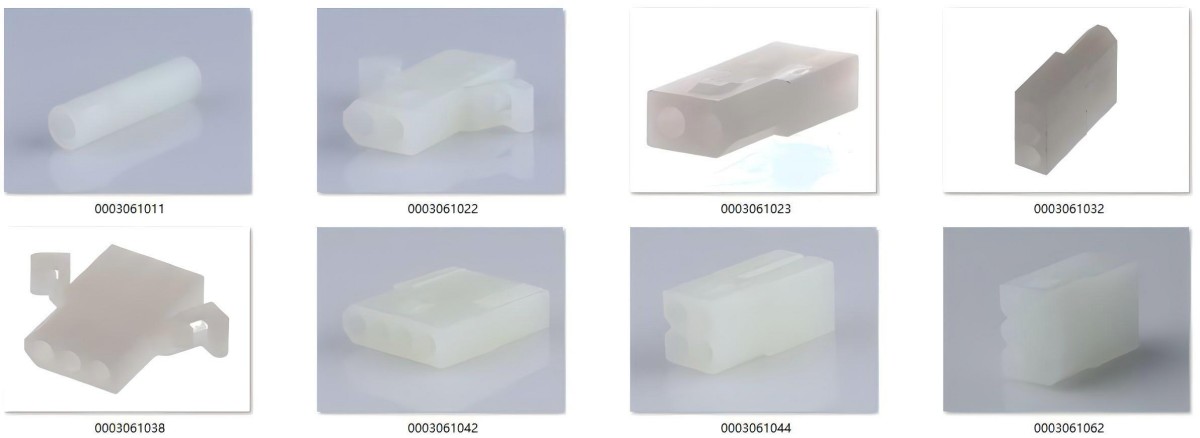

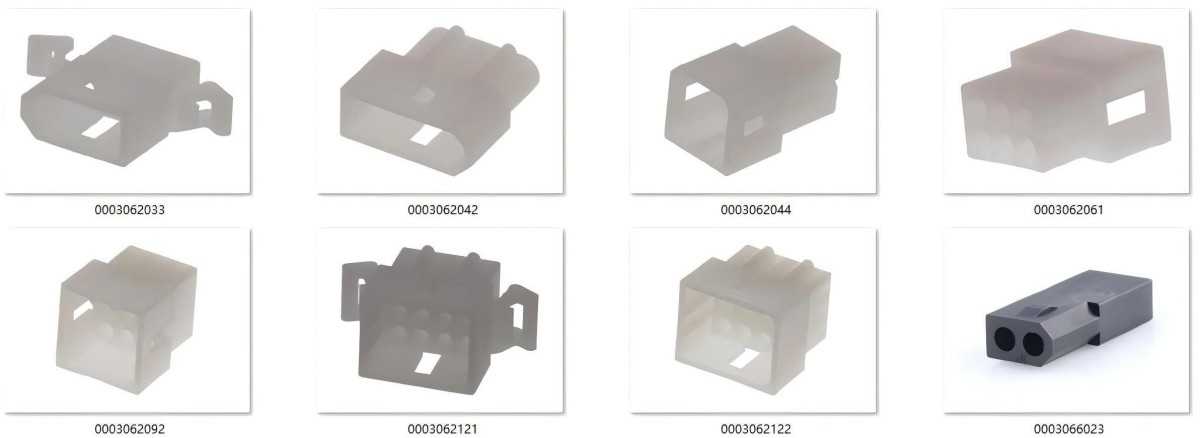

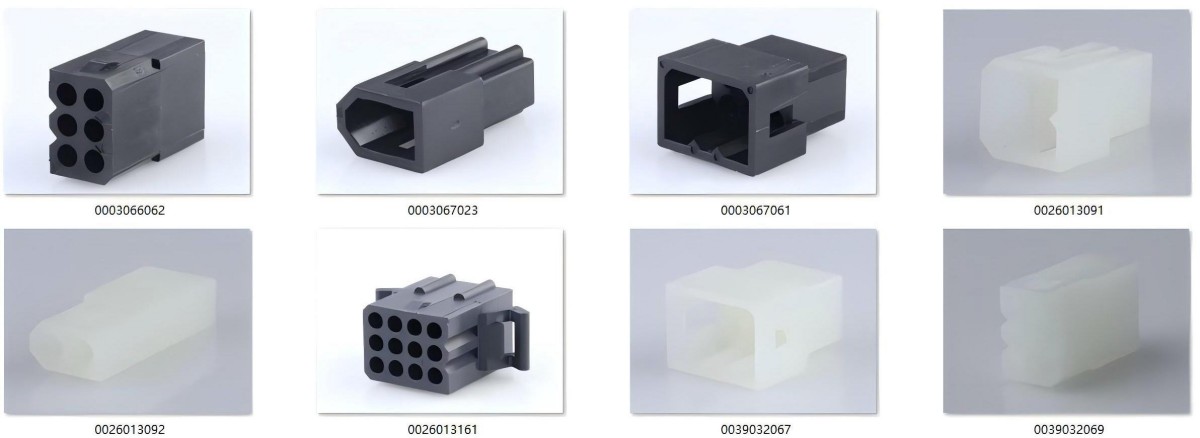

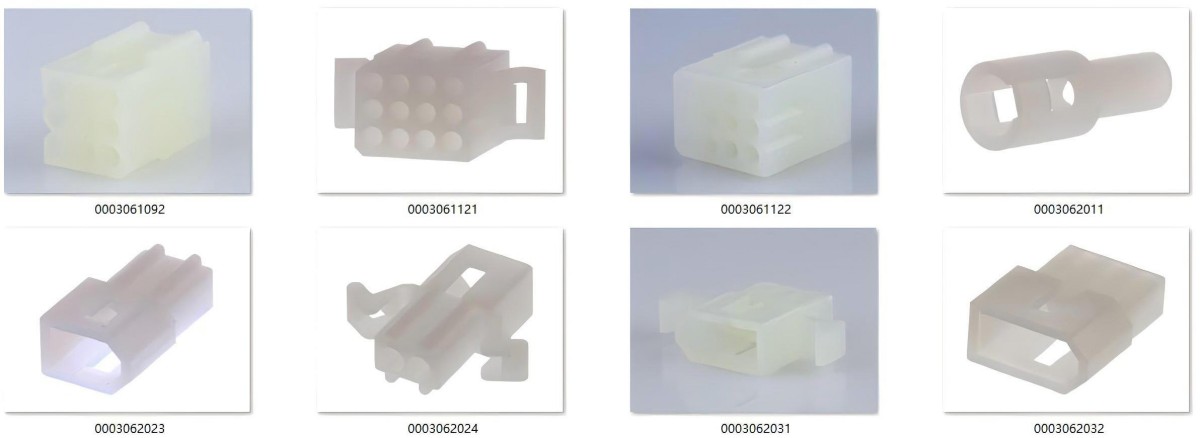

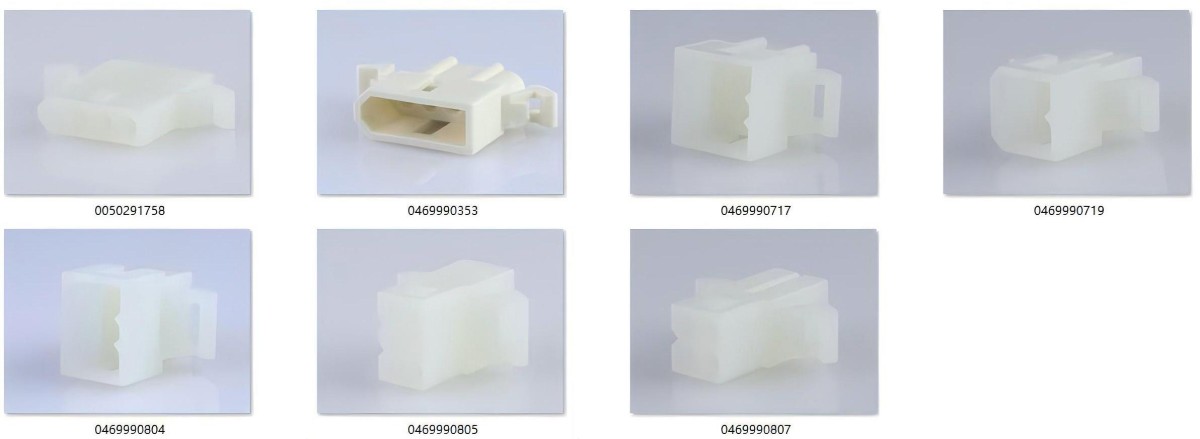

| P/N | Old P/N | Circuit | Pitch | Color | Type | Descriptions | Datasheet |
| 03061011 | 1625-1R | 1 | 1.57mm | Natural | Standard .062" Pin and Socket Receptacle Housing | https://www.molex.com/en-us/products/part-detail/03061011#documents-and-resources | |
| 03062011 | 1625-1P | 1 | 1.57mm | Natural | Standard .062" Pin and Socket Plug Housing | without Mounting Ears | https://www.molex.com/en-us/products/part-detail/03062011#documents-and-resources |
| 03061022 | 1625-2R2 | 2 | 1.57mm | Natural | Standard .062" Pin and Socket Receptacle Housing | with Pre-bent Mounting Ears | https://www.molex.com/en-us/products/part-detail/03061022#documents-and-resources |
| 03061023 | 1625-2R1 | 2 | 1.57mm | Natural | Standard .062" Pin and Socket Receptacle Housing | without Mounting Ears | https://www.molex.com/en-us/products/part-detail/03061023#documents-and-resources |
| 03062023 | 1625-2P1 | 2 | 1.57mm | Natural | Standard .062" Pin and Socket Plug Housing | with Pre-bent Mounting Ears | https://www.molex.com/en-us/products/part-detail/03062023#documents-and-resources |
| 03062024 | 1625-2P2 | 2 | 1.57mm | Natural | Standard .062" Pin and Socket Plug Housing | with Standard Mounting Ears | https://www.molex.com/en-us/products/part-detail/03062024#documents-and-resources |
| 03066023 | 162502R1BK | 2 | 1.57mm | Black | Standard .062" Pin and Socket Receptacle Housing | without Mounting Ears | https://www.molex.com/en-us/products/part-detail/03066023#documents-and-resources |
| 03067023 | 1625-2P1-BK | 2 | 1.57mm | Black | Standard .062" Pin and Socket Plug Housing | Dual Row，without Mounting Ears，PA Polyamide Nylon 6/6，UL 94V-2 | https://www.molex.com/en-us/products/part-detail/03067023#documents-and-resources |
| 26013091 | 1625-2P2-1 | 2 | 1.57mm | Natural | Standard .062" Pin and Socket Plug Housing | without Mounting Ears，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/26013091#documents-and-resources |
| 26013092 | 1625-2R1-1 | 2 | 1.57mm | Natural | Standard .062" Pin and Socket Receptacle Housing | without Mounting Ears，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/26013092#documents-and-resources |
| 03061032 | 1625-3R1 | 3 | 1.57mm | Natural | Standard .062" Pin and Socket Receptacle Housing | without Mounting Ears | https://www.molex.com/en-us/products/part-detail/03061032#documents-and-resources |
| 03061038 | 1625-3R4 | 3 | 1.57mm | Natural | Standard .062" Pin and Socket Receptacle Housing | with Pre-bent Mounting Ears | https://www.molex.com/en-us/products/part-detail/03061038#documents-and-resources |
| 03062031 | 1625-3P | 3 | 1.57mm | Natural | Standard .062" Pin and Socket Plug Housing | without Mounting Ears | https://www.molex.com/en-us/products/part-detail/03062031#documents-and-resources |
| 03062032 | 1625-3P1 | 3 | 1.57mm | Natural | Standard .062" Pin and Socket Plug Housing | with Pre-bent Mounting Ears | https://www.molex.com/en-us/products/part-detail/03062032#documents-and-resources |
| 03062033 | 1625-3P4 | 3 | 1.57mm | Natural | Standard .062" Pin and Socket Plug Housing | without Mounting Ears | https://www.molex.com/en-us/products/part-detail/03062033#documents-and-resources |
| 03061042 | 1625-4R1 | 4 | 1.57mm | Natural | Standard .062" Pin and Socket Receptacle Housing | without Mounting Ears | https://www.molex.com/en-us/products/part-detail/03061042#documents-and-resources |
| 03061044 | 2004-R1 | 4 | 1.57mm | Natural | Standard .062" Pin and Socket Receptacle Housing | Dual Row，without Mounting Ears，PA Polyamide Nylon 6/6，UL 94V-2 | https://www.molex.com/en-us/products/part-detail/03061044#documents-and-resources |
| 03062042 | 1625-4P1 | 4 | 1.57mm | Natural | Standard .062" Pin and Socket Plug Housing | Dual Row，without Mounting Ears，PA Polyamide Nylon 6/6，UL 94V-2 | https://www.molex.com/en-us/products/part-detail/03062042#documents-and-resources |
| 03062044 | 2004-P1 | 4 | 1.57mm | Natural | Standard .062" Pin and Socket Plug Housing | without Mounting Ears | https://www.molex.com/en-us/products/part-detail/03062044#documents-and-resources |
| 03067044 | 2004-P01-BK | 4 | 1.57mm | Black | Standard .062" Pin and Socket Plug Housing | without Mounting Ears | https://www.molex.com/en-us/products/part-detail/03067044#documents-and-resources |
| 50291758 | 1625-4R2 | 4 | 1.57mm | Natural | Standard .062" Pin and Socket Receptacle Housing | with Pre-bent Mounting Ears | https://www.molex.com/en-us/products/part-detail/50291758#documents-and-resources |
| 469990353 | 1625-4P2-1 | 4 | 1.57mm | Natural | Standard .062" Pin and Socket Plug Housing | with Pre-bent Mounting Ears | https://www.molex.com/en-us/products/part-detail/469990353#documents-and-resources |
| 469990719 | 2004-P2 | 4 | 1.57mm | Natural | Standard .062" Pin and Socket Plug Housing | with Pre-bent Mounting Ears | https://www.molex.com/en-us/products/part-detail/469990719#documents-and-resources |
| 469990807 | 2004-R2 | 4 | 1.57mm | Natural | Standard .062" Pin and Socket Receptacle Housing | Dual Row | https://www.molex.com/en-us/products/part-detail/469990807#documents-and-resources |
| 03061062 | 1625-6R1 | 6 | 1.57mm | Natural | Standard .062" Pin and Socket Receptacle Housing | without Mounting Ears | https://www.molex.com/en-us/products/part-detail/03061062#documents-and-resources |
| 03062061 | 1625-6P1 | 6 | 1.57mm | Natural | Standard .062" Pin and Socket Plug Housing | without Mounting Ears | https://www.molex.com/en-us/products/part-detail/03062061#documents-and-resources |
| 03066062 | 1625-06R1-BK | 6 | 1.57mm | Black | Standard .062" Pin and Socket Receptacle Housing | without Mounting Ears，Black | https://www.molex.com/en-us/products/part-detail/03066062#documents-and-resources |
| 03067061 | 1625-06P1-BK | 6 | 1.57mm | Black | Standard .062" Pin and Socket Plug Housing | with Pre-Bent Mounting Ears，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/03067061#documents-and-resources |
| 39032066 | 1625-06P | 6 | 1.57mm | Natural | Standard .062" Pin and Socket Plug Housing | without Mounting Ears | https://www.molex.com/en-us/products/part-detail/39032066#documents-and-resources |
| 39032067 | 1625-06P1 | 6 | 1.57mm | Natural | Standard .062" Pin and Socket Plug Housing | with Standard Mounting Ears | https://www.molex.com/en-us/products/part-detail/39032067#documents-and-resources |
| 39032068 | 1625-06R | 6 | 1.57mm | Natural | Standard .062" Pin and Socket Receptacle Housing | without Mounting Ears | https://www.molex.com/en-us/products/part-detail/39032068#documents-and-resources |
| 39032069 | 1625-06R1 | 6 | 1.57mm | Natural | Standard .062" Pin and Socket Receptacle Housing | with Standard Mounting Ears | https://www.molex.com/en-us/products/part-detail/39032069#documents-and-resources |
| 469990804 | 1625-6P2 | 6 | 1.57mm | Natural | Standard .062" Pin and Socket Plug Housing | with Pre-bent Mounting Ears | https://www.molex.com/en-us/products/part-detail/469990804#documents-and-resources |
| 469990805 | 1625-6R2 | 6 | 1.57mm | Natural | Standard .062" Pin and Socket Receptacle Housing | Dual Row，with Pre-bent Mounting Ears，PA Polyamide Nylon 6/6，UL 94V-2 | https://www.molex.com/en-us/products/part-detail/469990805#documents-and-resources |
| 03061092 | 1625-9R1 | 9 | 1.57mm | Natural | Standard .062" Pin and Socket Receptacle Housing | without Mounting Ears | https://www.molex.com/en-us/products/part-detail/03061092#documents-and-resources |
| 03062092 | 1625-9P1 | 9 | 1.57mm | Natural | Standard .062" Pin and Socket Plug Housing | with Pre-bent Mounting Ears | https://www.molex.com/en-us/products/part-detail/03062092#documents-and-resources |
| 50361871 | 1625-9R4 | 9 | 1.57mm | Natural | Standard .062" Pin and Socket Receptacle Housing | with Pre-bent Mounting Ears，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/50361871#documents-and-resources |
| 50362281 | 1625-9R4-1 | 9 | 1.57mm | Black | Standard .062" Pin and Socket Receptacle Housing | with Pre-bent Mounting Ears，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/50362281#documents-and-resources |
| 469990717 | 1625-9P4 | 9 | 1.57mm | Natural | Standard .062" Pin and Socket Plug Housing | with Pre-bent Mounting Ears，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/469990717#documents-and-resources |
| 469990718 | 1625-9P4-1 | 9 | 1.57mm | Black | Standard .062" Pin and Socket Plug Housing | Dual Row，with Pre-bent Mounting Ears，PA Polyamide Nylon 6/6，UL 94V-2 | https://www.molex.com/en-us/products/part-detail/469990718#documents-and-resources |
| 03061121 | 1625-12R | 12 | 1.57mm | Natural | Standard .062" Pin and Socket Receptacle Housing | with Standard Mounting Ears | https://www.molex.com/en-us/products/part-detail/03061121#documents-and-resources |
| 03061122 | 1625-12R1 | 12 | 1.57mm | Natural | Standard .062" Pin and Socket Receptacle Housing | without Mounting Ears | https://www.molex.com/en-us/products/part-detail/03061122#documents-and-resources |
| 03062121 | 1625-12P | 12 | 1.57mm | Natural | Standard .062" Pin and Socket Plug Housing | without Mounting Ears | https://www.molex.com/en-us/products/part-detail/03062121#documents-and-resources |
| 03062122 | 1625-12P1 | 12 | 1.57mm | Natural | Standard .062" Pin and Socket Plug Housing | without Mounting Ears | https://www.molex.com/en-us/products/part-detail/03062122#documents-and-resources |
| 26013159 | 1625-12P1-1 | 12 | 1.57mm | Black | Standard .062" Pin and Socket Plug Housing | with Pre-bent Mounting Ears，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/26013159#documents-and-resources |
| 26013161 | 1625-12R-1 | 12 | 1.57mm | Natural | Standard .062" Pin and Socket Receptacle Housing | with Standard Mounting Ears | https://www.molex.com/en-us/products/part-detail/26013161#documents-and-resources |
| 39033154 | 1625-15P | 15 | 1.57mm | Natural | Standard .062" Pin and Socket Plug Housing | without Mounting Ears | https://www.molex.com/en-us/products/part-detail/39033154#documents-and-resources |
| 39033155 | 1625-15P1 | 15 | 1.57mm | Natural | Standard .062" Pin and Socket Plug Housing | with Standard Mounting Ears | https://www.molex.com/en-us/products/part-detail/39033155#documents-and-resources |
| 39033156 | 1625-15R | 15 | 1.57mm | Natural | Standard .062" Pin and Socket Receptacle Housing | without Mounting Ears | https://www.molex.com/en-us/products/part-detail/39033156#documents-and-resources |
| 39033157 | 1625-15R1 | 15 | 1.57mm | Natural | Standard .062" Pin and Socket Receptacle Housing | with Pre-bent Mounting Ears | https://www.molex.com/en-us/products/part-detail/39033157#documents-and-resources |
Standard .062 Connector Applications
Networking
- 1U Rack Box: In high-density data center environments, these connectors are often used in 1U rack-mounted devices, providing secure connections for power and data transmission.
- Blade Servers: In compact blade server configurations, Molex .062" connectors are used for power distribution and high-speed data connections, ensuring efficient operation in tight spaces.
- Fan Tray Assemblies: For cooling systems in servers and network equipment, these connectors ensure reliable power and signal connections to fan trays, which are critical for maintaining optimal temperatures.
- Rack-Mount Servers: These connectors are commonly found in the backplane and power distribution units of rack-mounted server systems, facilitating robust connections for data and power lines.
- Storage Racks: Molex .062" connectors are also utilized in storage systems, providing reliable connections for storage devices such as hard drives and SSDs in rack-mounted configurations.
Consumer
- Refrigerators: In consumer appliances like refrigerators, these connectors are used for power, control signals, and sensor connections, ensuring longevity and stable performance.
- Appliances: Molex .062" connectors are also present in a range of other household appliances, where compact, secure connections are required for various functionalities, such as motors, lighting, and temperature sensors.
Data/Communications
- Desktop Computers: Within desktop computers, these connectors are commonly used on power supplies, motherboard connections, and peripheral devices, delivering stable and consistent electrical connectivity.
- Motherboards: In computing systems, Molex .062" connectors provide essential power and data links on motherboards, enabling communication between the CPU, memory, and expansion cards.
Molex Standard .062" connectors are versatile and reliable components employed across numerous sectors, including networking, consumer appliances, and data/communications systems. These connectors are crucial in applications ranging from high-density servers and storage devices to everyday household appliances, offering robust performance and secure connections. This list highlights common uses, but the range of applications for Molex .062" connectors is far broader, extending to other industrial, automotive, and consumer electronics markets.
Support Custom Wire Harness Assembly
- Connector circuits: 1 - 15Pin
- Wire Gauge: 18 - 24AWG, depending on real needs
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type: Fully customizable to your specifications.
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
