Molex Standard .093 Connector
Molex Standard 0.093" Pin and Socket Connectors are versatile and reliable interconnect solutions designed to meet the demands of medium-power applications. This connector system, built around a 0.093" pin diameter, is a widely recognized industry standard that offers flexibility in both design and application. The terminals are compatible with crimp housings and crimp receptacles, allowing for easy integration into various systems. With current-carrying capabilities of up to 14A, these connectors provide efficient power transmission, with a maximum of 9A for standard circuit sizes and up to 17A when paired with high-current, low-force terminals. The system supports both wire-to-wire and wire-to-board configurations, offering up to 15 circuits per connector, making it ideal for a wide range of applications, including consumer electronics, networking, and data/communications systems. With robust construction and reliable performance, Molex Standard 0.093" Pin and Socket Connectors are an excellent choice for designers seeking a durable, high-performance connector solution in medium-power environments.
Standard .093 Connector Features
- Industry-standard 0.093" pin and socket terminal
- Terminals can be used in Standard 0.093" and Series 3191, plug or receptacle housings
- High-current terminal available for applications up to 17A
- Offers design flexibility

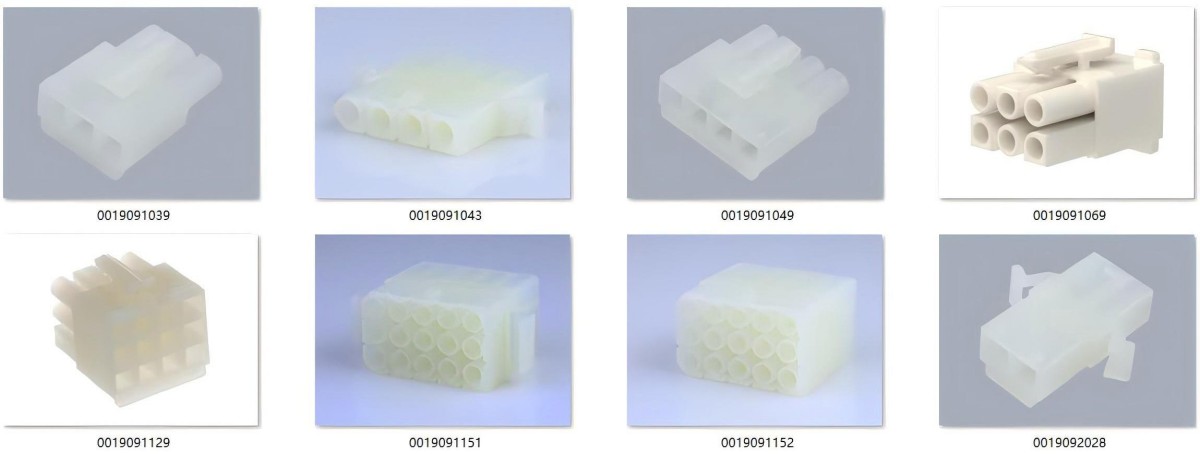

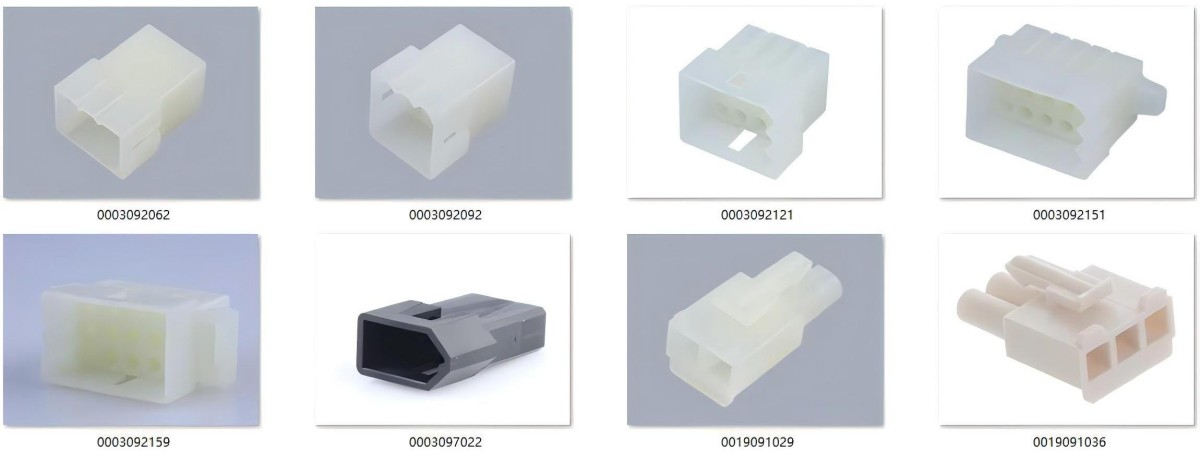

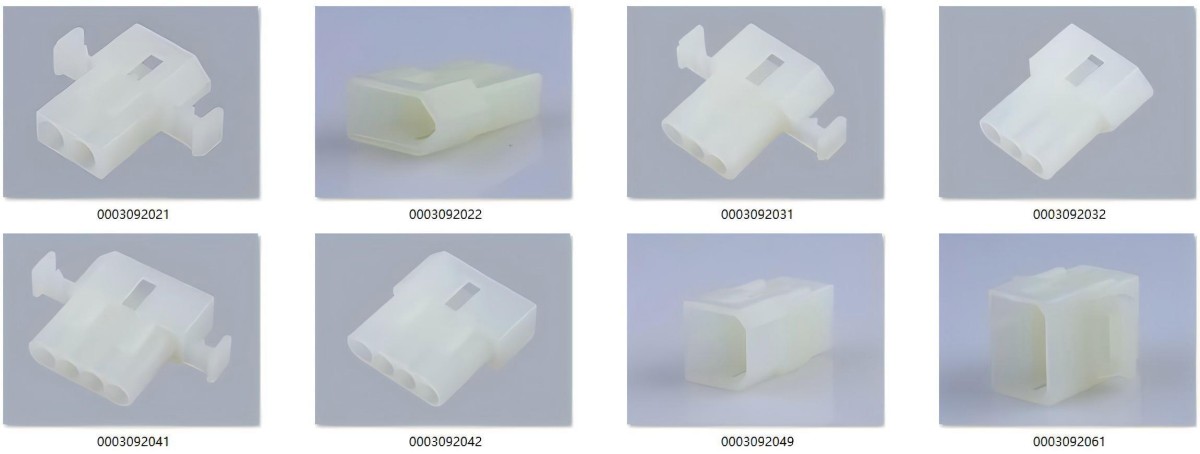

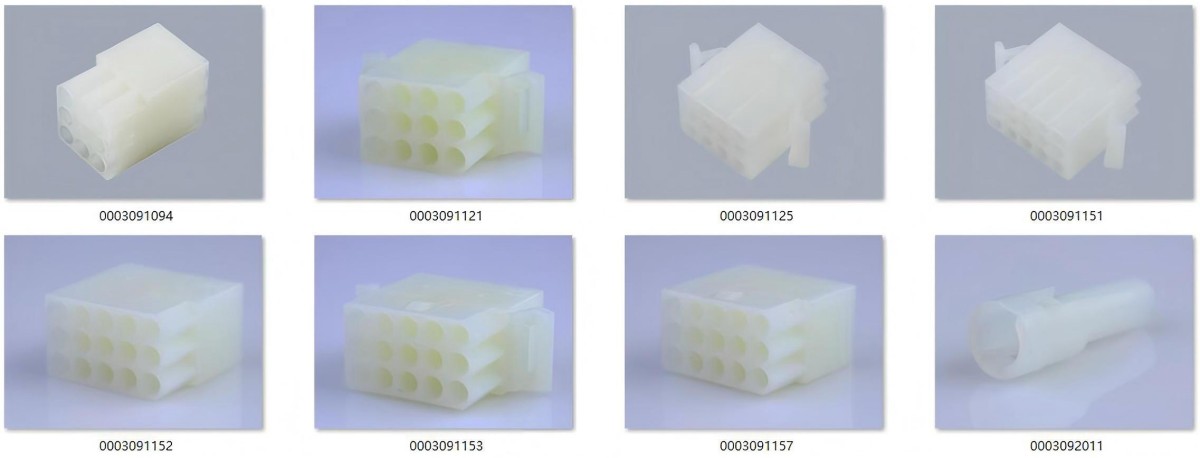

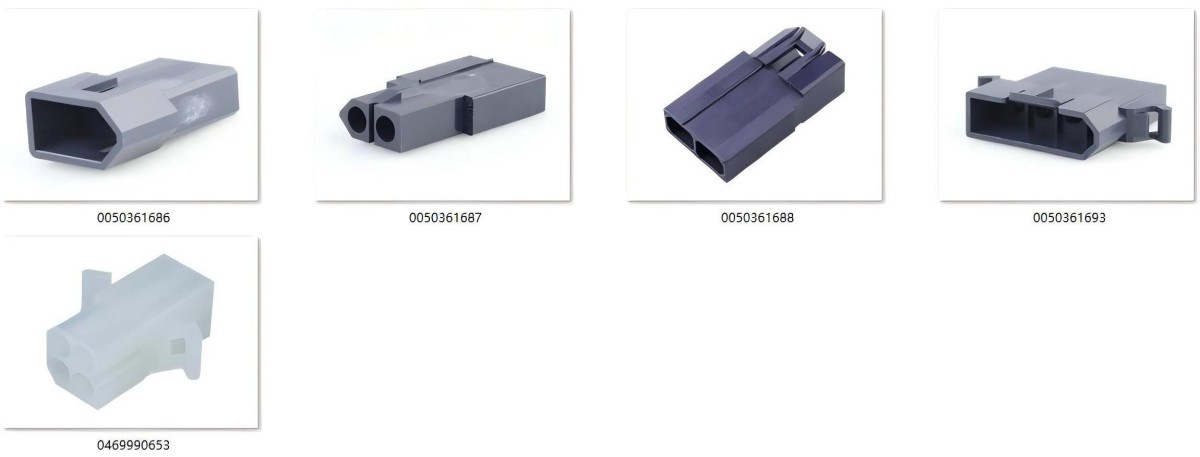

Standard .093 Connector Specifications Chart
Sort by the number of circuits.
| P/N | Old P/N | Circuit | Pin Diameter | Type | Descriptions | Datasheet |

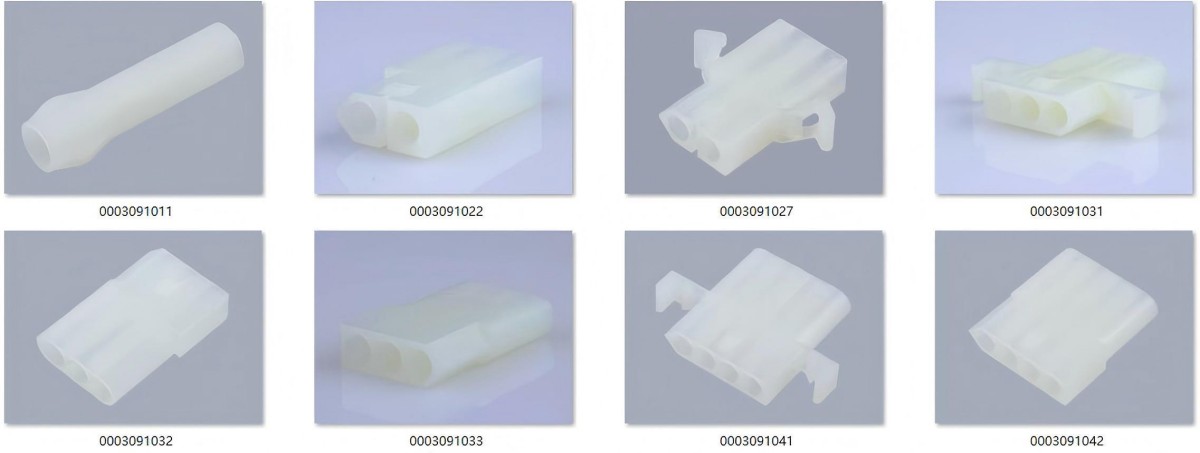

| 03091011 | 1619-1R1B5N1A5 | 1 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing | Friction Lock，Natural | https://www.molex.com/en-us/products/part-detail/03091011#documents-and-resources |
| 03092011 | 1619-1P1A5M1A | 1 | 2.36mm | Standard .093" Pin and Socket Plug Housing | Friction Lock，Natural | https://www.molex.com/en-us/products/part-detail/03092011#documents-and-resources |
| 19091016 | 3191-1R1-201 | 1 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing with Positive Latch | UL 94V-0 | https://www.molex.com/en-us/products/part-detail/19091016#documents-and-resources |
| 19091019 | 3191-1R1 | 1 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing with Positive Latch | UL 94V-2 | https://www.molex.com/en-us/products/part-detail/19091019#documents-and-resources |
| 19092016 | 3191-1P1-201 | 1 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-0 | https://www.molex.com/en-us/products/part-detail/19092016#documents-and-resources |
| 19092017 | 3191-1P-201 | 1 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-0，with Panel Mount | https://www.molex.com/en-us/products/part-detail/19092017#documents-and-resources |
| 19092018 | 3191-1P | 1 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-2，with Panel Mount | https://www.molex.com/en-us/products/part-detail/19092018#documents-and-resources |
| 19092019 | 3191-1P1 | 1 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-2，without Panel Mount | https://www.molex.com/en-us/products/part-detail/19092019#documents-and-resources |
| 39036010 | 3191-01P | 1 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-2，with Panel Mount | https://www.molex.com/en-us/products/part-detail/39036010#documents-and-resources |
| 39036011 | 3191-01P-201 | 1 | 2.36mm | Standard .093" Pin and Socket Plug Housing with PositiveLatch | UL 94V-0，with Panel Mount | https://www.molex.com/en-us/products/part-detail/39036011#documents-and-resources |
| 39036012 | 3191-01P1 | 1 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-2，without Panel Mount | https://www.molex.com/en-us/products/part-detail/39036012#documents-and-resources |
| 39036014 | 3191-01R1 | 1 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing with Positive Latch | UL 94V-2，without Panel Mount | https://www.molex.com/en-us/products/part-detail/39036014#documents-and-resources |
| 03091022 | 1545-R1 | 2 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing | without Mounting Ears，with Ramps，Natural | https://www.molex.com/en-us/products/part-detail/03091022#documents-and-resources |
| 03091027 | 1545-R3 | 2 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing | with Pre-bent Mounting Ears，with Ramps，Natural | https://www.molex.com/en-us/products/part-detail/03091027#documents-and-resources |
| 03092021 | 1545-P | 2 | 2.36mm | Standard .093" Pin and Socket Plug Housing | with Standard Mounting Ears，Natural | https://www.molex.com/en-us/products/part-detail/03092021#documents-and-resources |
| 03092022 | 1545-P1 | 2 | 2.36mm | Standard .093" Pin and Socket Plug Housing | without Mounting Ears，Natural | https://www.molex.com/en-us/products/part-detail/03092022#documents-and-resources |
| 03096021 | 1545R3BK | 2 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing | with Pre-bent Mounting Ears，with Ramps，Black | https://www.molex.com/en-us/products/part-detail/03096021#documents-and-resources |
| 03097022 | 1545P1BK | 2 | 2.36mm | Standard .093" Pin and Socket Plug Housing | without Mounting Ears，Black | https://www.molex.com/en-us/products/part-detail/03097022#documents-and-resources |
| 19091026 | 3191-2R1-201 | 2 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing with Positive Latch | UL 94V-0 | https://www.molex.com/en-us/products/part-detail/19091026#documents-and-resources |
| 19091029 | 3191-2R1 | 2 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing with Positive Latch | UL 94V-2 | https://www.molex.com/en-us/products/part-detail/19091029#documents-and-resources |
| 19092026 | 3191-2P1-201 | 2 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-0，without Panel Mount | https://www.molex.com/en-us/products/part-detail/19092026#documents-and-resources |
| 19092027 | 3191-2P-201 | 2 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-0，with Panel Mount | https://www.molex.com/en-us/products/part-detail/19092027#documents-and-resources |
| 19092028 | 3191-2P | 2 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-2，with Panel Mount | https://www.molex.com/en-us/products/part-detail/19092028#documents-and-resources |

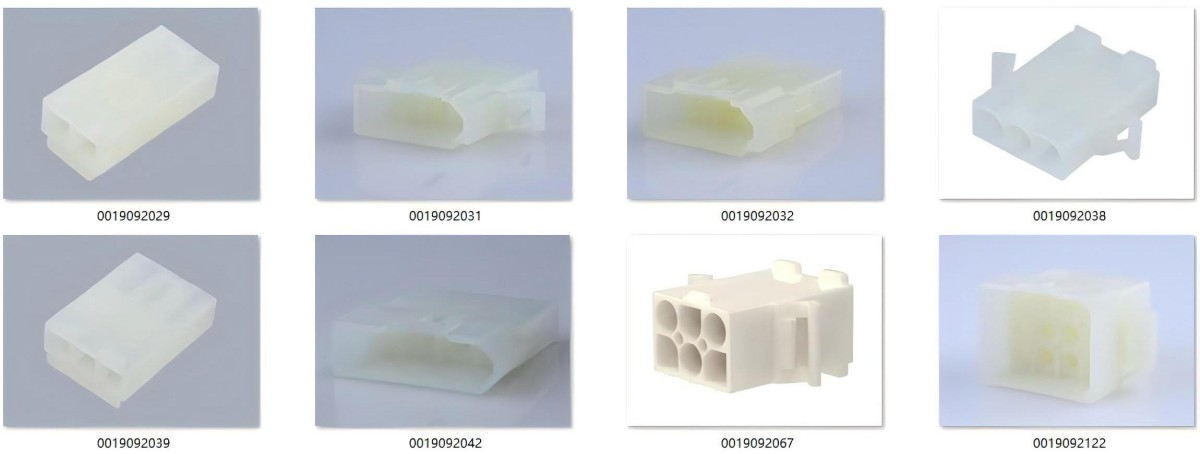

| 19092029 | 3191-2P1 | 2 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-2，without Panel Mount | https://www.molex.com/en-us/products/part-detail/19092029#documents-and-resources |
| 50361685 | 1545-R1-1 | 2 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing | without Mounting Ears，with Ramps，Natural，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/50361685#documents-and-resources |
| 50361686 | 1545-P1-1 | 2 | 2.36mm | Standard .093" Pin and Socket Plug Housing | without Mounting Ears，Black，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/50361686#documents-and-resources |
| 50361687 | 42191-2R1-1 | 2 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing without Mounting Ears | Positive Lock，Black，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/50361687#documents-and-resources |
| 50361688 | 42191-2P1-1 | 2 | 2.36mm | Standard .093" Pin and Socket Plug Housing without Mounting Ears | Positive Lock，Glow-Wire Capable，Black | https://www.molex.com/en-us/products/part-detail/50361688#documents-and-resources |
| 03091031 | 1396-R | 3 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing | Single Row，Natural | https://www.molex.com/en-us/products/part-detail/03091031#documents-and-resources |
| 03091032 | 1396-R1 | 3 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing | Single Row，Natural | https://www.molex.com/en-us/products/part-detail/03091032#documents-and-resources |
| 03091033 | 1396-R2 | 3 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing | Single Row，Free-Hanging，without Passive Lock Ramps，Natural | https://www.molex.com/en-us/products/part-detail/03091033#documents-and-resources |
| 03091081 | 1396-R4 | 3 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing | Single Row，Natural | https://www.molex.com/en-us/products/part-detail/03091081#documents-and-resources |
| 03092031 | 1396-P | 3 | 2.36mm | Standard .093" Pin and Socket Plug Housing | Single Row，Natural | https://www.molex.com/en-us/products/part-detail/03092031#documents-and-resources |
| 03092032 | 1396-P1 | 3 | 2.36mm | Standard .093" Pin and Socket Plug Housing | Single Row，Natural | https://www.molex.com/en-us/products/part-detail/03092032#documents-and-resources |
| 03097032 | 1396-P1-BK | 3 | 2.36mm | Standard .093" Pin and Socket Plug Housing | Single Row，Black | https://www.molex.com/en-us/products/part-detail/03097032#documents-and-resources |
| 19091036 | 3191-3R1-201 | 3 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing with Positive Latch | UL 94V-0 | https://www.molex.com/en-us/products/part-detail/19091036#documents-and-resources |
| 19091039 | 3191-3R1 | 3 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing with Positive Latch | 94V-2 | https://www.molex.com/en-us/products/part-detail/19091039#documents-and-resources |
| 19092031 | 1991-3P | 3 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | with Pre-bent Mounting Ears | https://www.molex.com/en-us/products/part-detail/19092031#documents-and-resources |
| 19092032 | 1991-3P1 | 3 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | without Mounting Ears | https://www.molex.com/en-us/products/part-detail/19092032#documents-and-resources |
| 19092036 | 3191-3P1-201 | 3 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-0，without Panel Mount | https://www.molex.com/en-us/products/part-detail/19092036#documents-and-resources |
| 19092037 | 3191-3P-201 | 3 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-0，with Panel Mount | https://www.molex.com/en-us/products/part-detail/19092037#documents-and-resources |
| 19092038 | 3191-3P | 3 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-2，with Panel Mount | https://www.molex.com/en-us/products/part-detail/19092038#documents-and-resources |
| 19092039 | 3191-3P1 | 3 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-2，without Panel Mount | https://www.molex.com/en-us/products/part-detail/19092039#documents-and-resources |
| 19095039 | 3191-3R1-2 | 3 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing with Positive Latch | 94V-0，without Panel Mount | https://www.molex.com/en-us/products/part-detail/19095039#documents-and-resources |
| 39036030 | 3191-03P | 3 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-2，with Panel Mount | https://www.molex.com/en-us/products/part-detail/39036030#documents-and-resources |
| 39036032 | 3191-03P1 | 3 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-2，without Panel Mount | https://www.molex.com/en-us/products/part-detail/39036032#documents-and-resources |
| 39036034 | 3191-03R1 | 3 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing with Positive Latch | UL 94V-2，without Panel Mount | https://www.molex.com/en-us/products/part-detail/39036034#documents-and-resources |
| 03091041 | 1490-R | 4 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing | Single Row，Natural | https://www.molex.com/en-us/products/part-detail/03091041#documents-and-resources |
| 03091042 | 1490-R1 | 4 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing | Single Row，Natural | https://www.molex.com/en-us/products/part-detail/03091042#documents-and-resources |
| 03091049 | 2163-R1 | 4 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing | Dual Row，without Mounting Ears，Natural | https://www.molex.com/en-us/products/part-detail/03091049#documents-and-resources |
| 03092041 | 1490-P | 4 | 2.36mm | Standard .093" Pin and Socket Plug Housing | Single Row | https://www.molex.com/en-us/products/part-detail/03092041#documents-and-resources |
| 03092042 | 1490-P1 | 4 | 2.36mm | Standard .093" Pin and Socket Plug Housing | Single Row | https://www.molex.com/en-us/products/part-detail/03092042#documents-and-resources |
| 03092049 | 2163-P1 | 4 | 2.36mm | Standard .093" Pin and Socket Plug Housing | Dual Row，without Mounting Ears，Natural | https://www.molex.com/en-us/products/part-detail/03092049#documents-and-resources |
| 19091042 | 1991-4R1 | 4 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing with Positive Latch | without Mounting Ears | https://www.molex.com/en-us/products/part-detail/19091042#documents-and-resources |
| 19091043 | 1991-4R2 | 4 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing with Positive Latch | with Pre-bent Mounting Ears | https://www.molex.com/en-us/products/part-detail/19091043#documents-and-resources |
| 19091046 | 3191-4R1-201 | 4 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing with Positive Latch | UL 94V-0 | https://www.molex.com/en-us/products/part-detail/19091046#documents-and-resources |
| 19091049 | 3191-4R1 | 4 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing with Positive Latch | UL 94V-2 | https://www.molex.com/en-us/products/part-detail/19091049#documents-and-resources |
| 19092042 | 1991-04P1 | 4 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | without Mounting Ears | https://www.molex.com/en-us/products/part-detail/19092042#documents-and-resources |
| 19092043 | 1991-04P2 | 4 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | with Pre-bent Mounting Ears | https://www.molex.com/en-us/products/part-detail/19092043#documents-and-resources |
| 19092046 | 3191-4P1-201 | 4 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-0，without Panel Mount | https://www.molex.com/en-us/products/part-detail/19092046#documents-and-resources |
| 19092047 | 3191-4P-201 | 4 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-0，with Panel Mount | https://www.molex.com/en-us/products/part-detail/19092047#documents-and-resources |
| 19092048 | 3191-4P | 4 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-2，with Panel Mount | https://www.molex.com/en-us/products/part-detail/19092048#documents-and-resources |
| 19092049 | 3191-4P1 | 4 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-2，without Panel Mount | https://www.molex.com/en-us/products/part-detail/19092049#documents-and-resources |
| 39036040 | 3191-04P | 4 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-2，with Panel Mount | https://www.molex.com/en-us/products/part-detail/39036040#documents-and-resources |
| 39036042 | 3191-04P1 | 4 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-2，without Panel Mount | https://www.molex.com/en-us/products/part-detail/39036042#documents-and-resources |
| 39036044 | 3191-04R1 | 4 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing with Positive Latch | UL 94V-2，without Panel Mount | https://www.molex.com/en-us/products/part-detail/39036044#documents-and-resources |
| 50361693 | 1991-4P2-1 | 4 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | with Pre-bent Mounting Ears，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/50361693#documents-and-resources |
| 50361743 | 1991-4P1-1 | 4 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | without Mounting Ears，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/50361743#documents-and-resources |
| 469990652 | 2163-P2 | 4 | 2.36mm | Standard .093" Pin and Socket Plug Housing | Dual Row，with Pre-bent Mounting Ears，Natural | https://www.molex.com/en-us/products/part-detail/469990652#documents-and-resources |
| 469990653 | 2163-R2 | 4 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing | Dual Row，with Pre-bent Mounting Ears，Natural | https://www.molex.com/en-us/products/part-detail/469990653#documents-and-resources |
| 03091061 | 1261-R | 6 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing | Dual Row，Natural | https://www.molex.com/en-us/products/part-detail/03091061#documents-and-resources |
| 03091062 | 1261-R1 | 6 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing | Dual Row，Natural | https://www.molex.com/en-us/products/part-detail/03091062#documents-and-resources |
| 03091063 | 1261-R2 | 6 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing | Dual Row，without Panel Mount Ears，without Friction Lock Ramp | https://www.molex.com/en-us/products/part-detail/03091063#documents-and-resources |
| 03091064 | 1261-R3 | 6 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing | Dual Row，Natural | https://www.molex.com/en-us/products/part-detail/03091064#documents-and-resources |
| 03092061 | 1261-P | 6 | 2.36mm | Standard .093" Pin and Socket Plug Housing | Dual Row | https://www.molex.com/en-us/products/part-detail/03092061#documents-and-resources |
| 03092062 | 1261-P1 | 6 | 2.36mm | Standard .093" Pin and Socket Plug Housing | Dual Row | https://www.molex.com/en-us/products/part-detail/03092062#documents-and-resources |
| 19091066 | 3191-6R1-201 | 6 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing with Positive Latch | UL 94V-0 | https://www.molex.com/en-us/products/part-detail/19091066#documents-and-resources |
| 19091069 | 3191-6R1 | 6 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing with Positive Latch | UL 94V-2 | https://www.molex.com/en-us/products/part-detail/19091069#documents-and-resources |
| 19092066 | 3191-6P1-201 | 6 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-0，without Panel Mount | https://www.molex.com/en-us/products/part-detail/19092066#documents-and-resources |
| 19092067 | 3191-6P-201 | 6 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-0，with Panel Mount | https://www.molex.com/en-us/products/part-detail/19092067#documents-and-resources |
| 19092068 | 3191-6P | 6 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-2，with Panel Mount | https://www.molex.com/en-us/products/part-detail/19092068#documents-and-resources |
| 19092069 | 3191-6P1 | 6 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-2，without Panel Mount | https://www.molex.com/en-us/products/part-detail/19092069#documents-and-resources |
| 39036060 | 3191-06P | 6 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-2，with Panel Mount | https://www.molex.com/en-us/products/part-detail/39036060#documents-and-resources |

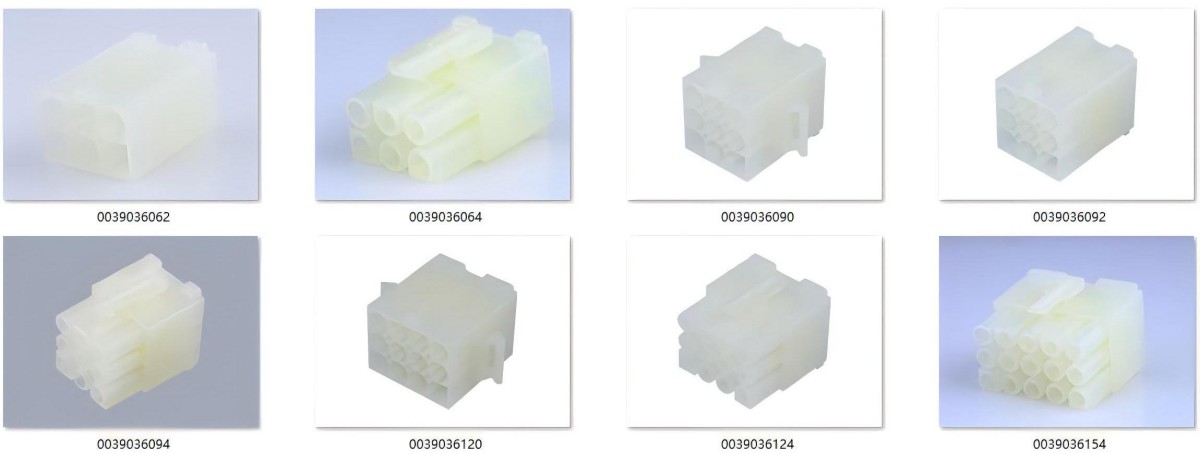

| 39036062 | 3191-06P1 | 6 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-2，without Panel Mount | https://www.molex.com/en-us/products/part-detail/39036062#documents-and-resources |
| 39036064 | 3191-06R1 | 6 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing with Positive Latch | UL 94V-2，without Panel Mount | https://www.molex.com/en-us/products/part-detail/39036064#documents-and-resources |
| 03091092 | 1292-R1 | 9 | 2.36mm | Standard .093" Pin and Socket Receptacle Housings | 3 Rows，with Panel Mount Ears，without Passive Lock Ramp | https://www.molex.com/en-us/products/part-detail/03091092#documents-and-resources |
| 03091093 | 1292-R2 | 9 | 2.36mm | Standard .093" Pin and Socket Receptacle Housings | 3 Rows，without Panel Mount Ears，without Passive Lock Ramp | https://www.molex.com/en-us/products/part-detail/03091093#documents-and-resources |
| 03091094 | 1292-R3 | 9 | 2.36mm | Standard .093" Pin and Socket Receptacle Housings | 3 Rows，Natural | https://www.molex.com/en-us/products/part-detail/03091094#documents-and-resources |
| 03092092 | 1292-P1 | 9 | 2.36mm | Standard .093" Pin and Socket Plug Housings | 3 Rows | https://www.molex.com/en-us/products/part-detail/03092092#documents-and-resources |
| 19091096 | 3191-9R1-201 | 9 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing with Positive Latch | UL 94V-0 | https://www.molex.com/en-us/products/part-detail/19091096#documents-and-resources |
| 19091099 | 3191-9R1 | 9 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing with Positive Latch | UL 94V-2 | https://www.molex.com/en-us/products/part-detail/19091099#documents-and-resources |
| 19092096 | 3191-9P1-201 | 9 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-0，without Panel Mount | https://www.molex.com/en-us/products/part-detail/19092096#documents-and-resources |
| 19092097 | 3191-9P-201 | 9 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-0，with Panel Mount | https://www.molex.com/en-us/products/part-detail/19092097#documents-and-resources |
| 19092098 | 3191-9P | 9 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-2，with Panel Mount | https://www.molex.com/en-us/products/part-detail/19092098#documents-and-resources |
| 19092099 | 3191-9P1 | 9 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-2，without Panel Mount | https://www.molex.com/en-us/products/part-detail/19092099#documents-and-resources |
| 39036090 | 3191-09P | 9 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-2，with Panel Mount | https://www.molex.com/en-us/products/part-detail/39036090#documents-and-resources |
| 39036092 | 3191-09P1 | 9 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-2，without Panel Mount | https://www.molex.com/en-us/products/part-detail/39036092#documents-and-resources |
| 39036094 | 3191-09R1 | 9 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing with Positive Latch | UL 94V-2，without Panel Mount | https://www.molex.com/en-us/products/part-detail/39036094#documents-and-resources |
| 03091121 | 1360-R | 12 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing | 3 Rows，Panel Mountable，without Passive Locking Ramps | https://www.molex.com/en-us/products/part-detail/03091121#documents-and-resources |
| 03091125 | 1360-R2 | 12 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing | 3 Rows，Natural | https://www.molex.com/en-us/products/part-detail/03091125#documents-and-resources |
| 03092121 | 1360-P | 12 | 2.36mm | Standard .093" Pin and Socket Plug Housing | 3 Rows | https://www.molex.com/en-us/products/part-detail/03092121#documents-and-resources |
| 19091122 | 1991-12R1 | 12 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing with Positive Latch | 3 Rows，Free Hanging | https://www.molex.com/en-us/products/part-detail/19091122#documents-and-resources |
| 19091126 | 3191-12R1-201 | 12 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing with Positive Latch | UL 94V-0 | https://www.molex.com/en-us/products/part-detail/19091126#documents-and-resources |
| 19091129 | 3191-12R1 | 12 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing with Positive Latch | UL 94V-2 | https://www.molex.com/en-us/products/part-detail/19091129#documents-and-resources |
| 19092122 | 1991-12P2 | 12 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | 3 Rows，Panel Mount | https://www.molex.com/en-us/products/part-detail/19092122#documents-and-resources |
| 19092127 | 3191-12P-201 | 12 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-0，with Panel Mount | https://www.molex.com/en-us/products/part-detail/19092127#documents-and-resources |
| 19092128 | 3191-12P | 12 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-2，with Panel Mount | https://www.molex.com/en-us/products/part-detail/19092128#documents-and-resources |
| 19092129 | 3191-12P1 | 12 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-2，without Panel Mount | https://www.molex.com/en-us/products/part-detail/19092129#documents-and-resources |
| 39036120 | 3191-12P | 12 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-2，Panel Mount，without Panel Mount | https://www.molex.com/en-us/products/part-detail/39036120#documents-and-resources |
| 39036124 | 3191-12R1 | 12 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing with Positive Latch | UL 94V-2，without Panel Mount | https://www.molex.com/en-us/products/part-detail/39036124#documents-and-resources |
| 03091151 | 1375-R | 15 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing | 3 Rows，with Pre-Bent Mounting Ears，without Lock Ramps | https://www.molex.com/en-us/products/part-detail/03091151#documents-and-resources |
| 03091152 | 1375-R1 | 15 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing | 3 Rows，without Mounting Ears，without Lock Ramps | https://www.molex.com/en-us/products/part-detail/03091152#documents-and-resources |
| 03091153 | 1375-R2 | 15 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing | 3 Rows，with Pre-bent Mounting Ears，with Lock Ramps | https://www.molex.com/en-us/products/part-detail/03091153#documents-and-resources |
| 03091157 | 1375-R6-1 | 15 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing | 3 Rows，without Mounting Ears，with Lock Ramps | https://www.molex.com/en-us/products/part-detail/03091157#documents-and-resources |
| 03092151 | 1375-P | 15 | 2.36mm | Standard .093" Pin and Socket Plug Housing | 3 Rows，without Mounting Ears，with Pull Tabs，without Lock Windows | https://www.molex.com/en-us/products/part-detail/03092151#documents-and-resources |
| 03092159 | 1375-P4 | 15 | 2.36mm | Standard .093" Pin and Socket Plug Housing | 3 Rows，with Pre-Bent Mounting Ears，without Pull Tabs，with Lock Windows | https://www.molex.com/en-us/products/part-detail/03092159#documents-and-resources |
| 19091151 | 1991-15R2 | 15 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing with Positive Latch | 3 Rows，with Standard Mounting Ears | https://www.molex.com/en-us/products/part-detail/19091151#documents-and-resources |
| 19091152 | 1991-15R1 | 15 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing with Positive Latch | 3 Rows，Free-Hanging | https://www.molex.com/en-us/products/part-detail/19091152#documents-and-resources |
| 19091159 | 3191-15R1 | 15 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing with Positive Latch | UL 94V-0 | https://www.molex.com/en-us/products/part-detail/19091159#documents-and-resources |
| 19092151 | 1991-15P | 15 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | 3 Rows，with Pull Tabs | https://www.molex.com/en-us/products/part-detail/19092151#documents-and-resources |
| 19092153 | 1991-15P2 | 15 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | 3 Rows，with Standard Mounting Ears | https://www.molex.com/en-us/products/part-detail/19092153#documents-and-resources |
| 19092157 | 3191-15P-201 | 15 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-0，with Panel Mount | https://www.molex.com/en-us/products/part-detail/19092157#documents-and-resources |
| 19092158 | 3191-15P | 15 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-2，with Panel Mount | https://www.molex.com/en-us/products/part-detail/19092158#documents-and-resources |
| 39036150 | 3191-15P | 15 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-2，Panel Mount，without Panel Mount | https://www.molex.com/en-us/products/part-detail/39036150#documents-and-resources |
| 39036152 | 3191-15P1 | 15 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | UL 94V-2，without Panel Mount | https://www.molex.com/en-us/products/part-detail/39036152#documents-and-resources |
| 39036154 | 3191-15R1 | 15 | 2.36mm | Standard .093" Pin and Socket Receptacle Housing with Positive Latch | UL 94V-2，without Panel Mount | https://www.molex.com/en-us/products/part-detail/39036154#documents-and-resources |
| 50362277 | 1991-15P-1 | 15 | 2.36mm | Standard .093" Pin and Socket Plug Housing with Positive Latch | with Pull Tabs，Glow-Wire Capable | https://www.molex.com/en-us/products/part-detail/50362277#documents-and-resources |
Standard .093 Connector Applications
Consumer Electronics
- Microwave Ovens: Molex .093" connectors are commonly used in microwave ovens for power distribution and signal connections. Their robust, secure fit makes them ideal for the high-demand environments of home appliances, ensuring long-lasting, stable connections in power circuits and control boards.
- Refrigerators: In refrigerators, these connectors are used for various applications including power connections, control panels, and in the compressor motor assembly. Their resilience to vibrations and temperature changes is crucial for the reliability of home appliances, even in harsh operating conditions.
Networking
- Rack-Mount Servers: Molex .093" connectors are a staple in the assembly of rack-mount servers, where they are used for connecting power supplies, fan assemblies, and internal components. The connectors’ high reliability and ability to handle a range of power and data requirements make them suitable for industrial-grade networking equipment.
Data/Communications
- Desktop Computers and Motherboards: On motherboards and in desktops, Molex .093" connectors are used to interface various components such as power supplies, drives (SATA, IDE), and cooling systems. They ensure strong, stable connections that support high data throughput and consistent power delivery.
- Hard Disk Drives (HDDs): The Molex .093" connectors are commonly found in hard disk drives, serving as key power and data connectors. These connectors are crucial for data integrity and reliable performance in storage devices.
Molex Standard .093" Connectors are commonly utilized across a wide range of industries, including consumer electronics, networking, and data communications. Their applications include, but are not limited to, microwave ovens, refrigerators, rack-mount servers, desktop computers, and hard disk drives. Known for their versatility, they are particularly valuable in situations where robust, high-quality connections are needed to withstand environmental factors such as heat, vibration, and frequent usage. Their widespread use across both power and signal applications makes them a reliable choice for designers and manufacturers in numerous fields.
Support Custom Wire Harness Assembly
- Connector circuits: 1 - 15Pin
- Wire Gauge: 14 - 20AWG, depending on real needs
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type: Fully customizable to your specifications.
- Minimum Order: 100 pieces per order.
Molex Standard .093 Connector 1P Female Cable Assembly
Molex Standard .093 Connector 1P Female Wire Harness
Molex Standard .093 Connector 1P Male Cable Assembly
Molex Standard .093 Connector 1P Male Wire Harness

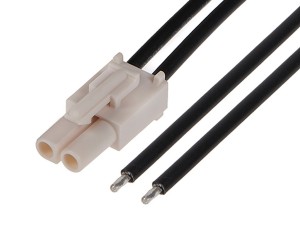

Molex Standard .093 Connector 2P Male Cable Assembly
Molex Standard .093 Connector 2P Male Wire Harness

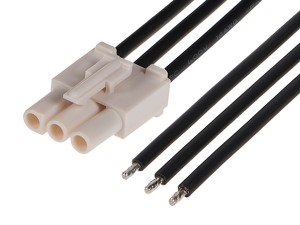

Molex Standard .093 Connector 3P Male Cable Assembly

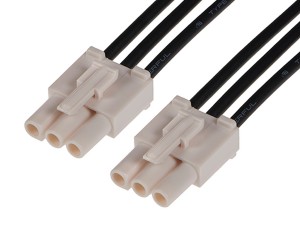

Molex Standard .093 Connector 3P Male Wire Harness

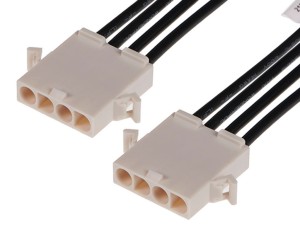

Molex Standard .093 Connector 4P Female Wire Harness

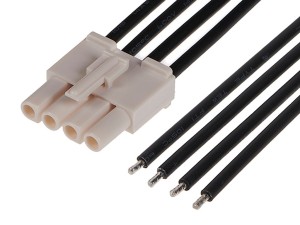

Molex Standard .093 Connector 4P Male Cable Assembly

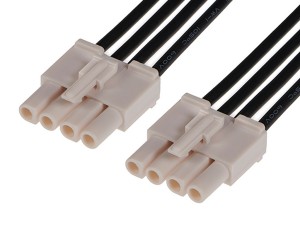

Molex Standard .093 Connector 4P Male Wire Harness

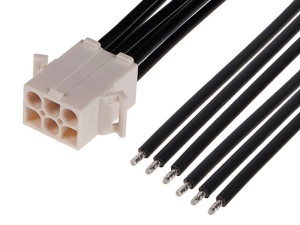

Molex Standard .093 Connector 6P Female Cable Assembly

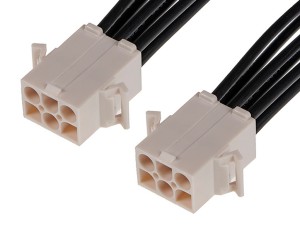

Molex Standard .093 Connector 6P Female Wire Harness

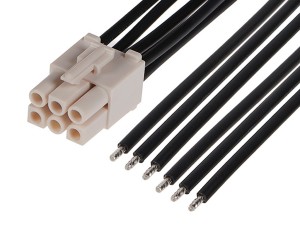

Molex Standard .093 Connector 6P Male Cable Assembly

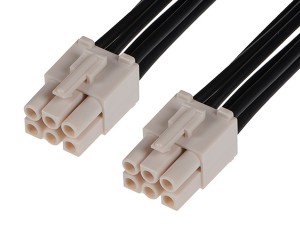

Molex Standard .093 Connector 6P Male Wire Harness
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
