Molex VersaBlade Connector

The Molex VersaBlade Wire-to-Wire Connector System delivers dependable signal and power transmission for a wide range of applications, with the standard variant rated for 300V/15A and the high-temperature version capable of 600V/14A. Designed for robust performance, the standard VersaBlade system operates within a broad temperature range of -40°C to +110°C, ensuring durability in demanding environments. Featuring superior mating reliability and intuitive polarization, these connectors simplify harness assembly while preventing mismating, providing consistent and reliable signal and power connections. Combining power and signal capabilities in a single system, VersaBlade connectors offer versatility and efficiency for modern electronic applications. The ATP series within this system is tailored for use in appliances such as air conditioners, microwave ovens, washing machines, heat pumps, refrigerators, and HVAC systems, making it a trusted solution for industries requiring precision, safety, and long-lasting performance.

VersaBlade Connector Features

• Polarized housing and terminal dimple prevent incorrect connector insertion and mating
• Wide, flat-blade tab terminals support high voltage and current (300V/15A) for standard versions, (600V/14A maximum) for high-temperature versions
• The plastic hook on the housing captures the hole on the terminal improving terminal-to-housing retention while eliminating flares or weak metal tangs
• Multi-branched wiring capabilities for design flexibility
• Dual-row system facilitates heat dissipation and low engagement force
• Terminals can be crimped with two wires for daisy-chain connections
• Friction and positive lock provides improved mating retention
• Variety of TPA types to ensure wires are fully inserted
• Glow-wire-capable housing meets global safety and environmental requirements
• Snap-in mounting ear option to reduce time and cost
• 10mΩ contact resistance
• 100MΩ insulation resistance
• 3.5kgf maximum contact insertion force
• 4.0kgf minimum contact retention to housing
• 30-cycle maximum durability
• 1 to 9 positions, 1 to 3 rows
• 6.2mm to 8.7mm pitch range
• 7.8mm to 8.9mm row spacing range
• 24AWG to 14AWG wire gauge range
• Operating temperature ranges
  • -40°C to +120°C for PBT
  • -40°C to +110°C for GWIT
  • -55°C to +150°C for high-temperature

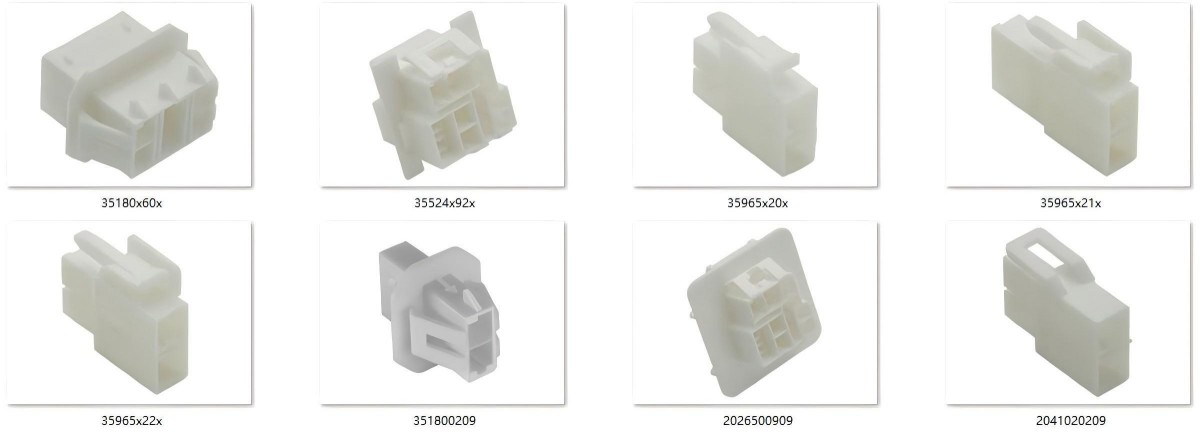

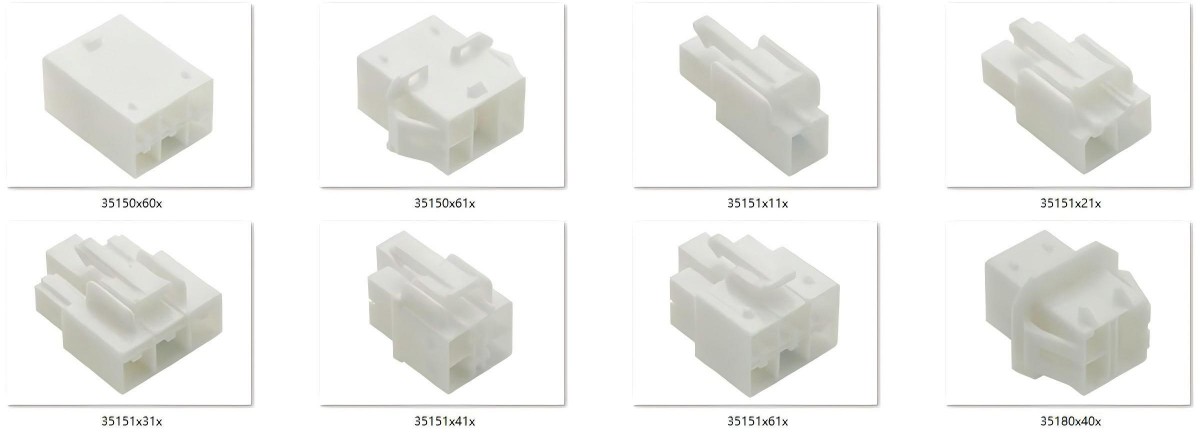

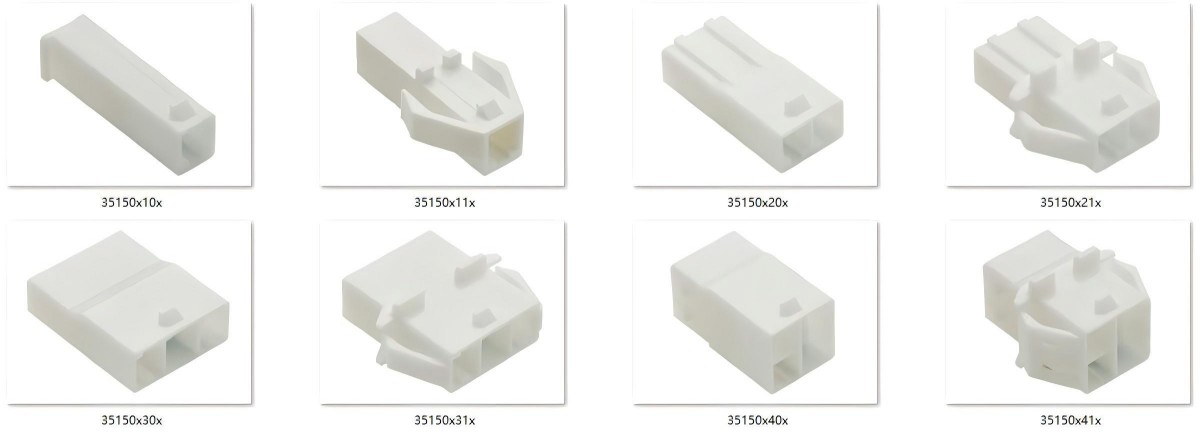

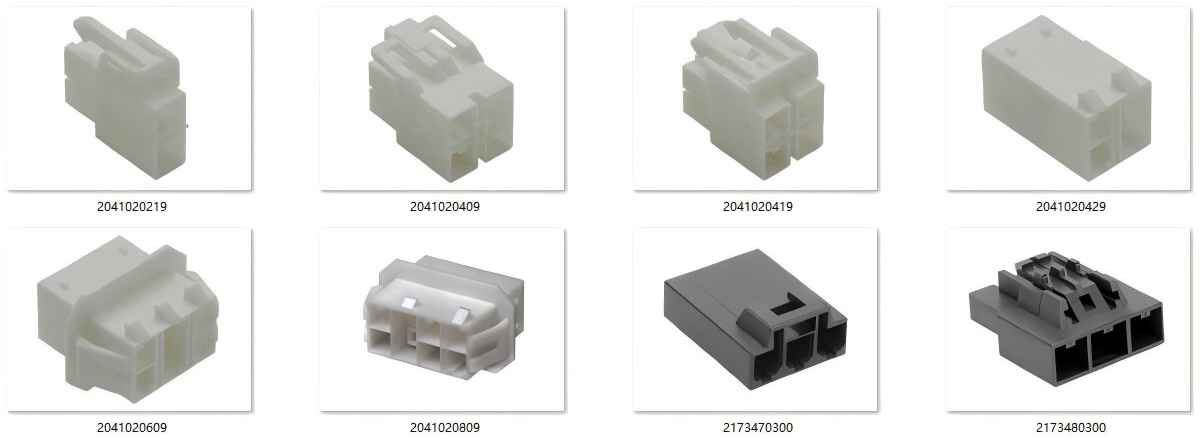

VersaBlade Connector Series

VersaBlade Connector Specifications Chart

VersaBlade Connector Applications

Consumer Applications

• Air Conditioners: Providing stable and durable connections to power and control circuits.
• Air Cleaners/Dehumidifiers: Ensuring reliable operation in devices designed to maintain indoor air quality.
• Fitness Equipment: Supporting electronic components in treadmills, exercise bikes, and other gym machinery.
• Microwave Ovens: Facilitating connections in high-heat and electrically demanding environments.
• Refrigerators: Used in control systems, sensors, and lighting circuits within refrigeration units.
• Washing Machines: Enabling robust connections for motor control and user interface modules.
• Printers: Supporting electronic and mechanical operations for consistent performance.

Medical Equipment

In the medical field, VersaBlade connectors contribute to the dependable functioning of sensitive equipment. Their secure connections ensure precision and reliability, vital in applications such as diagnostic tools, patient monitoring systems, and portable medical devices.

Data/Computing Applications

• Copiers: Facilitating consistent performance in high-use environments.
• Printers: Ensuring reliable electrical connections for data transmission and mechanical operations.

The Molex VersaBlade Wire-to-Wire Connectors are a dependable solution for a diverse range of applications, spanning consumer appliances, medical equipment, and data/computing devices. This list is not exhaustive and represents some of the more common uses. However, these connectors can be applied to many other industries and devices requiring reliable, high-performance electrical connections.

Support Custom Wire Harness Assembly

• Connector circuits: 1 - 9Pin
• Wire Gauge: 14 - 24AWG, depends on real needs
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type: Fully customizable to your specifications.
• Minimum Order: 100 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
