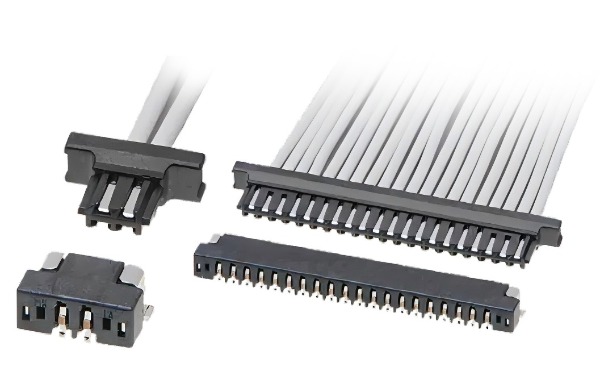

Molex Zero-Hachi 0.80mm Pitch Connector

The Molex Zero-Hachi 0.80mm Pitch Connector System is designed to meet the rigorous demands of shrinking device sizes, addressing space constraints across a variety of applications in the electronics industry. This compact, low-profile system is built with a fine 0.80mm pitch that allows for dense circuit configurations without compromising on durability or performance. Featuring a wide range of circuit sizes, Zero-Hachi connectors support intricate wiring layouts while optimizing space. A standout feature is its dual-point contact system, which significantly enhances electrical reliability, ensuring stable connections and reducing the risk of signal interruption even in high-vibration environments. Additionally, the Wire-to-Board Zero-Hachi system incorporates a robust PCB retention mechanism with a fitting nail, which strengthens the connector’s structural stability by absorbing stress. This nail protects the connector from potential damage if the wires are accidentally pulled upwards, making it an excellent choice for applications that require both compactness and resilience. In summary, the Molex Zero-Hachi 0.80mm Pitch Connector System offers a sophisticated solution for high-density, low-profile applications, ensuring reliability and mechanical security.

Zero-Hachi 0.80mm Pitch Connector Features

• Dual-point contact design
• Low 1.60mm profile height
• Easy-to-grip design
• Friction lock and "Checking-mark" on the crimp housing
• Fitting nail provides robust PCB retention
• U-shaped crimp terminal
• Low-Halogen
• RoHS compliant
• 2 to 20 circuits
• 30V maximum voltage
• Maximum current up to 2.5A
• 32AWG to 28AWG wire range
• -40°C to +85°C operating temperature range
• LCP housing
• Corson copper alloy contacts
• Plating
  • Tin (Sn) in the contact area
  • Nickel (Ni) underplating

Zero-Hachi Connector Specifications Chart

Zero-Hachi Connector Applications

The Molex Zero-Hachi 0.80mm Pitch Connector wire harness is versatile, supporting high-density, compact design requirements across various industries, particularly suited for consumer electronics, connected home devices, and industrial technology applications.

Consumer Electronics

• AR/VR Devices: Zero-Hachi connectors support the high data and power demands for AR/VR headsets, enabling seamless connectivity for immersive user experiences.
• Gaming Headsets: The compact pitch allows for space-saving designs in gaming headsets, ensuring durability and low-profile connections for enhanced audio fidelity.
• Mobile Devices: Designed to meet the compact requirements of smartphones and other handheld electronics, enabling high data transfer in a minimal footprint.
• Tablet PCs: Facilitates reliable and high-speed data transmission essential for tablet functions, balancing form factor with robust connectivity.
• Wearable Devices: Fits the slim, compact designs of wearables like fitness trackers and smartwatches, with a focus on durability and longevity for daily use.

Connected Home

• Smart Speakers: Offers a compact yet robust connection for smart speakers, essential for high-quality audio output and seamless voice-command processing.
• Doorbells: Ideal for the narrow confines of connected doorbells, providing stable power and data connections for efficient video and audio transmission.

Industrial

• Drones: Supports the data and power needs of drones, offering reliability and compactness to meet the demands of high-performance, lightweight devices.
• Unmanned Aerial Vehicles (UAVs): With its small pitch and durable design, the connector supports UAV systems requiring precise, high-speed communication.

These applications highlight common uses for the Molex Zero-Hachi 0.80mm Pitch Connector but do not cover all potential applications, as its versatility can extend into various other compact electronics where reliability and efficient data transfer are key.

Support Custom Wire Harness Assembly

• Connector circuits: 2 - 20 Pin
• Wire Gauge: 32 - 28AWG, depends on real needs
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type: Fully customizable to your specifications.
• Minimum Order: 200 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
