Molex iGrid Connector

The Molex iGrid Wire-to-Board Dual-Row Connectors, with a 2.0mm pitch, deliver a compact, efficient solution for applications that demand secure mating retention in a space-conscious design. Engineered with a unique inner-lock mechanism, the iGrid connectors mitigate common issues found in outer-lock systems, specifically preventing wires from tangling or snagging during connection. This internal latch not only ensures smoother handling but also contributes to a smaller footprint and cleaner assembly, making it ideal for applications with limited space. Users benefit from an audible click during mating, providing reliable feedback and a reassuring sense of secure engagement. The iGrid series is available in both straight and right-angle orientations, accommodating various layout needs and design flexibility. Additionally, these connectors support wire gauges ranging from 28AWG to 22AWG, offering versatility for different current requirements. With options from 10 to 40 circuits, the Molex iGrid connectors are built to withstand rugged handling while maintaining consistent performance, making them suitable for applications in consumer electronics, automotive, and other demanding environments.

Molex iGrid Connector Features

• Compact design
• Fully shrouded headers
• Multiple color options
• Polarization between housing and terminal
• Internal positive lock
• Current rating: 2A
• Voltage Rating: 250V
• Wire gauge: 22-28
• Max insulation diameter: 1.50mm
• Operating Temp: -25°C - +85°C

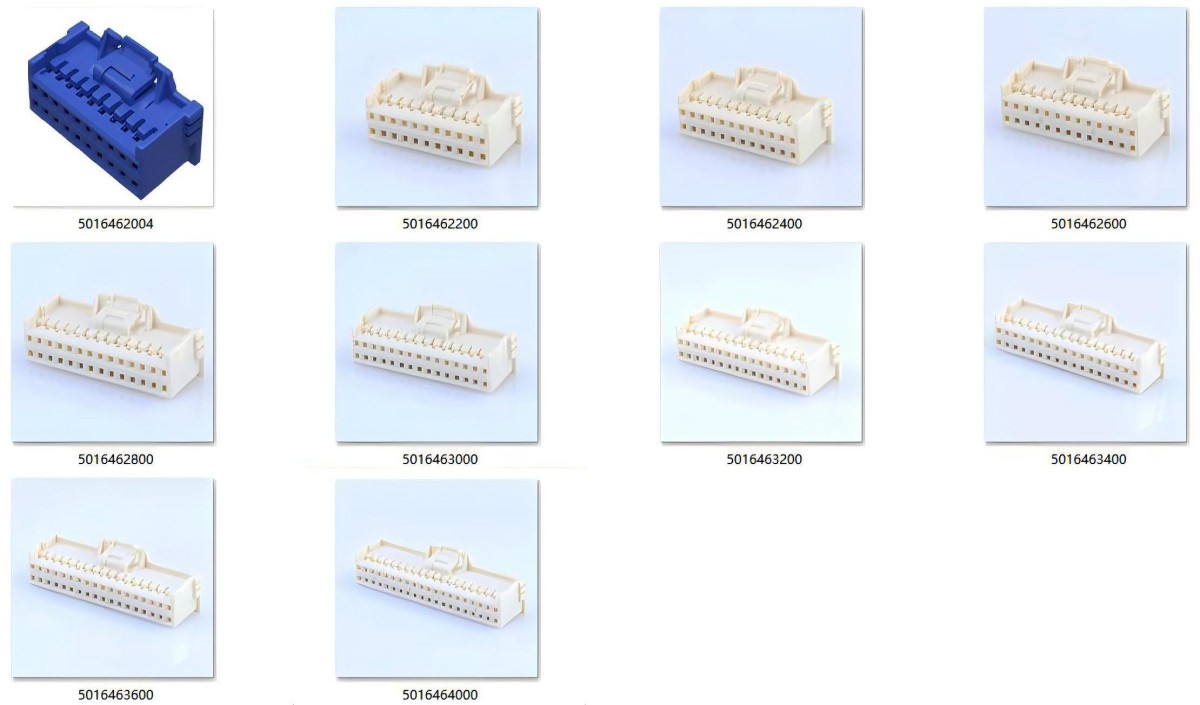

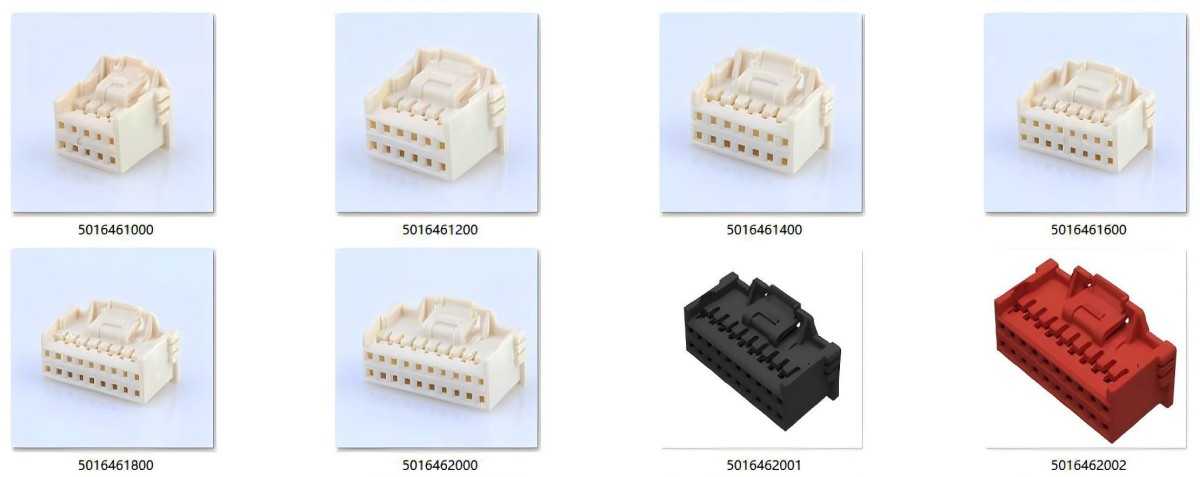

iGrid Connector Specifications Chart

iGrid Connector Applications

Automotive Applications

• GPS Systems: iGrid connectors are frequently used in automotive GPS systems due to their reliable performance and durability in vehicles. They help ensure accurate positioning, navigation, and tracking capabilities, critical in modern vehicles.

Consumer Applications

• Fitness Equipment: In exercise machines and personal fitness equipment, these connectors support reliable connections for electronic displays, tracking sensors, and control panels, ensuring a smooth user experience and functionality.
• Gaming Machines: The iGrid connector is also suited for electronic gaming equipment, where its secure connection enables fast and stable communication between components like motherboards and peripheral devices, enhancing gaming reliability.
• Microwave Ovens: In kitchen appliances such as microwave ovens, iGrid connectors can handle the complex circuitry and controls required for operating displays, timers, and sensor functions.
• Vending Machines: In vending machines, these connectors facilitate reliable electronic communication for item selection, inventory tracking, and payment processing systems.

Industrial Applications

• HVAC Controls: For HVAC systems, iGrid connectors are used to link various control components, ensuring stable operation and efficient communication in heating, ventilation, and air conditioning systems.
• Security Devices: iGrid connectors play a crucial role in security applications, providing secure connections for alarms, surveillance equipment, and access control systems, which require reliable data transmission and power distribution.

Medical Applications

• Medical Monitoring Equipment: In medical monitoring devices, the iGrid connectors support critical connections that ensure accurate data transmission from sensors to monitors, vital for patient care and diagnostics.

Smartphones and Mobile Devices

• GPS: iGrid connectors are also suitable for GPS modules within smartphones and other mobile devices, where they contribute to stable positioning and navigation functionalities.

This list illustrates some of the more common uses of Molex iGrid connectors across various sectors. However, their adaptability and performance make them applicable in a wide range of other industries and devices where compact and reliable connections are needed.

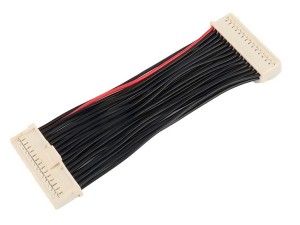

Support Custom Wire Harness Assembly

• Connector circuits: 10 - 40 Pin
• Wire Gauge: 22 - 28AWG, depends on real needs
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type: Fully customizable to your specifications.
• Minimum Order: 100 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
