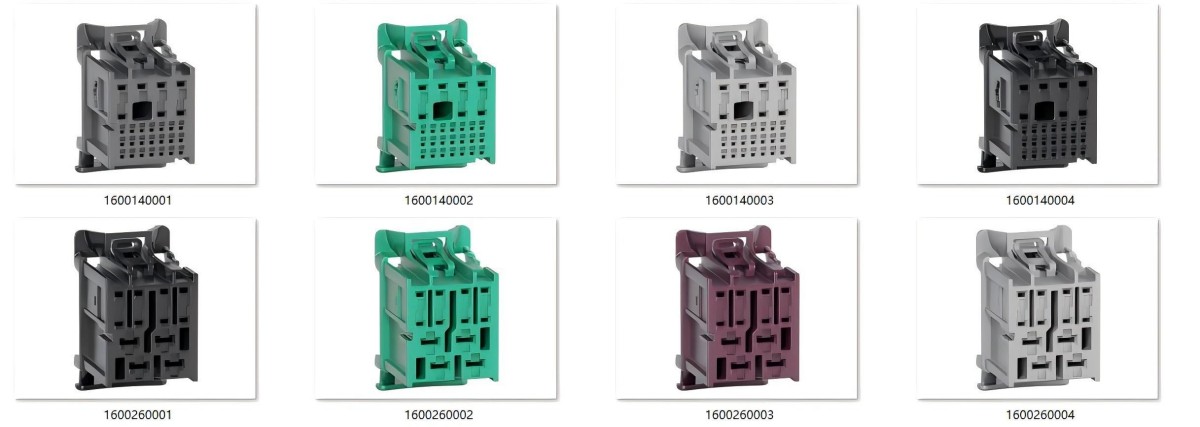

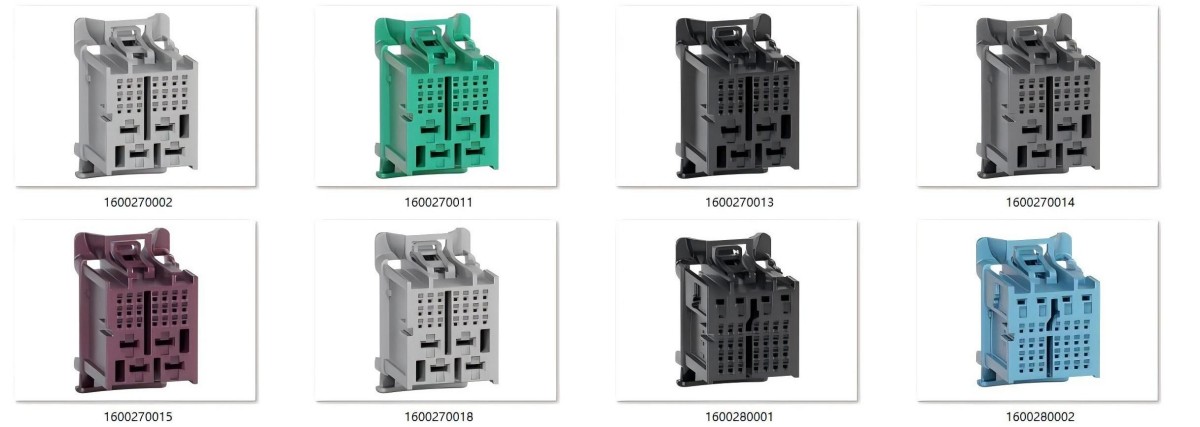

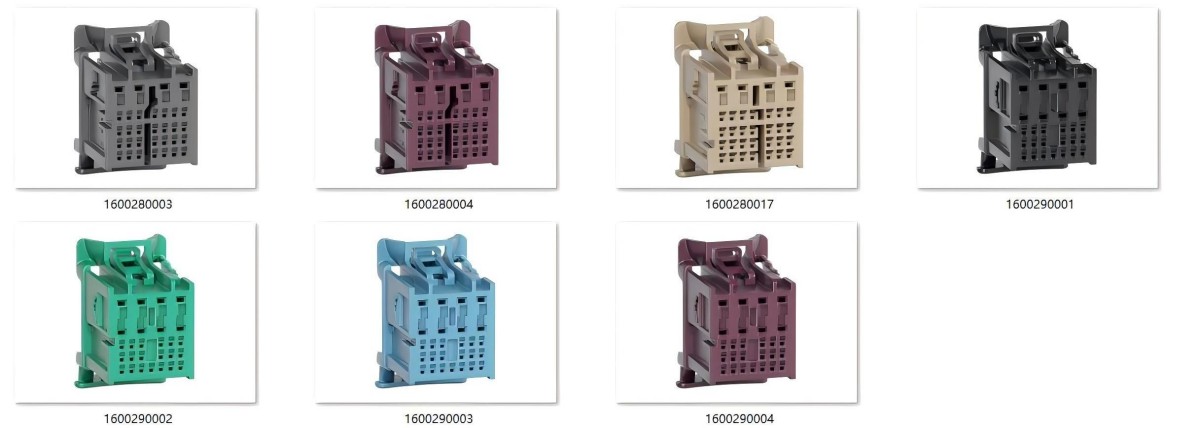

Molex stAK50h Connector
The Molex stAK50h Unsealed Connection System revolutionizes automotive connectivity by combining signal and Ethernet functionalities into a single, compact solution. Designed to streamline wiring and reduce assembly complexity, the stAK50h system eliminates the need for two separate connector systems, enhancing efficiency and space savings. This innovative system features industry-standard 0.50mm and 1.20mm terminal sizes, expertly engineered to fit AK-standard terminal cavities in receptacle housings, ensuring compatibility across diverse applications. Ideal for high-density, low-current signal (up to 4.0A) and Ethernet communication requirements, the stAK50h connector offers exceptional performance in modern vehicle systems. Its hybrid design supports seamless integration into advanced automotive architectures, making it a practical choice for manufacturers seeking reliable, space-efficient solutions for their connectivity needs.
stAK50h Connector Features
- Standard USCAR color-coded housings
- Supports visual polarization
- Expedites connector system assembly
- Compliant with USCAR-2 and global automotive OEM standards
- Enables faster time-to-market
- PCB-alignment posts for mating headers
- Ensures proper terminal alignment in via-holes of the PCB during assembly
- 0.50mm and 1.20mm terminals developed around NanoMQS and AK (Arbeitskreis) Specifications
- Supports a wide range of low-current signal (4.0A) and Ethernet applications
stAK50h Connector Specifications Chart
stAK50h Connector Applications
1. Automotive Applications
Molex stAK50h connectors are a staple in automotive electronics, ensuring reliable connections for critical systems. They are commonly used in wiring harnesses, control modules, and sensor systems across a wide range of vehicle types. These connectors are engineered to perform in the harsh environments of the automotive industry, such as extreme temperatures, vibration, and exposure to moisture, dust, and chemicals.
2. Comfort Systems
Comfort systems in vehicles include seat positioning, heating and ventilation, air conditioning, and other features designed to enhance the driving experience. Molex stAK50h connectors are ideal for these systems due to their ability to handle power and data signals reliably. They support the intricate wiring needed for electronic seat adjusters, heated seats, climate control systems, and other comfort-related features.
3. Infotainment Systems
The stAK50h connectors play a critical role in infotainment systems, which include audio, video, navigation, and communication technologies. These connectors facilitate the transmission of high-speed data between head units, touchscreens, entertainment modules, and vehicle networking systems. As vehicles become more connected, Molex stAK50h connectors ensure that infotainment systems operate with high performance and stability.
4. Driver Assistance Systems (ADAS)
Advanced Driver Assistance Systems (ADAS) rely on a network of sensors, cameras, and control units to enhance vehicle safety and performance. Molex stAK50h connectors are commonly used to interconnect these components, enabling features like lane departure warnings, adaptive cruise control, parking sensors, and automated driving capabilities. The connectors’ ability to maintain stable connections in high-vibration environments makes them an ideal choice for ADAS applications.
5. Body Electronics
Body electronics encompass a wide range of systems that control the non-powertrain elements of a vehicle. These include electronic controls for windows, doors, lighting, and mirrors. Molex stAK50h connectors ensure secure, reliable connections between control modules, actuators, and sensors, contributing to the smooth operation of body control systems. Their durability and small form factor allow for easy integration into the vehicle's electronic architecture.
6. Safety / Chassis
Safety systems such as airbags, crash sensors, electronic stability control, and anti-lock braking systems (ABS) are critical for vehicle safety. Molex stAK50h connectors are used to ensure the reliable transmission of data and power signals to these safety-critical components. They provide secure, robust connections that withstand the high-stress environments of the vehicle chassis, contributing to both active and passive safety features.
7. In-Vehicle Networking
With the increasing complexity of modern vehicles, in-vehicle networking (IVN) is becoming more crucial. Molex stAK50h connectors are integral to the communication networks that link various electronic control units (ECUs) throughout the vehicle. These connectors support high-speed data transmission, enabling seamless communication between modules for functions such as diagnostics, vehicle management, and infotainment.
8. Commercial Vehicles
Molex stAK50h connectors are also used in commercial vehicle applications, where reliability and durability are paramount. These connectors are found in trucks, buses, and other heavy-duty vehicles, supporting critical systems such as lighting, HVAC, navigation, and telematics. Their rugged design ensures performance even in challenging environments, such as extreme temperatures, dust, and vibration, which are common in commercial vehicles.
9. Interior Electronic Modules
The stAK50h connectors are frequently used in interior electronic modules, which control various in-cabin features, including lighting, HVAC systems, and infotainment interfaces. These connectors provide reliable, high-speed electrical connections that facilitate the smooth operation of the electronics enhancing comfort and convenience for drivers and passengers.
10. Body Electronic Modules
Body electronic modules (BEM) manage various functions related to vehicle comfort and security, such as lighting control, power windows, and central locking systems. Molex stAK50h connectors are ideal for these modules because they support secure connections for low to medium-power applications and allow for compact module designs. Their performance in challenging automotive environments ensures reliable operation over the vehicle’s lifetime.
The Molex stAK50h Connectors are versatile and widely used across a variety of automotive and commercial vehicle applications. From comfort and infotainment systems to safety and driver assistance systems, these connectors play a crucial role in ensuring reliable, high-performance electrical interconnects. Their small form factor, robustness, and ability to withstand harsh conditions make them a go-to solution for body electronics, in-vehicle networking, interior electronic modules, and commercial vehicle applications. While the listed applications represent some of the most common uses, the versatility of the Molex stAK50h connectors means that their application potential is not limited to these areas, and they are well-suited for emerging technologies in the automotive industry.
Support Custom Wire Harness Assembly
- Connector circuits: 12 - 32Pin
- Wire Gauge: 0.13 - 0.35mm², depending on real needs
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type: Fully customizable to your specifications.
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
