TE NG Power Terminals and Connectors, Wiring Harness Assembly
NG Power Terminals and Connectors
The NG Power Terminals and Connectors Series offers high-performance, durable solutions for demanding power distribution in automotive, renewable energy, industrial automation, and telecommunications. Designed to handle extreme currents (up to 500+ amps) with minimal energy loss, the series employs high-conductivity copper alloys and corrosion-resistant platings (tin, silver, or gold) to ensure reliability in harsh environments. Secure connection technologies like screw clamping, spring cages, and crimp/press-fit designs provide vibration-resistant, gas-tight terminations, while modular configurations enable scalable power distribution via busbars or daisy-chaining. These components support cable sizes from 6 mm² to 300 mm² and meet IP67/IP69K sealing, UL, IEC, ISO, and RoHS standards for safety and global compliance. Ideal for electric vehicle batteries, solar inverters, robotics, and data centers, the NG Series combines compact design, tool-free assembly, and TE’s global technical support to optimize efficiency, reduce downtime, and streamline high-density installations.
Applications
- Electric Vehicles (EVs): Battery packs, charging ports, and power electronics.
- Renewable Energy: Solar inverters, wind turbine connections, and energy storage systems.
- Industrial Automation: Motor controllers, robotics, and heavy machinery.
- Data Centers: High-density power distribution units (PDUs).

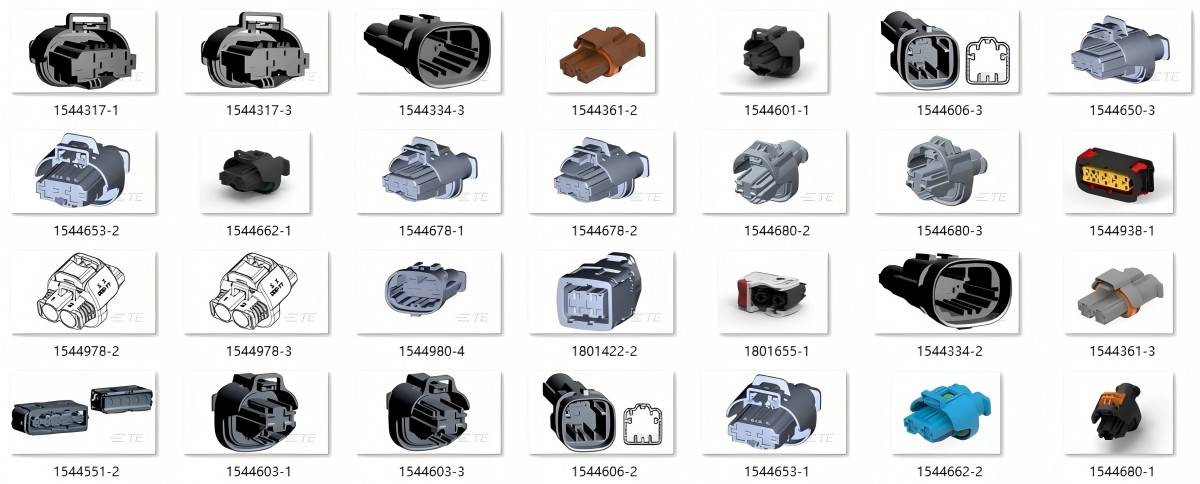

Connector Specifications Chart
Sort by the number of positions.
| P/N | No. of Position | Color | Descriptions | Type | Sealable | Temp Range | Connection | Application | Links |
| 1544603-3 | 1 | Gray | 1W 8MM NG1 SEALED CLIP ASSY GREY | Housing for Female Terminals | Yes | -40 – 100 °C | Wire-to-Wire | https://www.te.com/en/product-1544603-3.html | |
| 1544606-2 | 1 | Blue | TAB HOUSING, 8MM NG1, 1 WAY | Housing for Male Terminals | Yes | -40 – 100 °C | Wire-to-Wire | https://www.te.com/en/product-1544606-2.html | |
| 1544603-1 | 1 | Black | 1W 8MM NG1 SEALED CLIP ASSY BLACK | Housing for Female Terminals | Yes | -40 – 100 °C | Wire-to-Wire | https://www.te.com/en/product-1544603-1.html | |
| 1544680-3 | 1 | Gray | RECPT HSG ASSY, 8MM NG1, 1W, SEALED, CPA | Housing for Female Terminals | Yes | -40 – 125 °C | Wire-to-Board, Wire-to-Wire | Signal | https://www.te.com/en/product-1544680-3.html |
| 1544346-1 | 1 | Black | BOITIER PC 8 MM 1 | Housing for Female Terminals | No | Wire-to-Wire | Power | https://www.te.com/en/product-1544346-1.html | |
| 1544601-2 | 1 | Blue | 1W 8MM NG1 FOR SEALED | Housing for Female Terminals | No | -40 – 100 °C | Wire-to-Wire | https://www.te.com/en/product-1544601-2.html | |
| 1544601-1 | 1 | Black | PC 1V 8MM NG1 ETANCHABLE | Housing for Female Terminals | Yes | -40 – 100 °C | Wire-to-Wire | Power | https://www.te.com/en/product-1544601-1.html |
| 1544606-3 | 1 | Gray | TAB HOUSING, 8MM NG1, 1 WAY | Housing for Male Terminals | Yes | -40 – 100 °C | Wire-to-Wire | https://www.te.com/en/product-1544606-3.html | |
| 1544680-3 | 1 | Gray | RECPT HSG ASSY, 8MM NG1, 1W, SEALED, CPA | Housing for Female Terminals | Yes | -40 – 125 °C | Wire-to-Board, Wire-to-Wire | Signal | https://www.te.com/en/product-1544680-3.html |
| 1544346-1 | 1 | Black | BOITIER PC 8 MM 1 | Housing for Female Terminals | No | Wire-to-Wire | Power | https://www.te.com/en/product-1544346-1.html | |
| 1544653-1 | 2 | Black | PC 2V 8NG1 NOIR | Housing for Female Terminals | No | -40 – 125 °C | Wire-to-Wire | Signal | https://www.te.com/en/product-1544653-1.html |
| 1544662-2 | 2 | Blue | PC 2V NG1 BLEU | Housing for Female Terminals | Yes | -40 – 125 °C | https://www.te.com/en/product-1544662-2.html | ||
| 1544361-3 | 2 | Gray | 2 W 8MM NG2 REC.ASS.GREY | Housing for Female Terminals | Yes | -40 – 125 °C | https://www.te.com/en/product-1544361-3.html | ||
| 1544361-1 | 2 | Black | PC 2V 8 MM WP NG2 | Housing for Female Terminals | Yes | Wire-to-Wire | Power | https://www.te.com/en/product-1544361-1.html | |
| 1544650-1 | 2 | Black | PC 2V 8NG1 NOIR JT | Housing for Female Terminals | Yes | -40 – 125 °C | Wire-to-Wire | https://www.te.com/en/product-1544650-1.html | |
| 1544980-1 | 2 | Black | TAB HOUSING, 8MM NG1 PLUS, 2 WAY | Housing for Male Terminals | Yes | -40 – 125 °C | Wire-to-Wire | Power | https://www.te.com/en/product-1544980-1.html |
| 1544334-2 | 2 | Blue | PL 2V 8MM NG1 MONT | Housing for Female Terminals | No | -40 – 125 °C | Wire-to-Wire | Signal | https://www.te.com/en/product-1544334-2.html |
| 1544653-2 | 2 | Blue | PC 2V 8NG1 BLEU | Housing for Female Terminals | No | -40 – 125 °C | Wire-to-Wire | Signal | https://www.te.com/en/product-1544653-2.html |
| 1544978-2 | 2 | Blue | RECEPT HSG ASSY, 8MM NG1+, 2W, SEALED | Housing for Female Terminals | Yes | -40 – 125 °C | Wire-to-Wire | Power | https://www.te.com/en/product-1544978-2.html |
| 1544662-1 | 2 | Black | PC 2V NG1 NOIR | Housing for Female Terminals | Yes | -40 – 125 °C | Wire-to-Wire | Power | https://www.te.com/en/product-1544662-1.html |
| 1544678-2 | 2 | Blue | SEALED 8NG1 2W HSG WITHOUT SKIRT AND CPA | Housing for Female Terminals | Yes | -40 – 125 °C | Wire-to-Wire | Signal | https://www.te.com/en/product-1544678-2.html |
| 1544334-3 | 2 | Gray | PL 2V 8MM NG1 MONT | Housing for Female Terminals | No | -40 – 125 °C | Wire-to-Wire | Signal | https://www.te.com/en/product-1544334-3.html |
| 1544317-3 | 2 | Gray | PC 2V 8MM WP NG1 G | Housing for Female Terminals | Yes | -40 – 125 °C | Wire-to-Wire | Signal | https://www.te.com/en/product-1544317-3.html |
| 1544980-4 | 2 | Green | TAB HOUSING, 8MM NG1 PLUS, 2 WAY | Housing for Male Terminals | Yes | -40 – 125 °C | Wire-to-Wire | Power | https://www.te.com/en/product-1544980-4.html |
| 1544361-2 | 2 | Brown | 2W 8MM NG2 REC.ASS.BROWN | Housing for Female Terminals | Yes | -40 – 125 °C | https://www.te.com/en/product-1544361-2.html | ||
| 1544978-3 | 2 | Gray | RECEPT HSG ASSY, 8MM NG1+, 2W, SEALED | Housing for Female Terminals | Yes | -40 – 125 °C | Wire-to-Wire | Power | https://www.te.com/en/product-1544978-3.html |
| 1544317-1 | 2 | Black | PC 2V 8MM WP NG1 N | Housing for Female Terminals | Yes | -40 – 125 °C | Wire-to-Wire | Signal | https://www.te.com/en/product-1544317-1.html |
| 1544678-1 | 2 | Black | SEALED 8NG1 2W HSG WITHOUT SKIRT AND CPA | Housing for Female Terminals | Yes | -40 – 125 °C | Wire-to-Board, Wire-to-Wire | Signal | https://www.te.com/en/product-1544678-1.html |
| 1544653-2 | 2 | Blue | PC 2V 8NG1 BLEU | Housing for Female Terminals | No | -40 – 125 °C | Wire-to-Wire | Signal | https://www.te.com/en/product-1544653-2.html |
| 1544978-2 | 2 | Blue | RECEPT HSG ASSY, 8MM NG1+, 2W, SEALED | Housing for Female Terminals | Yes | -40 – 125 °C | Wire-to-Wire | Power | https://www.te.com/en/product-1544978-2.html |
| 1544662-1 | 2 | Black | PC 2V NG1 NOIR | Housing for Female Terminals | Yes | -40 – 125 °C | Wire-to-Wire | Power | https://www.te.com/en/product-1544662-1.html |
| 1544678-2 | 2 | Blue | SEALED 8NG1 2W HSG WITHOUT SKIRT AND CPA | Housing for Female Terminals | Yes | -40 – 125 °C | Wire-to-Wire | Signal | https://www.te.com/en/product-1544678-2.html |
| 1544334-3 | 2 | Gray | PL 2V 8MM NG1 MONT | Housing for Female Terminals | No | -40 – 125 °C | Wire-to-Wire | Signal | https://www.te.com/en/product-1544334-3.html |
| 1544226-1 | 3 | Black | PL 3V 6, 35 MM NG1 | Housing for Male Terminals | No | -40 – 100 °C | Wire-to-Wire | Power | https://www.te.com/en/product-1544226-1.html |
| 1544551-2 | 5 | Black | CONNECTOR 5V 6.35 | Housing for Female Terminals | No | -40 – 85 °C | Wire-to-Wire | https://www.te.com/en/product-1544551-2.html | |
| 1544551-1 | 5 | Black | CONNECTOR 5V 6.35 | Housing for Female Terminals | No | -40 – 85 °C | Wire-to-Wire | https://www.te.com/en/product-1544551-1.html | |
| 1544551-1 | 5 | Black | CONNECTOR 5V 6.35 | Housing for Female Terminals | No | -40 – 85 °C | Wire-to-Wire | https://www.te.com/en/product-1544551-1.html | |
| 1544938-1 | 6 | Black | 6 W HYBRID SEALED HSG | Housing for Female Terminals | Yes | -40 – 100 °C | Wire-to-Board, Wire-to-Wire | https://www.te.com/en/product-1544938-1.html | |
| 1544147-1 | 6 | Black | PORTE CLIPS MONTE | Housing for Female Terminals | Yes | -40 – 85 °C | Wire-to-Wire | Signal | https://www.te.com/en/product-1544147-1.html |
| 1544938-1 | 6 | Black | 6 W HYBRID SEALED HSG | Housing for Female Terminals | Yes | -40 – 100 °C | Wire-to-Board, Wire-to-Wire | https://www.te.com/en/product-1544938-1.html | |
| 1544147-1 | 6 | Black | PORTE CLIPS MONTE | Housing for Female Terminals | Yes | -40 – 85 °C | Wire-to-Wire | Signal | https://www.te.com/en/product-1544147-1.html |
Support Custom Wire Harness Assembly
- Connectors: 1P to 6P.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 50 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
