TE Nano MQS Connector, Wiring Harness Assembly
TE Nano MQS Connector
TE Nano MQS Series Connectors are ultra-compact automotive-grade connectors designed for high-density, reliable signal and low-power applications. Featuring 2–32 positions, these connectors support wire-to-board, wire-to-wire, and wire-to-device configurations with pitch options from 1.8mm to 5.08mm. They offer sealed (IP67/IP69K) and unsealed variants, operating in temperatures from -40°C to +150°C, and comply with automotive standards like LV214 and USCAR-2. Color-coded housings (PA/PBT materials) and keying options prevent mismating, while RoHS/ELV compliance ensures environmental safety. Ideal for airbags, sensors, and infotainment systems, the Nano MQS balances miniaturization with durability in harsh environments.
Features
- Position Range:
- Available in configurations from 2 to 32 positions, supporting diverse connectivity needs.
- Multi-row designs (1–6 rows) for high-density applications.
- Sealing Options:
- Both sealed (IP67/IP69K) and unsealed variants to suit environmental requirements.
- Sealable options ideal for harsh conditions (e.g., moisture, dust).
- Electrical Characteristics:
- Operating voltage up to 500V DC and current ratings up to 30A (varies by contact type).
- Supports signal, power, or hybrid (signal + power) circuits.
- Temperature Resilience:
- Wide operating temperature range: -40°C to +150°C (depending on model).
- Compliant with automotive thermal cycling demands.
- Locking Mechanisms:
- Secure mating with integrated locking, terminal position assurance (TPA), or polarizing keys to prevent mismating.
- Material & Color Coding:
- High-temperature-resistant housings (PA, PBT, etc.).
- Color-coded options (Black, Blue, Gray, Natural, etc.) for easy identification.
- Compliance:
- Meets RoHS and ELV directives for environmental safety.
- Conforms to USCAR-2, LV214, and DIN IEC 512 standards.
Applications
- Automotive Systems: Airbags, sensors, infotainment, lighting, and ECU connections.
- Industrial Equipment: Compact control modules, sensors, and wire-to-board/cable assemblies.

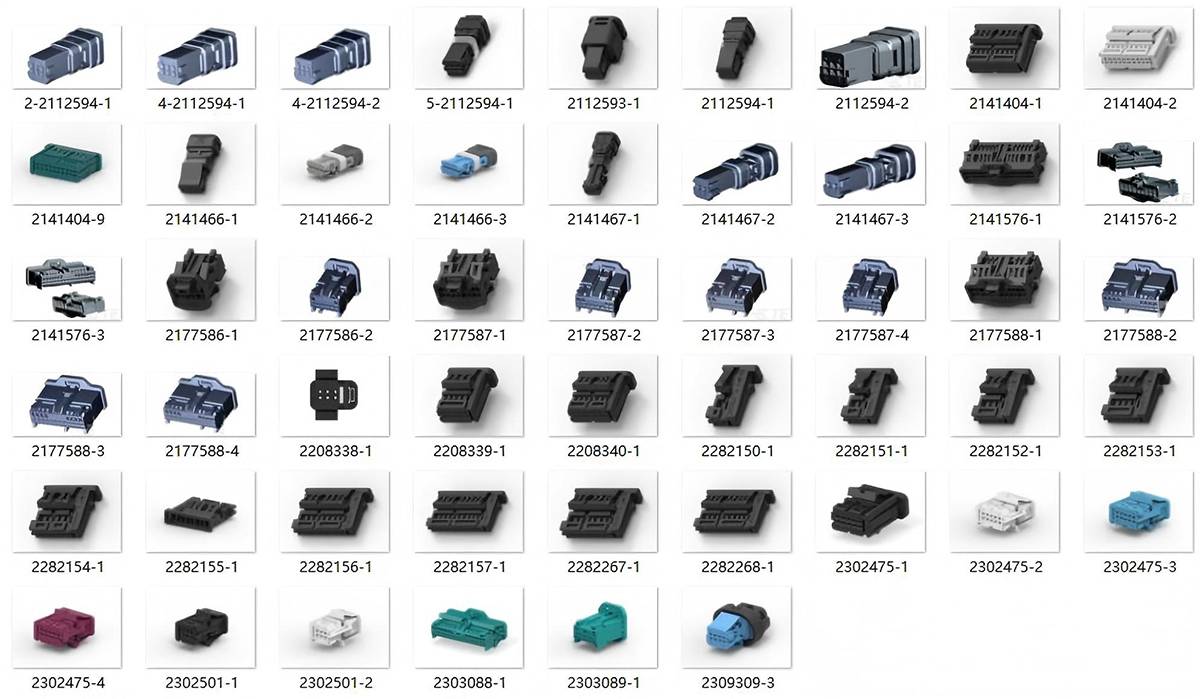

Connector Specifications Chart
Sort by the number of position.
| P/N | No. of Position | Color | Descriptions | Type | Connection | Sealable | Temp Range | Links |
| 2141467-2 | 2 | Gray | 2P, NANOMQS, SOCK HSG, ASSY, SEALED, CODB | Housing for Female Terminals | Wire-to-Board, Wire-to-Device, Wire-to-Wire | Yes | -40 – 105 °C | https://www.te.com/en/product-2141467-2.html |
| 2141467-3 | 2 | Blue | 2P, NANOMQS, SOCK HSG, ASSY, SEALED, CODC | Housing for Female Terminals | Wire-to-Board, Wire-to-Device, Wire-to-Wire | Yes | -40 – 105 °C | https://www.te.com/en/product-2141467-3.html |
| 2282150-1 | 2 | Black | 2P, NANOMQS, REC HSG, CODA | Housing for Female Terminals | Wire-to-Board, Wire-to-Wire | No | https://www.te.com/en/product-2282150-1.html | |
| 2141467-1 | 2 | Black | 2P, NANOMQS, SOCK HSG, ASSY, SEALED, CODA | Housing for Female Terminals | Wire-to-Board, Wire-to-Device, Wire-to-Wire | Yes | -40 – 105 °C | https://www.te.com/en/product-2141467-1.html |
| 2282151-1 | 3 | Black | 3P, NANOMQS, REC HSG, CODA | Housing for Female Terminals | Wire-to-Board, Wire-to-Wire | No | -40 – 105 °C | https://www.te.com/en/product-2282151-1.html |
| 2141466-2 | 4 | Gray | 4P, NANOMQS, REC HSG, SLD, COD B | Housing for Female Terminals | Wire-to-Board, Wire-to-Device, Wire-to-Wire | Yes | -40 – 105 °C | https://www.te.com/en/product-2141466-2.html |
| 2141466-1 | 4 | Black | 4P, NANOMQS, SOCK HSG, ASSY, SEALED, CODA | Housing for Female Terminals | Wire-to-Board, Wire-to-Device, Wire-to-Wire | Yes | -40 – 105 °C | https://www.te.com/en/product-2141466-1.html |
| 2141466-3 | 4 | Blue | 4P, NANOMQS, REC HSG, SLD, COD C | Housing for Female Terminals | Wire-to-Board, Wire-to-Device, Wire-to-Wire | Yes | -40 – 105 °C | https://www.te.com/en/product-2141466-3.html |
| 2282152-1 | 4 | Black | 4P, NANOMQS, REC HSG, CODA | Housing for Female Terminals | Wire-to-Board | No | -40 – 130 °C | https://www.te.com/en/product-2282152-1.html |
| 2282153-1 | 5 | Black | 5P, NANOMQS, REC HSG, CODA | Housing for Female Terminals | Wire-to-Board, Wire-to-Wire | No | -40 – 105 °C | https://www.te.com/en/product-2282153-1.html |
| 2112594-2 | 6 | Gray | 6P, NANOMQS, REC HSG, ASSY, SEALED | Housing for Female Terminals | Wire-to-Board, Wire-to-Device | Yes | https://www.te.com/en/product-2112594-2.html | |
| 5-2112594-1 | 6 | Black | 5(6)P, NANOMQS, REC HSG, ASSY, SEALED | Housing for Female Terminals | Wire-to-Board, Wire-to-Device | Yes | https://www.te.com/en/product-5-2112594-1.html | |
| 4-2112594-1 | 6 | Black | 4(6)P, NANOMQS, REC HSG, ASSY, SEALED | Housing for Female Terminals | Wire-to-Board, Wire-to-Device | Yes | https://www.te.com/en/product-4-2112594-1.html | |
| 2282154-1 | 6 | Black | 6P, NANOMQS, REC HSG, CODA | Housing for Female Terminals | Wire-to-Board, Wire-to-Wire | No | -40 – 105 °C | https://www.te.com/en/product-2282154-1.html |
| 2302501-2 | 6 | Natural | 6P, NANOMQS, REC HSG, COD B | Receptacle | Cable-to-Board, Cable-to-Cable | No | -40 – 105 °C | https://www.te.com/en/product-2302501-2.html |
| 4-2112594-2 | 6 | Gray | 4(6)P, NANOMQS, REC HSG, ASSY, SEALED | Housing for Female Terminals | Wire-to-Board, Wire-to-Device | Yes | https://www.te.com/en/product-4-2112594-2.html | |
| 2208338-1 | 6 | Black | 6P, NANOMQS, REC HSG, CODA | Housing for Female Terminals | Wire-to-Board, Wire-to-Wire | No | -40 – 105 °C | https://www.te.com/en/product-2208338-1.html |
| 2-2112594-1 | 6 | Black | 2(6)P, NANOMQS, REC HSG, ASSY, SEALED | Housing for Female Terminals | Wire-to-Board, Wire-to-Device | Yes | https://www.te.com/en/product-2-2112594-1.html | |
| 2302501-1 | 6 | Black | 6P, NANOMQS, REC HSG, COD A | Receptacle | Cable-to-Board, Cable-to-Cable | No | -40 – 105 °C | https://www.te.com/en/product-2302501-1.html |
| 2112593-1 | 6 | Black | 6P, NANOMQS, REC HSG, ASSY, SEALED | Housing for Female Terminals | Wire-to-Board, Wire-to-Device | Yes | -40 – 120 °C | https://www.te.com/en/product-2112593-1.html |
| 2112594-1 | 6 | Black | 6P, NANOMQS, REC HSG, ASSY, SEALED | Housing for Female Terminals | Wire-to-Board, Wire-to-Device | Yes | https://www.te.com/en/product-2112594-1.html | |
| 2282155-1 | 7 | Black | 7P, NANOMQS, REC HSG, CODA | Housing for Female Terminals | Wire-to-Board, Wire-to-Wire | No | -40 – 105 °C | https://www.te.com/en/product-2282155-1.html |
| 2177586-2 | 8 | Ivory | 8P NANO MQS TL PLUG HOUSING, CODE B | Housing for Female Terminals | Wire-to-Board, Wire-to-Device | No | -40 – 105 °C | https://www.te.com/en/product-2177586-2.html |
| 2282267-1 | 8 | Black | 8P, NANOMQS, REC HSG, CODA | Housing for Female Terminals | Wire-to-Board, Wire-to-Wire | No | -40 – 105 °C | https://www.te.com/en/product-2282267-1.html |
| 2177586-1 | 8 | Black | 8P NANO MQS TL PLUG HOUSING, CODE A | Housing for Female Terminals | Wire-to-Board, Wire-to-Device | No | -40 – 105 °C | https://www.te.com/en/product-2177586-1.html |
| 2309309-3 | 8 | Blue | 8P, NANOMQS, REC HSG ASSY, SLD, COD C | Housing for Female Terminals | Wire-to-Board, Wire-to-Wire | Yes | -40 – 105 °C | https://www.te.com/en/product-2309309-3.html |
| 2303089-1 | 8 | Water Blue | 8P, NANOMQS, REC HSG, UNSLD, COD NEUT | Housing for Female Terminals | Wire-to-Board, Wire-to-Wire | No | -40 – 105 °C | https://www.te.com/en/product-2303089-1.html |
| 2282156-1 | 9 | Black | 9P, NANOMQS, REC HSG, CODA | Housing for Female Terminals | Wire-to-Board, Wire-to-Wire | No | -40 – 105 °C | https://www.te.com/en/product-2282156-1.html |
| 2302475-3 | 10 | Blue | 10P, NANOMQS, REC HSG, COD C | Housing for Female Terminals | Wire-to-Board, Wire-to-Wire | No | https://www.te.com/en/product-2302475-3.html | |
| 2302475-4 | 10 | Violet | 10P, NANOMQS, REC HSG, COD D | Housing for Female Terminals | Wire-to-Board, Wire-to-Wire | No | https://www.te.com/en/product-2302475-4.html | |
| 2302475-2 | 10 | Natural | 10P, NANOMQS, REC HSG, COD B | Housing for Female Terminals | Wire-to-Board, Wire-to-Wire | No | https://www.te.com/en/product-2302475-2.html | |
| 2208339-1 | 10 | Black | 10P, NANOMQS, REC HSG, CODA | Housing for Female Terminals | Wire-to-Board, Wire-to-Wire | No | https://www.te.com/en/product-2208339-1.html | |
| 2282268-1 | 10 | Black | 10P, NANOMQS, REC HSG, CODA | Housing for Female Terminals | Wire-to-Board, Wire-to-Wire | No | -40 – 105 °C | https://www.te.com/en/product-2282268-1.html |
| 2302475-1 | 10 | Black | 10P, NANOMQS, REC HSG, COD A | Housing for Female Terminals | Wire-to-Board, Wire-to-Wire | No | https://www.te.com/en/product-2302475-1.html | |
| 2282157-1 | 11 | Black | 11P, NANOMQS, REC HSG, CODA | Housing for Female Terminals | Wire-to-Board, Wire-to-Wire | No | -40 – 105 °C | https://www.te.com/en/product-2282157-1.html |
| 2177587-3 | 12 | Gray | 12P NANO MQS TL PLUG HOUSING, CODE C | Housing for Female Terminals | Wire-to-Board | No | -40 – 125 °C | https://www.te.com/en/product-2177587-3.html |
| 2177587-1 | 12 | Black | 12P NANO MQS TL PLUG HOUSING, CODE A | Housing for Female Terminals | Wire-to-Board | No | -40 – 125 °C | https://www.te.com/en/product-2177587-1.html |
| 2177587-4 | 12 | Black | 12P NANO MQS TL PLUG HOUSING, CODE D | Housing for Female Terminals | Wire-to-Board | No | -40 – 125 °C | https://www.te.com/en/product-2177587-4.html |
| 2177587-2 | 12 | Beige | 12P NANO MQS TL PLUG HOUSING, CODE B | Housing for Female Terminals | Wire-to-Board | No | -40 – 125 °C | https://www.te.com/en/product-2177587-2.html |
| 2208340-1 | 14 | Black | 14P, NANOMQS, REC HSG, CODA | Housing for Female Terminals | Wire-to-Board, Wire-to-Wire | No | -40 – 105 °C | https://www.te.com/en/product-2208340-1.html |
| 2177588-4 | 20 | Black | 20P NANO MQS TL PLUG HOUSING, CODE D | Housing for Female Terminals | Wire-to-Board, Wire-to-Device | No | -40 – 105 °C | https://www.te.com/en/product-2177588-4.html |
| 2177588-3 | 20 | Gray | 20P NANO MQS TL PLUG HOUSING, CODE C | Housing for Female Terminals | Wire-to-Board, Wire-to-Device | No | -40 – 105 °C | https://www.te.com/en/product-2177588-3.html |
| 2177588-2 | 20 | Beige | 20P NANO MQS TL PLUG HOUSING, CODE B | Housing for Female Terminals | Wire-to-Board, Wire-to-Device | No | -40 – 105 °C | https://www.te.com/en/product-2177588-2.html |
| 2141404-1 | 20 | Black | 20P, NANOMQS, REC HSG, CODE A | Housing for Female Terminals | Wire-to-Board, Wire-to-Device, Wire-to-Wire | No | -40 – 120 °C | https://www.te.com/en/product-2141404-1.html |
| 2177588-1 | 20 | Black | 20P NANO MQS TL PLUG HOUSING, CODE A | Housing for Female Terminals | Wire-to-Board, Wire-to-Device | No | -40 – 105 °C | https://www.te.com/en/product-2177588-1.html |
| 2141404-9 | 20 | Water Blue | 20P, NANOMQS, REC HSG, CODZ | Housing for Female Terminals | Wire-to-Board, Wire-to-Device, Wire-to-Wire | No | -40 – 120 °C | https://www.te.com/en/product-2141404-9.html |
| 2141404-2 | 20 | Natural | 20P, NANOMQS, REC HSG, CODB | Housing for Female Terminals | Wire-to-Board, Wire-to-Device, Wire-to-Wire | No | -40 – 120 °C | https://www.te.com/en/product-2141404-2.html |
| 2141576-2 | 32 | Beige | 32P NANO MQS TL PLUG HOUSING, CODE B | Housing for Female Terminals | Wire-to-Board, Wire-to-Device | No | -40 – 105 °C | https://www.te.com/en/product-2141576-2.html |
| 2141576-1 | 32 | Black | 32P NANO MQS TL PLUG HOUSING, CODE A | Housing for Female Terminals | Wire-to-Board, Wire-to-Device | No | -40 – 105 °C | https://www.te.com/en/product-2141576-1.html |
| 2303088-1 | 32 | Water Blue | 32P, NANOMQS, REC HSG, UNSLD, COD NEUT | Housing for Female Terminals | Wire-to-Board, Wire-to-Wire | No | -40 – 105 °C | https://www.te.com/en/product-2303088-1.html |
| 2141576-3 | 32 | Gray | 32P NANO MQS TL PLUG HOUSING, CODE C | Housing for Female Terminals | Wire-to-Board, Wire-to-Device | No | -40 – 105 °C | https://www.te.com/en/product-2141576-3.html |

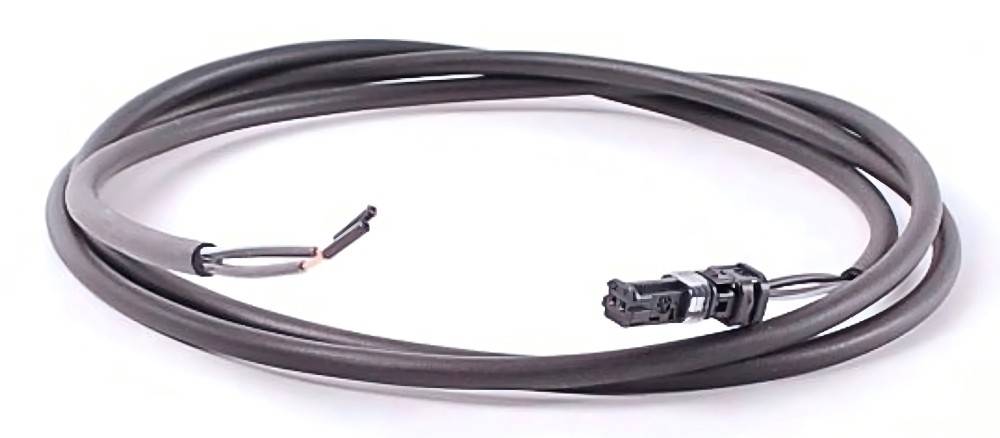

Support Custom Wire Harness Assembly
- Connectors: 2P to 32P.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 50 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
