TE PowerTube HVP-HD 1400 Connector, Custom Cable Harness Assembly

TE PowerTube HVP-HD 1400 Connector



The TE PowerTube HVP-HD 1400 Connector is a high-performance, robust solution designed for high-current and high-voltage applications in industrial and commercial vehicles. It supports demanding environments with features such as IP67/IP6K9K protection, enhanced safety mechanisms, and compatibility with large wire sizes (70 mm² to 150 mm²). This connector series is part of the PowerTube product family, offering secure and durable connections for electric vehicles (EVs), heavy machinery, and power distribution systems.



TE PowerTube HVP-HD 1400 Connector





Features



  • ​​High Power Capacity​​
    • Continuous current rating: ​​580 A​​
    • Voltage rating: ​​1000 V AC/DC​​
    • Suitable for high-power e-motors, battery packs, and inverters.
  • ​​Enhanced Safety & Reliability
    • ​​HVIL (High Voltage Interlock Loop)​​: Ensures safe disconnection under load.
    • ​​CPA (Connector Position Assurance)​​: Prevents accidental unmating.
    • ​​IP67/IP6K9K Protection​​: Resists dust, water ingress, and high-pressure cleaning.
  • ​​Durable Construction​​
    • Operating temperature range: ​​-40°C to +140°C​​ (-40°F to +284°F).
    • Housing material: ​​PA GF​​ (Polyamide Glass-Filled) for engine-level vibration resistance.
    • 360° shielding for ​​high EMC performance​​, minimizing electromagnetic interference.
  • ​​Flexibility & Ease of Use​​
    • Modular design simplifies assembly and reduces installation time.
    • Supports ​​multiple keying codes (A-M)​​ to prevent mismating.
    • Cable exit angle: ​​180°​​ for versatile routing.





Applications​​



  • ​​Electric & Hybrid Vehicles​​: High-power e-motors, battery packs, and on-board chargers.
  • ​​Industrial Equipment​​: Construction machinery, agricultural vehicles, and marine applications.
  • ​​Power Distribution​​: High-capacity systems in public transport (e.g., buses) and heavy-duty trucks.

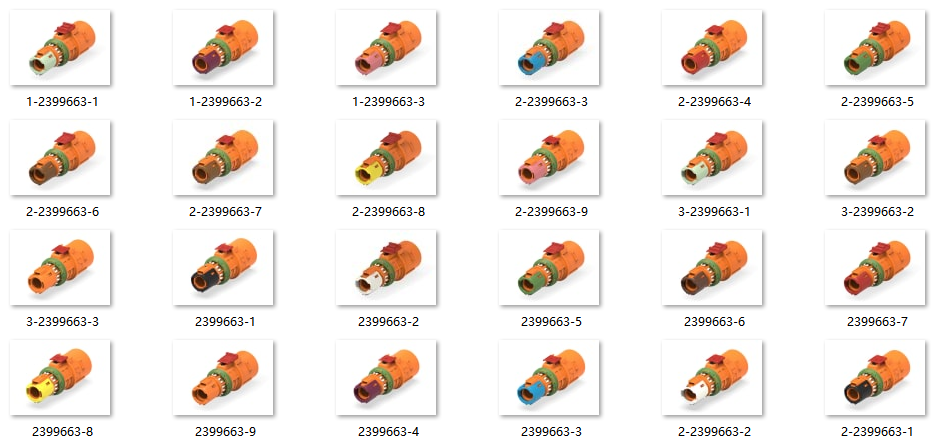

Connector Lists



P/N Descriptions Links
1-2399663-2 Pre-ASSY, Finger Access, Code L https://www.te.com/en/product-1-2399663-2.html
2399663-9 Pre-ASSY, Finger Access, Code J https://www.te.com/en/product-2399663-9.html
3-2399663-3 Pre-ASSY, Tool Access, Code M https://www.te.com/en/product-3-2399663-3.html
3-2399663-1 Pre-ASSY, Tool Access, Code K https://www.te.com/en/product-3-2399663-1.html
3-2399663-2 Pre-ASSY, Tool Access, Code L https://www.te.com/en/product-3-2399663-2.html
2-2399663-4 Pre-ASSY, Tool Access, Code D https://www.te.com/en/product-2-2399663-4.html
1-2399663-1 Pre-ASSY, Finger Access, Code K https://www.te.com/en/product-1-2399663-1.html
1-2399663-3 Pre-ASSY, Finger Access, Code M https://www.te.com/en/product-1-2399663-3.html
2-2399663-7 Pre-ASSY, Tool Access, Code G https://www.te.com/en/product-2-2399663-7.html
2-2399663-9 Pre-ASSY, Tool Access, Code J https://www.te.com/en/product-2-2399663-9.html
2-2399663-5 Pre-ASSY, Tool Access, Code E https://www.te.com/en/product-2-2399663-5.html
2-2399663-3 Pre-ASSY, Tool Access, Code C https://www.te.com/en/product-2-2399663-3.html
2-2399663-6 Pre-ASSY, Tool Access, Code F https://www.te.com/en/product-2-2399663-6.html
2-2399663-8 Pre-ASSY, Tool Access, Code H https://www.te.com/en/product-2-2399663-8.html
2-2399663-1 Pre-ASSY, Tool Access, Code A https://www.te.com/en/product-2-2399663-1.html
2399663-1 Pre-ASSY, Finger Access, Code A https://www.te.com/en/product-2399663-1.html
2399663-2 Pre-ASSY, Finger Access, Code B https://www.te.com/en/product-2399663-2.html
2399663-3 Pre-ASSY, Finger Access, Code C https://www.te.com/en/product-2399663-3.html
2399663-6 Pre-ASSY, Finger Access, Code F https://www.te.com/en/product-2399663-6.html
2399663-4 Pre-ASSY, Finger Access, Code D https://www.te.com/en/product-2399663-4.html
2399663-5 Pre-ASSY, Finger Access, Code E https://www.te.com/en/product-2399663-5.html
2399663-7 Pre-ASSY, Finger Access, Code G https://www.te.com/en/product-2399663-7.html
2399663-8 Pre-ASSY, Finger Access, Code H https://www.te.com/en/product-2399663-8.html
2-2399663-2 Pre-ASSY, Tool Access, Code B https://www.te.com/en/product-2-2399663-2.html





Support Custom Cable Harness Assembly



  • Connectors: 1P.
  • Wire Gauge:
    • depends on your needs
    • recommend by us
  • Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
  • Wire Length: Fully customizable to your specifications.
  • Wiring Diagram: Tailor-made to meet your project needs.
  • Custom type:
    • Send drawing to customize.
    • Send a sample to customize.
    • Tell us as many details as possible to customize.
  • Minimum Order: 20 pieces per order.



PowerTube HVP-HD 1400 Cable Assembly





Customize Your Wire Harness



Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
